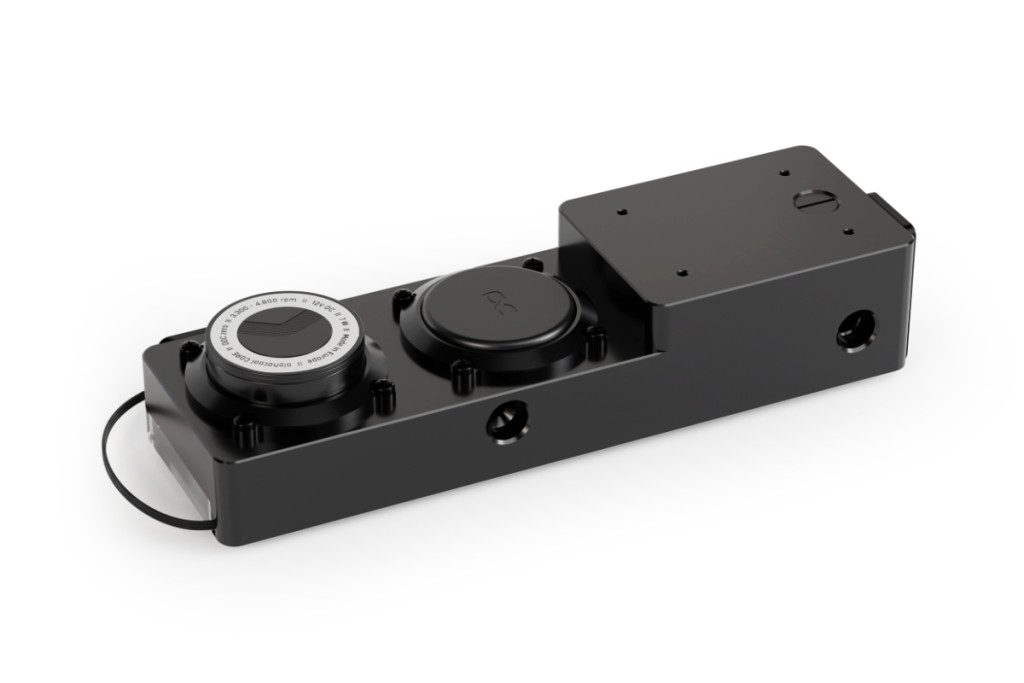

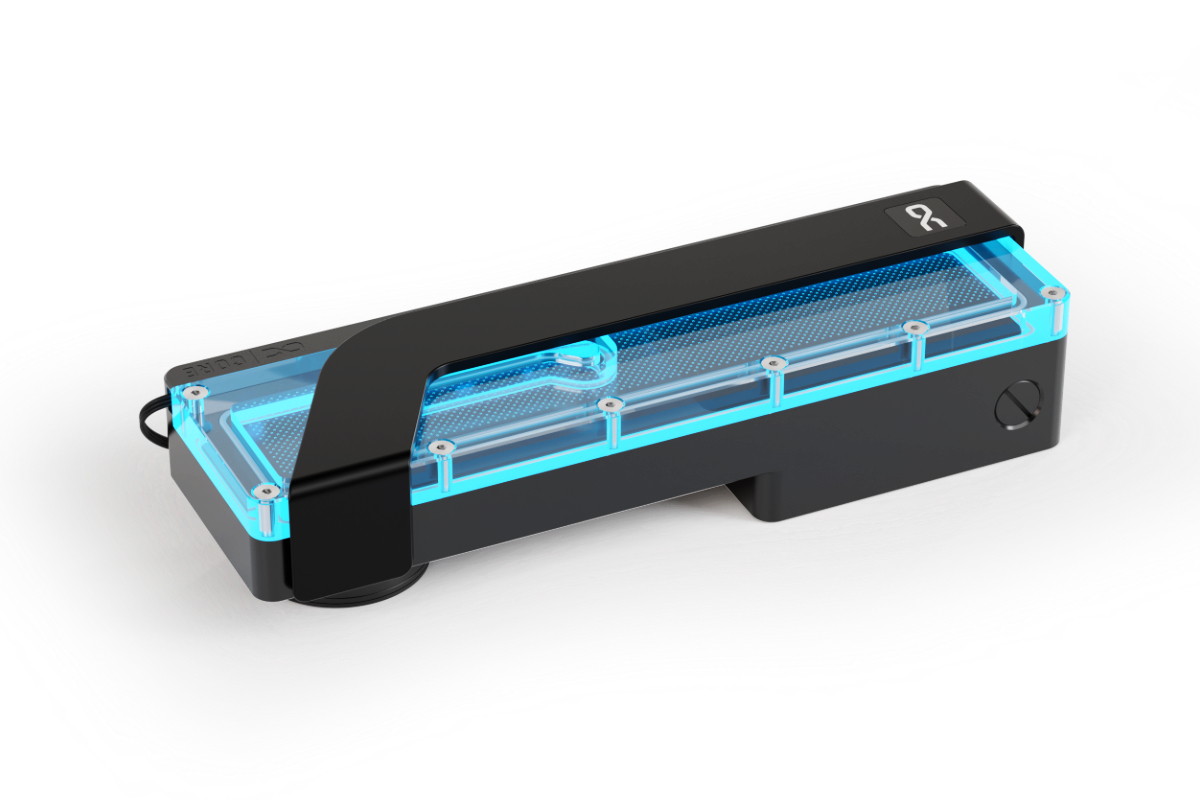

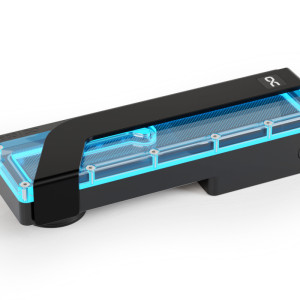

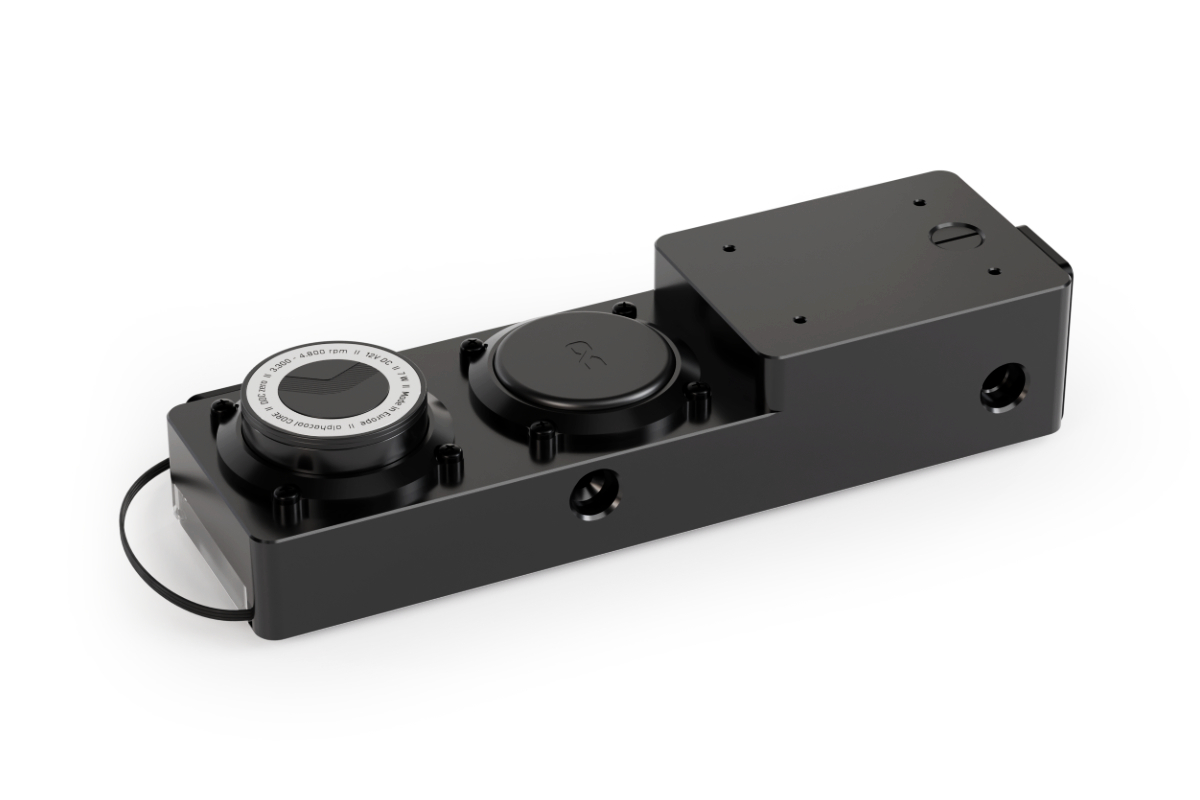

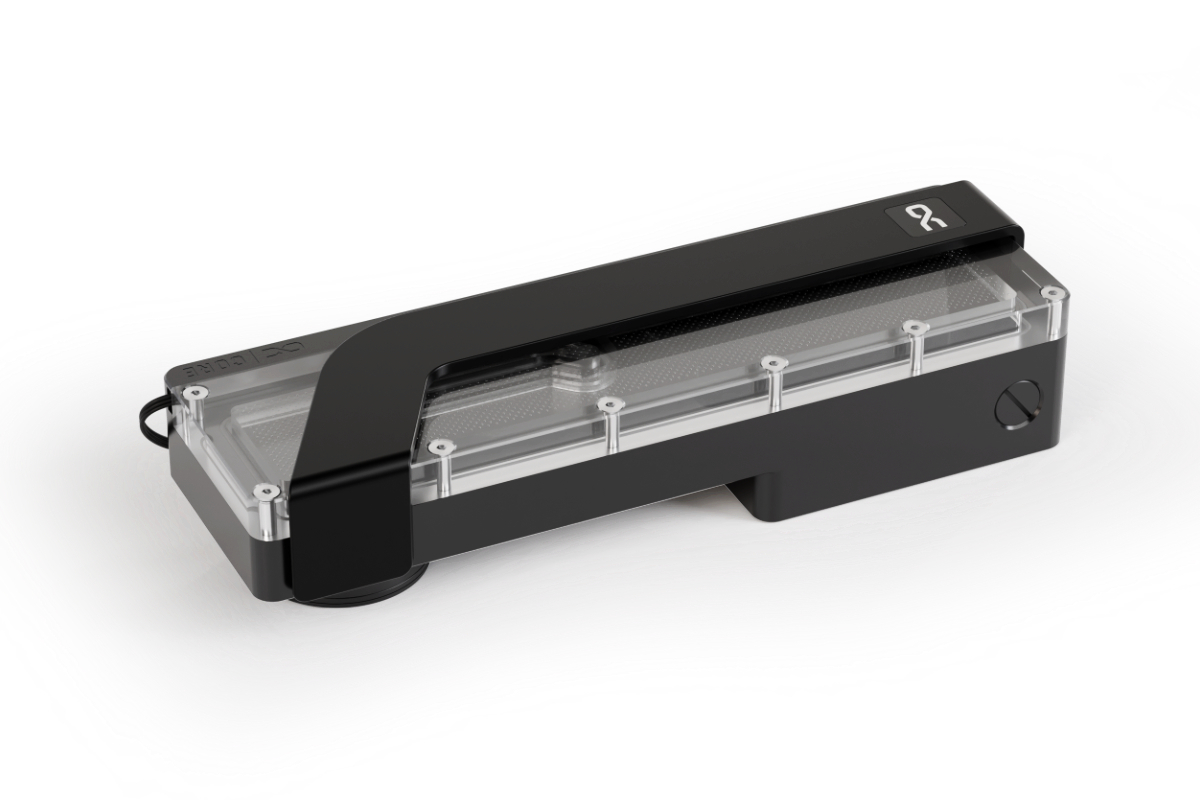

The Alphacool Core DDCzero Flat Reservoirs combine a compact reservoir with the powerful Alphacool DDCzero PWM pump. Thanks to their flat design, they are particularly well suited for small-form-factor systems. The series is available in various sizes, allowing flexibility Adaptation to different case layouts and cooling concepts.
The Alphacool Core DDCzero Flat Reservoirs combine a compact reservoir with the powerful Alphacool DDCzero PWM pump. Thanks to their flat design, they are particularly well suited for small-form-factor systems. The series is available in various sizes, allowing flexibility Adaptation to different case layouts and cooling concepts.
The Alphacool Core DDCzero Flat Reservoirs combine a compact reservoir with the powerful Alphacool DDCzero PWM pump. Thanks to their flat design, they are particularly well suited for small-form-factor systems. The series is available in various sizes, allowing flexibility Adaptation to different case layouts and cooling concepts.
The Alphacool Core DDCzero Flat Reservoirs combine a compact reservoir with the powerful Alphacool DDCzero PWM pump. Thanks to their flat design, they are particularly well suited for small-form-factor systems. The series is available in various sizes, allowing flexibility Adaptation to different case layouts and cooling concepts.
Features:
– Acrylic reservoir
– Includes Core DDCzero PWM pump
– Second DDCzero pump mounting slot

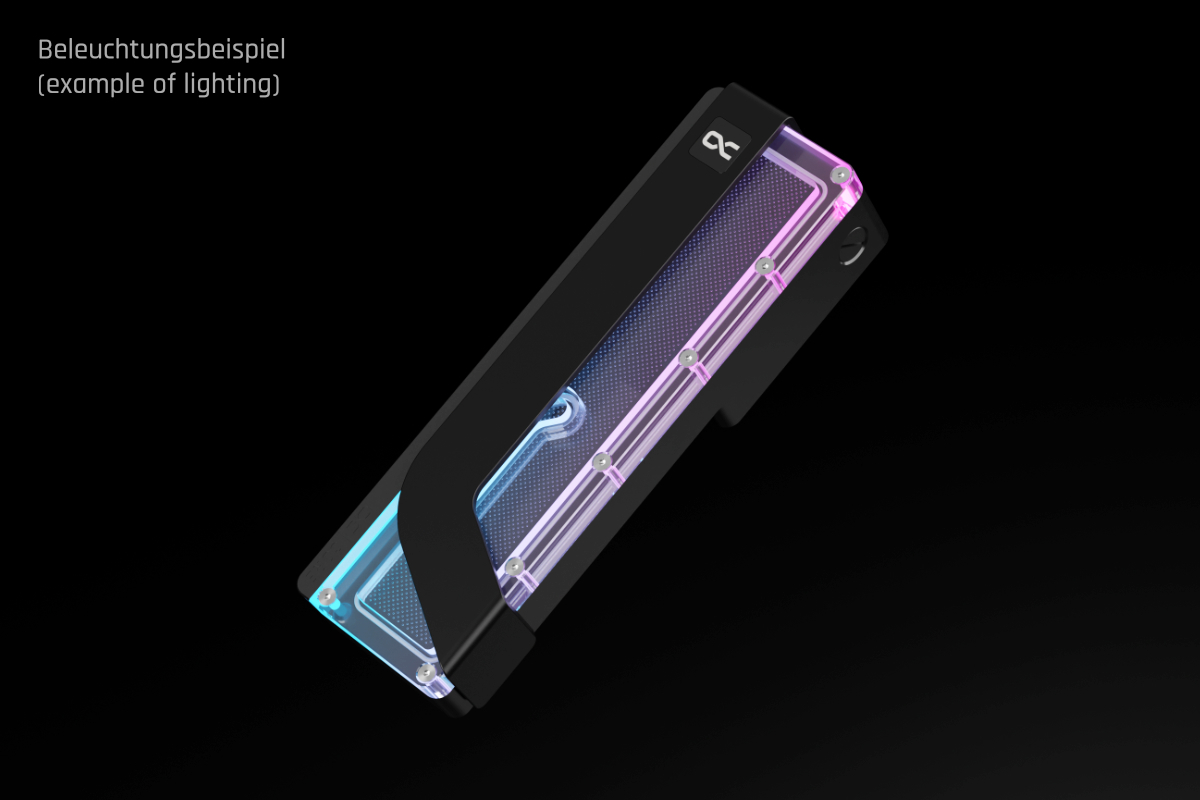

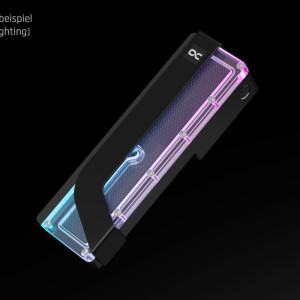

– Stunning digital aRGB lighting
Scope of delivery
– 1x Alphacool Core 2x DDCzero Flat Reservoir 200
– 1x Alphacool Core DDCzero 3300-4800rpm PWM Pump
– 1x Alphacool Core universal bracket set for DDCzero reservoir
– 3x G1/4 Plug
– 1x Plug Tool
– 1x aRGB Adapter
Technical Specifications
| General | |
|---|---|
| Dimensions (L × W × H) | 203 × 63 × 44.1 mm |
| Maximum Filling Volume | 76 ml |
| Maximum Pumps Supported | 2 |
| Materials | |
| Base Material | Acetal |
| Top Material | Acrylic |
| Thread Material | Acetal |
| Connections | |
| Number of Ports | 5 |
| Thread Type | G1/4″ |
| Maximum Torque | |
| G1/4 Thread | 1.00 Nm |
| M2 | 0.13 Nm |
| M2.5 | 0.27 Nm |
| M3 | 0.48 Nm |
| M4 | 1.12 Nm |
| Operating Conditions | |
| Operating Temperature | -20°C to 60°C (Recommended: 20°C) |
| Maximum Tested Pressure | 2.0 bar |
| Recommended Working Pressure | 0.0 – 1.0 bar |
| RGB Lighting | |
| LED Configuration | 12 LEDs (182.6 mm strip) |
| LED Voltage | 5V DC |
| Current | 0.06 A |
| Power Consumption | 3.6 W |
Technical Specifications
| General | |
|---|---|
| Colour | Black |
| Power Consumption | 6.2 W |
| Weight | 50 g |
| Dimensions | |
| Size (Diameter × Height) | 46 × 24.2 mm |
| Pump Performance | |
| Speed Range | 3000 – 4800 RPM (PWM Controlled) |
| Maximum Pump Head | 1.4 m |
| Maximum Flow Rate | 220 L/h |
| Power & Connectivity | |
| Connector | 4-Pin PWM |
| Cable Length | 48 cm |
| Operating Voltage | 8–13V DC (14W, IP32 Rated) |
| Starting Voltage | 12V DC |
| Operating Conditions | |
| Maximum Working Temperature | 60°C |
| Materials | |
| Pump Housing | Plastic |
| Pump Cover | Plastic |
| Shaft Material | Ceramic |
