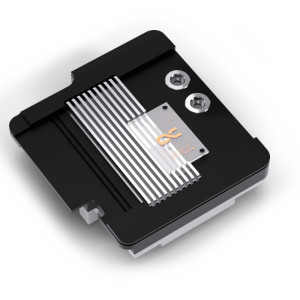

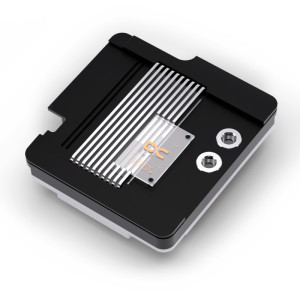

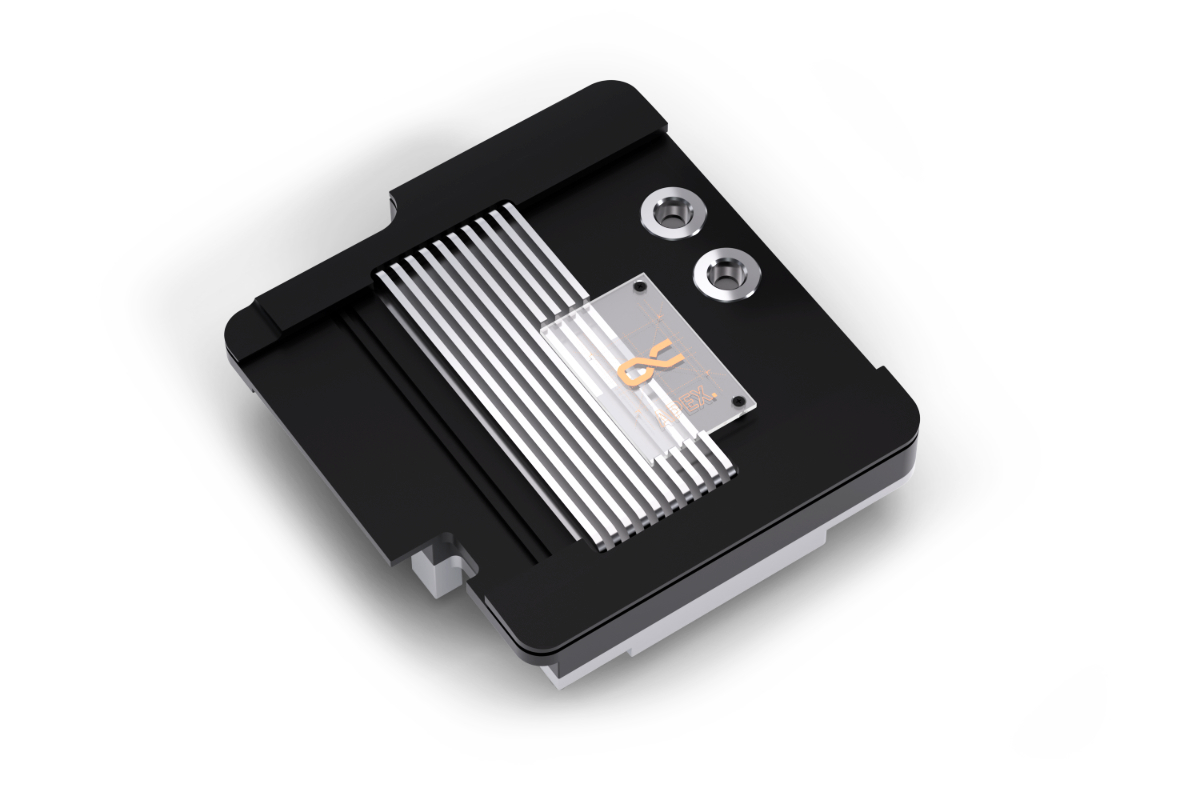

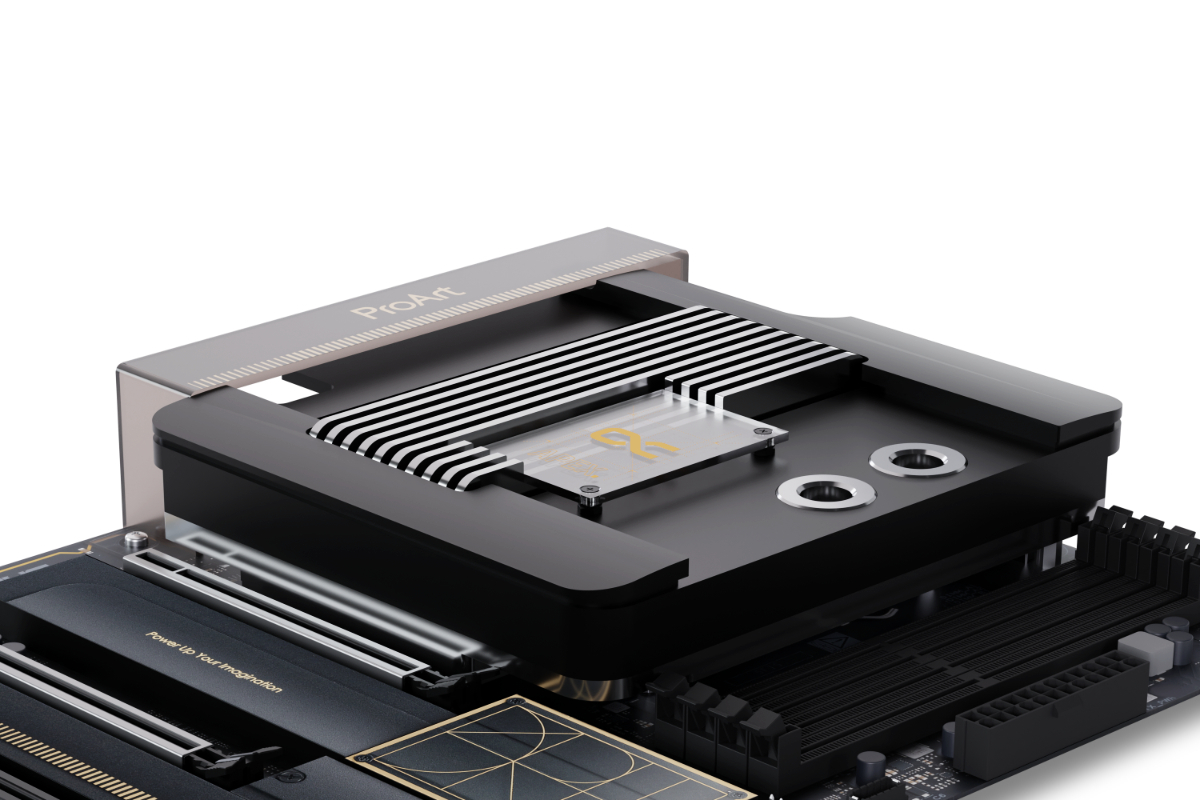

Apex Monoblock – High-End Cooling for Creator Workstations
The Apex Monoblock is the perfect cooling solution for maximum performance with an elegant design tailored to your motherboard. Specifically developed for the ASUS ProArt X870E-Creator WiFi, it reliably cools the CPU, voltage regulators (VRMs), and the M.2 NVMe SSD located below the socket.
Apex Monoblock – High-End Cooling for Creator Workstations
The Apex Monoblock is the perfect cooling solution for maximum performance with an elegant design tailored to your motherboard. Specifically developed for the ASUS ProArt X870E-Creator WiFi, it reliably cools the CPU, voltage regulators (VRMs), and the M.2 NVMe SSD located below the socket.
Apex Monoblock – High-End Cooling for Creator Workstations
The Apex Monoblock is the perfect cooling solution for maximum performance with an elegant design tailored to your motherboard. Specifically developed for the ASUS ProArt X870E-Creator WiFi, it reliably cools the CPU, voltage regulators (VRMs), and the M.2 NVMe SSD located below the socket.
Advanced Engineering for Professionals
Featuring an offset base plate, the coolant flow hits the AM5 CPU’s thermal hotspot directly. Combined with the 3D Jetplate 2.0 and cross-slot structure, this design generates high water pressure for exceptionally efficient heat dissipation – ideal for intensive tasks like video editing, 3D rendering, or continuous operation.

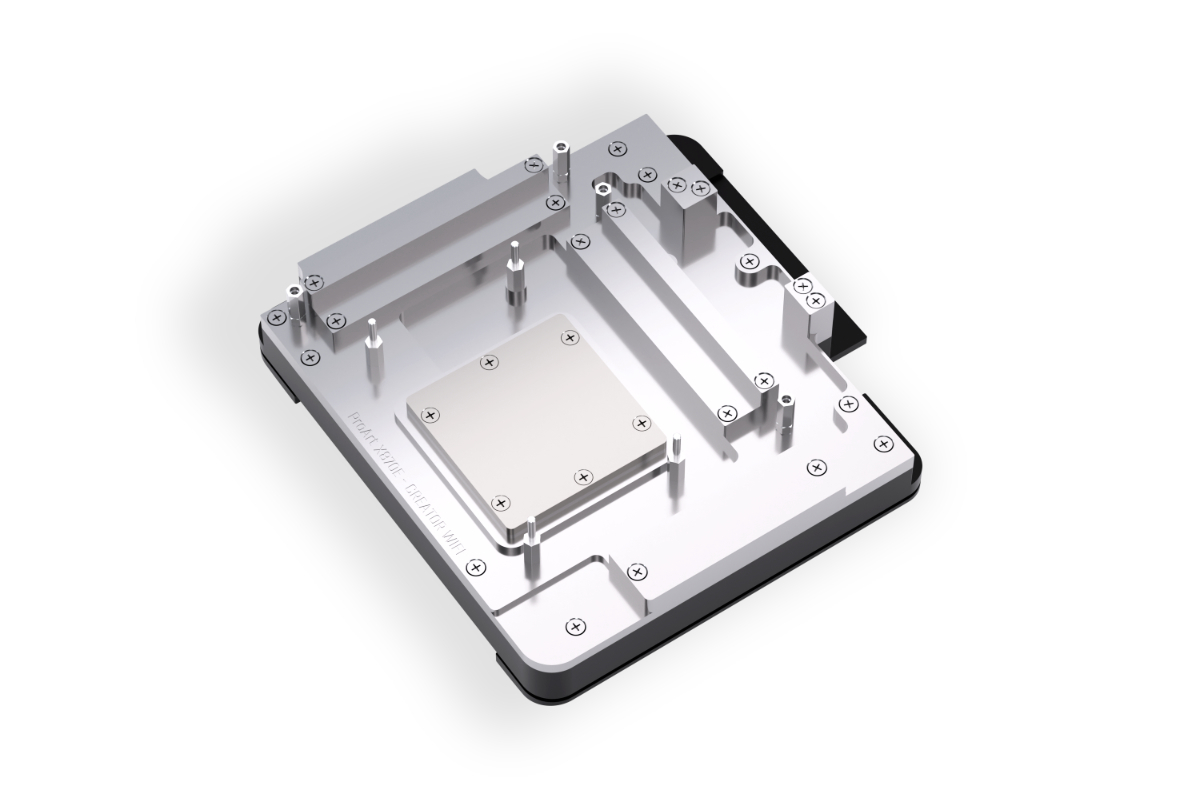

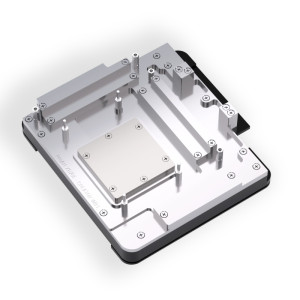

– Solid Chrome-plated Copper: Milled from a solid block of Cu-HCP copper for superior thermal conductivity and a premium finish.

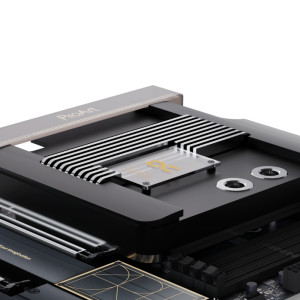

– Seamless Integration: Designed to complement the ProArt aesthetic. The original I/O cover remains fully intact, preserving the motherboard’s characteristic professional look.

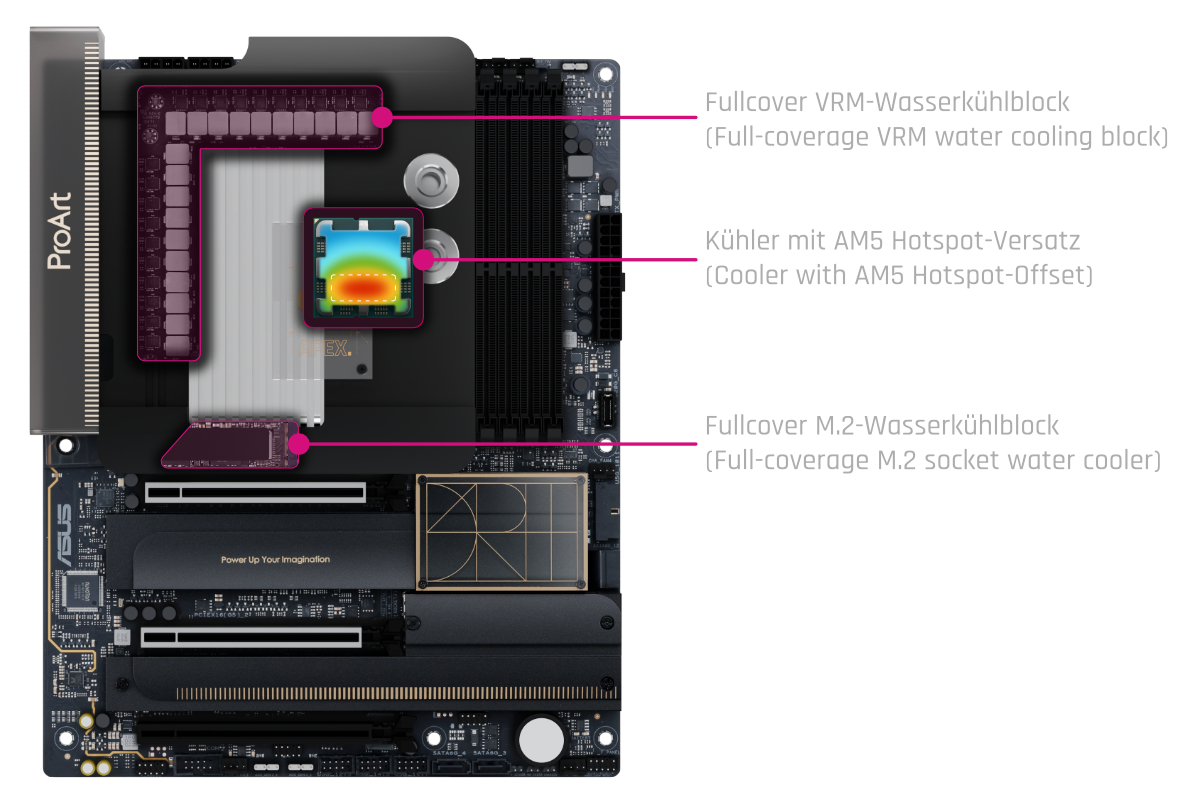

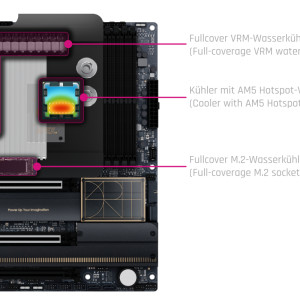

– Total Component Cooling: Active liquid cooling for the CPU, VRMs, and primary M.2 SSD to ensure maximum stability under load.
– Brass Terminal: High-quality G1/4″ brass terminal for long-lasting durability and a secure fit within your custom loop.
Technical Specifications:
| Compatibility | |
| Supported Motherboard | ASUS ProArt X870E-Creator WiFi (AM5) |
| Materials & Construction | |
| Base Material | Chrome-plated Copper |
| Cover Material | Aluminum |
| Threads | 2x G 1/4″ Brass Threads |
| Dimensions | |
| Size | 174.40 x 164.50 x 51.50 mm |
| Cooling Technology | |
| Cooling Design | Jet Engine / 3D Jetplate 2.0 |
| Warranty | |
| Manufacturer Warranty | 5 Years |
