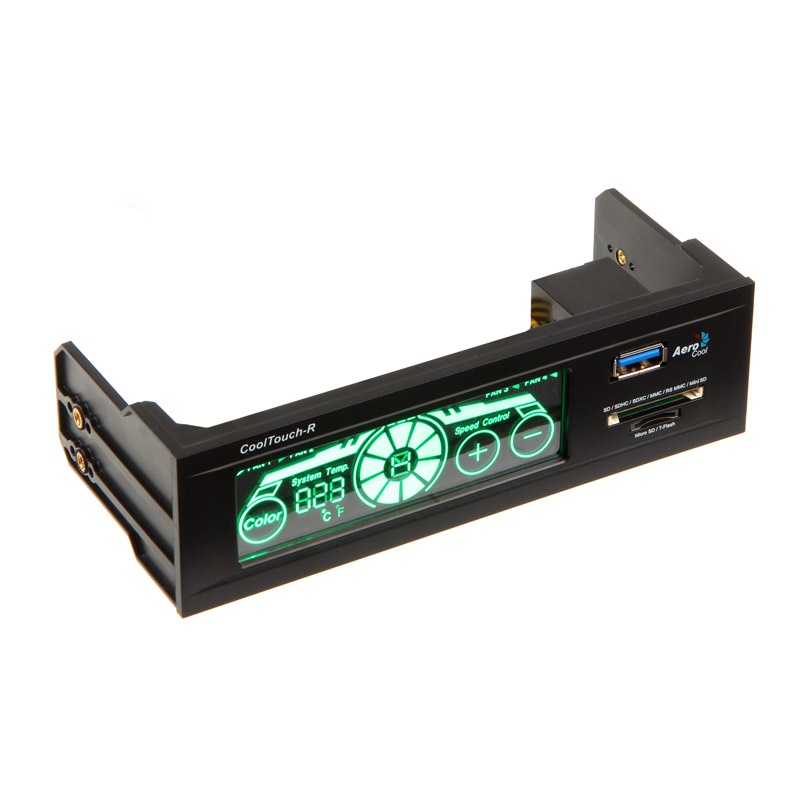

The black panel for a free 5.25- inch chassis slot called Cool Touch R connects again superb functionality with top look! This is a fan controller with integrated USB 3.0 port , card reader and four channels that can withstand 20 Watts load and thus also regulate big fan models or more combined by Distributors fans in the speed.
It can be chosen individually for each channel between low , medium or high level of speed and the connected fans can even bring a complete stop . Outstanding versatility allows Aerocool at the fan choice by addition to 3 -pin standard fans and 4-pin PWM fans ( then in the non- PWM mode ) and even the very rare 4-pin molex fans are connected.

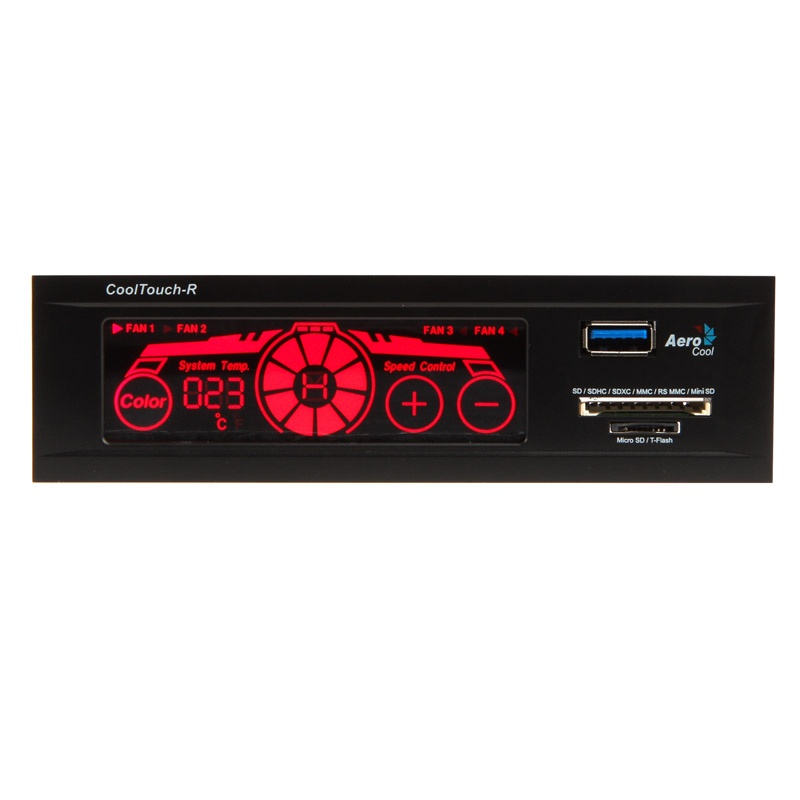

And here are by no means listen to the diversity of the CoolTouch -R! The controller sets on a touch screen, which can be illuminated in one of seven possible colors desire – or entirely without backlight. With an optimal viewing angle of about 30 degrees to 45 degrees angle from above , the CoolTouch -E is best installed in a housing standing on the floor Tower .
But the Aerocool fan controller on the desk is good applicability, as early as 15 degrees is a sufficiently good readability of the LCD display ensured. The power supply of Aercool CoolTouch -R is a 4 -pin Molex connector which is supplied from the power supply with energy.
On top of that offers the CoolTouch -R a temperature display in degrees Fahrenheit or where a sensor is attached by means of the enclosed stickers at the measurement point . With an external USB 3.0 port and a card reader for the major flash card formats ( including micro SDXC ) the connectivity of the entire PC is increased.
Technical details :
Dimensions: 148.6 x 42.5 x 65 mm (W x H x D)
Weight: about 185 g
Compatibility: 1x 5.25- inch bay
Color: Black
Display Dimensions: 85 x 25 mm (W x H)
Viewing angle: optimally between 15 – 45 degrees
Background color : on / off , 7 ( Red, Green, Yellow, Blue , Purple , Light Blue , White)
Temperature display: degrees C / degrees F
Fan Channels: 4 ( max 20 W per channel . )
Speed-control range : on / off, 3 levels (low , medium, high )
Card Reader: ( Mini-/Micro- ) SD, ( Mini-/Micro- ) SDHC ( Mini-/Micro- ) SDXC, MMC , RS- MMC , MMC Plus , MMC MOBILE , T-Flash
connections:
1x 4-pin Molex (for power supply)
4x 3 -pin or 4- pin fan
4x 4 -pin Molex fan
1x USB 2.0 header for Card Reader
1x USB 3.0 header for USB 3.0 port
1x temperature sensor
