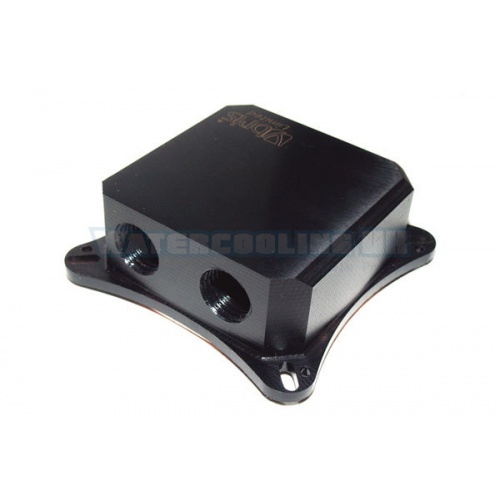

Ybris BLACK SUN GPU Acetal

The material used for the top is the black delrin, processing and obtained by CNC milling.
The logo is made with the CO2 laser, the spectacular level of incision, looking at a magnification of the writing you realize precision.

The top also includes a clamping system for universal compatibility back is guaranteed with all medium and high-end cards in circulation.

The waterblock is compatible with the latest ATI 6xxx series
The base is made of electrolytic copper C110, the shape is octagonal and the contact area is adjusted to WB pre-assembled to make sure the maximum possible flatness.

The waterblock is symmetrical, has no input / output default and this facilitates the assembly.
All the wb, complete with screws, it weighs only 110g.

Main technical specifications

Base:
Material: Copper Electrolytic by 55x55x2.5 mm
Internal structure: Microalettature
Internal work spaces via CNC milling
External Finishing: polishing, scrubbing, grinding finish.
Closing by stainless steel screws and corrosion
Manual polishing

Cover:
Black Delrin top quality 55x55x23, 8 mm
external size including bracket 66.8 x66, 8mm
Internal work carried out by CNC milling.
Outside processing by CNC milling and polishing the final appearance.
Co2 Laser-engraved logo Ybris

Fixing the base with four stainless steel screws more o-ring seal.
Drilling fittings: 1/4G

Final weight:
WB Delrin Top finished with bracket: 110 g

COMPATIBILITY :
ATI also all of the latest generation (58xx 57xx 6xxx)
Nvidia 7xxx 8xxx series from 260 to 275 – 280 – 285 – GTX4xx

Please note: The waterblock is supplied without fittings therefore must be purchased separately.
