XFX XTS Series Fanless, fully-modular, 80Plus Platinum - 460 Watt

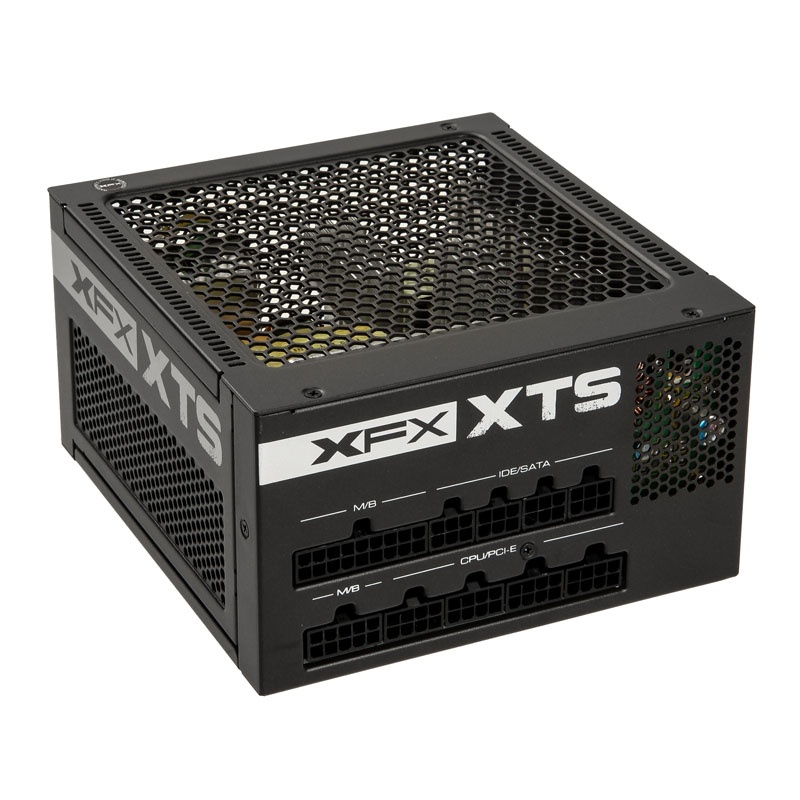

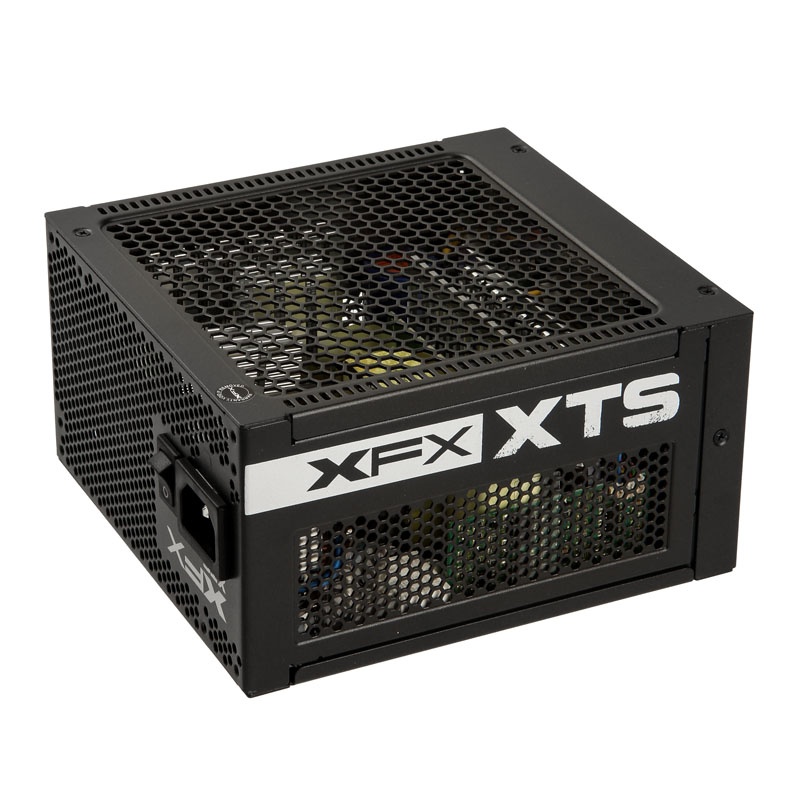

The largely classical design of the power supply is broken up by a lot of mesh grille for ventilation, because the XTS is a fanless power supply with passive cooler. Thus, the power supply does not make the slightest noise and is especially suitable for silent system. The mesh grid is unobtrusive and imposes itself with a uniform black finish unnecessarily in the foreground, but complements the rest of the design of the power supply.

Like all Power Supplies from XFX also sets the XTS Series with 460 watts on a central 12-V line. A so-called single-rail design offers significant advantages especially with the use of several powerful components. Share in a multi-rail system, for example, CPU and graphics card, a line whose load limit is exceeded, the system is fast and fast unstable, although other lines are not yet exhausted.

In a single line all components rely jointly on this, so that individual components can also relate significantly higher current strengths – especially when overclocked hardware a decisive Stability Plus. In addition, the port is no longer a problem as they are usually assigned to a specific line. In Multi-Rail PSUs must be scrutinized by contrast, which PCIe connector is used to avoid overloading individual lines.

With a current of 38 amps on the 12 volt rail is a strong average 460-watt power supply. In addition, can be output to 12 volts 456 watts with almost the entire performance. The connection Arsenal features a 20 + 4-pin and one 4 + 4-pin and one 8-pin for the motherboard and the CPU, one 6 + 2-pin PCIe connector for the graphics card as well as six SATA, six 4-pin Molex and a floppy connector for peripherals.

80 Plus Platinum is the name of the new high title of nobility, which is only power supply units that reach at least 90 or 92 or 89% efficiency at 20, 50 and 100% utilization. The XFX XTS Series Fanless 450 W has received the coveted seal and is extremely energieefizient.

Technical Details:

     Dimensions: 150 x 86 x 140 mm (WxHxD)
     Efficiency: 90%, 80Plus Platinum certification
     Active PFC (0.99)
     Form Factor: ATX12V 2.2 / EPS12V 2.91
     Power: 460 W
     + 3.3V: 20 A
     + 5V: 20 A
     3.3V + 5V: 100 W
     + 12V: 38 A (456 W)
     -12V: 0.5 A (6 W)
     + 5VSB: 2.5 A (12.5 W)
     Connector (modular):
     1x 20 + 4-pin
     1x 4 + 4-Pin (ATX12V)
     1x 8-Pin (EPS12V)
     1x 6 + 2-pin PCIe
     6x SATA
     6x 4-pin Molex
     1x Floppy
     Warranty: 5 years
