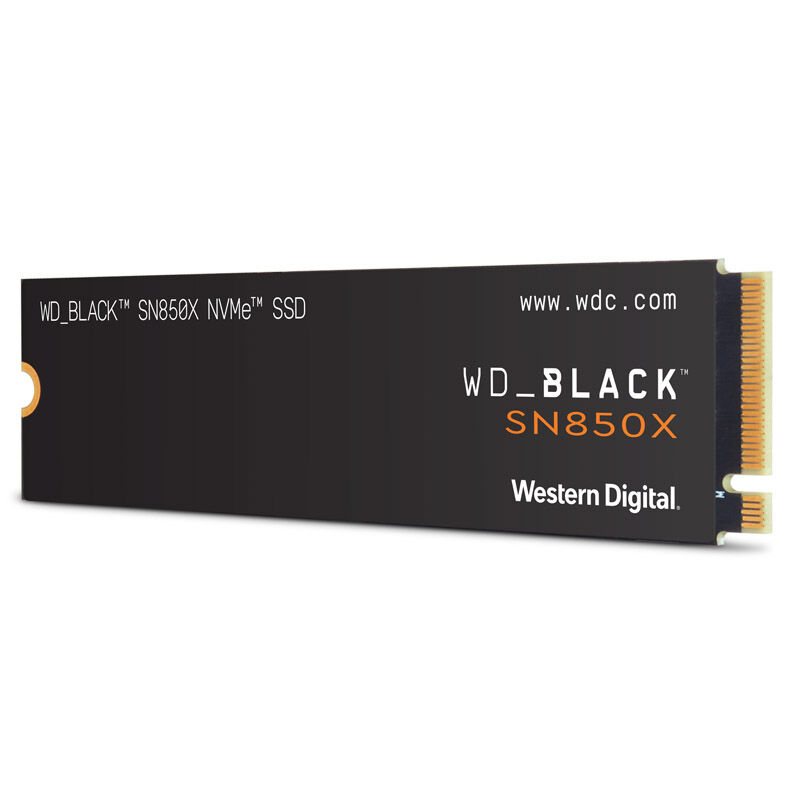

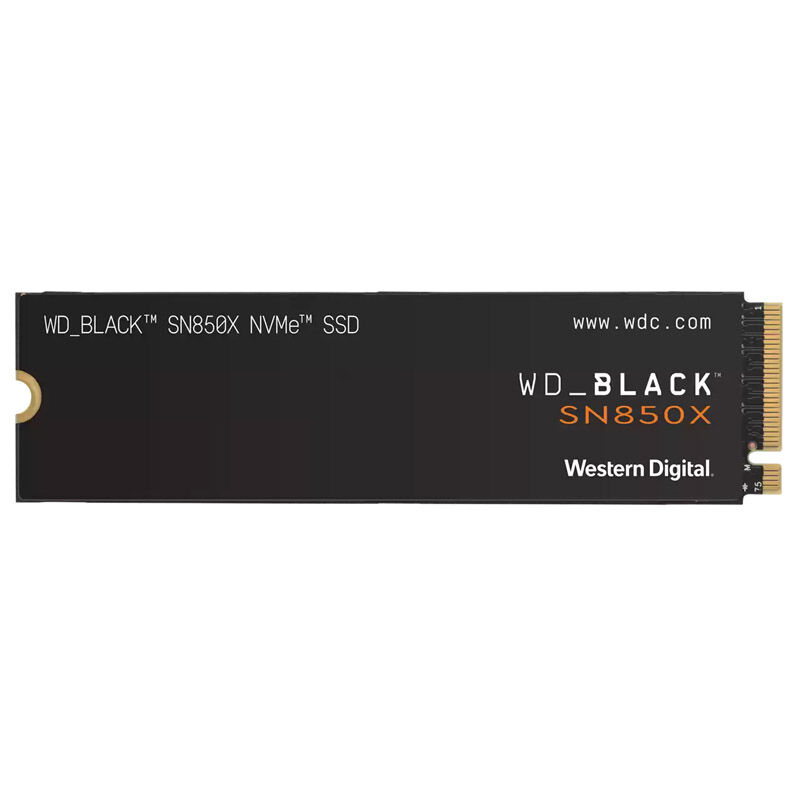

Western Digital Black SN850X NVMe M.2 SSD, PCIe 4.0 M.2 Type 2280 - 1TB

– High quality 3D NAND TLC Flash
– Western Digital controller with 1GB DD4 cache
– 7,300MB/s read and 6,300MB/s write
– 800,000 / 1,100,000 IOPS Random Read / Write
– Compact M.2 format (2280)

WD Black SN850X: High-performance NVMe SSD with 1 terabyte of storage space

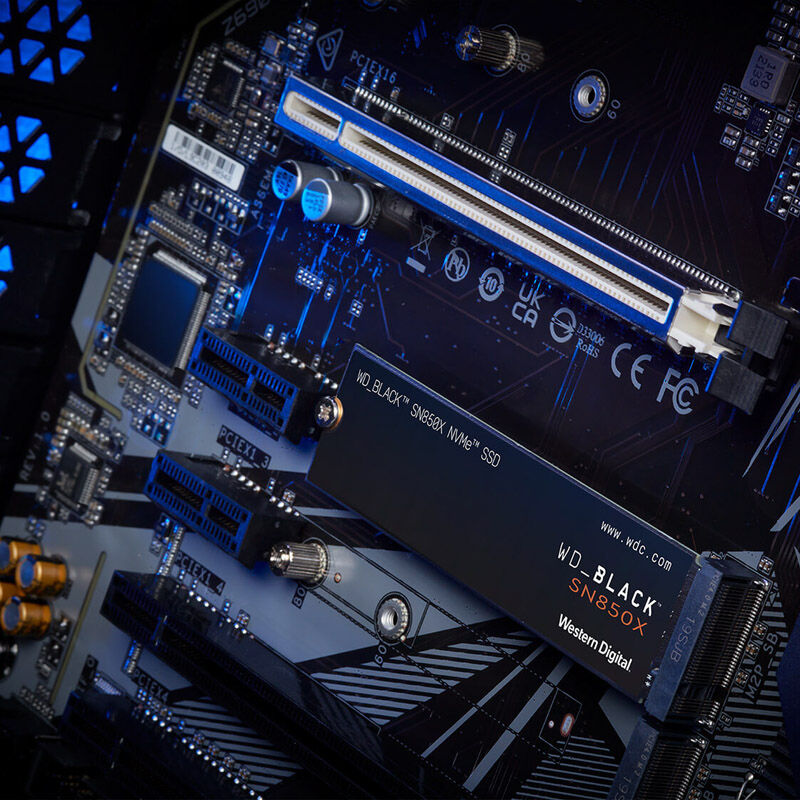

The Western Digital Black SN850X NVMe SSD is a particularly small M.2 SSD. It is installed in the M.2 slot of the same name and addressed via the NVMe interface and connected via four PCI Express 4.0 lanes. The 1 TB Western Digital Black SN850X NVMe SSD achieves extremely high read and write rates of 7,300 and 6,300 MB/s respectively.

This is also thanks to the 3D NAND TLC flash with 112 layers and the in-house controller from Western Digital, including a 1 GB DDR4 cache. The excellent performance is all the more impressive in view of the small ultrabook or tablet-compatible size of the drive, after all, the Western Digital Black SN850X NVMe SSD is just under 8 cm long and 2.34 cm wide. However, a free M.2 NVMe connection must be available on the device for use. You should ask the manufacturer about compatibility before purchasing.

The user can activate the gaming mode via the software interface WD SSD Dashboard. Then the performance is optimized by completely disabling the power saving feature of the SSD. The software can be obtained free of charge from the manufacturers website.

Technical details:
– Dimensions: 23.4 x 8.8 x 80 mm (W x H x D)
– Weight: about 7.5g
– Format: 2280
– Capacity: 1TB
– Controller: Western Digital Black G2
– Cache: 1GB DDR4
– NAND: 3DTLC
– Connection: M.2 (PCIe 4.0 x4, NVMe 1.4)
– Perfomance:
– Read: max. 7,300 MB/s
– Write: Max 6,300 MB/s
– IOPS (4KB Random Read): Max 800,000
– IOPS (4KB Random Write): Max 1,100,000
– Average life expectancy: 600 TBW
– Application temperature: 0 to 85 degreesC
– Compatibility: PC, Mac
– Manufacturers guarantee: 5 years
