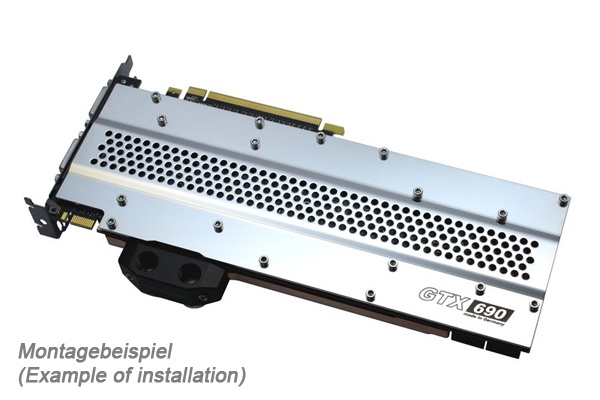

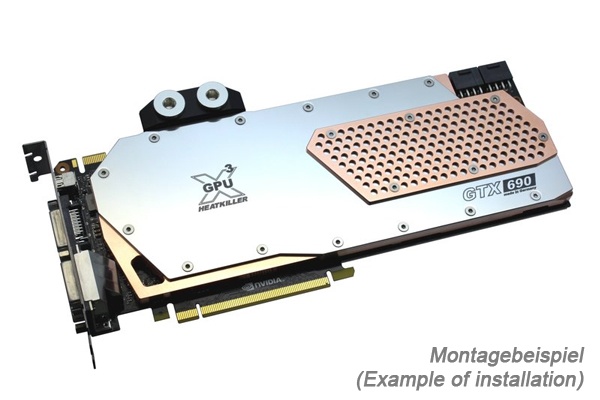

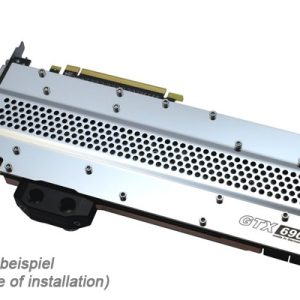

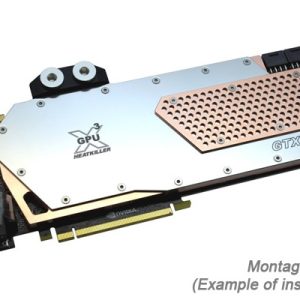

Watercool HEATKILLER GPU-X - GTX 690 Hole Edition

Its unique design helps the KILLER HEAT GPU-X ³ GTX 690 to außergewöhlichen services. A cooling performance that moves on the current high-end CPU cooler, a flat design and quality materials are the features of the new GPU-X ³ series.

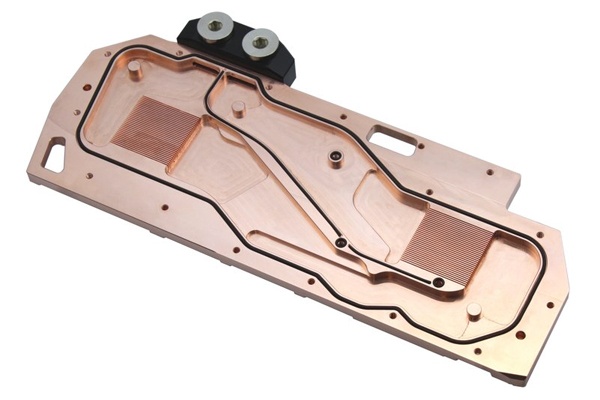

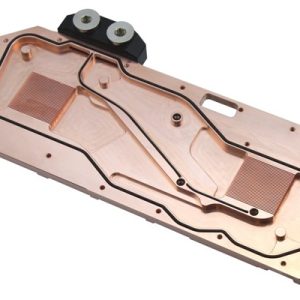

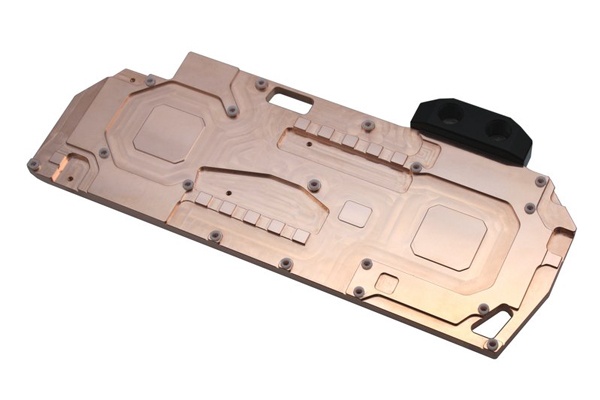

The water flowing through part consists entirely of high-purity electrolytic copper. Besides two GPUs also Rambausteine and voltage regulators are cooled. In the area of GPU a particularly fine micro structure was built. Together with a small residual soil strength optimum cooling performance is achieved. In all relevant areas insulating spacers were inserted. These make for easy installation of the cooler.

The upper part of the radiator is protected by a high quality clear coat against tarnishing.
Order to keep the flow resistance as well as the total weight of small, all of the channels are designed large volume. Present on both sides by the threaded connection of the manifold block a variety of possibilities for the integration are provided in the cooling circuit.

For use in SLI systems optimized Dual and Triple SLI adapters are available.
For ease of installation, all supplied thermal pads are pre-cut.
The Hole Edition comes with a perforated cover made of copper.

Specifications:
Material: Electrolytic copper, stainless steel, POM
Dimensions: (LxWxH) 262.0 x 118.0 x 11.5 mm
Weight: 1200g
Connection: 4x G ¼ in. (DIN ISO 228-1)
Pressure tested: 5 bar
Compatible with Nvidia GTX 690 (reference design)

Scope of supply:
1x HEATKILLER GPU-X ³ GTX 690 Hole Edition
1x mounting hardware / instructions
