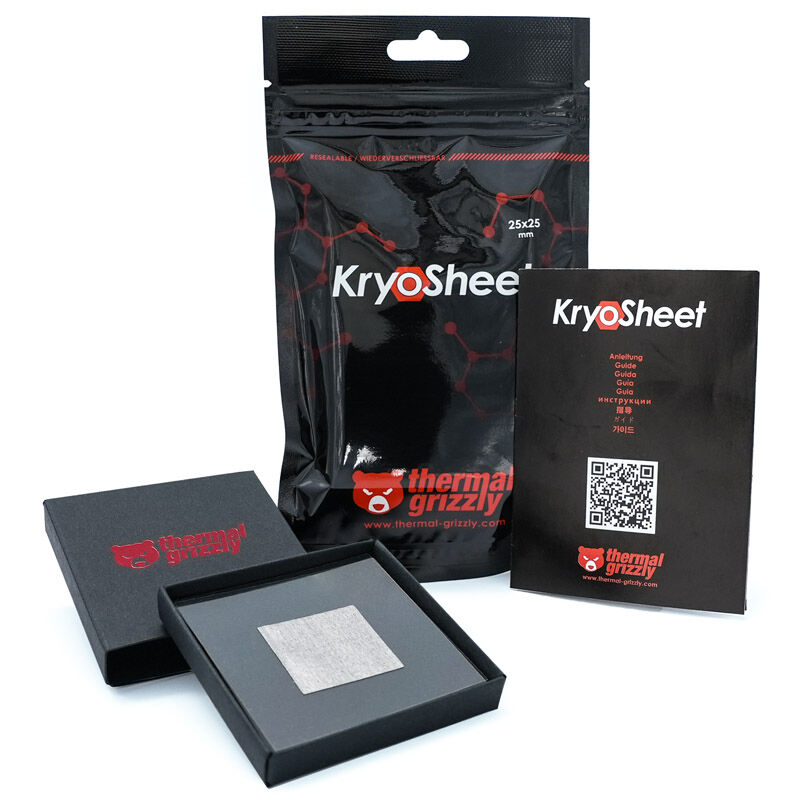

Thermal Grizzly KryoSheet Thermal Pad - 25 x 25mm

– Simple application
– Consistently high performance
– Extreme longevity
– Attention: Electrically conductive!
– High Performance Cooling Solutions – Made in Germany

Thermal Grizzly is introducing a new product, KryoSheet, which is part of the companys advertised High Performance Cooling Solutions. The graphene thermal pads of the Thermal Grizzly KryoSheet series can be used as an excellent alternative for thermal compounds from the higher performance segment. Similar to the Carbonaut pads, they have an adaptable surface with very high thermal conductivity.

Compared to Carbonaut pads, KryoSheet offers a significantly higher thermal conductivity as a high-end product. This increased thermal conductivity is based not only on the choice of material, but on the innovative manufacturing process. KryoSheet contains no liquid components and is therefore not subject to the usual aging that is the case with traditional thermal grease. Drying out is not possible.

What makes KryoSheet so special?
The KryoSheet Graphene Pads feature a Z-direction stacked molecular structure. This optimized structure enables excellent and constant thermal conductivity. A specially developed manufacturing process is responsible for this, in which the hexagonal crystal structure of the graphite is broken up along the basal plane in order to be able to exploit the anisotropy of the thermal conductivity of the graphite. As a side effect of this complex manufacturing process, however, the electrical conductivity is also increased and the stability of the KryoSheet pads is affected, so that the pads are only to be used according to the instructions!

Due to the optimized thermal conductivity of KryoSheet compared to Carbonaut, the focus of the graphene pads is on enthusiast products in the end customer segment and on industrial applications. Examples for the use of KryoSheet are the refurbishing of used graphics cards and notebooks/laptops.

For whom is the KryoSheet worthwhile?
The easy application and longevity of the KryoSheet pads are plus points here. The long durability of the pads means that they are maintenance-free. In addition to applications in industry, for example when building servers, this is also an advantage for domestic PC construction or in the OEM sector. Since the pads do not have to be replaced at regular intervals like thermal paste, there is no need for time-consuming maintenance.

The pads should be purchased in a size slightly larger than the area to be covered. In the case of an Intel desktop CPU (socket 115x, 1200) with a heat spreader (IHS) size of 32 x 32 mm, the KryoSheet should be selected with a size of 33 x 33 mm. After cleaning the contact surface (CPU, CPU cooler, GPU, GPU cooler), the KryoSheet is simply positioned on the processor or graphics chip to be cooled before the cooler is mounted.

Danger! KryoSheet graphene pads are electrically conductive and must not come into contact with electrical components!
