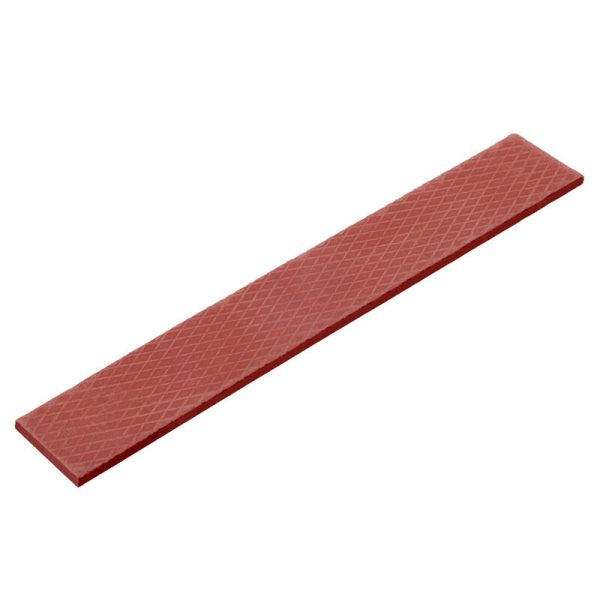

The Thermal Grizzly Minus Pad Extreme is an excellent choice for applications where thermal paste is not an option due to its unwieldy application.
- SKU: ZUWA-232
- MPN: TG-MPE-120-20-30-R
- EAN: 4260711990458
Kapton Insulation Sheet Black Edition is a polyamide film that can be used at high temperatures up to 260 degrees Celsius and serves as an assembly aid for electrically conductive thermal interface materials (TIM).

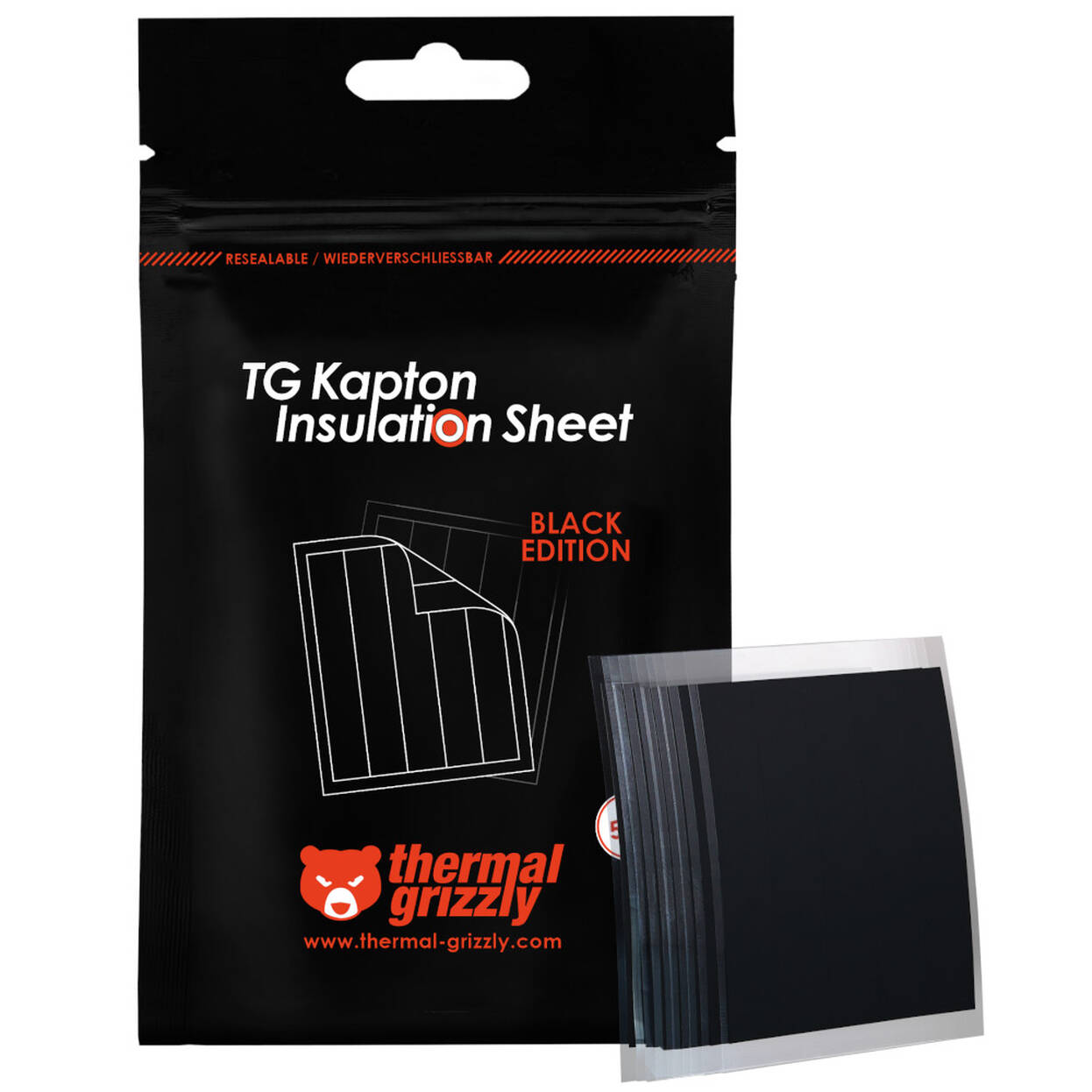

Thermal Grizzly Kapton Insulation Sheet, 10 x 60mm - 50 pieces, black
Kapton Insulation Sheet Black Edition is a polyamide film that can be used at high temperatures up to 260 degrees Celsius and serves as an assembly aid for electrically conductive thermal interface materials (TIM).
Kapton Insulation Sheet Black Edition is a polyamide film that can be used at high temperatures up to 260 degrees Celsius and serves as an assembly aid for electrically conductive thermal interface materials (TIM).
Earn 5 Points
We price match UK retailers. Try It Now!
- SKU: ZUWA-378
- MPN: TG-KIS-B-10-60-50
- EAN: 4260711992223
- Warranty: 12 Months
Details
Kapton Insulation Sheet Black Edition is a polyamide film that can be used at high temperatures up to 260 degrees Celsius and serves as an assembly aid for electrically conductive thermal interface materials (TIM).
Black Edition: Thinner, stronger, and ideal for precise masking

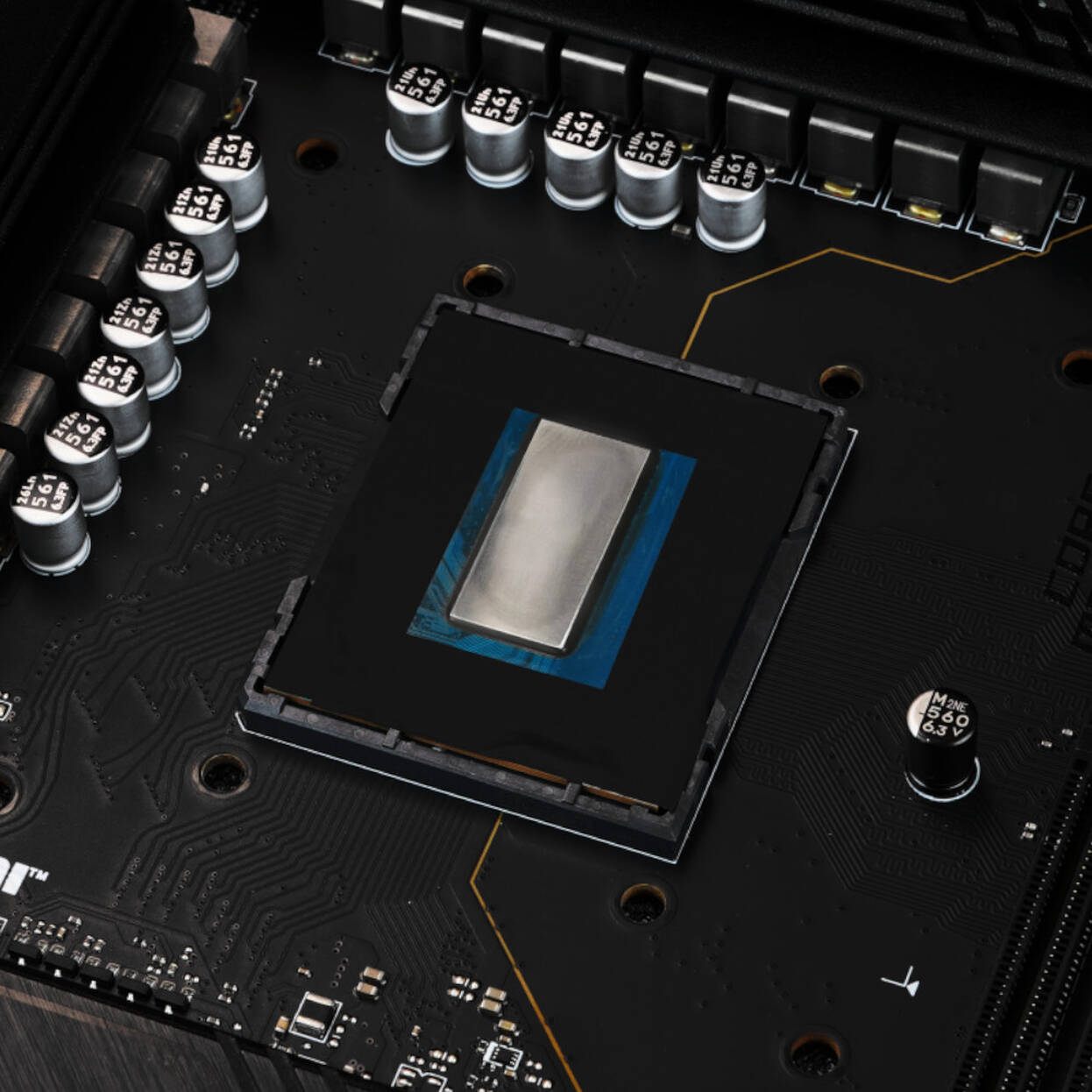

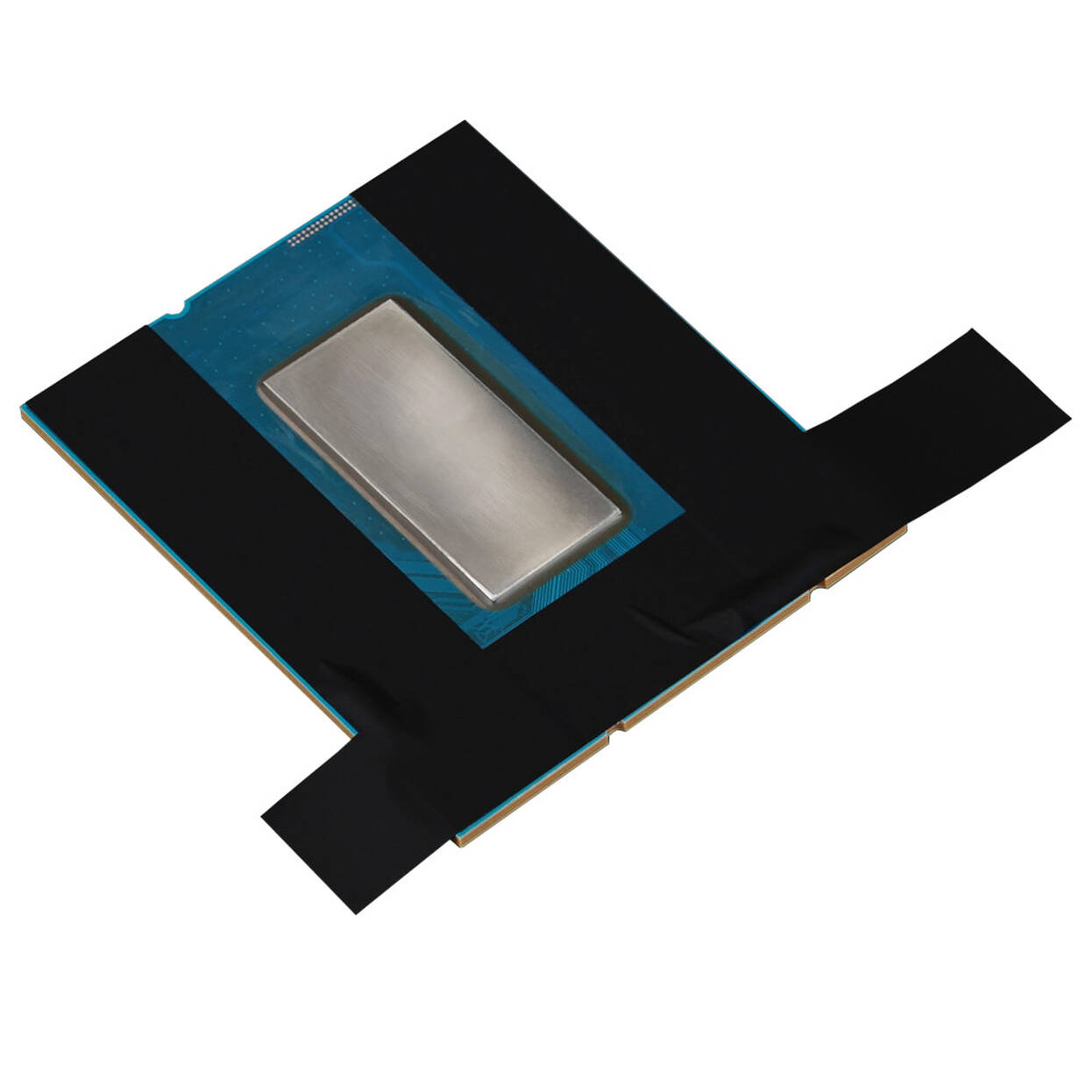

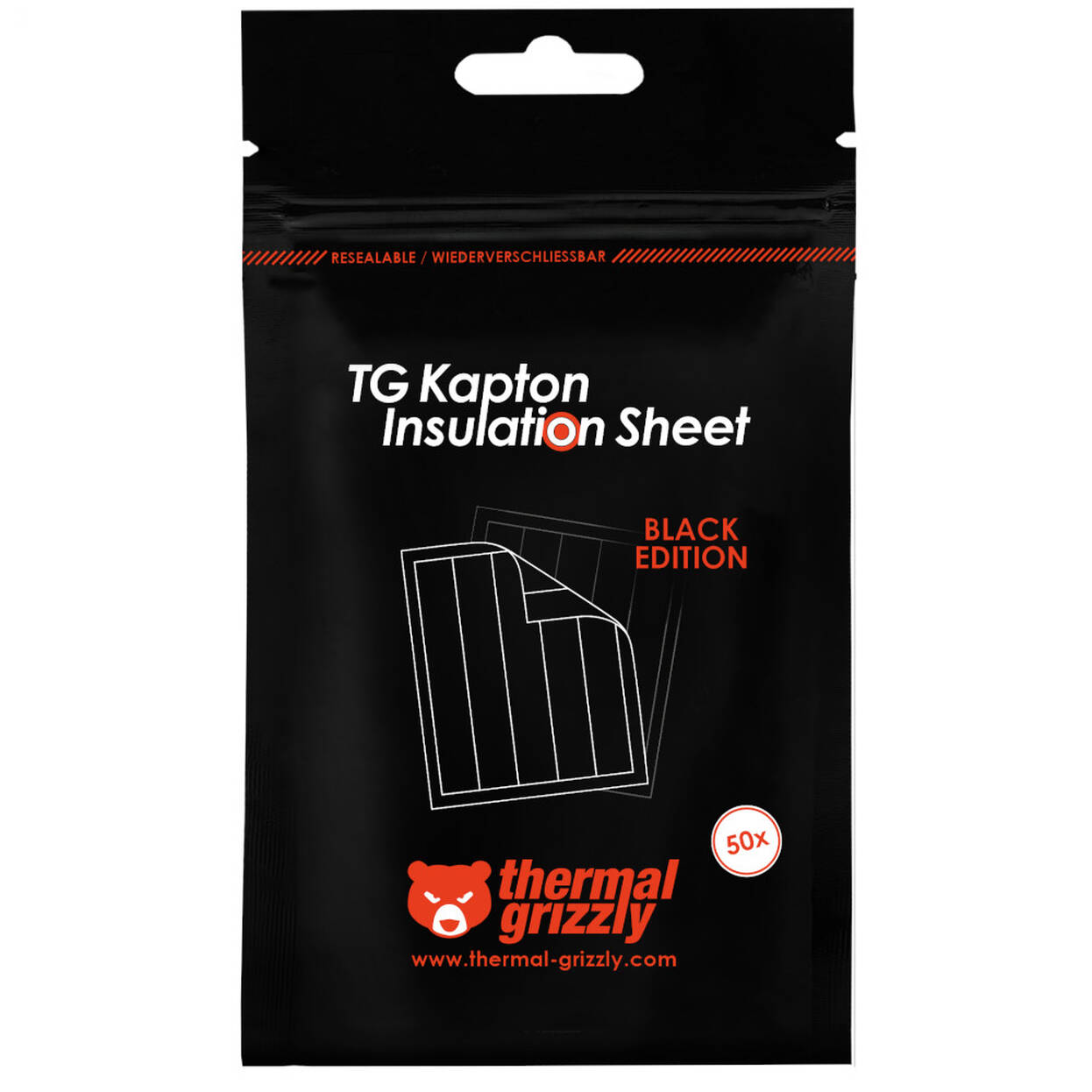

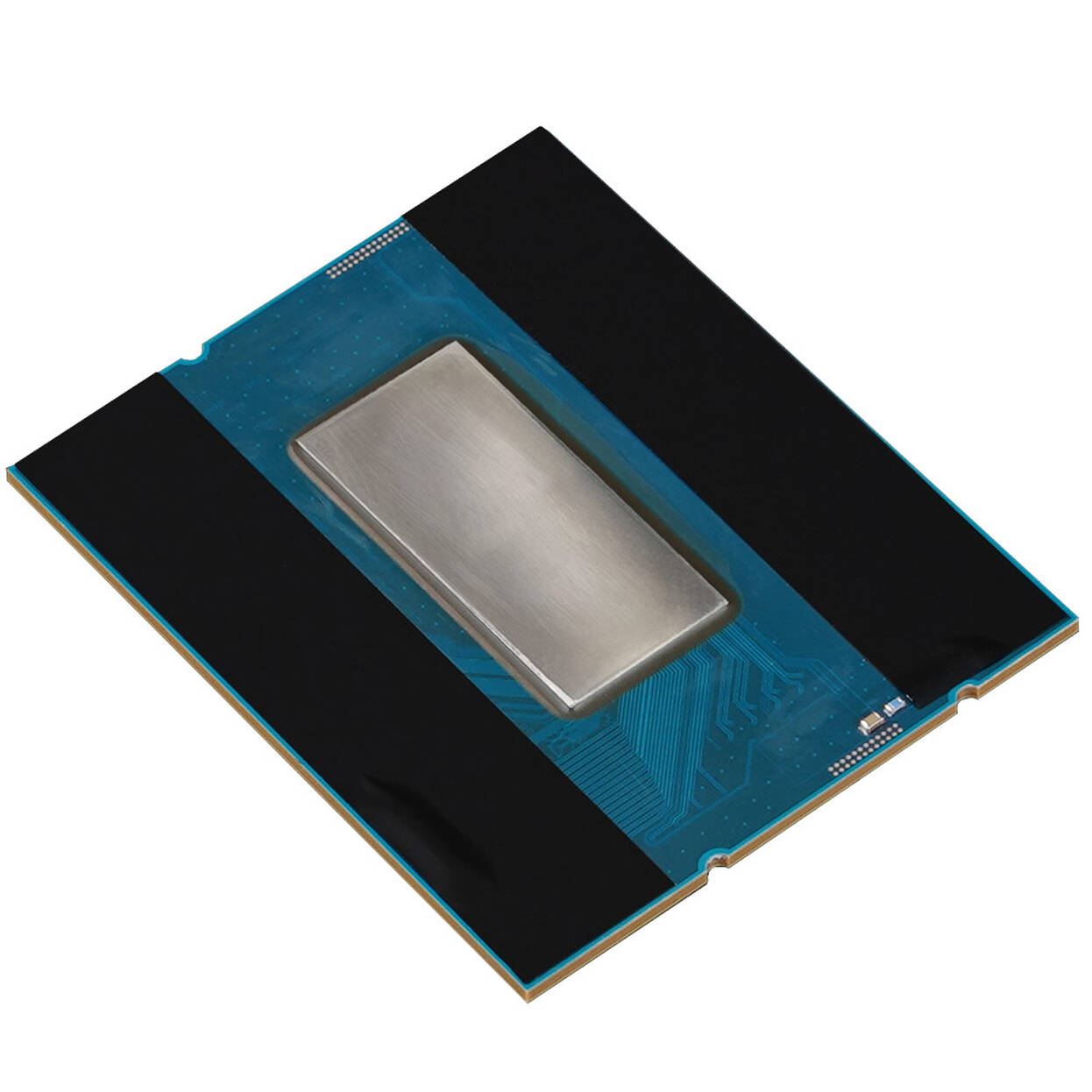

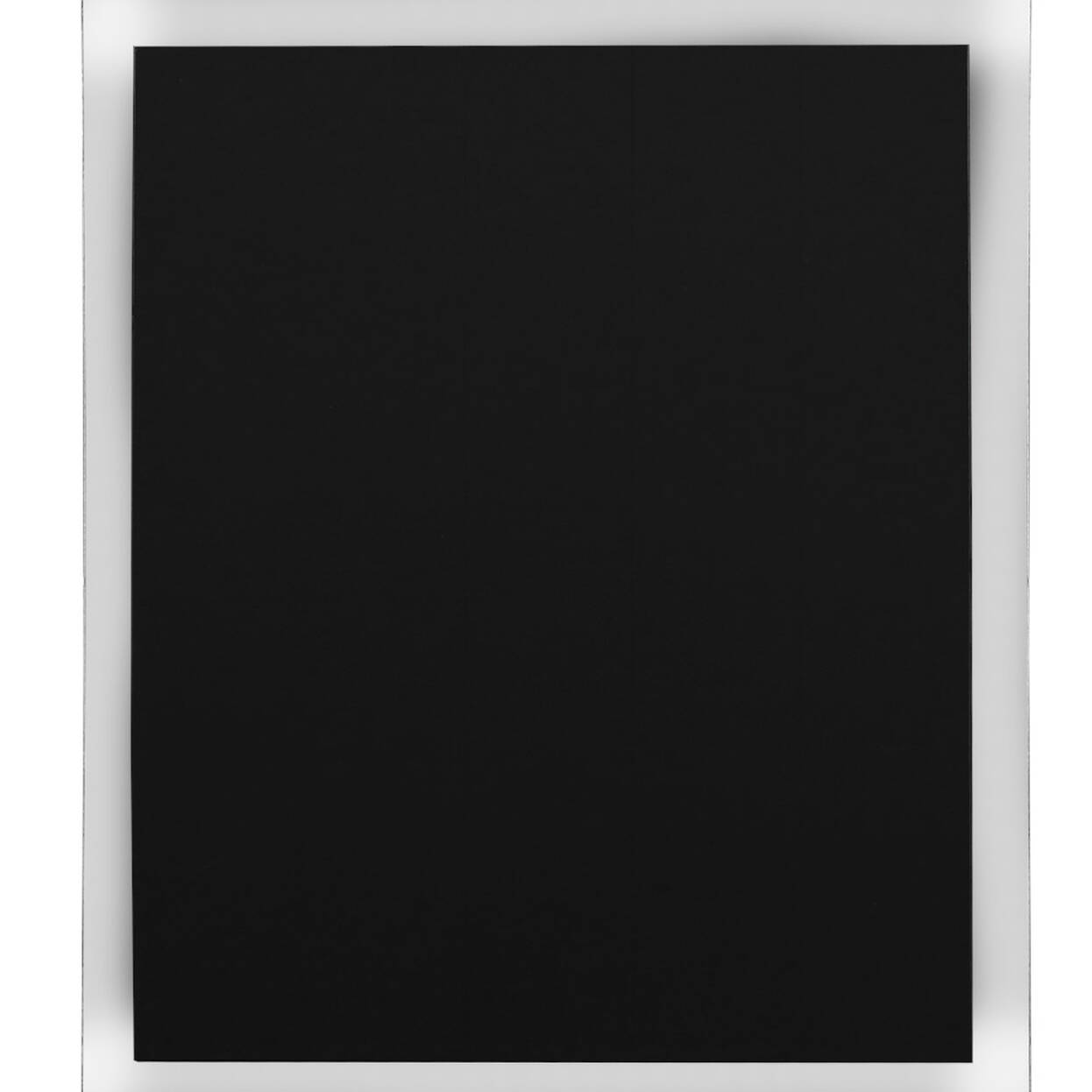

It is excellent for masking components such as SMDs on a CPU or GPU when using Conductonaut liquid metal, Carbonaut, or KryoSheet. Compared to the standard Kapton Insulation Sheet, the Black Edition is slightly thinner (30µm instead of 40µm) and has a significantly higher breakdown voltage of 5 kV. Kapton Insulation Sheet Black Edition is supplied packaged in 10 sheets, each containing 5 Kapton adhesive strips. Each individual adhesive strip is 10 millimeters wide and 60mm long, with a thickness of 30µm. It is recommended to thoroughly clean the contact surface where the insulation sheet is applied (e.g., with isopropanol).
| General Specifications | |
|---|---|
| Primary Colour | Black |
| Dimensions | |
| Length | 60 mm |
| Width | 10 mm |
| Thickness | 30 μm |
| Thermal Properties | |
| Short-Term Temperature Resistance | Up to 260 °C |
| Long-Term Temperature Resistance | Up to 180 °C |
| Electrical & Material Properties | |
| Material | Polyimide |
| Breakdown Voltage | 5 kV |
| Electrically Conductive | No |
| Set Information | |
| Set Included | Yes |
| Items per Set | 50 pcs |
Customer Product Reviews
Overall rating
Earn
25 point when you review this product
Write a review
Select rating and write review
Related Products
£52.90£44.08 Inc VatEx Vat
Available
Alphacool offers a wide range of thermal pads to enable effective heat dissipation from electrical components.
- SKU: 1023418
- MPN: 13484
- EAN: 4250197134842
£145.12£120.93 Inc VatEx Vat
Available

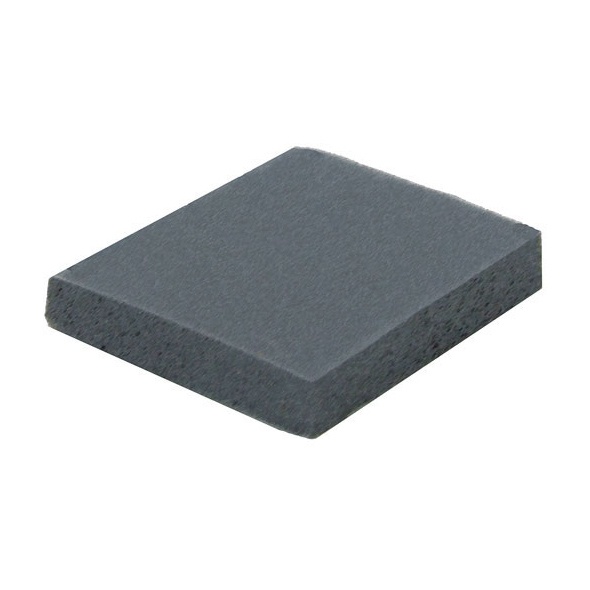

Phobya Thermal pad Ultra 5W/mk 15x15x3mm (1 piece)
- SKU: 17077
- MPN: n/a
- EAN: 4049469070335
£3.96£3.30 Inc VatEx Vat
Available
Powerful alternative to thermal paste With the Thermal Grizzly Minus Pad Basic, the Hamburg-based cooling specialist is expanding its product range to include advanced thermal pads. Based on the predecessor Minus Pad 8, they have been further developed to significantly...
- SKU: ZUWA-329
- MPN: TG-MP-B-100-100-20-2
- EAN: 4260711991486
£11.50£9.58 Inc VatEx Vat
Available

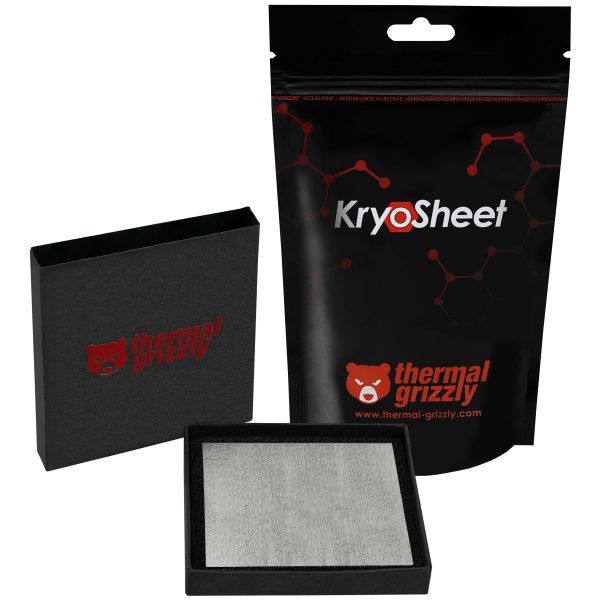

- Outstanding thermal conductivity - Easy to use - Constantly high performance - Extreme durability - Caution: Electrically conductive! - High-performance cooling solutions - Made in Germany
