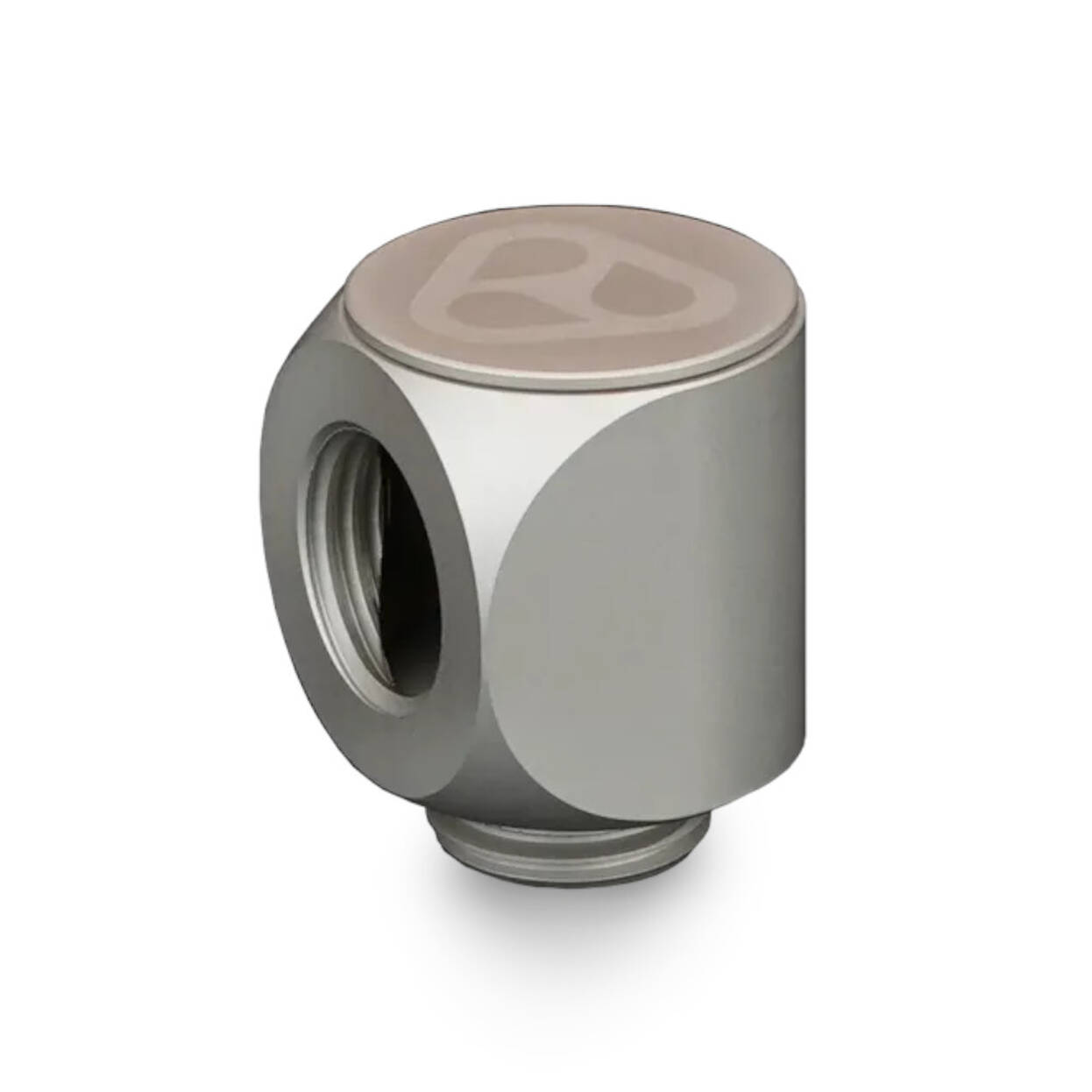

The DeltaMate Rotary 90° Fitting from Thermal Grizzly offers a rotatable angled connection for demanding custom water cooling systems. It is designed for users who require precise hose routing even in tight spaces, without compromising on safety or design.
The DeltaMate Rotary 90° Fitting from Thermal Grizzly offers a rotatable angled connection for demanding custom water cooling systems. It is designed for users who require precise hose routing even in tight spaces, without compromising on safety or design.
The DeltaMate Rotary 90° Fitting from Thermal Grizzly offers a rotatable angled connection for demanding custom water cooling systems. It is designed for users who require precise hose routing even in tight spaces, without compromising on safety or design.
The DeltaMate Rotary 90° Fitting from Thermal Grizzly offers a rotatable angled connection for demanding custom water cooling systems. It is designed for users who require precise hose routing even in tight spaces, without compromising on safety or design.
– 90° angle enables space-saving hose routing in tight layouts
– Rotary joint is mechanically secured by subsequent fittings
– EPDM O-ring ensures durable, UV- and ozone-resistant sealing
– Uniform outer diameter for aesthetic integration into the cooling loop design
– Includes rotatable logo cap for visual enhancement
– Precision and Safety in the Rotary Joint
The rotatable joint allows flexible positioning and facilitates the assembly of complex water cooling loops. When combined with additional fittings, the joint automatically locks – ensuring an absolutely secure connection even under high stress.
Compact Dimensions for Maximum Compatibility
Thanks to its minimalist design, the DeltaMate Rotary 90° can be used effortlessly in tight builds or small form factor cases. Installation is conveniently done using an 8 mm internal hex key with a straight end.
Visually Coordinated with DeltaMate Systems
Thanks to the uniform outer diameter and matte nickel coating, the fitting integrates seamlessly with existing DeltaMate fittings. The included rotatable cover cap with engraved logo emphasizes the premium appearance.
Specifications
| Colour | |
|---|---|
| Primary Colour | Silver |
| Dimensions | |
| Height | 21.6 mm |
| Weight | 38.5 g |
| Outer diameter | 20.6 mm |
| Water Cooling | |
| Water cooling purpose | Extension |
| Water cooling connection type | screw connection |
| Water cooling connectors | G1/4″ inner thread, G1/4″ outer thread |
| Angle | |
| Is angled | Yes |
| Angle | 90 ° |
| Rotatable | Yes |
| Compatibility | |
| Compatibility Note | Please refer to the manufacturer’s compatibility information. You can find the latest overview on the manufacturer’s website. |
| Materials | |
| Materials | Brass, Rubber, Stainless steel |
| Lighting | |
| Lighting / RGB | No |
| Set | |
| Set | Yes |

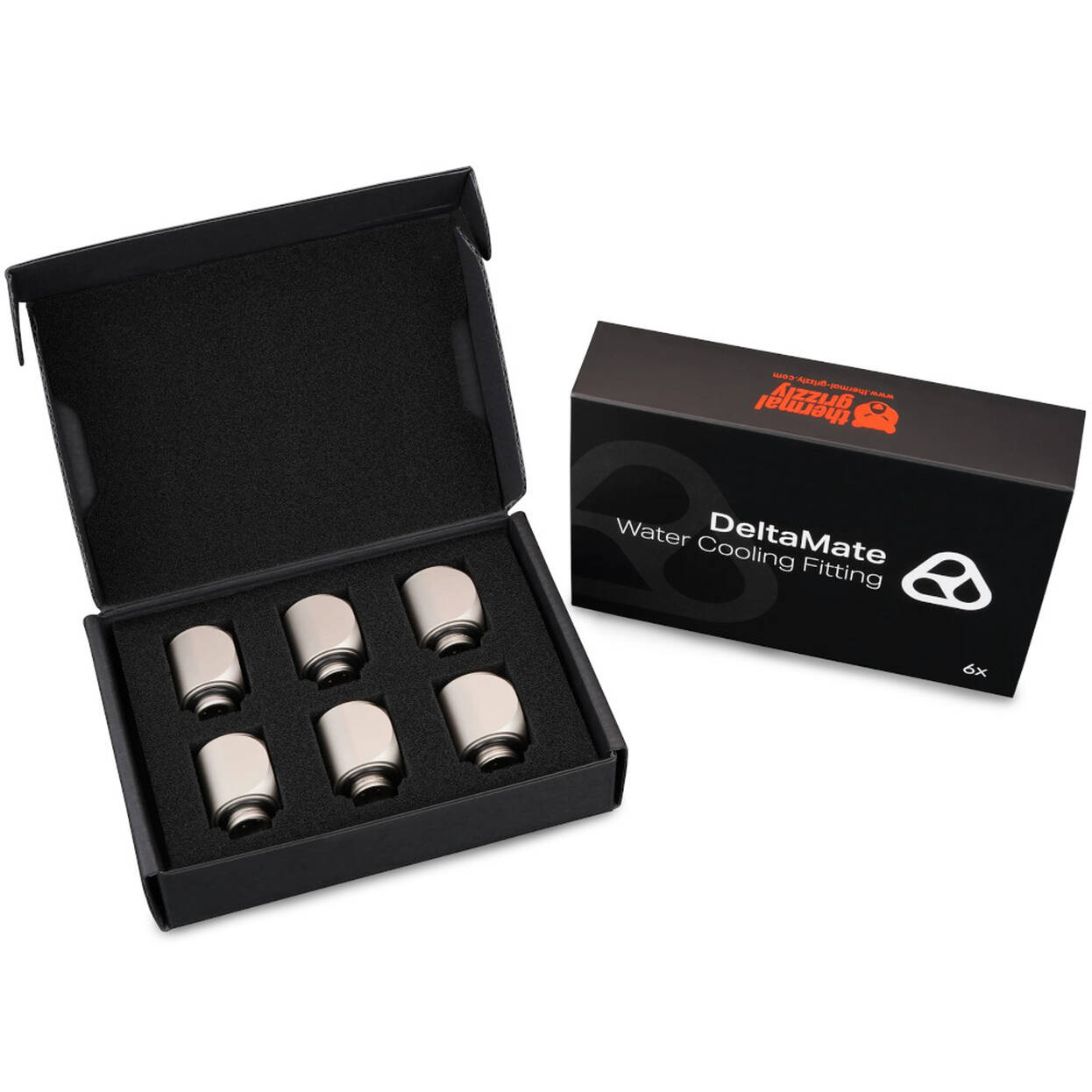

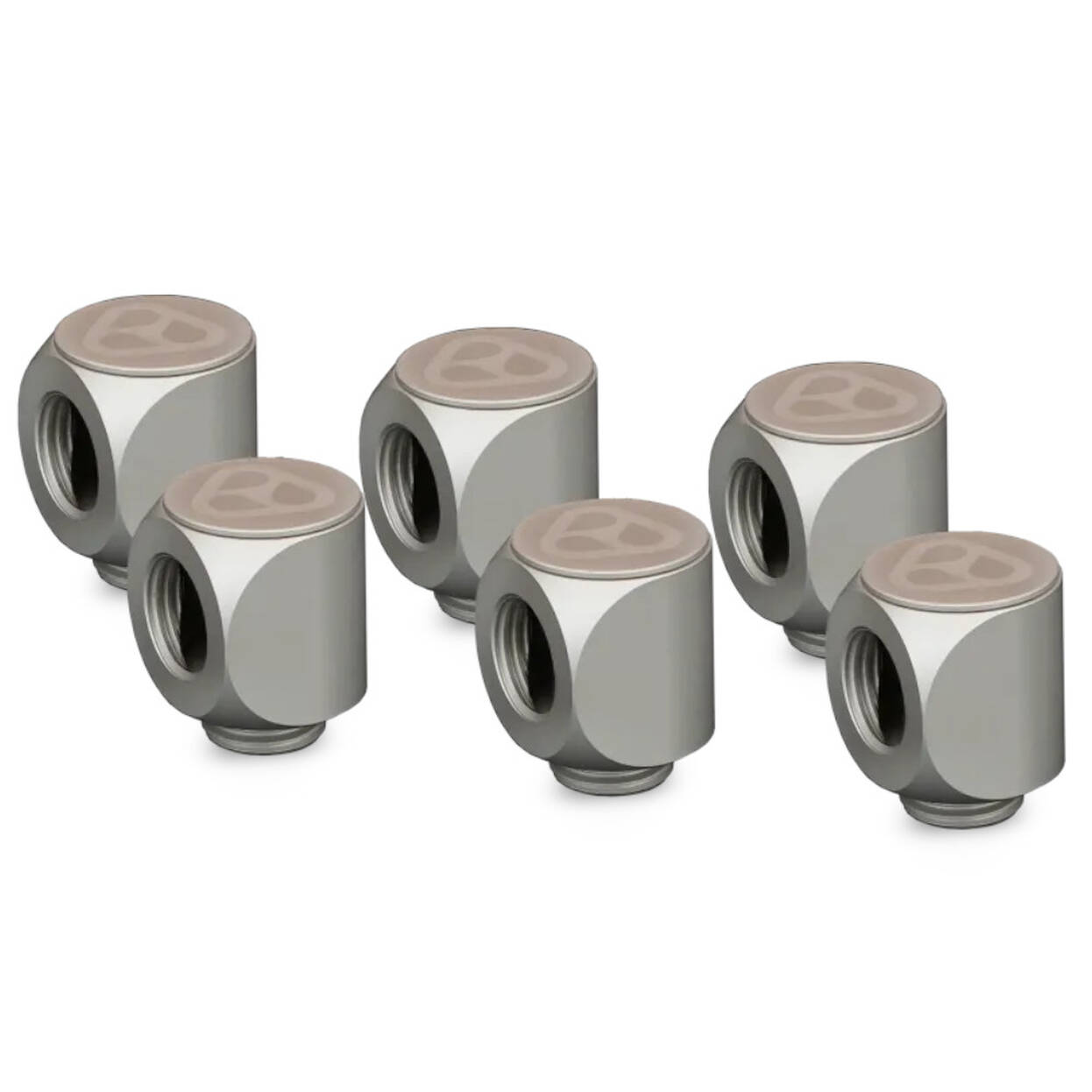

| Number of Products in Set | 6 |
