Alphacools Eiszapfen is the high-end version of the already proven connectors and meets all the requirements placed on a connector with its high-flow, shape, processing and color.
- SKU: 1022493
- MPN: 17619
- EAN: 4250197176194
The DeltaMate Rotary Fittings are rotatable water cooling connectors for the individual components of a custom water cooling system. Manufactured with the usual Thermal Grizzly quality, the rotary fittings are machined from brass. Brass, as an alloy of copper and zinc, offers the advantage of being anodically compatible with other metals while being both harder and more corrosion-resistant than copper.

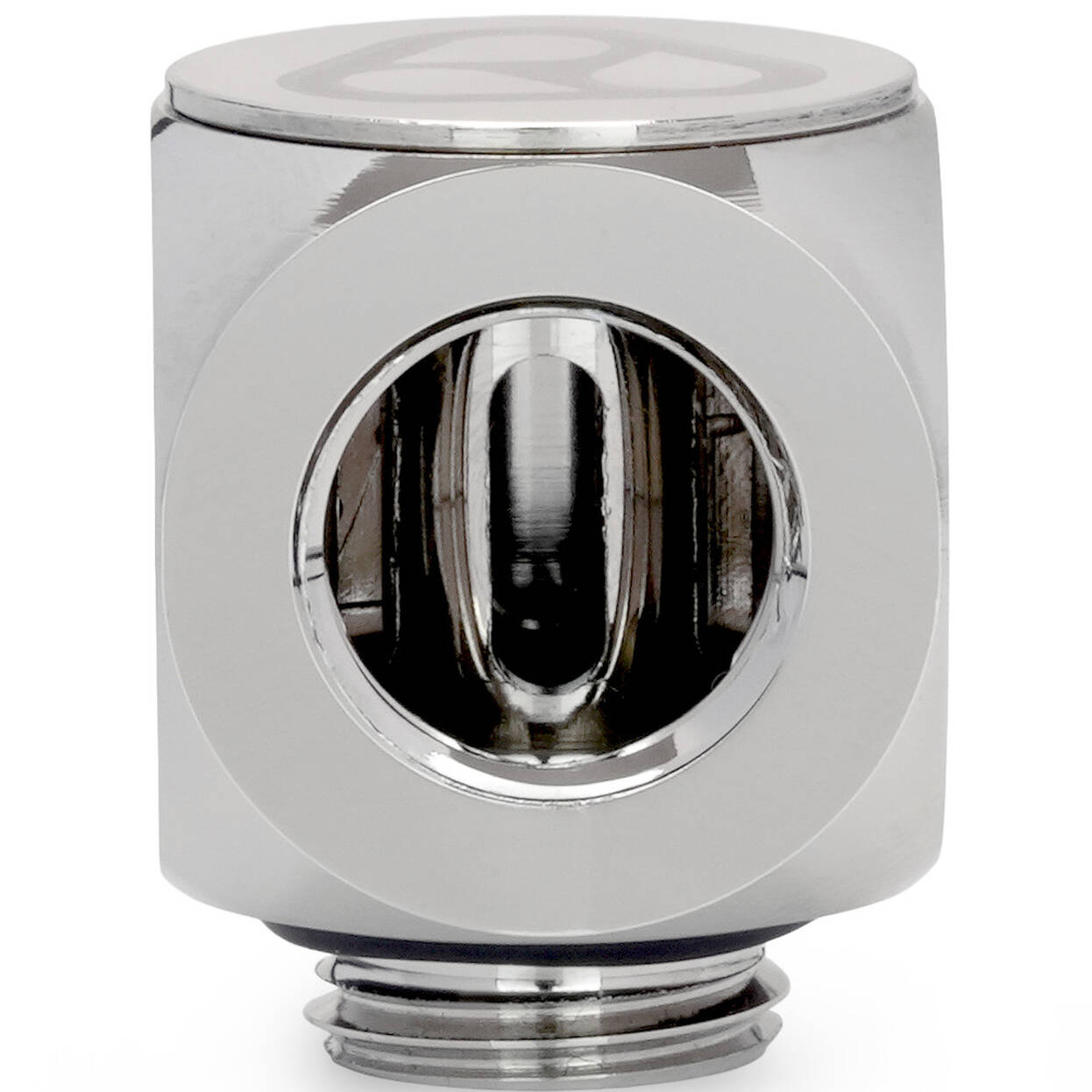

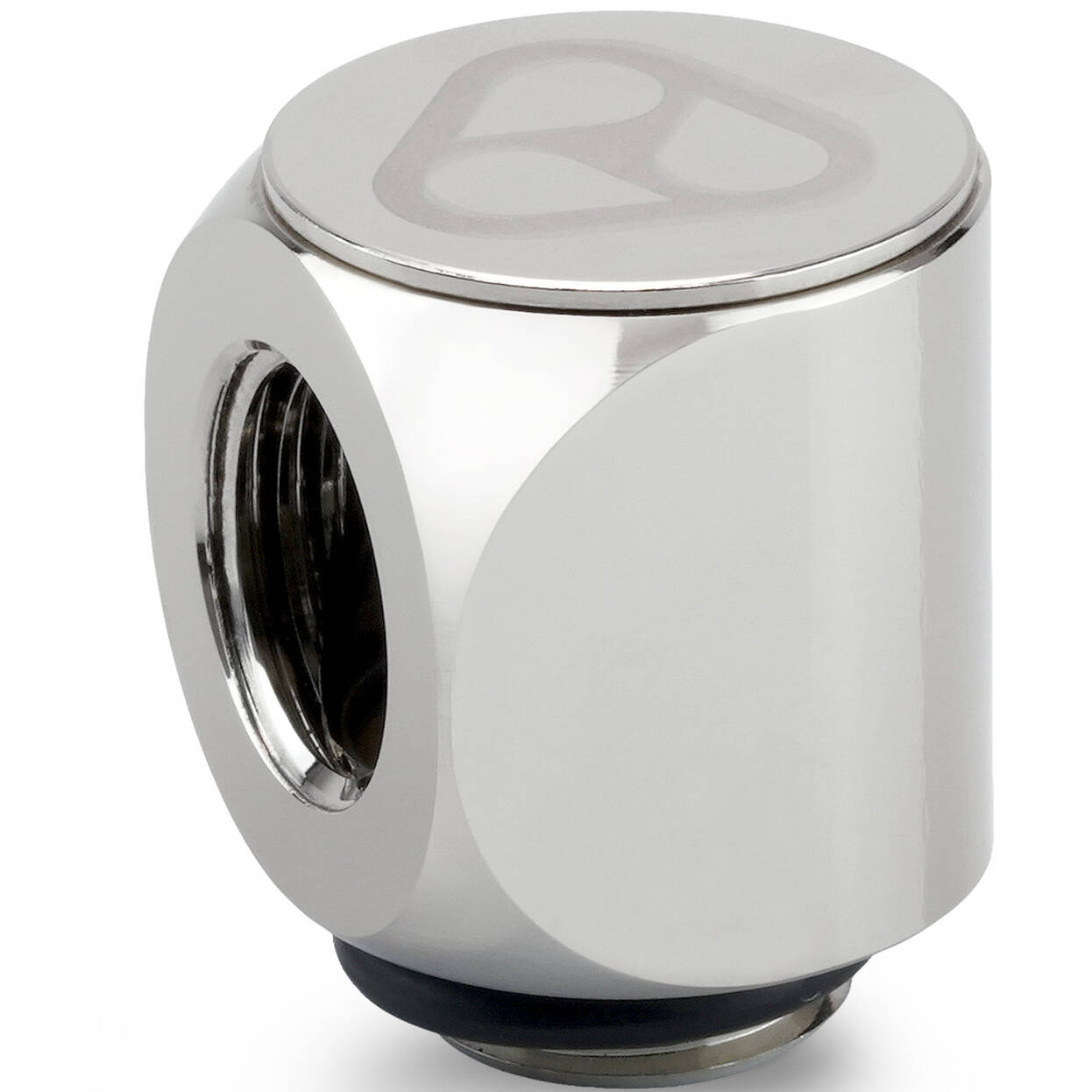

Thermal Grizzly DeltaMate Rotary - 90 degrees, Gloss Nickel
The DeltaMate Rotary Fittings are rotatable water cooling connectors for the individual components of a custom water cooling system. Manufactured with the usual Thermal Grizzly quality, the rotary fittings are machined from brass. Brass, as an alloy of copper and zinc, offers the advantage of being anodically compatible with other metals while being both harder and more corrosion-resistant than co...
The DeltaMate Rotary Fittings are rotatable water cooling connectors for the individual components of a custom water cooling system. Manufactured with the usual Thermal Grizzly quality, the rotary fittings are machined from brass. Brass, as an alloy of copper and zinc, offers the advantage of being anodically compatible with other metals while being both harder and more corrosion-resistant than co...
Earn 8 Points
We price match UK retailers. Try It Now!
- SKU: WAZU-1391
- MPN: TG-DM-FIT-0303
- EAN: 4260711993442
- Warranty: 12 Months
Details
The DeltaMate Rotary Fittings are rotatable water cooling connectors for the individual components of a custom water cooling system. Manufactured with the usual Thermal Grizzly quality, the rotary fittings are machined from brass. Brass, as an alloy of copper and zinc, offers the advantage of being anodically compatible with other metals while being both harder and more corrosion-resistant than copper.
General Information
The sealing rings (O-rings) are made from the particularly elastic and ozone- and UV-resistant EPDM (ethylene propylene diene rubber). The robust design of the DeltaMate fittings allows for installation using an 8 mm internal hex key. The uniform outer diameter of all DeltaMate connectors enables seamless integration of the individual products.
The DeltaMate Rotary – 90° in Glossy Nickel, with its compact dimensions, allows modular combination with other DeltaMate Rotary and Extender fittings. The DeltaMate Rotary – 90° features both a G1/4” male and female thread and offers a high-quality finish in the form of a glossy nickel coating, which is also easy to clean. When using additional fittings, the swivel joint is mechanically locked to ensure maximum safety. An optional rotatable cover cap with the DeltaMate logo for visual enhancement is included.
Features
– Small dimensions allow modular combination with other DeltaMate rotary and extender connectors.
– Subsequent connectors mechanically lock the swivel joint for maximum safety.

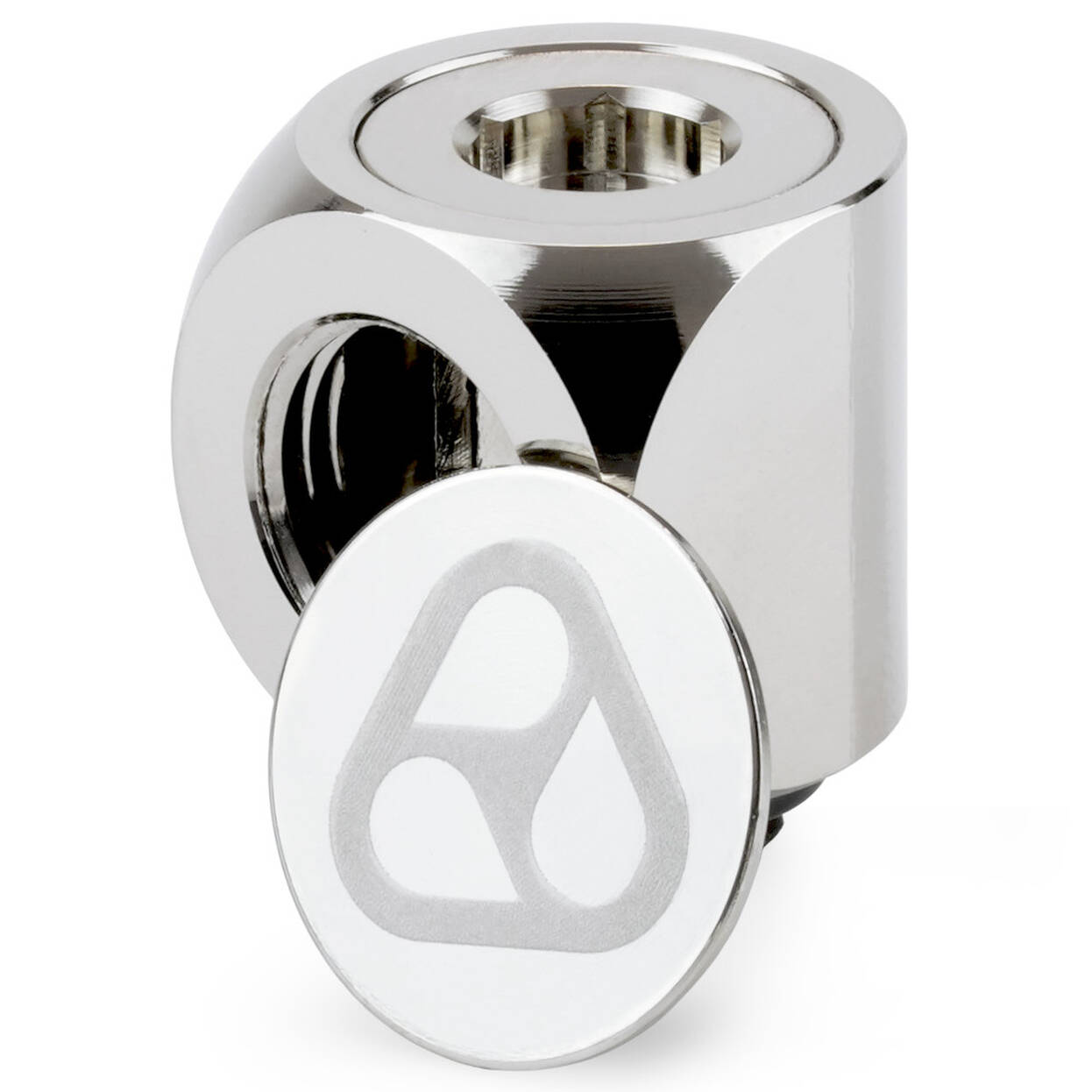

– Includes an optional cover cap with the DeltaMate logo, which can be rotated in any orientation.
– Elegant and minimalist design that seamlessly integrates with all DeltaMate connectors.
– Easy to install even in tight spaces and SFF builds using an 8 mm internal hex key.
The sealing rings (O-rings) are made from highly elastic EPDM (ethylene propylene diene rubber), which is resistant to ozone and UV radiation. The robust design of the DeltaMate fittings allows for installation using an 8 mm hex key. The uniform outer diameter of all DeltaMate fittings ensures seamless integration of individual components.
The DeltaMate Rotary – 90° in matt nickel allows for modular combination with other DeltaMate Rotary and Extender Fittings due to its compact dimensions. The DeltaMate Rotary – 90° has one male and one female G1/4” thread and offers a premium finish in the form of a matt nickel plating that is also easy to clean. When using additional fittings, they mechanically lock the rotary joint together for maximum security. An optional aesthetic cover with the DeltaMate logo is included, which can be rotated to any orientation.
Specifications
| Product Type | 90° Rotary Angled Adapter |
|---|---|
| Colour | Nickel |
| Dimensions (W × H) | 20.6 × 21.6 mm |
| Weight | 38.5 g |
| Water Cooling Purpose | Angled Adapter |
| Connection Type | Compression Screw Connection |
| Thread Compatibility | G1/4″ Female Thread × G1/4″ Male Thread |
| Angle | 90° |
| Rotatable | Yes |
| Materials | Brass, EPDM, Stainless Steel |
| Lighting | None |
| Compatibility | Please refer to the manufacturer’s latest compatibility information. |
