Thermal Grizzly DeltaMate GPU Block - Terminal

Thermal Grizzly DeltaMate GPU Block – Through Terminal: Modular G1/4″ Accessory from the Thermal Grizzly DeltaMate Fitting System

Thermal Grizzly DeltaMate GPU Block – Through Terminal is part of the modular Thermal Grizzly DeltaMate fitting system for custom water cooling loops. The connection terminal replaces the standard port of a DeltaMate GPU water block with a straight through-connection for inlet and outlet, enabling a particularly tidy tube or hose routing.

Key features:

–  Modular DeltaMate System: Compatible with the entire Thermal Grizzly DeltaMate fitting system for flexible loop layouts.
– G1/4″ Thread: Compatible with all common water cooling components with a standard G1/4″ port.
– Precision Brass: CNC-machined brass ensures dimensional accuracy and long service life.
– High-Quality Through Terminal Finish: For a clean, long-lasting appearance.

Technical Specifications:

–  Type: Thermal Grizzly DeltaMate GPU Block – Through Terminal
– Material: brass
– Thread: G1/4″
– Finish: Through Terminal
– Ideal for:

Thermal Grizzly DeltaMate GPU Block – Through Terminal is ideal for:

custom loops built with the modular Thermal Grizzly DeltaMate system
users who want to specifically extend their fitting layout with Thermal Grizzly DeltaMate GPU Block – Through Terminal
With Thermal Grizzly DeltaMate GPU Block – Through Terminal in Through Terminal, you extend your Thermal Grizzly DeltaMate fitting system with a high-quality, precision-machined component.

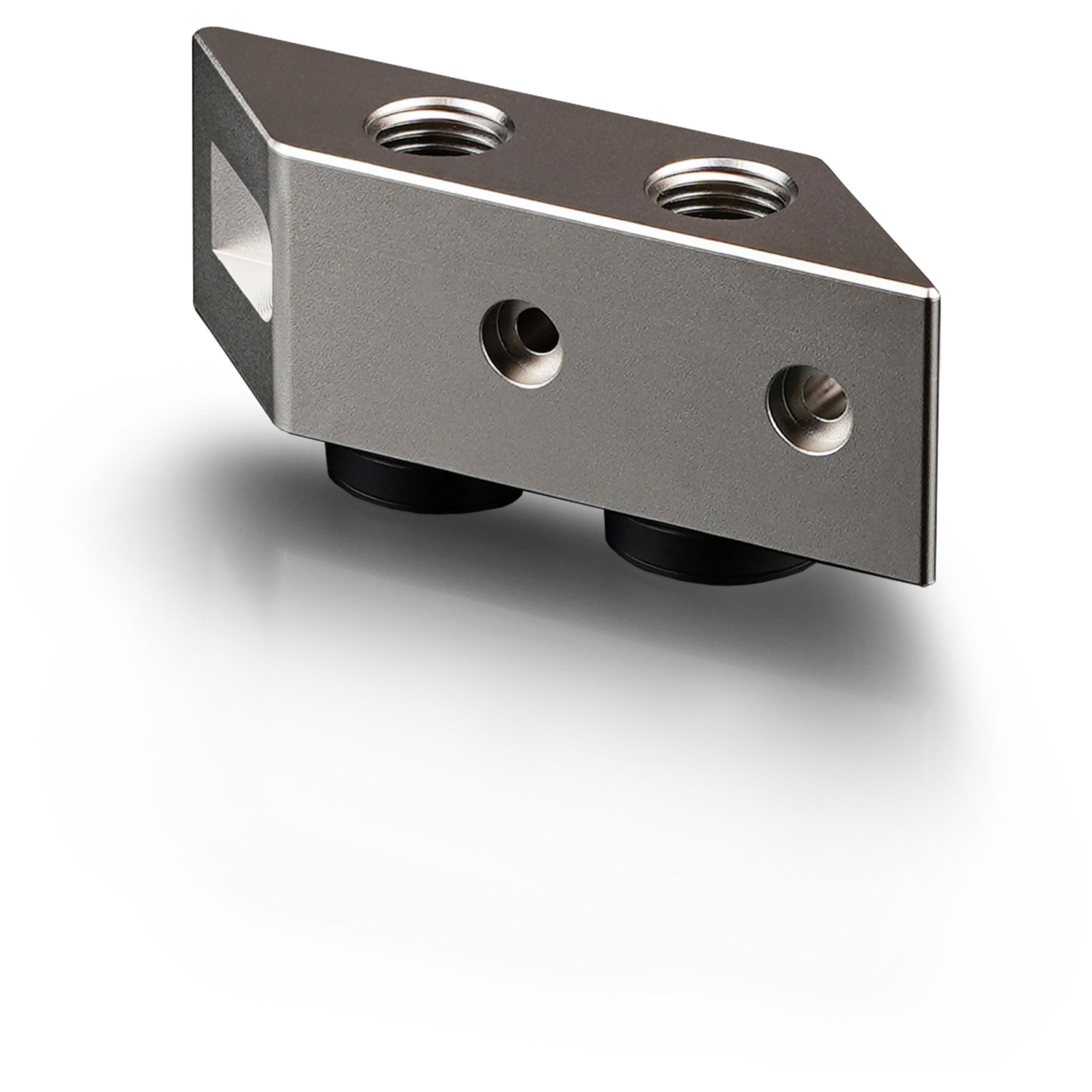

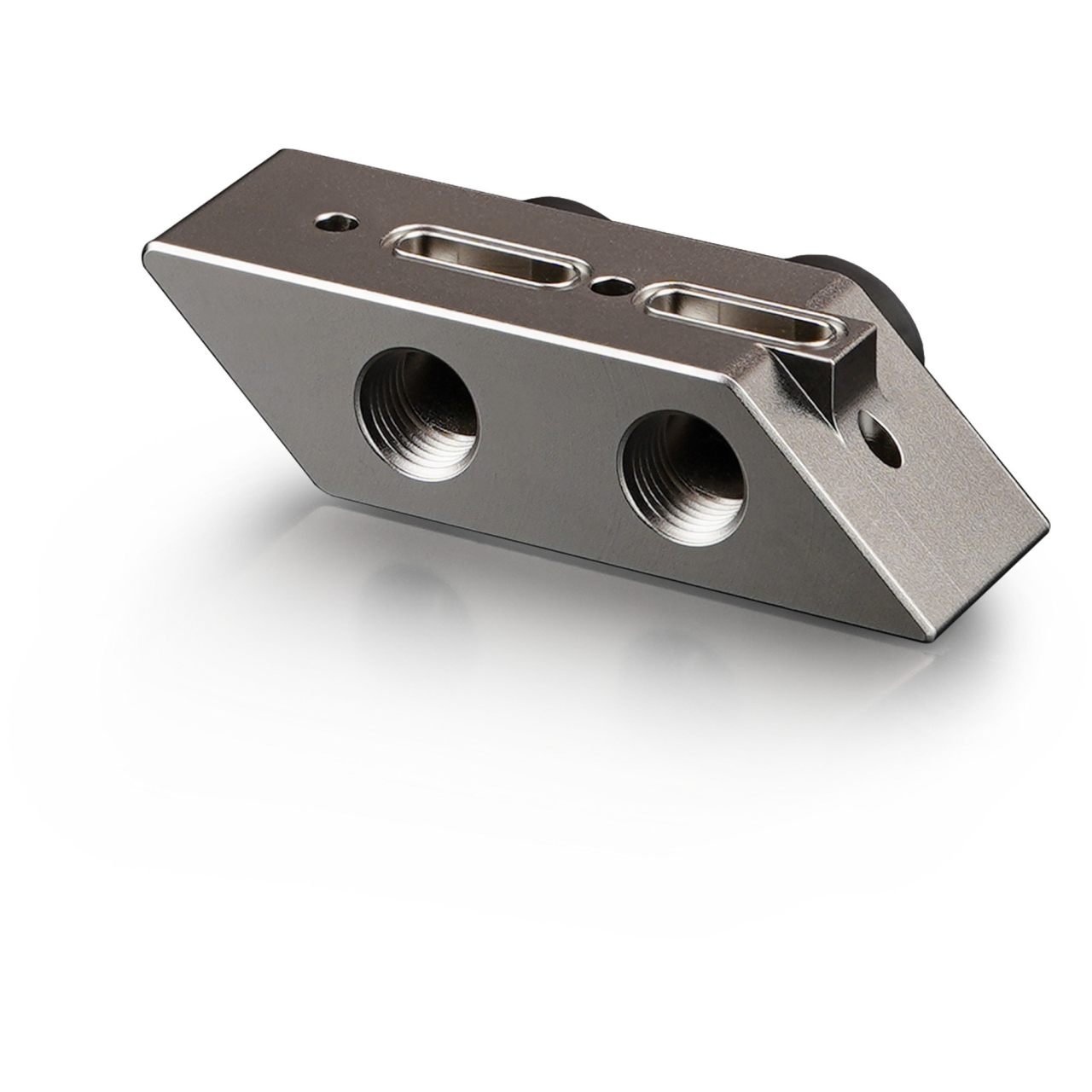

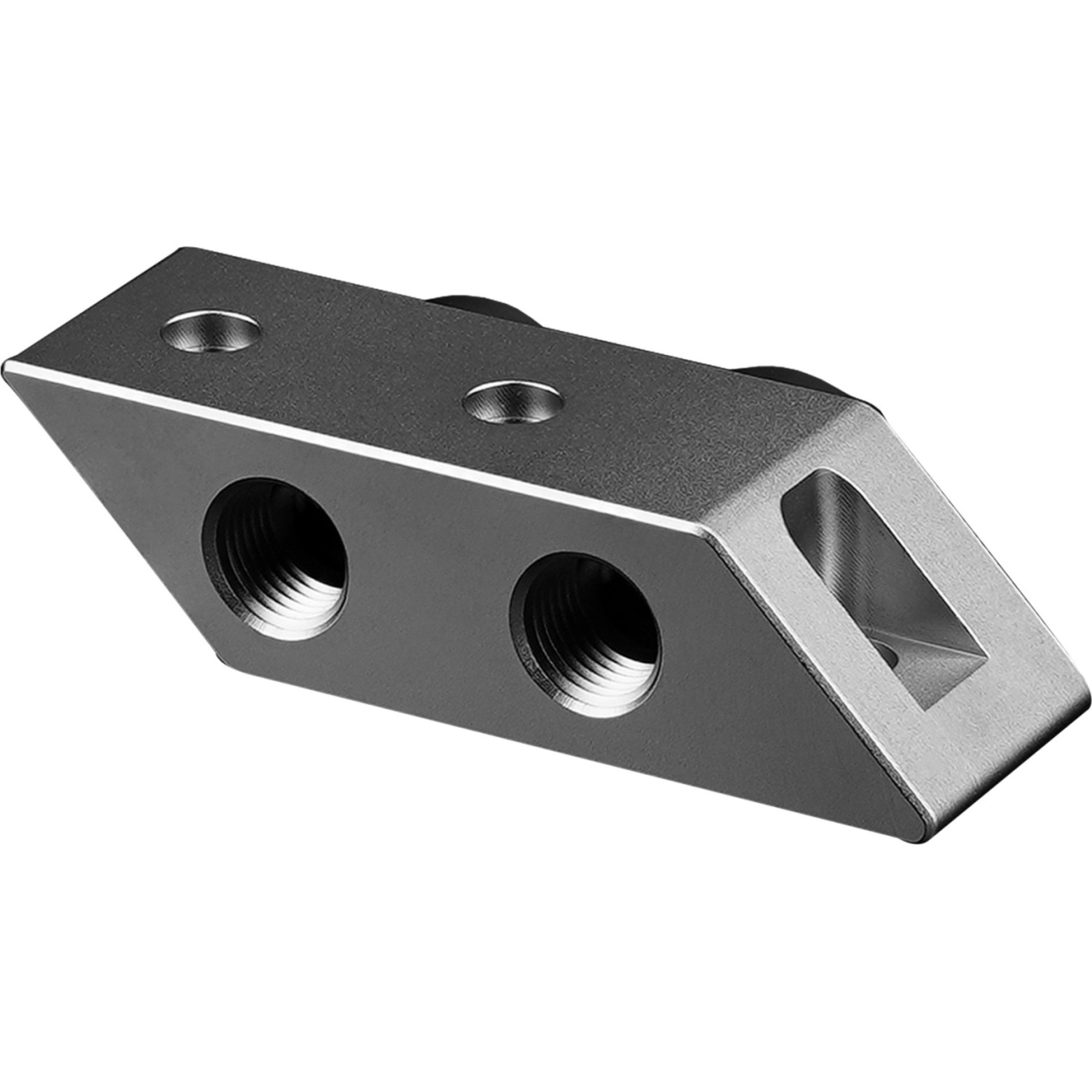

The DeltaMate GPU Block – Through Terminal is an optional terminal for Thermal Grizzly’s DeltaMate GPU water blocks, which come pre-installed with a Direct Terminal. The massive, 270 gram heavy DeltaMate GPU Block Terminals are precision-machined from high-quality brass and subsequently nickel-plated. As an alloy of copper and zinc, brass offers the advantage of being anodically compatible with other metals while being harder and more corrosion-resistant than pure copper.

DM_Astral_5090_withFittings_Nickel_withTerminal

Features

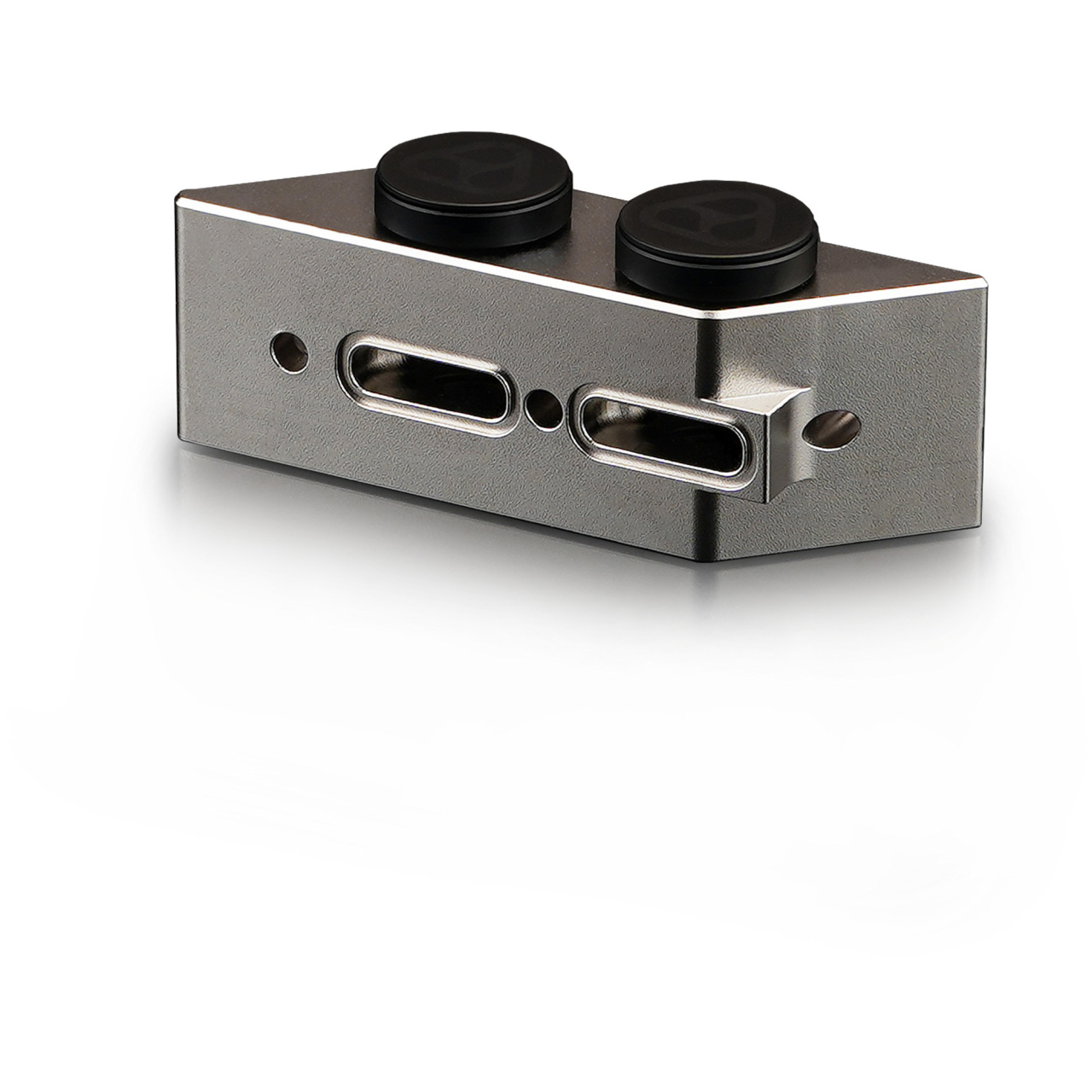

The included sealing rings (O-rings) are made from EPDM (ethylene propylene diene monomer rubber), known for its exceptional elasticity as well as resistance to ozone and UV radiation. The Through Terminal features one inlet and one outlet with G1/4-inch threads on both the top and bottom sides. The package includes two DeltaMate sealing plugs and two O-rings.

–  Optional 4-port pass-through fitting with inlets and outlets on the top and bottom
– Two in/out ports per side, each with G1/4-inch threading
– Machined from nickel-plated brass
– Recommended for experienced users!
– Compatibility list available online

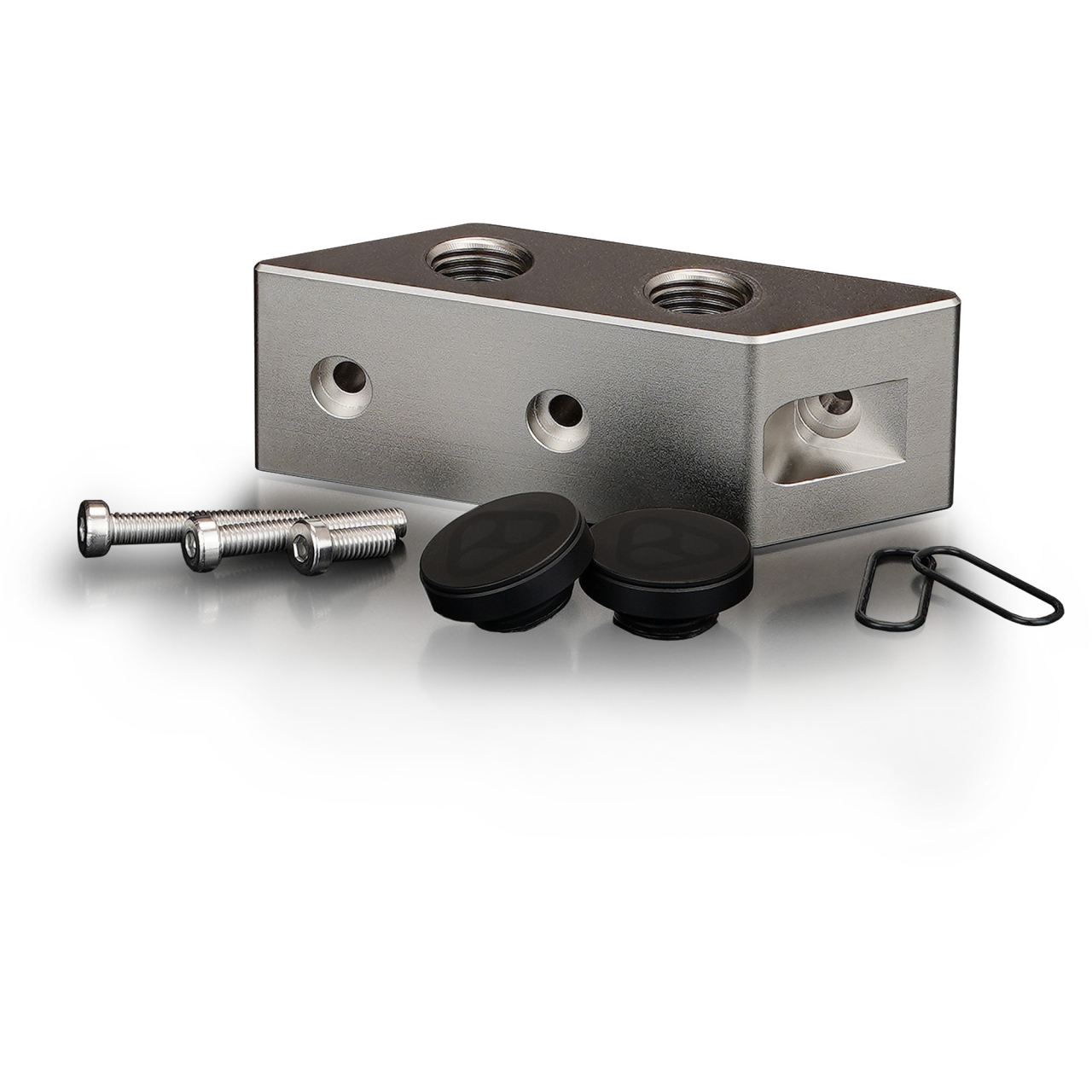

Scope of delivery
– DeltaMate GPU Block – Through Terminal
– 2x DeltaMate plugs
– 2x sealing rings
– 2x screw DIN7984 M4 x 25 SS A2
– 1x Screw DIN7984 M4 x 10 SS A2

Note:
The DeltaMate GPU Block – Through Terminal is not a standalone product and can only be used in combination with a DeltaMate GPU water block. An up-to-date list of all compatible DeltaMate GPU water blocks can be found in the Downloads section on the product page for the DeltaMate GPU Block – Through Terminal in the Thermal Grizzly online shop.
