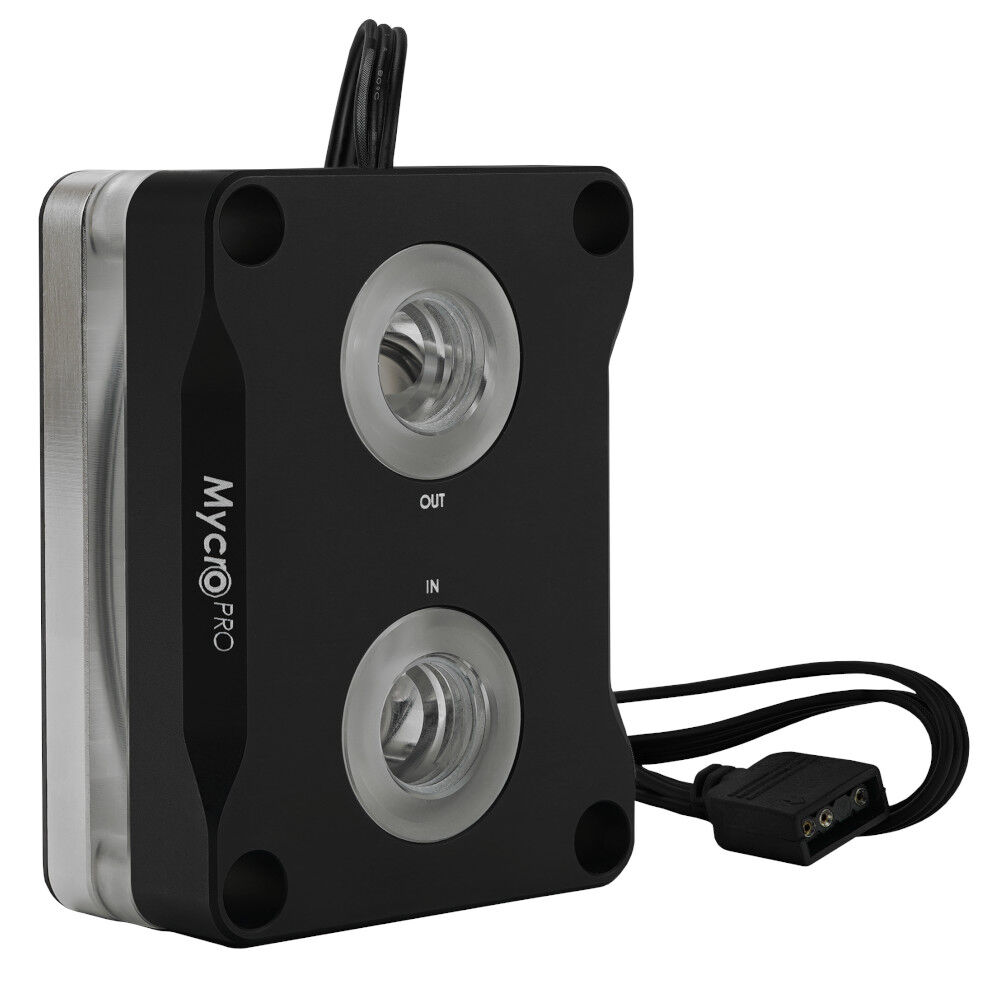

Thermal Grizzly AMD Mycro Direct-Die Pro RGB V1 CPU water cooler

– Water cooler for direct die assembly and enormous cooling
– Microfin cooler made of nickel-plated copper
– Replaces SAM and heat spreader
– Cover made of acrylic glass and aluminum
– G1/4-inch connections for easy integration into the cooling circuit

Optimal cooling for your CPU

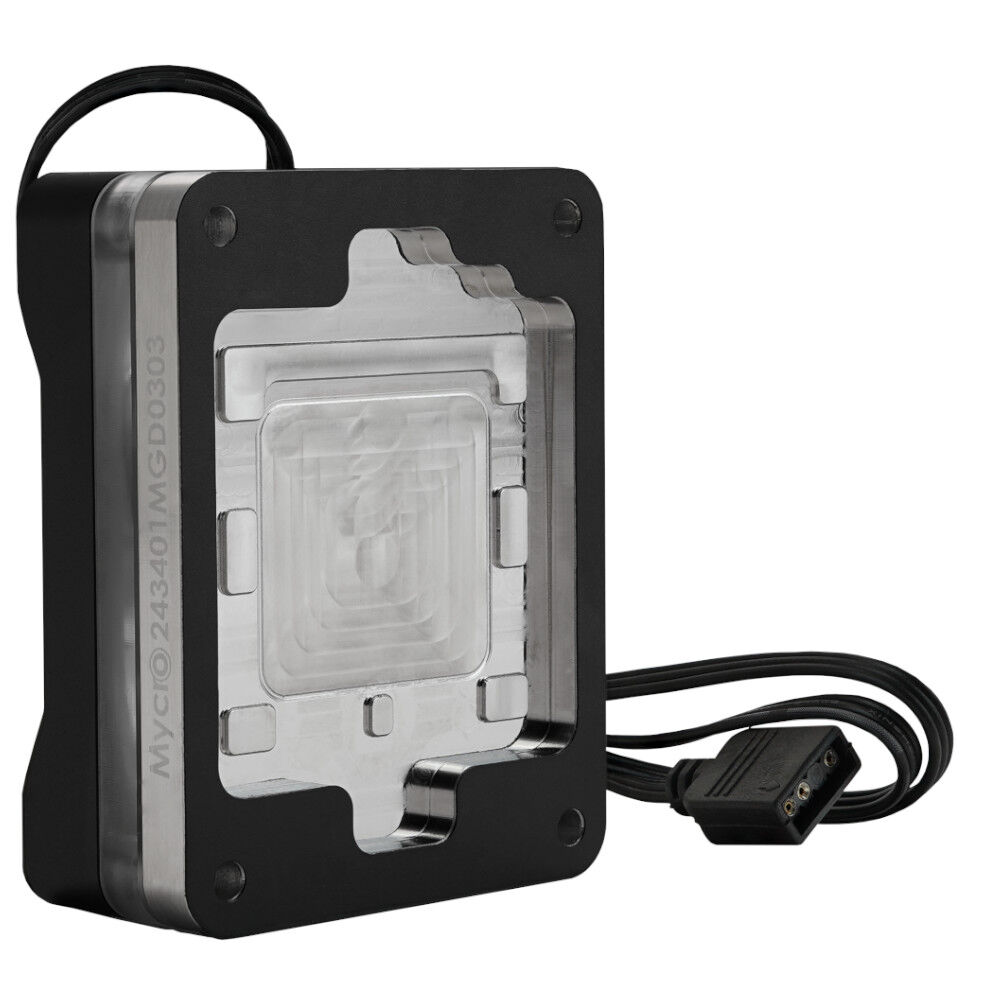

The AMD Mycro Direct-Die Pro RGB V1 has a hybrid structure with two different sizes of microfins and a jet plate for optimized airflow. The cold plate of the cooler is made of nickel-plated copper and is mounted directly on the CPU chip. For this, the Socket Actuation Mechanism (SAM) of the mainboard is removed and the processor must be decapitated. Nickel plating of the cooler plate creates a barrier layer so that gallium-based liquid metal cannot diffuse into the copper and repeated application of liquid metal is usually not necessary.

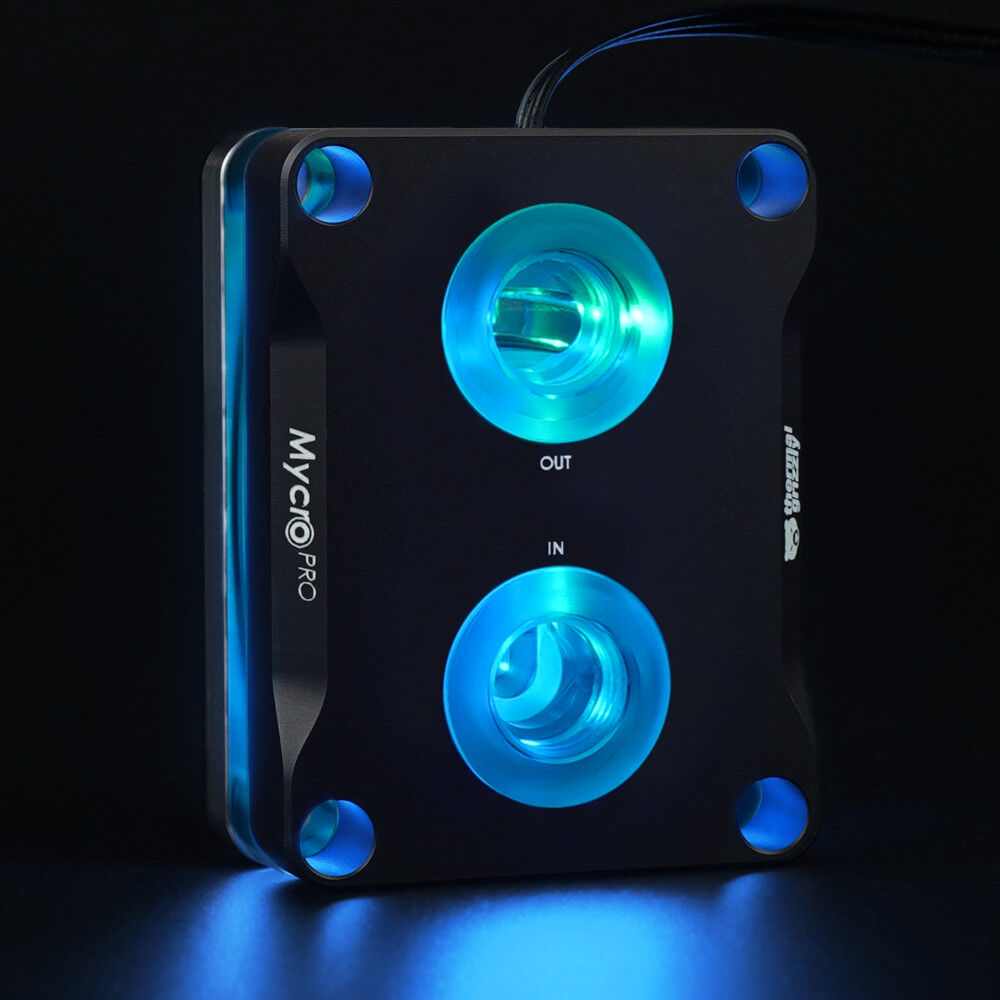

Attractive design with RGB lighting
Between the cold plate and the cover made of anodized aluminum there is acrylic glass, which is subjected to a tempering process after milling, which frees the acrylic glass from internal stresses. This ensures that even after a long period of use, no stress cracks form in the acrylic glass, as can happen with hardened acrylic glass. Under the aluminum cover there are RGB LEDs, which are controlled via the mainboard via a 3-pin ARGB header (+5V/DATA/GND). The LEDs illuminate the acrylic glass under the cover and the G1/4-inch connections in the cover.

Note: Removing the heat spreader (decapping, delidding) of a processor is at your own risk! Decapping the CPU voids the manufacturers warranty! Damage caused by decapitating the CPU is not covered by the manufacturers warranty!

Removing the Socket Actuation Mechanism (SAM) of the mainboard can lead to the loss of the mainboard manufacturers warranty!

The Mycro Direct-Die RGB is NOT COMPATIBLE with the Ryzen 8000G series APUs!
