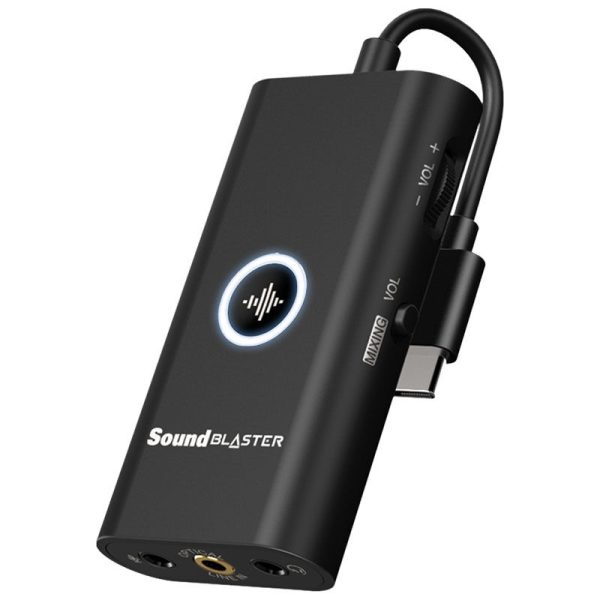

The Creative Sound Blaster G3 is a plug-and-play USB DAC with for PC and console.
- SKU: GASC-123
- MPN: 70SB183000000
- EAN: 5390660192968
The ECS05 from Silverstone is a very powerful and versatile expansion card for a PCI Express x8 slot (generation 3.0, downwards compatible, also usable in an x16 slot), which greatly increases the connectivity for hard disks and SSDs in the computer, Modes.

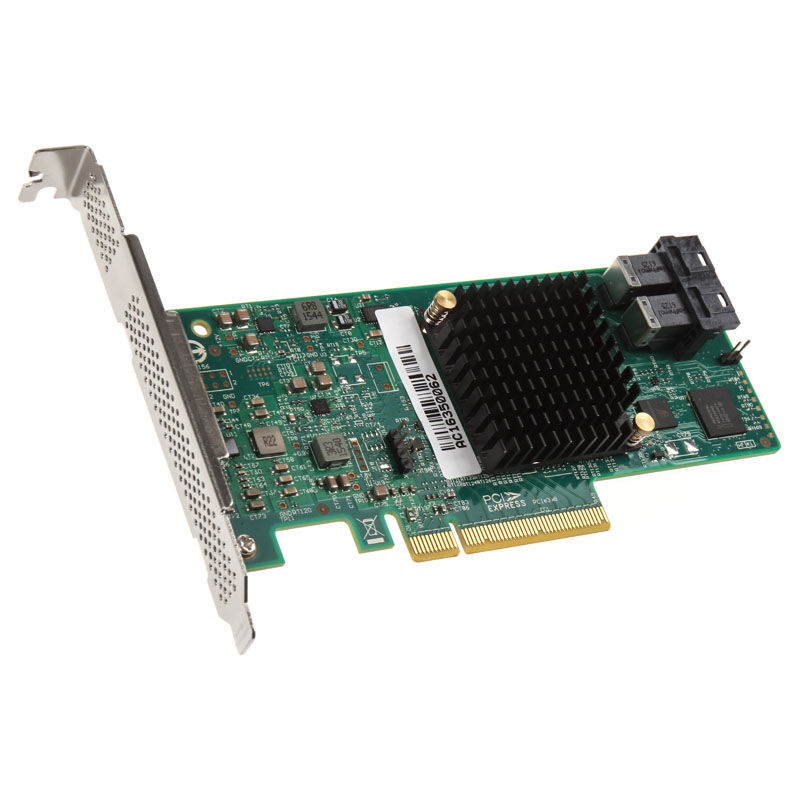

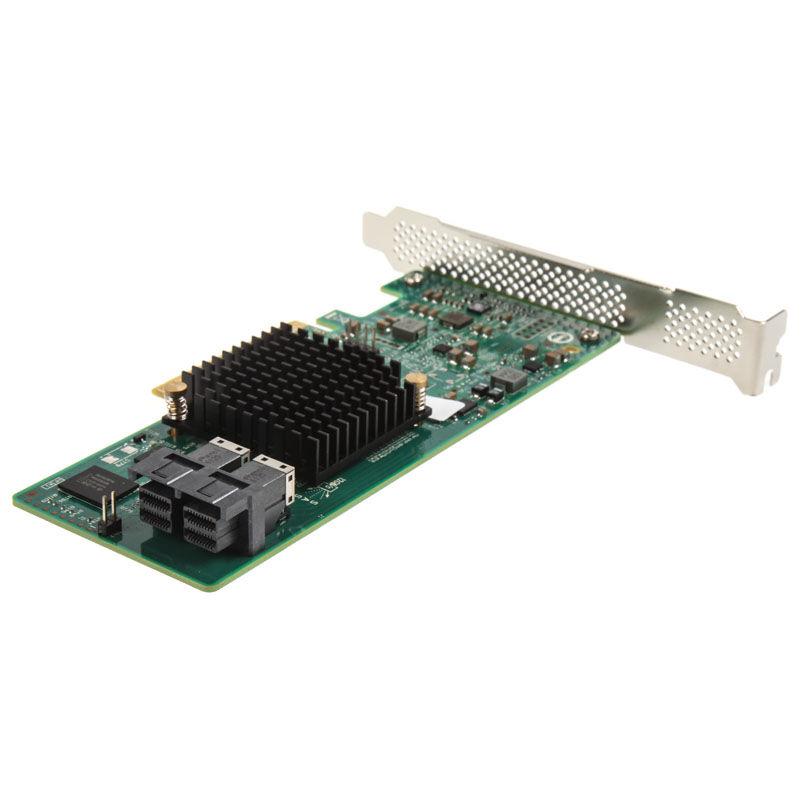

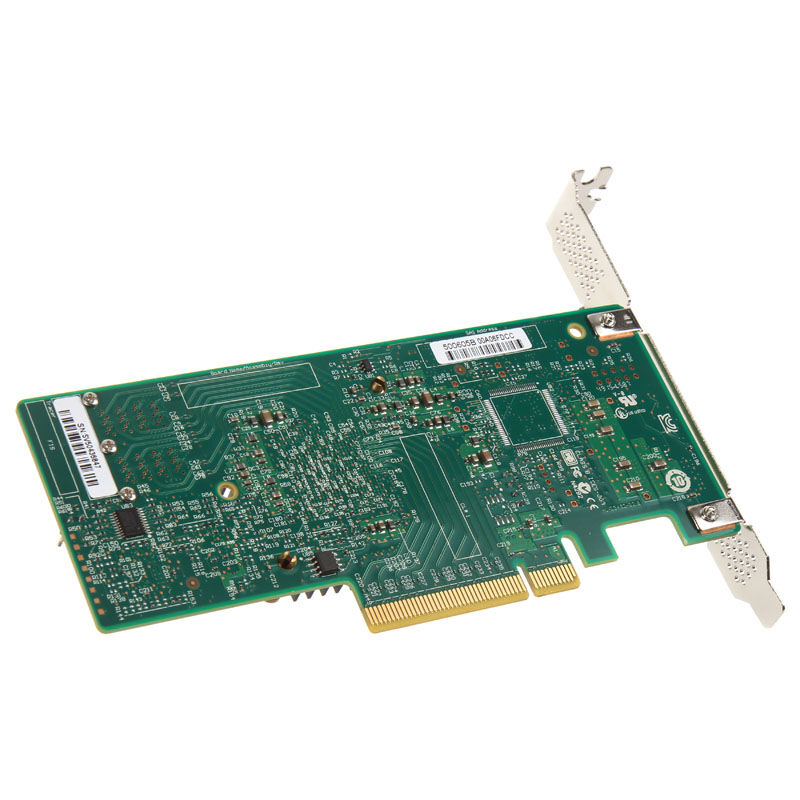

Silverstone SST-ECS05 RAID-Contr. PCIe x8 for 8x SAS / SATA (9311-8i)
The ECS05 from Silverstone is a very powerful and versatile expansion card for a PCI Express x8 slot (generation 3.0, downwards compatible, also usable in an x16 slot), which greatly increases the connectivity for hard disks and SSDs in the computer, Modes.
The ECS05 from Silverstone is a very powerful and versatile expansion card for a PCI Express x8 slot (generation 3.0, downwards compatible, also usable in an x16 slot), which greatly increases the connectivity for hard disks and SSDs in the computer, Modes.
Earn 355 Points
We price match UK retailers. Try It Now!
- SKU: ZUSA-223
- MPN: SST-ECS05
- EAN: 4710007223796
- Warranty: 12 Months
Details
Up to eight HDDs or SSDs can be managed with a SATA or SAS connector from the controller card, depending on the type of drive and the corresponding optional connection cable. Two mini SAS HD outputs (type SFF8643) On the board, to which corresponding, extra-purchase cable to be purchased, for example, from 1x Mini-SAS-HD to 4x SATA.

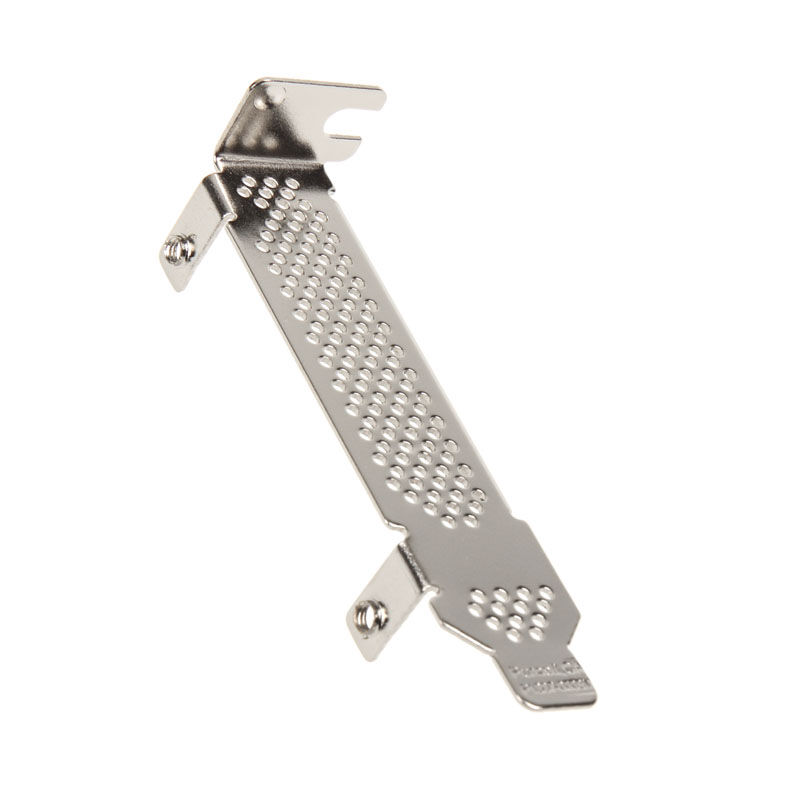

The Silverstone SST-ECS05 is equipped with the 1.2 GHz fast LSI SAS 3008 chip (also known as the LSI MegaRAID 9311-8i), which allows configuration of the storage media in RAID 0, 1, 1E or 10. Thanks to PCIe 3.0 connectivity with 8 lanes, a sufficient bandwidth of 64 Gbit / s is provided for the HDDs / SSDs. An additional alternative low-profile shield is included with the RAID controller.
Note: There are no cables included to connect drives to the two mini SAS HD outputs (SFF8643) on the controller card. These must be purchased separately, for example in the form of ZUSA-216 in the caseking range.
Technical details:
Dimensions: 120 x 23 x 154 mm (W x H x D)
Weight: approx. 91 g
Controller: LSI SAS 3008
Interface: PCI Express 3.0 x8 (up to 64 Gbps)
Connections: 2x Mini SAS-HD (SFF8643)
Compatible Drives: 8x SAS (up to 12 Gb / s) or SATA (SATA 6G / SATA II / SATA I)
Supported RAID modes: 0, 1, 1E, 10
Delivery:
RAID controller card
Driver and software CD
NO cables included
Customer Product Reviews
Overall rating
Earn
25 point when you review this product
Write a review
Select rating and write review
Related Products
£55.43£46.19 Inc VatEx Vat
Out of stock
With the EE25-XA3, AXAGON offers a robust housing made of brushed aluminum for 3.5 inch HDDs.
- SKU: ZUWE-466
- MPN: EE35-XA3
- EAN: 8595247902863
£21.92£18.27 Inc VatEx Vat
Available
This high-quality adapter cable from Akasa leads an internal USB 3.0 header (USB 3.2 Gen 1) to an external USB 3.0 type C port on a black PCI bezel.
- SKU: ZUUS-445
- MPN: AK-CBUB53-40BK
- EAN: 4710679550275
£17.42£14.52 Inc VatEx Vat
Available

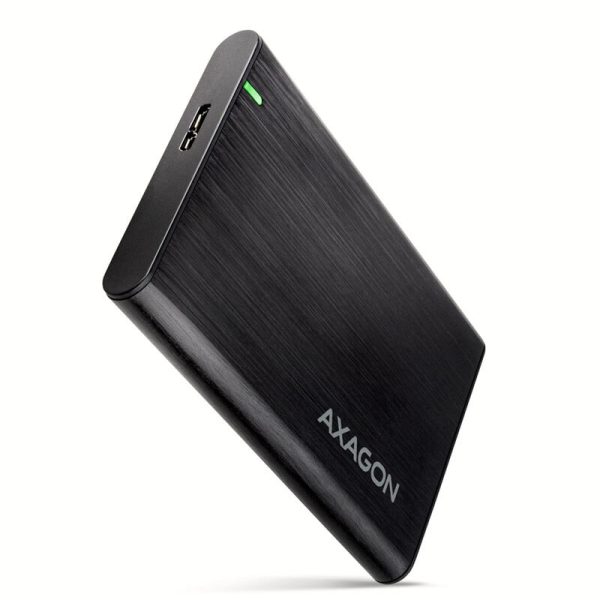

With the black aluminum AXAGON EE25-A6M hard drive case, you can always carry your valuable data safely with you.
