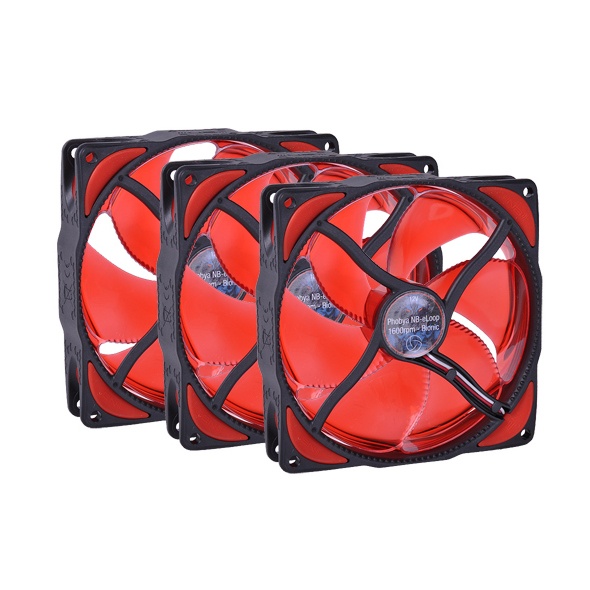

Phobya NB-ELOOP 1600rpm - Bionic Fan Bundle (3 x Pack)

The worlds first high-tech compact fan with patented bionic Bionic Loop rotor comes from Germany. Developed with the support of the Federal Ministry of Economics and the bionic Dr. Rudolf Bannasch we provide with the Phobya NB-ELOOP series against the currently most advanced fans of the world. The Phobya NB-ELOOP which designed especially for Phobya in an unique red wing and black frame matches the special edition Which Phobya design perfectly. This Phobya NB-ELOOP extends the existing Phobya fan series with another highlight finest quality.

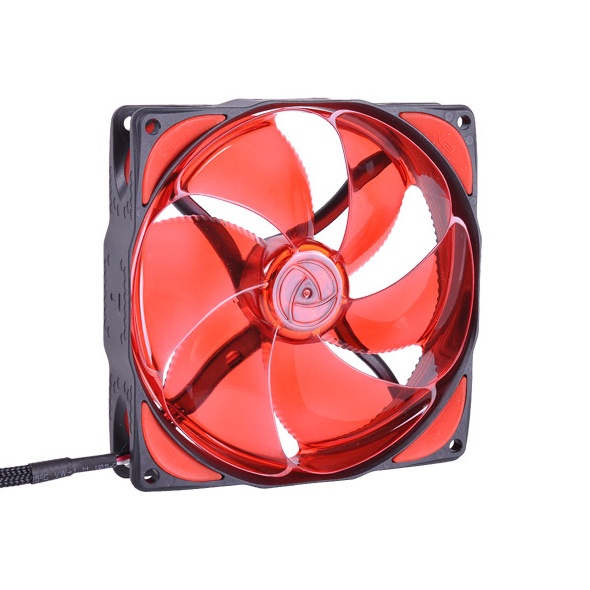

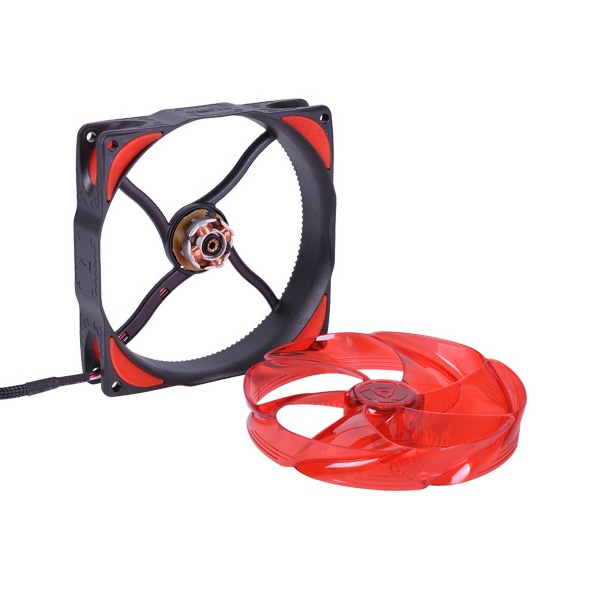

Bionic fan rotor blade (new)
The unique design of the rotor Eliminates the vortices between low and high pressure side of the fan blade tips. The tip vortices are broken up into smaller vortices and distributed evenly. Vortices on the trailing edge blade are reduced to a minimum by vorticity guides.

Result of all these features is reduced drag, aerodynamic Significantly reducing noise and improving energy efficiency.
Dust repelling super-smooth surface, original material Bayer Makrolon .

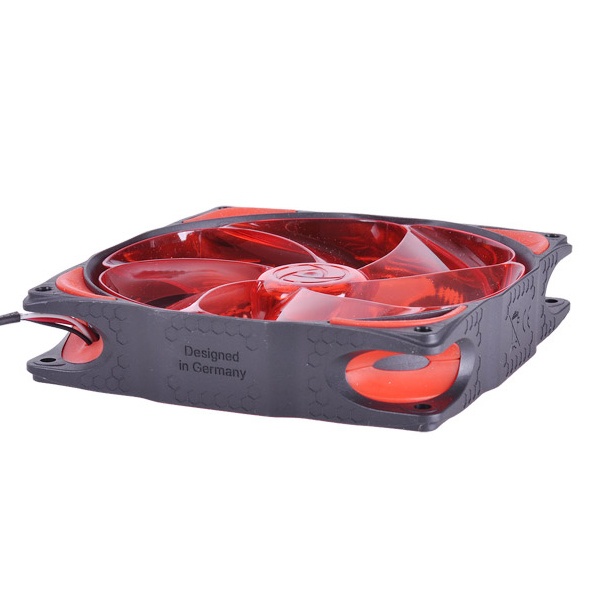

Bionic chassis fan (new)
aerodynamically optimized flow pattern
4 resonance / interference absorbers (Deep Sound Design)
Increased air intake area with diagonal design
Highly linear power output over the whole spectrum speed, air flow optimized
Fiber glass reinforced material made from concentrated frame UL94V0 PBT 30% GF

NB-EKA 2 Drive (new)
Auto-restart functionality for reliable start-up
Integrated blockage and overload protection
Scalable NB-Wide Range electronics
Low start-up voltage
RPM signal lead
AntiDust technology (completely dust-protected motor)

NB-NanoSLI two magnetic floating bearing (new)
Orientation-invariant lubrication and noise reduction, vertical and horizontal surgery without Increased noise emission
AntiDust technology (completely dust protected bearing)
Special lubrication with Nano technology for long life span and low noise emissions

Technical specifications:
Dimensions: 120x120x25mm
Weight: 125g
Nominal voltage: 12V
Start-up voltage: 6 V
Power consumption: 1.01 W
Nominal speed: 1600rpm (+ / – 10%)
Pressure head: 1.560 mmH2O
Air flow: 104 m3 / h
Noise Emission: 22.5 dB / A
MTBF (25 degrees C): 140 000 hrs.
Connector: 3 Pin Molex with rpm signal
Warranty: 3 years
Extent of delivery:
3x Phobya NB-ELOOP 1600rpm – Bionic Fan (120x120x25mm)
12x Screws
