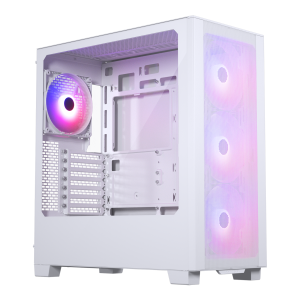

Phanteks XT Pro Ultra PC Case, Midi-Tower, E-ATX, Tempered Glass, D-RGB - White

- Classic mid-tower with numerous cooling options
- Four D-RGB fans pre-installed
- Supports MSI Project Zero and ASUS BTF motherboards

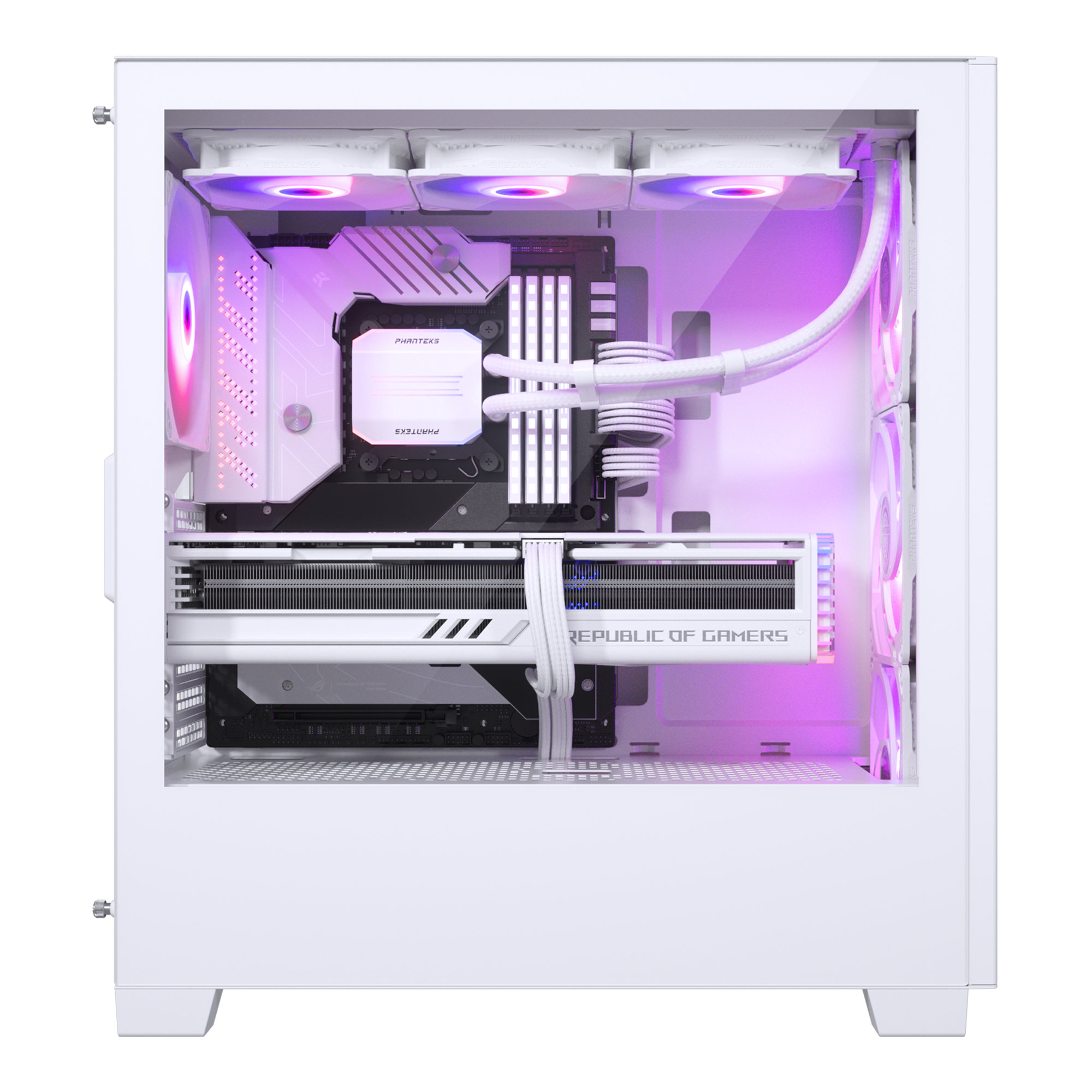

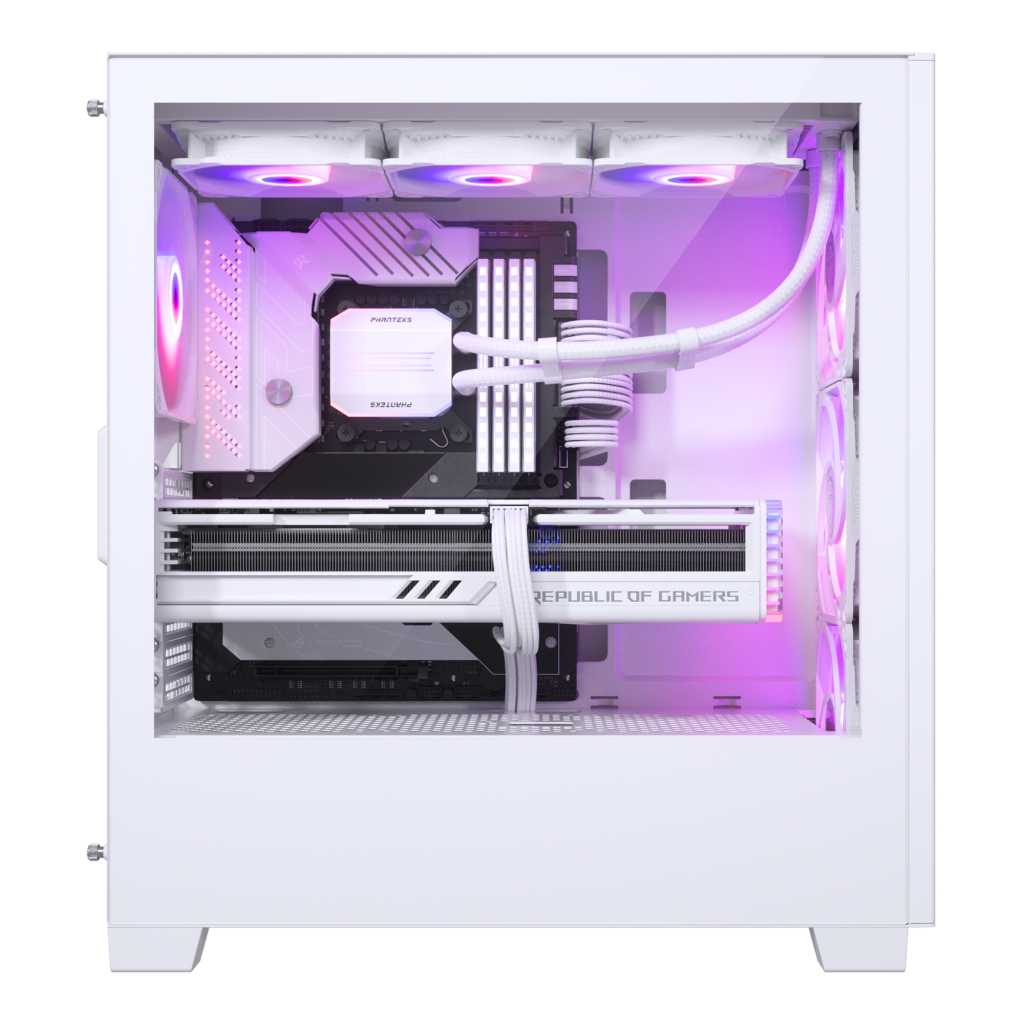

- Tempered glass side panel for an impressive view of your hardware
- Optimal cooling thanks to space for up to ten fans
- 360 mm radiators on the top panel possible
- Graphics cards up to 415 mm long supported
- Maximum CPU cooler height of 184 mm

  • 10+ Available
  • Delivered by Thu 4 Jun
    UK Delivery Options
    Royal Mail Trackedfrom £3.50
    DPD Expressfrom £5.00
    Click & CollectFree

£64.49£53.74 Inc VatEx Vat

98 in stock

We price match UK retailers. Try It Now!

We price match UK retailers with stock!

Please enter as much detail as possible about the price you want us to try and match, and if it's via a store discount code, promotion or loyalty program.

Enter full price Including VAT

- Classic mid-tower with numerous cooling options
- Four D-RGB fans pre-installed
- Supports MSI Project Zero and ASUS BTF motherboards
- Tempered glass side panel for an impressive view of your hardware
- Optimal cooling thanks to space for up to ten fans
- 360 mm radiators on the top panel possible
- Graphics cards up to 415 mm long supported
- Maximum CPU cooler height of 184 mm

PHANTEKS
Earn 54 Points
We price match UK retailers. Try It Now!
  • SKU: GEPH-179
  • MPN: PH-XT523P1_DWT01
  • EAN: 0886523303145
  • Warranty: 12 Months
Details

– Classic mid-tower with numerous cooling options
– Four D-RGB fans pre-installed
– Supports MSI Project Zero and ASUS BTF motherboards
– Tempered glass side panel for an impressive view of your hardware
– Optimal cooling thanks to space for up to ten fans
– 360 mm radiators on the top panel possible
– Graphics cards up to 415 mm long supported
– Maximum CPU cooler height of 184 mm

PHANTEKS XT Pro Ultra: Top airflow with four fans pre-installed

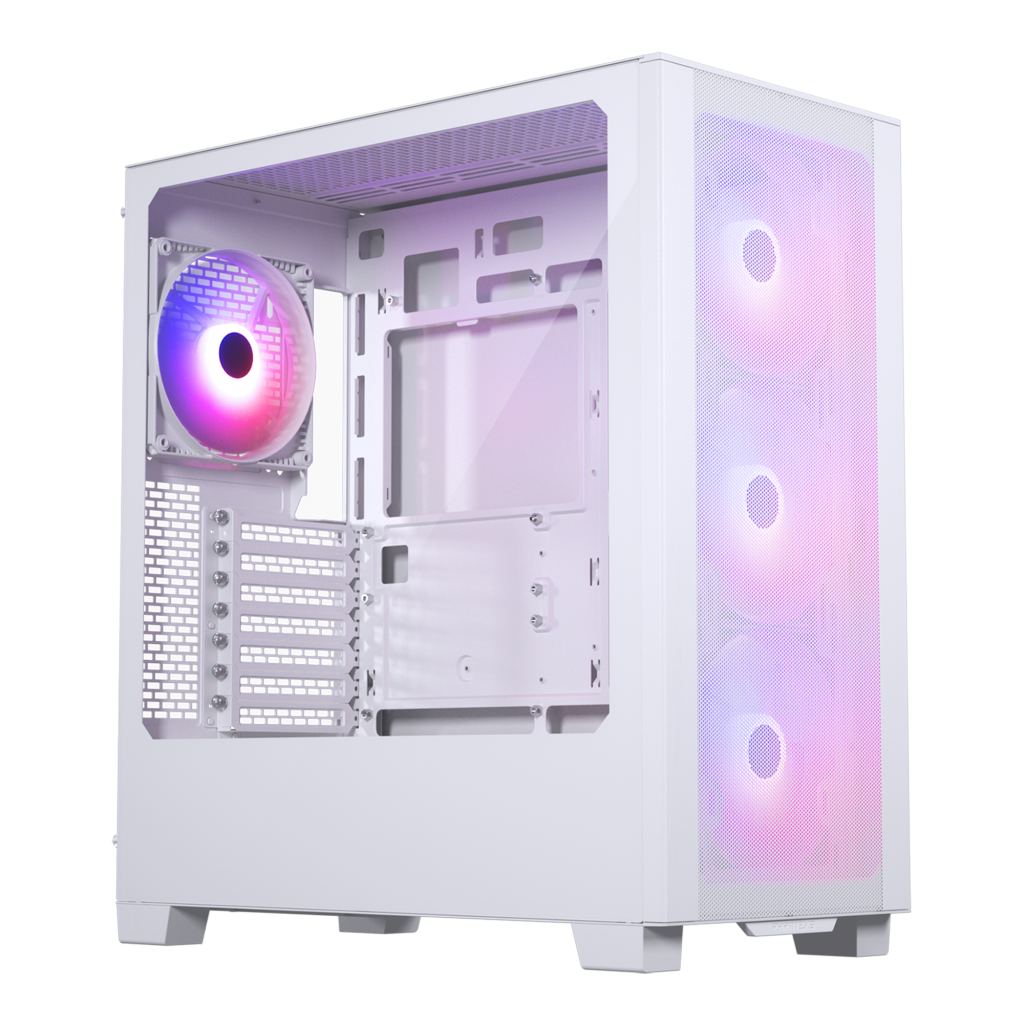

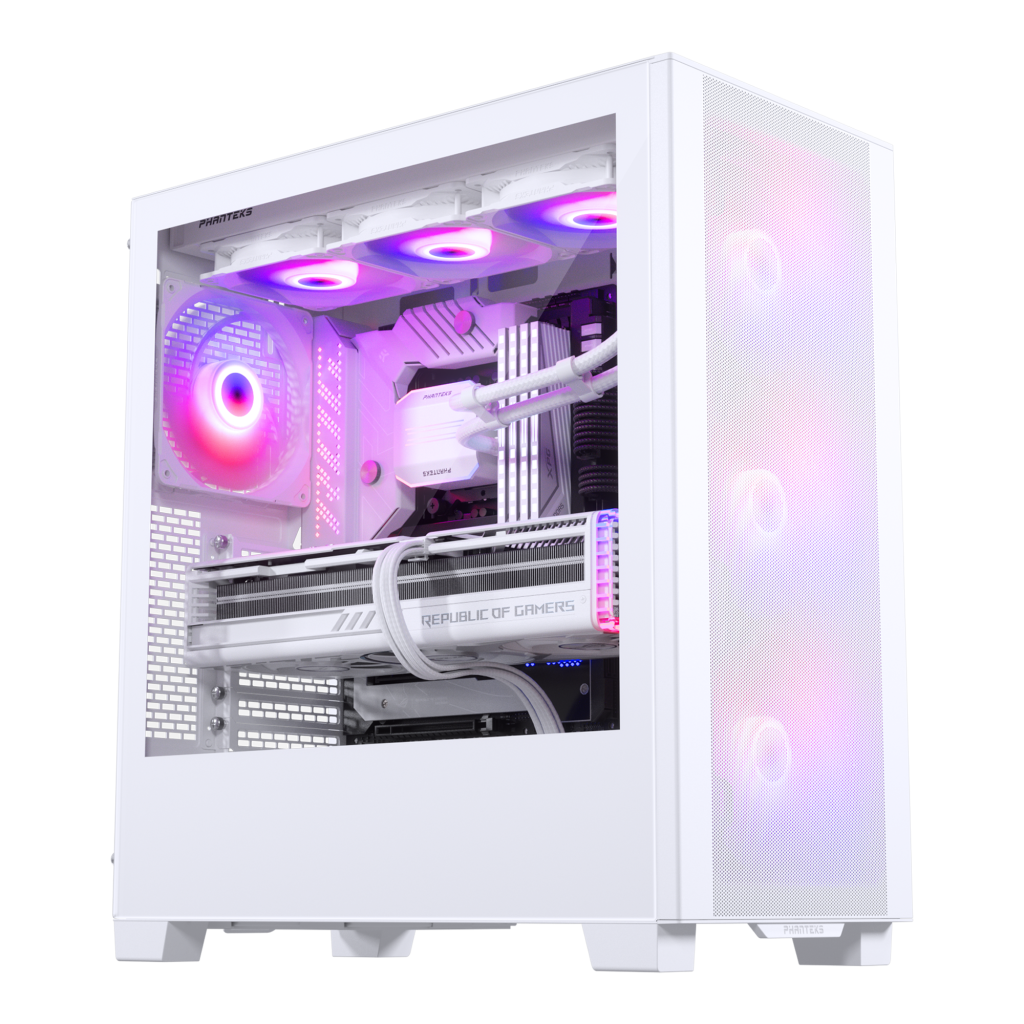

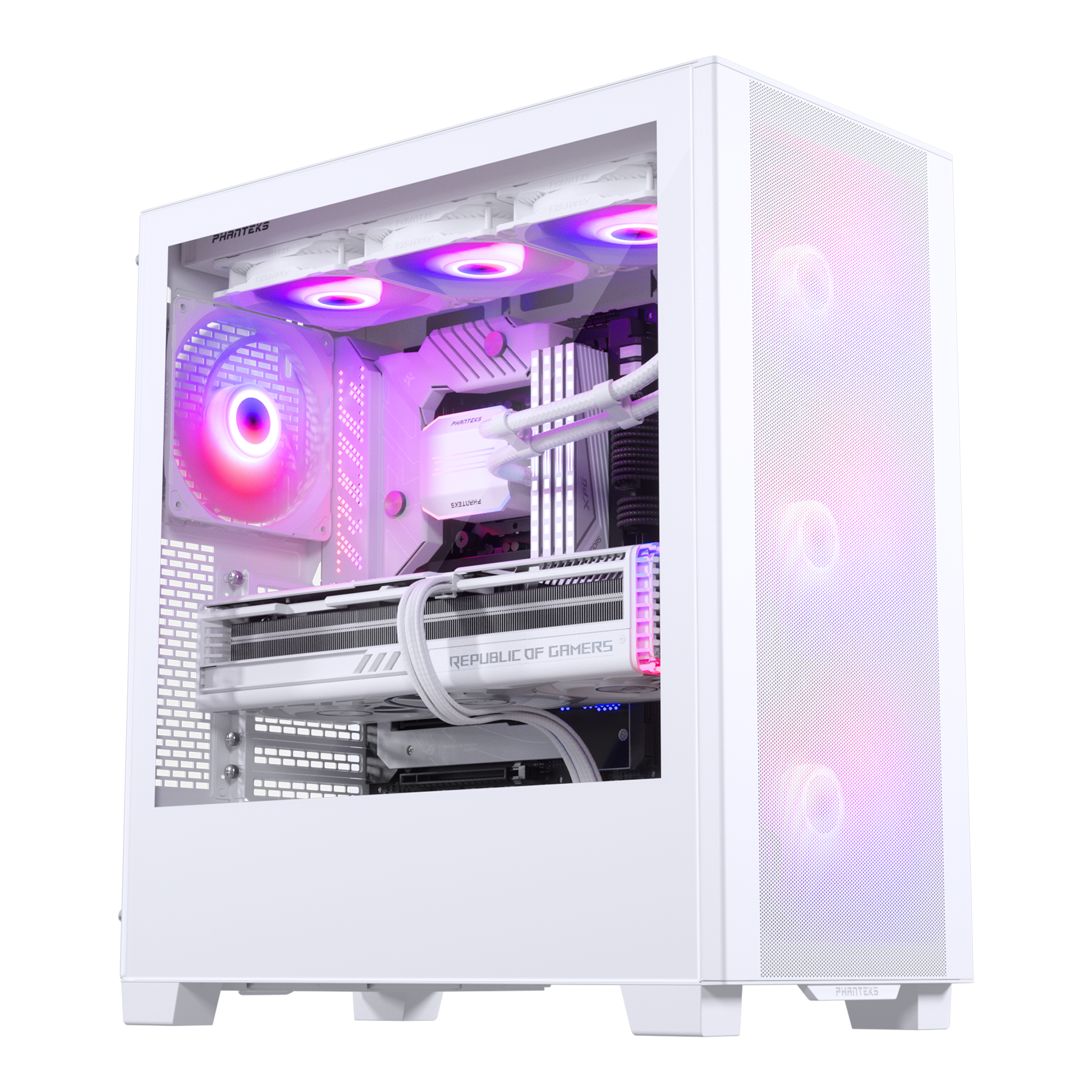

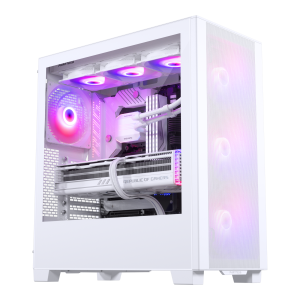

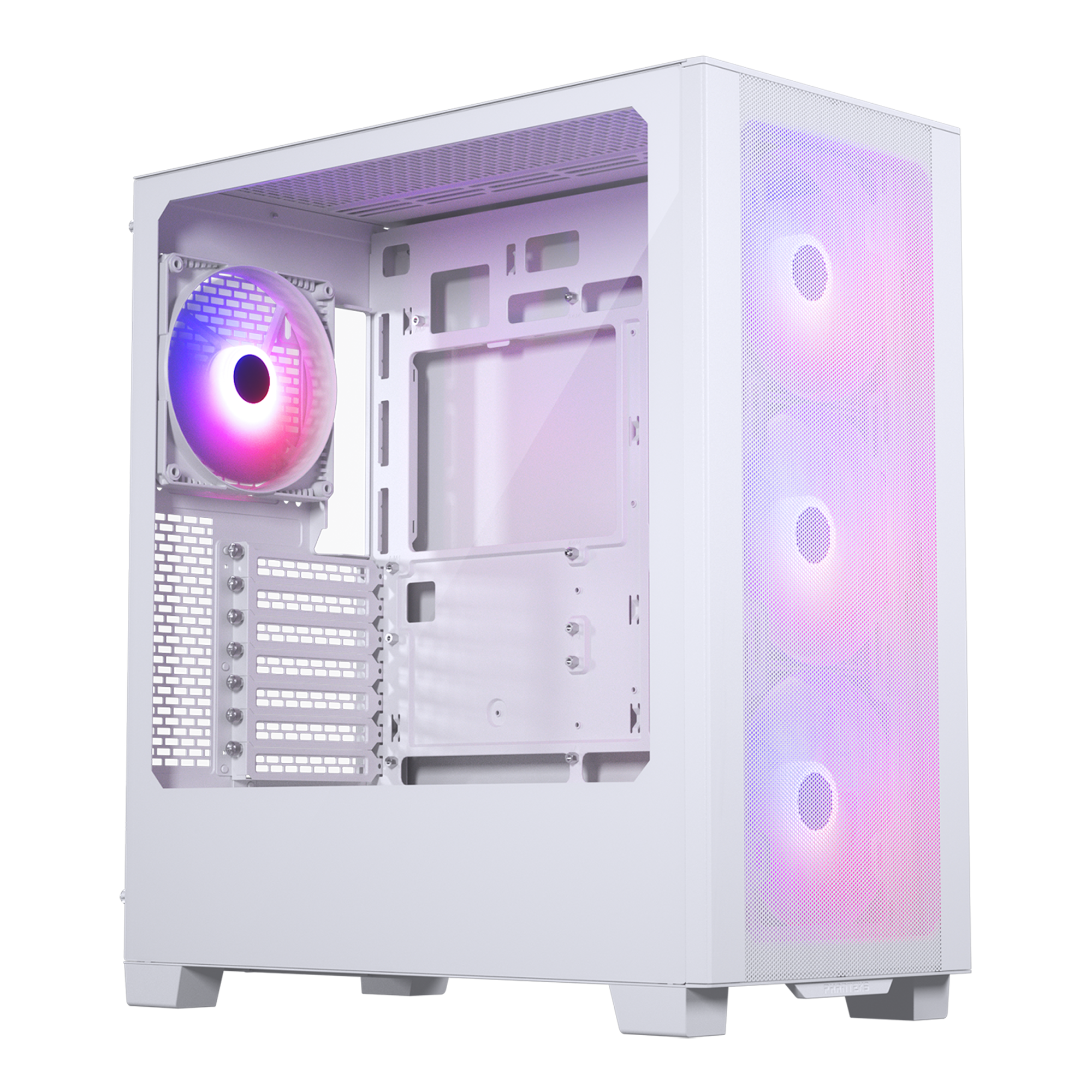

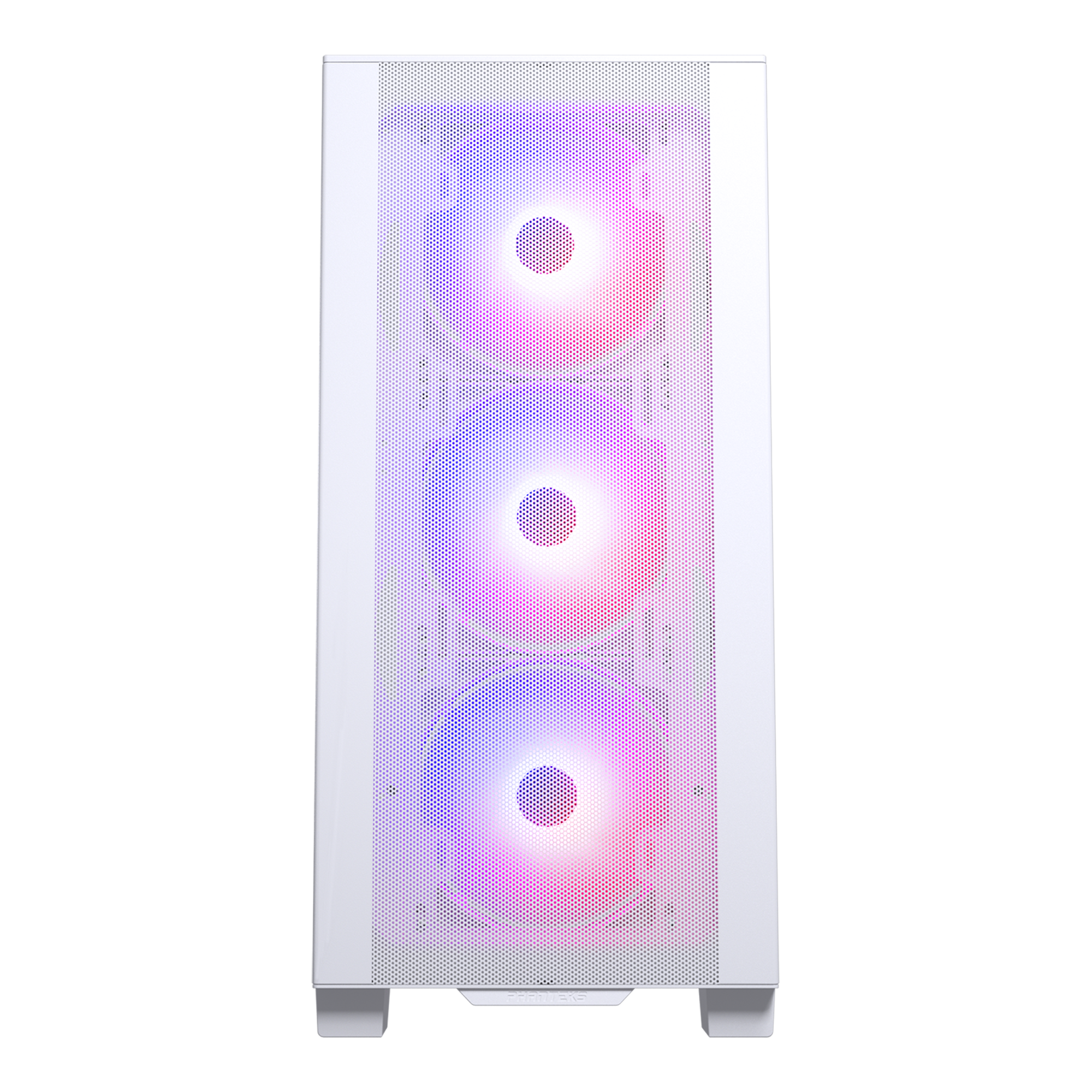

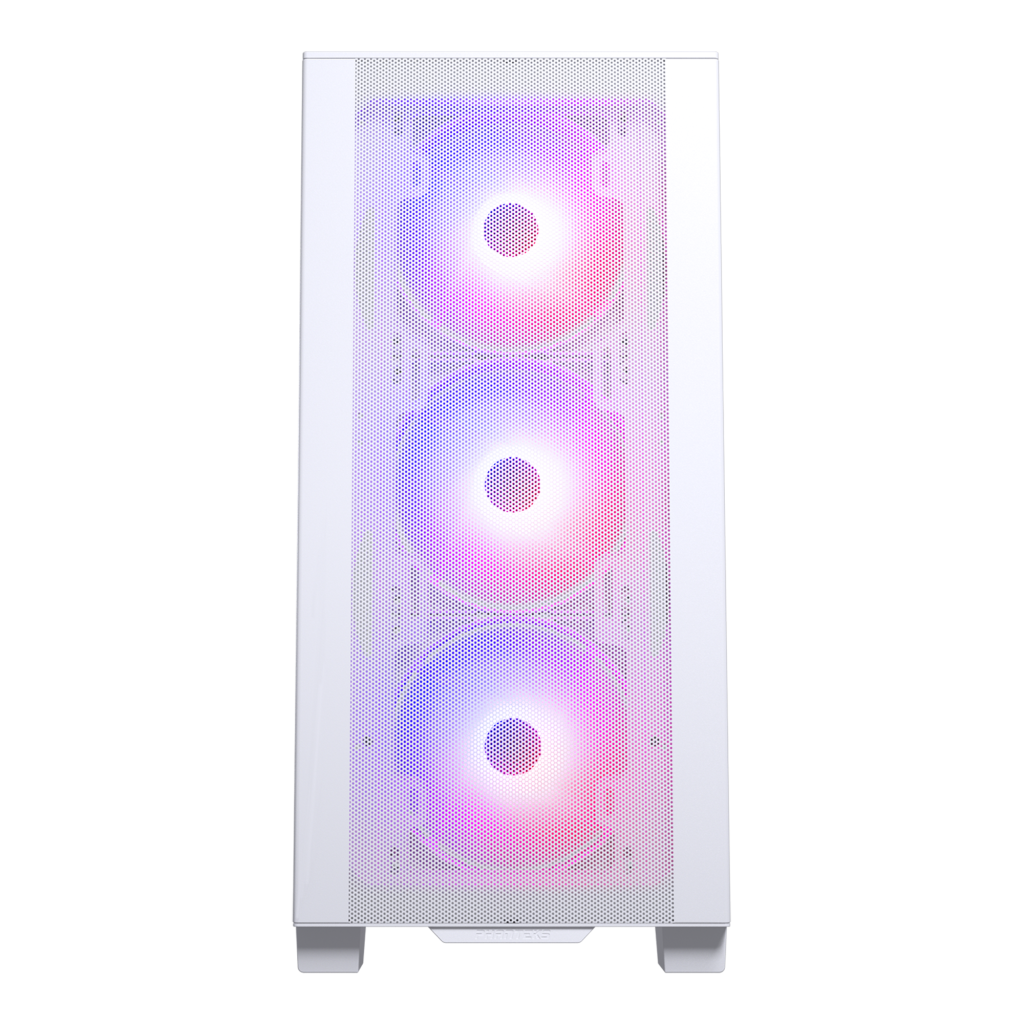

The XT series from PHANTEKS is designed for optimal airflow and offers you a variety of options for cooling your hardware. The Phanteks XT Pro Ultra is a classic mid-tower with plenty of space for fans, radiators, and full-size gaming graphics cards. The case comes with four pre-installed 140 mm D-RGB fans and features a tempered glass side panel that provides a view of your installed hardware. The mesh front panel protects your valuable hardware from dust and dirt while allowing good airflow. Furthermore, the XT series supports modern motherboards with rear-mounted connectors, such as MSIs Project Zero or ASUS BTF.

Diverse Cooling Options and Space for Large Graphics Cards

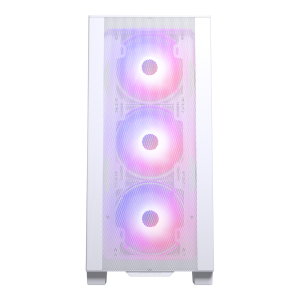

The design of the PHANTEKS XT Pro Ultra was particularly focused on providing a wide range of cooling options. You can install up to 10 fans in the XT Pro Ultra. Four D-RGB fans are pre-installed (front and rear). The top panel can accommodate either three 120 mm fans or two 140 mm fans or a radiator up to 360 mm in size. Theres also space in the front for three 140 mm fans or one 240 mm radiator. If you use a small 120 mm radiator, this can also replace the rear fan. The midplate bracket also offers space for three additional 120 mm fans, which you can use to directly cool your graphics card.

If you use an air cooler for your CPU, your CPU cooler should not exceed a height of 184 mm. The graphics card of your choice can be an impressive 415 mm long and 184 mm high – generous space for powerful gaming graphics cards. With a separately available GPU bracket, you can even install your graphics card vertically.

Space for Drives and a Modern I/O Panel
Adequate storage is also provided. The PHANTEKS XT Pro Ultra can accommodate up to two 3.5-inch and five 2.5-inch hard drives. With the included triple SSD bracket, you can further customize your drive space to suit your needs. For power-hungry hardware, ATX power supplies up to 270 mm in size can be installed under the cover. The case also offers seven PCI slots for additional drives or other expansions.

In the XT Pro Ultra, you can use motherboards up to ATX form factor. Under certain conditions, even E-ATX boards fit inside the case. The widely used ATX standard offers you plenty of flexibility to realize your dream system. The sturdy case frame is made of steel. In addition to the power and reset buttons, the modern I/O panel features LED lights for power and HDD, as well as a combo audio jack and one USB 3.0 Type-A and one USB 3.1 Type-C port.

Technical Details

ColourWhite
Dimensions (W × H × D)230 × 500 × 450 mm
Weightapprox. 8.17 kg
MaterialsSteel, Tempered Glass
Motherboard SupportMicro-ATX, Mini-ITX, ATX, E-ATX (up to 280 mm without GPU support bracket)
Total Fan SupportFront: 3 × 120 mm / 3 × 140 mm
Top: 3 × 120 mm / 2 × 140 mm
Rear: 1 × 120 mm / 1 × 140 mm
Midplate: 3 × 120 mm
Pre-installed Fans3 × 140 mm (front)
1 × 140 mm (rear)
Radiator SupportFront: 1 × up to 240 mm
Top: 1 × up to 360 mm
Rear: 1 × up to 120 mm
Drive Bays2 × 3.5″
5 × 2.5″ (rear motherboard tray)
PSU SupportATX, up to 270 mm length
Expansion Slots7
I/O Panel1 × Power button
1 × Reset button
1 × USB 3.0 Type-A (USB 3.2 Gen 1, 5 Gbit/s)
1 × USB 3.1 Type-C (USB 3.2 Gen 2, 10 Gbit/s)
1 × 3.5 mm combo audio jack
1 × Power LED
1 × HDD LED
Max. GPU Length415 mm
Max. CPU Cooler Height184 mm
Package Contents1 × Phanteks XT PRO ULTRA Midi Tower (Tempered Glass)
4 × M25-140 fans
1 × DRGB motherboard adapter
1 × Triple SSD bracket
Storage bracket (2 × HDD / 1 × HDD + 2 × SSD)
1 × Accessory box with screws

Specifications

ColourWhite
Dimensions (L × W × H)450 × 230 × 500 mm
Weight8.17 kg
Case TypeMid Tower
Motherboard SupportATX, E-ATX, Micro-ATX, Mini-ITX
Max. Motherboard FormatE-ATX
Internal ClearanceCPU Cooler: 184 mm
GPU Length: 415 mm
GPU Width: 184 mm
PSU Length: 270 mm
Display IncludedNo
Power SupplyIncluded: No
Format: ATX
Position: Rear bottom
Fan Support120 mm: 10
140 mm: 6
Radiator Support1 × Dual (240 mm)
1 × Single (120 mm)
1 × Triple (360 mm)
Drive Bays2.5″: 5
3.5″: 2
External Ports1 × USB 3.1 Type-C
1 × USB 3.0 Type-A
1 × 3.5 mm combo audio (4-pin TRRS)
Case FeaturesI/O Position: Top
Side Panel: With window
Filters Included: Yes
Back Connect SupportYes
Compatible with ASUS BTF, MSI Project Zero
Expansion Slots7
MaterialsSteel, Tempered Glass
LightingRGB: Yes
Type: ARGB / DRGB
Colour: RGB
Product SeriesXT Pro Ultra
Included Fans4 × 140 mm
