Phanteks stands for innovation, quality and uniqueness - a reputation that the young company has developed in a short time. With its cool and strong, specially coated processor coolers and excellent fans, both smoothness and output terms - now also an exquisite assortment is added to high-quality computer cases.
Phanteks stands for innovation, quality and uniqueness - a reputation that the young company has developed in a short time. With its cool and strong, specially coated processor coolers and excellent fans, both smoothness and output terms - now also an exquisite assortment is added to high-quality computer cases.
Phanteks stands for innovation, quality and uniqueness - a reputation that the young company has developed in a short time. With its cool and strong, specially coated processor coolers and excellent fans, both smoothness and output terms - now also an exquisite assortment is added to high-quality computer cases.

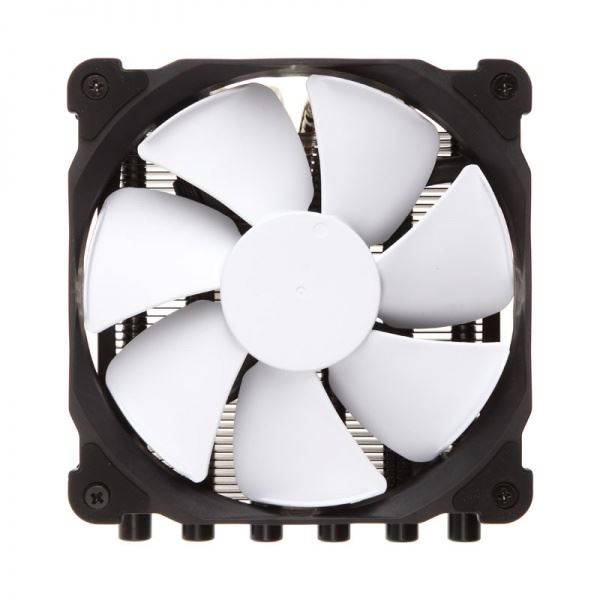

The small but very fine PH TC12LS present us the Dutchman a top-Blow cooler with small dimensions but with high cooling potential and of course again a remarkable look. The horizontally extending cooling block of aluminum fins is here in black and is crossed by six powerful, nickel plated heatpipes 6 mm in diameter, which transfer the heat from the copper base plate into the radiator.
The end pieces of copper tubes are fitted with black end caps. Because Phanteks applies when PH TC12LS the already known nano-coating called PATS (Physical Anti-Oxidant Thermal Shield), the cooling performance of the small top-blowers is increased compared to similarly sized coolers because the nanoparticles on the aluminum fins ensure that the heat of other parts, such as graphics cards or RAM is not absorbed by the cooler, but is directly radiated again.
Technical Details
| Dimensions | No Fan: 119.4 × 48.3 × 104.1 mm (W × H × D) With Fan: 119.4 × 75.0 × 119.4 mm (W × H × D) |
|---|---|
| Materials | Base Plate / Heat Pipes: Nickel Copper Fins: Specially coated aluminum |
| Weight | Fanless: approx. 317 g With Fan: approx. 499 g |
| Colour | Cooler: Black, Silver Fan: Black, White |
| Heatpipes | 6 × Ø 6 mm |
| Fan | Included: 1 × 120 mm PH F120MP Connector: 4-Pin PWM Speed: 500 – 1800 rpm Noise: max. 25 dB(A) Airflow: max. 90 m³/h Static Pressure: max. 1.72 mm H₂O Life Expectancy: 150,000 hours |
| Compatibility | Intel: 775, 1150, 1155, 1156, 1366, 2011, 2011-V3 AMD: AM2, AM2+, AM3, AM3+, FM1, FM2, FM2+ (requires reference backplate) |
| Manufacturer Warranty | 5 years |
