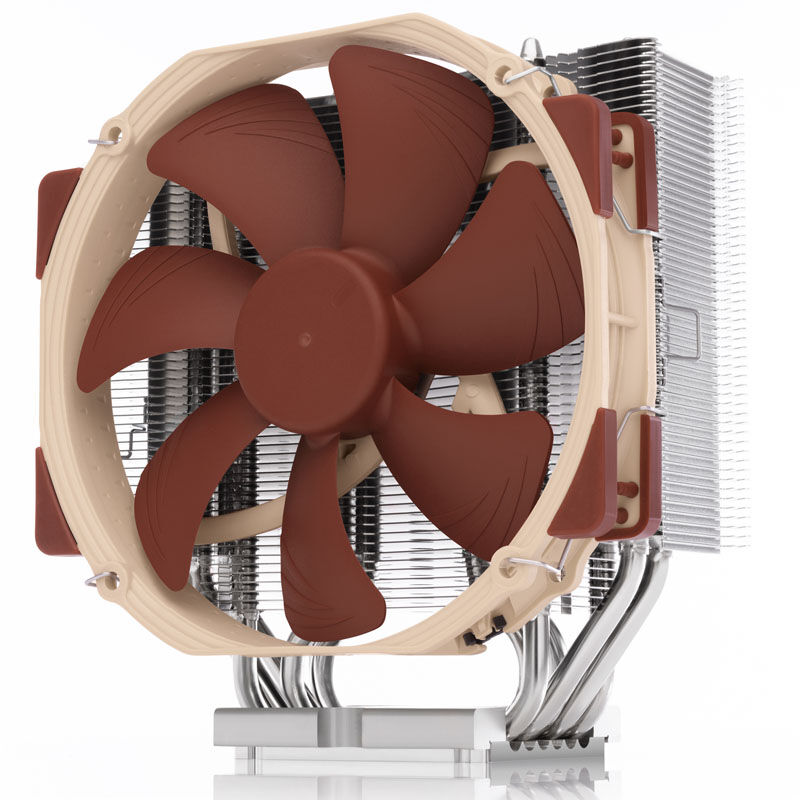

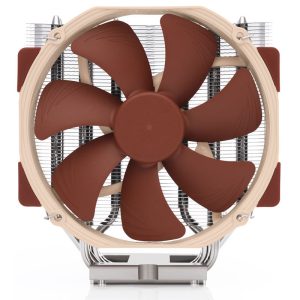

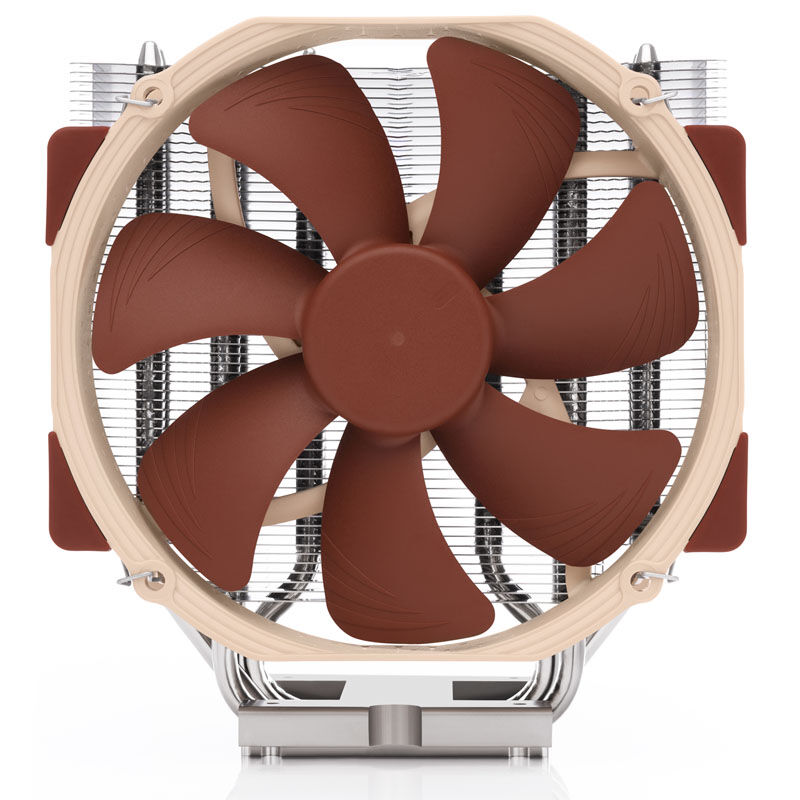

The Noctua U14S DX-4189 is a very powerful and quiet processor cooler, which is ideal for cooling Xeon servers and workstations due to its good cooling properties and low noise levels. The installation is very convenient thanks to the professional installation system and the pre-installed thermal paste.
The Noctua U14S DX-4189 is a very powerful and quiet processor cooler, which is ideal for cooling Xeon servers and workstations due to its good cooling properties and low noise levels. The installation is very convenient thanks to the professional installation system and the pre-installed thermal paste.
The Noctua U14S DX-4189 is a very powerful and quiet processor cooler, which is ideal for cooling Xeon servers and workstations due to its good cooling properties and low noise levels. The installation is very convenient thanks to the professional installation system and the pre-installed thermal paste.
No products found
The Noctua U14S DX-4189 is a very powerful and quiet processor cooler, which is ideal for cooling Xeon servers and workstations due to its good cooling properties and low noise levels. The installation is very convenient thanks to the professional installation system and the pre-installed thermal paste.
The features of the Noctua U14S DX-4189 CPU cooler at a glance:
– Processor cooler in tower design
– Compatible with Xeon processors from Intel (socket LGA4189)
– Six nickel-plated copper heat pipes
– Whisper-quiet with only 24.6 dB (A) under full load
– Including 140 mm PWM fan
– Easy installation
U14S DX-4189: Powerful and quiet
The Noctua U14S DX-4189 offers a remarkable cooling performance and is therefore ideally suited for high-performance server systems and workstations. Six nickel-plated copper heat pipes with a diameter of six mm each lie directly on the CPU and ensure efficient heat dissipation.
The heat pipes transfer the waste heat to aluminium fins, which are cooled by a 140 mm fan from the manufacturer. Thanks to the flow-optimized fan blades and PWM signal, this ensures the right balance between smoothness and performance. At a maximum speed of 1,500 rpm, it is still very quiet with a volume of 24.6 dB (A).

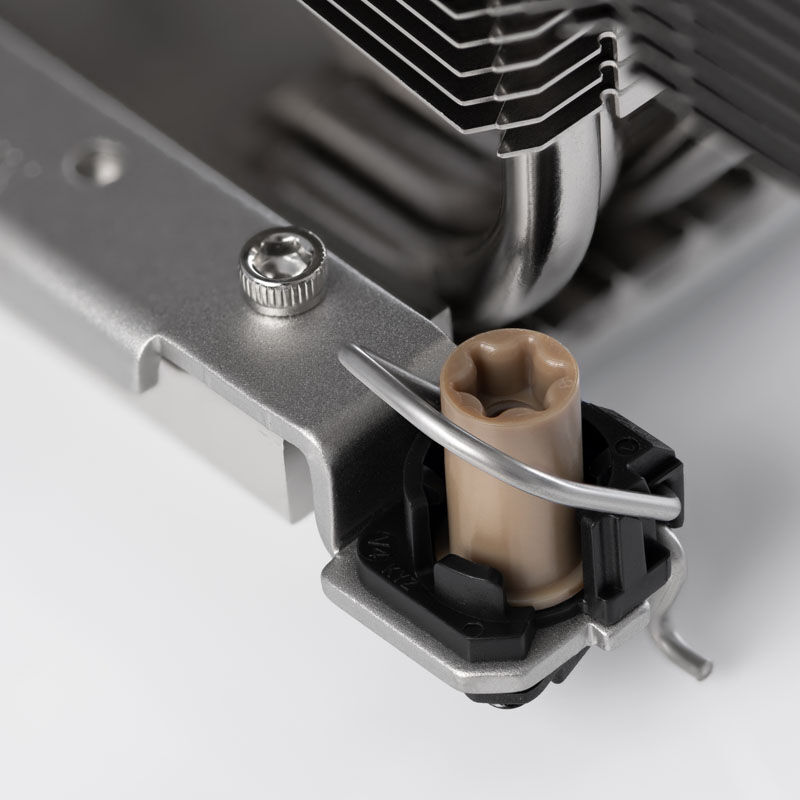

The proven SecuFirm2 mounting system
By screwing the 16.5 cm high cooler to the mounting plate on the back of the mainboard, it ensures optimal contact pressure and maximum security on the Intel Xeon LGA4189 socket.
Technical details:
– Dimensions (with fan): 150 x 165 x 78 mm (W x H x D)
– Dimensions (without fan): 150 x 165 x 52 mm (W x H x D)
– Weight (with fan): 957 g
– Weight (without fan): 797 g
– Material: copper + nickel (heat pipes), aluminium (fins)
– Heat pipes: 6x Ø 6 mm
– Fan: Noctua NF-A15 HS-PWM
– Dimensions: 140 x 150 x 25 mm
– Speed: 300-1,500 rpm
– Volume: max. 24.6 dB (A)
– Delivery volume: max. 140.2 m³ / h
– Connection: 4- Pin PWM
Compatibility:
– Socket: Intel Xeon LGA4189
Accessories:
– NF-A15 HS-PWM premium fan

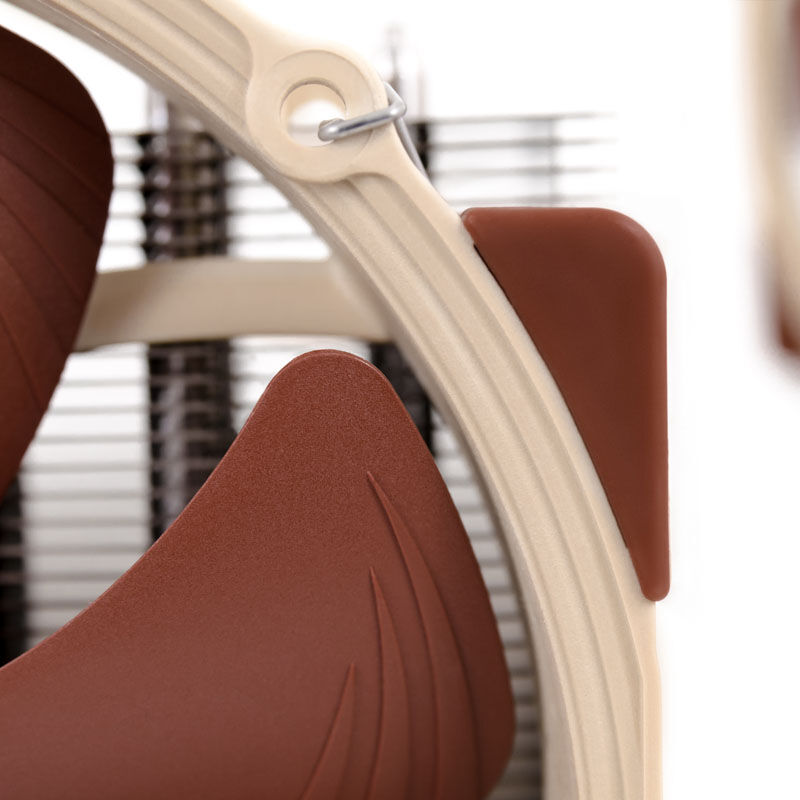

– anti-vibration pads and fan clips for the second NF-A15

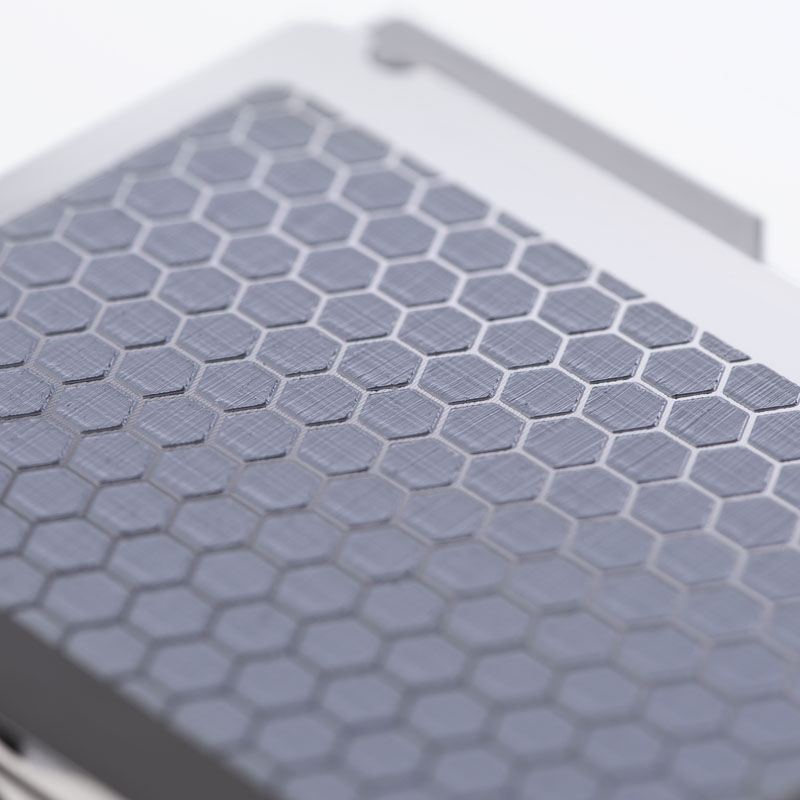

– NT-H1 High-quality thermal paste (already applied)

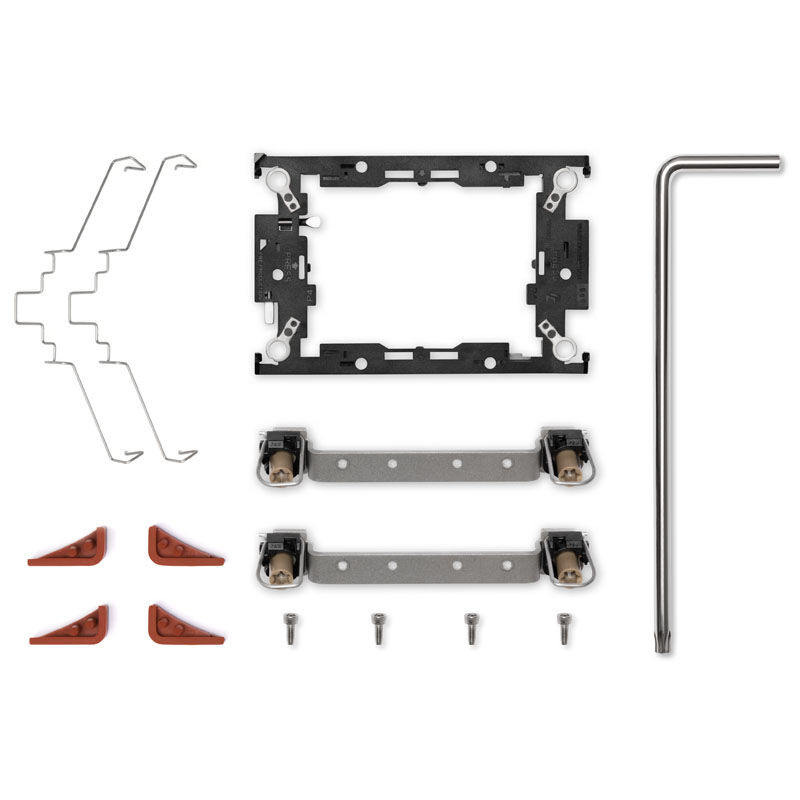

– SecuFirm2 mounting kit for LGA4189
– CPU support frame for LGA4189-4 (P4)
– NM -SMT5 Torx T30 assembly tool
– Noctua metal badge
