Noctua is one of the well-known sizes in the silent and high-end cooling sector, with the Austrian manufacturers CPU coolers in particular enjoying an excellent reputation. These combine excellent processing quality with high cooling performance and minimal noise development. The self-developed fans from Noctua are also largely responsible for this, which are also available separately to serve as case, CPU or radiator fans.
Noctua is one of the well-known sizes in the silent and high-end cooling sector, with the Austrian manufacturers CPU coolers in particular enjoying an excellent reputation. These combine excellent processing quality with high cooling performance and minimal noise development. The self-developed fans from Noctua are also largely responsible for this, which are also available separately to serve as ...
Noctua is one of the well-known sizes in the silent and high-end cooling sector, with the Austrian manufacturers CPU coolers in particular enjoying an excellent reputation. These combine excellent processing quality with high cooling performance and minimal noise development. The self-developed fans from Noctua are also largely responsible for this, which are also available separately to serve as ...
Noctua is one of the well-known sizes in the silent and high-end cooling sector, with the Austrian manufacturers CPU coolers in particular enjoying an excellent reputation. These combine excellent processing quality with high cooling performance and minimal noise development. The self-developed fans from Noctua are also largely responsible for this, which are also available separately to serve as case, CPU or radiator fans.

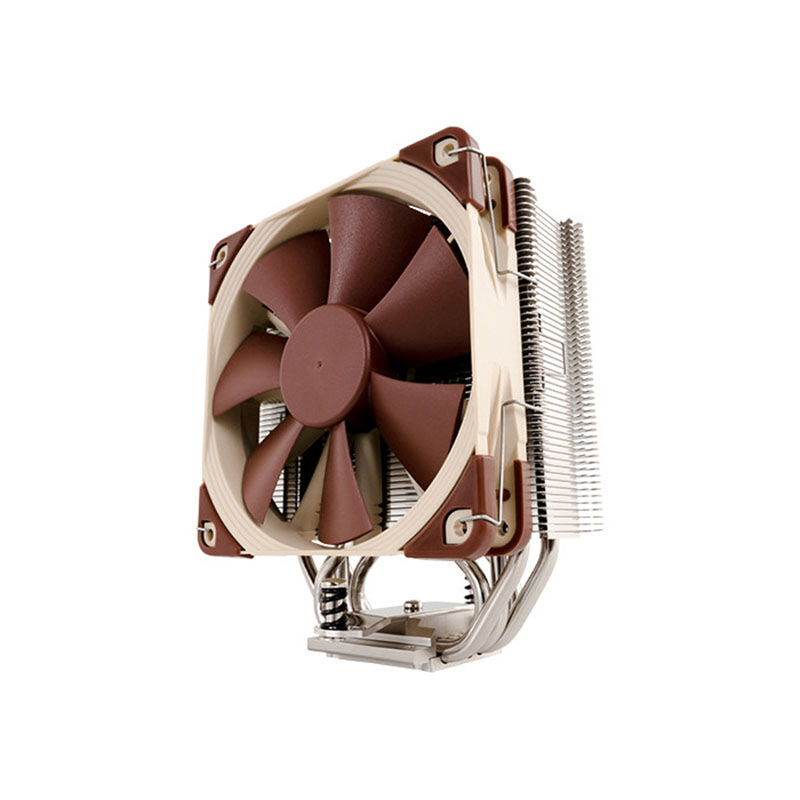

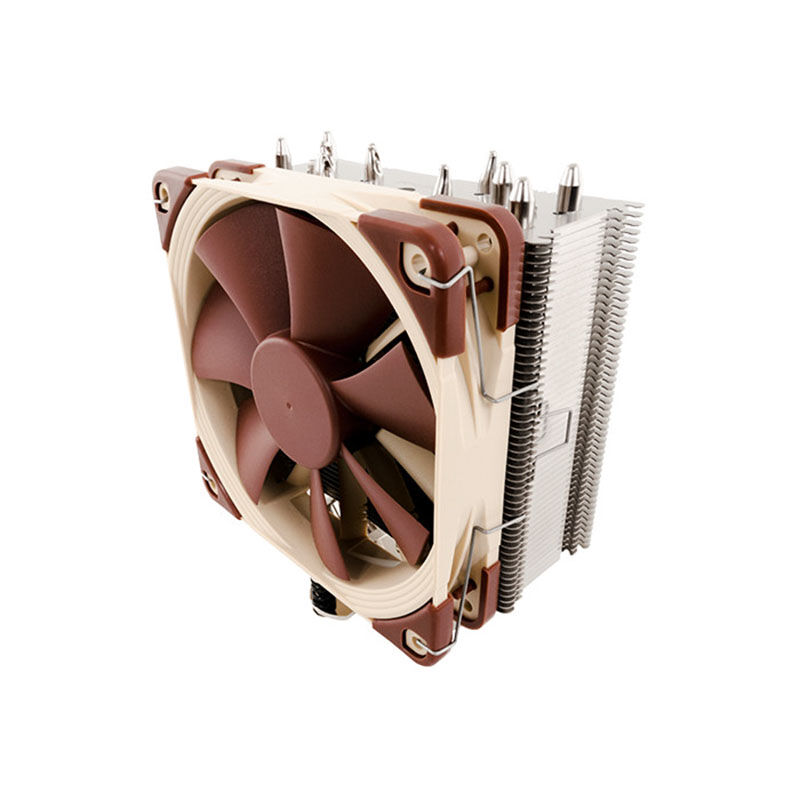

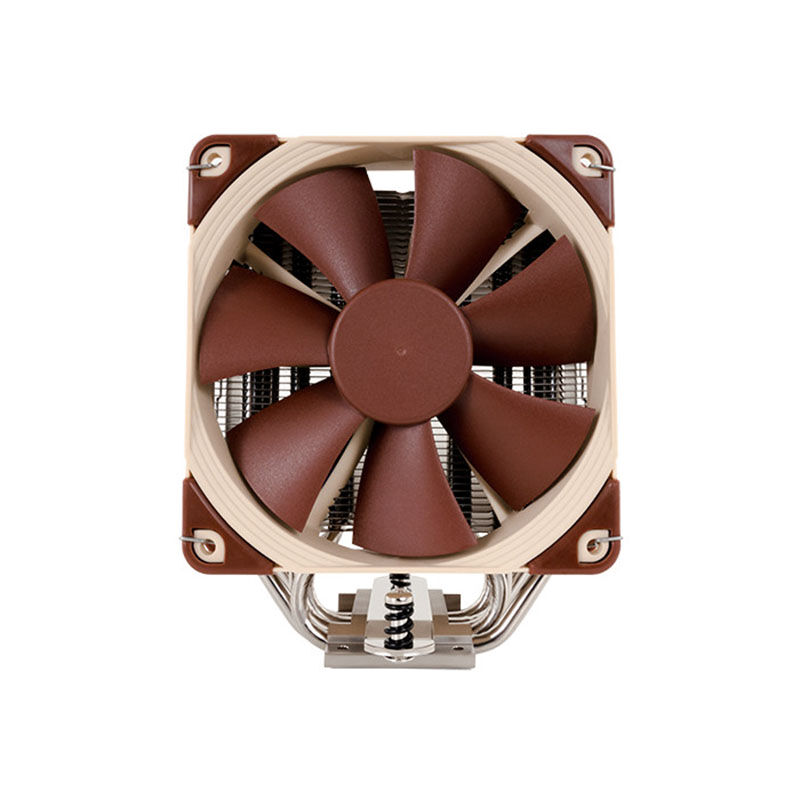

The NH-U12S in the AMD Socket AM4 special edition is a single-tower CPU cooler with a 120 mm fan from Noctuas classic U series, which has received more than 400 awards and recommendations from international specialist publications. The 45 mm slim design of the S version not only guarantees 100% compatibility with high RAM modules, but also enables a further improved silent cooling performance compared to the previous version thanks to a further optimized design in combination with the NF-F12 FocusedFlow fan, which can be controlled fully automatically via PWM.

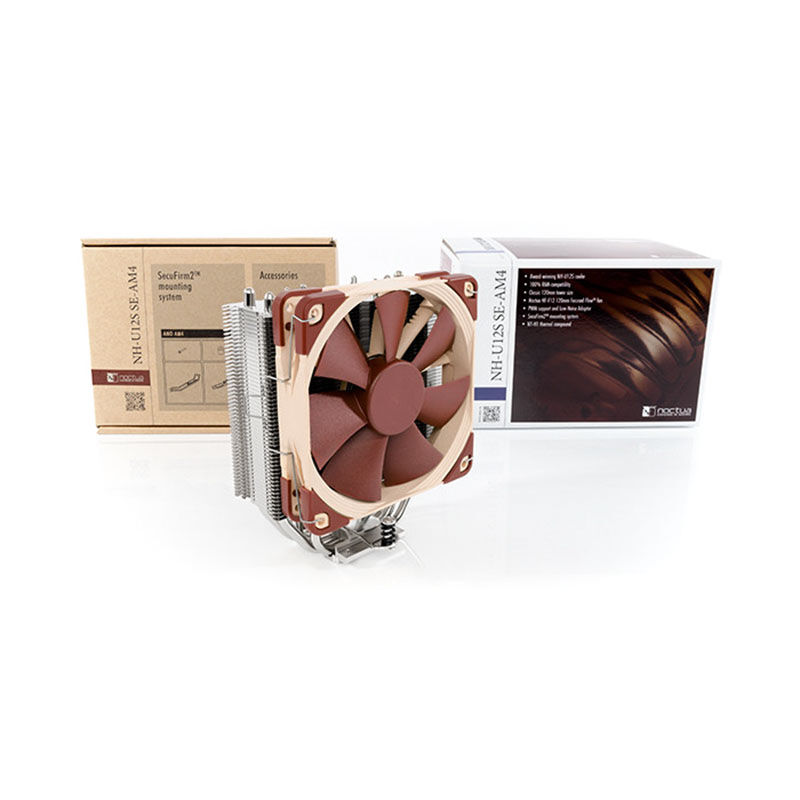

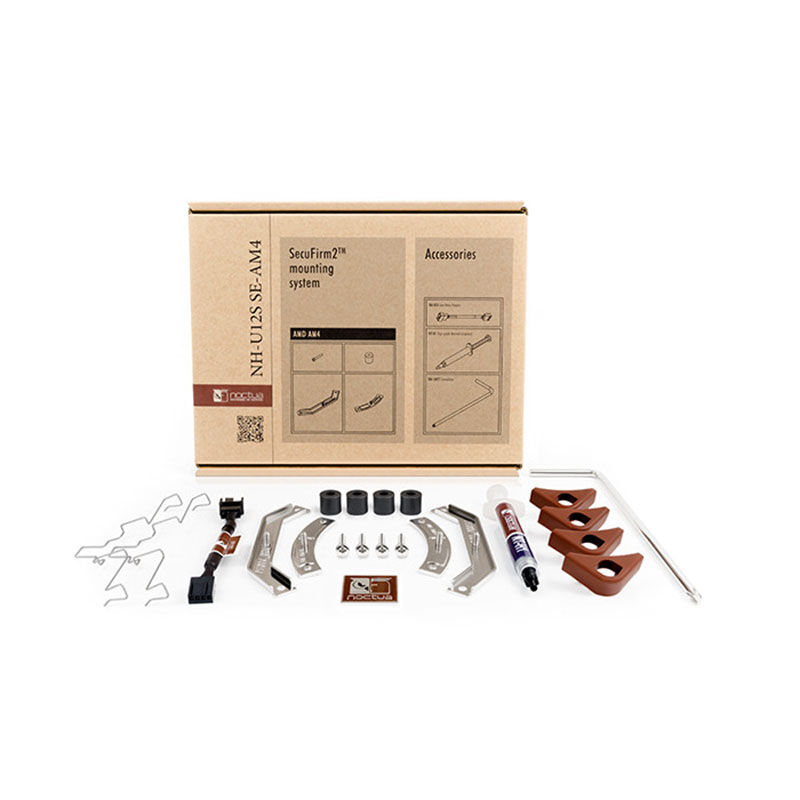

The all-round high-quality package is rounded off by the proven SecuFirm2 mounting system, Noctuas renowned NT-H1 thermal compound and a 6-year manufacturers guarantee. Its excellent cooling performance, excellent running smoothness and excellent compatibility make the NH-U12S a premium solution for the highest demands.
With a height of 158mm, the NH-U12S is compact enough to easily fit into most modern tower cases. Due to the width of 125 mm (incl. fans and fan clips), the cooler does not protrude over the top PCIe slot on normal ATX or Micro-ATX mainboards, so that the best compatibility with SLI and CrossFire systems is guaranteed.
Recommended by over 150 hardware publications and thousands of enthusiasts, the NF-F12 FocusedFlow fan is known for its combination of superb static pressure, excellent cooling performance and amazing quietness. It supports PWM for convenient, fully automatic speed control via the mainboard. In addition, the maximum speed can be reduced from 1,500 to 1,200 rpm with the included low-noise adapter to enable even quieter operation.
The LNA (Low-Noise Adapter) reduces the speed to 1,200 rpm, which reduces the volume to 18.6 dB(A). For users who want to achieve even better performance with a second NF-F12 fan in push/pull operation, the NH-U12S comes with special fan clips and an additional set of anti-vibration pads. These enable the rear fan to be offset by 5mm and thus achieve better acoustics in double fan operation.
This special edition of the Noctua NH-U12S only includes mounting material for attaching the CPU cooler to motherboards with AMDs AM4 socketthat started in 2017 with the AMD Ryzen™ desktop processors. Due to the changed hole spacing on the motherboards retention module, the fastening materials included here are not compatible with the previous AMD sockets 754, 939, 940, FM1, FM2, FM2+, AM2, AM2+, AM3 and AM3+ or Intel sockets !
Compatibility:
– AMD socket: AM4
– Manufacturing guarantee: 6 years
| Heatsink Specifications | |
|---|---|
| Dimensions (Without Fan) | 125 x 158 x 45 mm (W x H x D) |
| Dimensions (With Fan) | 125 x 158 x 71 mm (W x H x D) |
| Weight (Without / With Fan) | 580 g / 755 g |
| Material | Nickel-Plated Copper (Base & Heatpipes), Nickel-Plated Aluminum Fins |
| Heatpipes | 5x Ø 6 mm |
| Fan Specifications | |
| Fan Model | 1x 120 mm NF-F12 |
| Speed (Normal) | 1,500 RPM |
| Noise Level (Normal) | 22.4 dB(A) |
| Airflow (Normal) | 93.4 m³/h |
| Speed (With L.N.A.) | 1,200 RPM |
| Noise Level (With L.N.A.) | 18.6 dB(A) |
| Airflow (With L.N.A.) | 74.3 m³/h |
| Electrical & Durability | |
| Operating Voltage | 12 V |
| Life Expectancy | > 150,000 hours |
