- High-performance CPU cooler in a low-profile design
- Low height of only 37 mm
- 100% RAM compatibility
- Includes ultra-slim Noctua NF-A9x14 HS-PWM fan
- Suitable for 12th generation Intel processors
- High-performance CPU cooler in a low-profile design
- Low height of only 37 mm
- 100% RAM compatibility
- Includes ultra-slim Noctua NF-A9x14 HS-PWM fan
- Suitable for 12th generation Intel processors
- High-performance CPU cooler in a low-profile design
- Low height of only 37 mm
- 100% RAM compatibility
- Includes ultra-slim Noctua NF-A9x14 HS-PWM fan
- Suitable for 12th generation Intel processors
– High-performance CPU cooler in a low-profile design
– Low height of only 37 mm
– 100% RAM compatibility
– Includes ultra-slim Noctua NF-A9x14 HS-PWM fan
– Suitable for 12th generation Intel processors

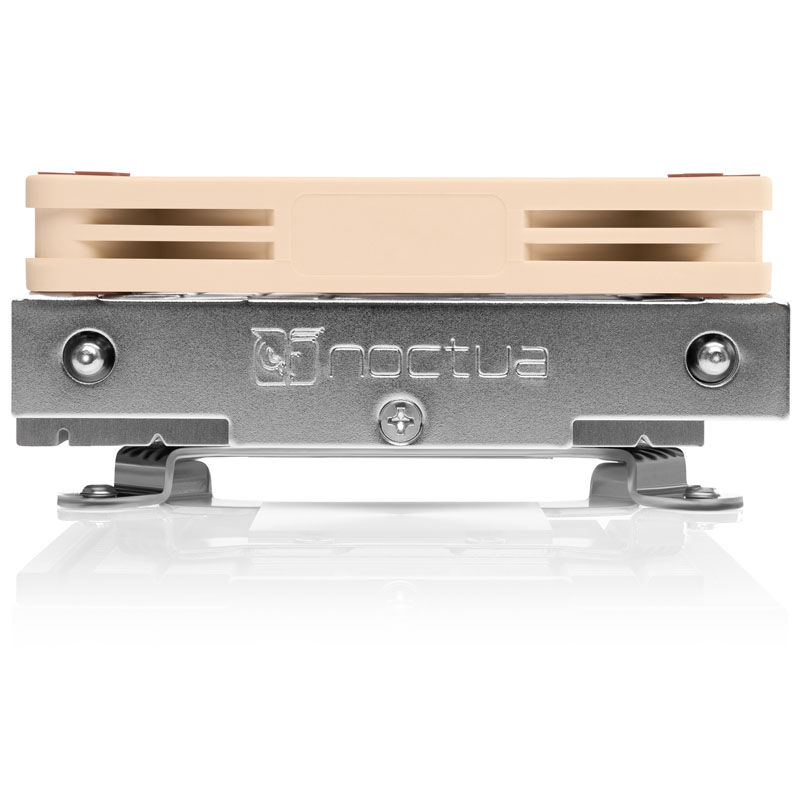

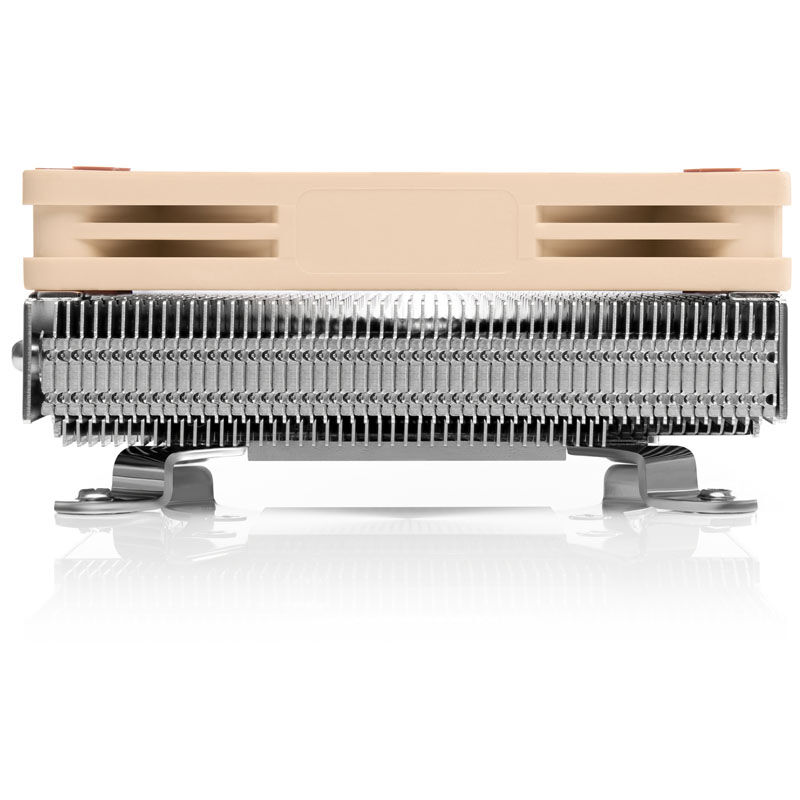

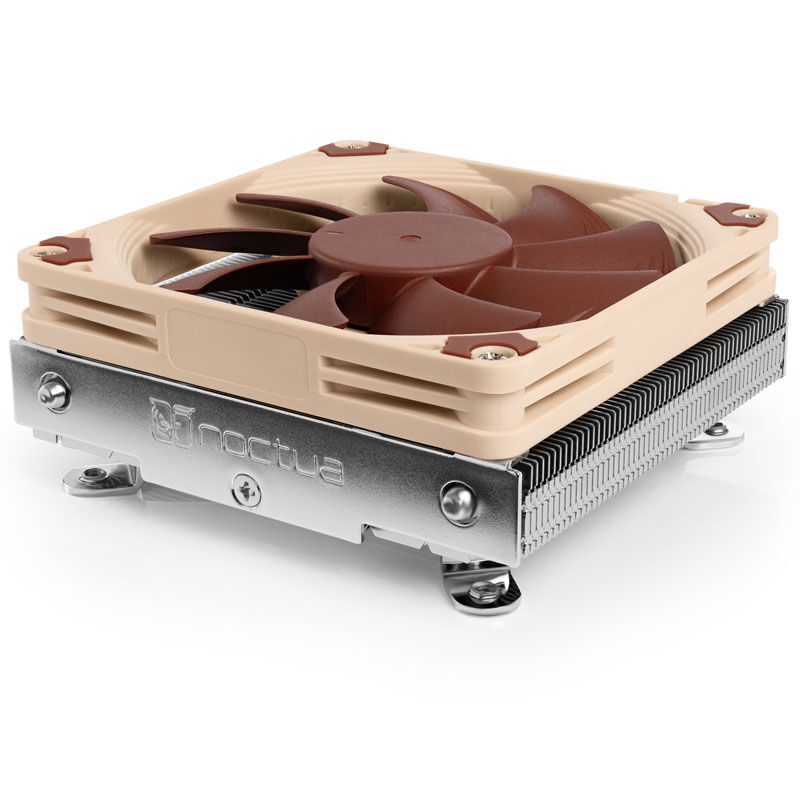

The Noctua NH-L9i-17xx: Flat and powerful
The NH-L9i-17xx is a quiet low-profile CPU cooler from Noctua with an extremely flat design. The pre-installed 92 mm fan has a height of only 14 mm, making the NH-L9i-17xx particularly suitable for HTPC and Mini-ITX cases. The low-profile cooler is ideal for Mini-ITX and HTPC cases where flat but powerful coolers are in demand.
Due to its compact design, it also achieves maximum compatibility with motherboards and memory modules. Thanks to the large cooling surface, the cooling capacity of the 37 mm high top blower is also convincing. This effectively removes the waste heat from the processor so that it can unfold its full power.
The pre-installed fan is a very quiet, 92 mm slim model with 4-pin PWM
connector. With a maximum of 23.6 dB (A), up to 2,500 rpm and a flow rate of 57.5 m³ / h, it shows surprisingly good values for its size. With the PWM signal, it can be controlled by the motherboard. The automatic adjustment regulates the fan according to the power requirement. Thanks to the SecuFirm2 mounting system, the NH-L9i-17xx is particularly easy to install and sits very firmly and stably on the processor.
Even regularly transported computers experience a higher level of security. In addition, the mounting kit is suitable for all modern sockets of Intels LGA17xx family.
| GENERAL SPECIFICATIONS | |
| Dimensions (With Fan) | 95 × 95 × 37 mm (W × H × D) |
| Dimensions (Without Fan) | 95 × 95 × 23 mm (W × H × D) |
| Weight (With Fan) | 380 g |
| Weight (Without Fan) | 320 g |
| Materials | Copper (base & heatpipes), Aluminium (fins) |
| Heatpipes | 4 |
| CPU Compatibility | Intel LGA 17xx |
| FAN SPECIFICATIONS | |
| Fan Model | NF-A9x14 HS-PWM |
| Fan Dimensions | 92 × 92 × 25 mm |
| Connector | 4-Pin PWM |
| Max Speed | 2,500 RPM |
| Airflow | 57.5 m³/h |
| Static Pressure | 2.11 mmH₂O |
| Noise Level | Max. 23.6 dB(A) |
| SCOPE OF SUPPLY | |

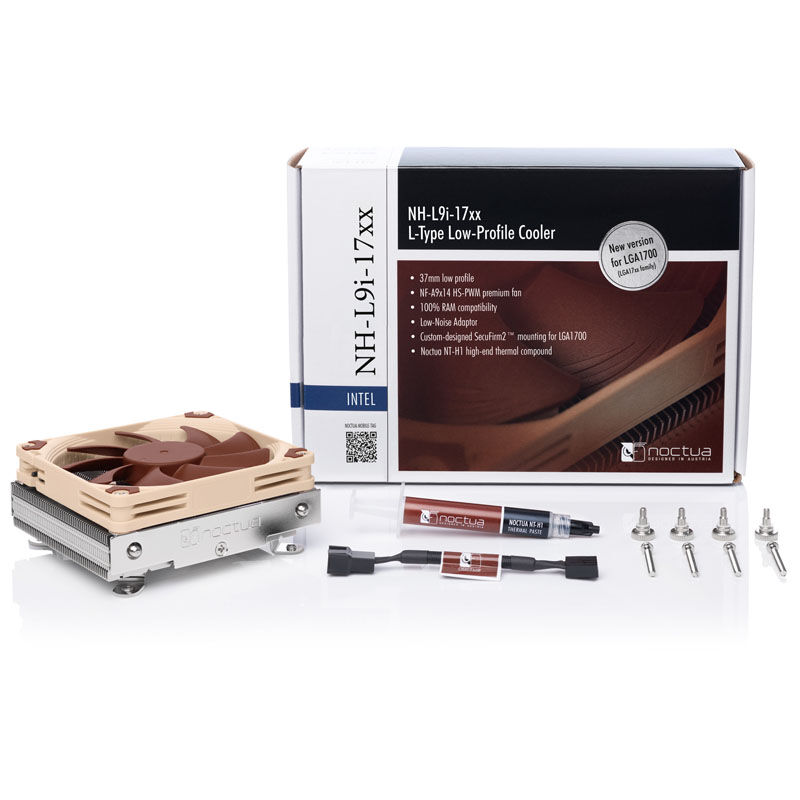

| Included Items | NH-L9i-17xx Heat Sink NF-A9x14 HS-PWM Premium Fan Low-Noise Adapter (L.N.A.) NT-H1 Thermal Compound SecuFirm2 Mounting Kit 4× Fan Screws |
| WARRANTY | |
| Manufacturer Warranty | 6 Years |
£52.07£43.39 Inc VatEx Vat
