The Noctua NF-P12 redux-1700 PWM combines the best of two worlds. On the one hand, the fan offers the usual Noctua quality, but does without a few smaller features and is therefore offered at a low price. The redux line features an attractive light and dark gray color scheme. Equipped with a 4-pin PWM connector , the fan speed can be regulated and is between 450 and 1,700 revolutions per minute. However, the fan runs pleasantly quietly at a maximum of 25.1 dB(A) and still offers an air flow rate of up to 120.2 m³/h.
The features of the Noctua NF-P12 redux-1700 PWM fan at a glance:
– SSO bearings for high performance, quiet operation and long life
– Pressure-optimized rotor blades with excellent static pressure & flow rate
– Vortex-Control Notches for a more pleasant running noise
– 1,700 revolutions per minute at 120.2 m³ / h & 25.1 dB (A)
– PWM control between 450 and 1,700 RPM
– Convincing quality with 6 years manufacturers warranty
The Noctua NF-P12 redux-1700 PWM in detail
The Noctua Nine-Blade design with the Vortex Control Notches technology of the NF-P12 redux-1700 PWM enables high throughput and is particularly suitable for use on CPU coolers or as a case fan. The 120 mm fan rotates at 450 to 1,700 revolutions per minute and generates an air flow rate of up to 120.2 m³/h . Due to the offset vortex control notches, the fan achieves an extremely low volume of only a maximum of 25.1 dB(A) . Ideal for all silent fans and overclockers!
With the Smooth Commutation Drive 2, the NF-P12 redux-1700 PWM has the latest drive system from Noctua, which reduces torque fluctuations and ensures surprisingly smooth running. In order to further optimize the already very good fan, Noctua has integrated the already proven SSO-Bearing technology, which achieves excellent long-term stability.
| GENERAL SPECIFICATIONS | |
| Dimensions | 120 × 120 × 25 mm |

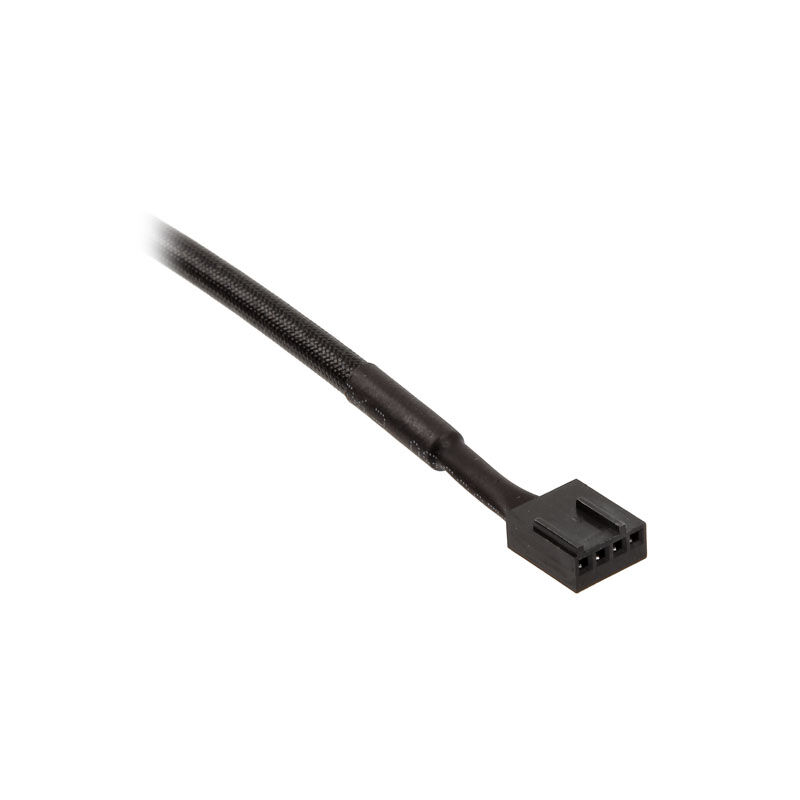

| Connector | 4-Pin PWM |
| Bearing Type | SSO Bearing |
| Blade Geometry | Pressure-Optimised Nine-Blade Design with Vortex-Control Notches |
| Operating Voltage | 12 V |
| Max Power Consumption | 1.08 W |
| Max Current | 0.09 A |
| Life Expectancy | Over 150,000 Hours |
| PERFORMANCE | |
| Speed Range | 450 – 1,700 RPM |
| Max Airflow | 120.2 m³/h |
| Max Static Pressure | 2.83 mm H₂O |
| Max Noise Level | 25.1 dB(A) |
| SCOPE OF DELIVERY | |

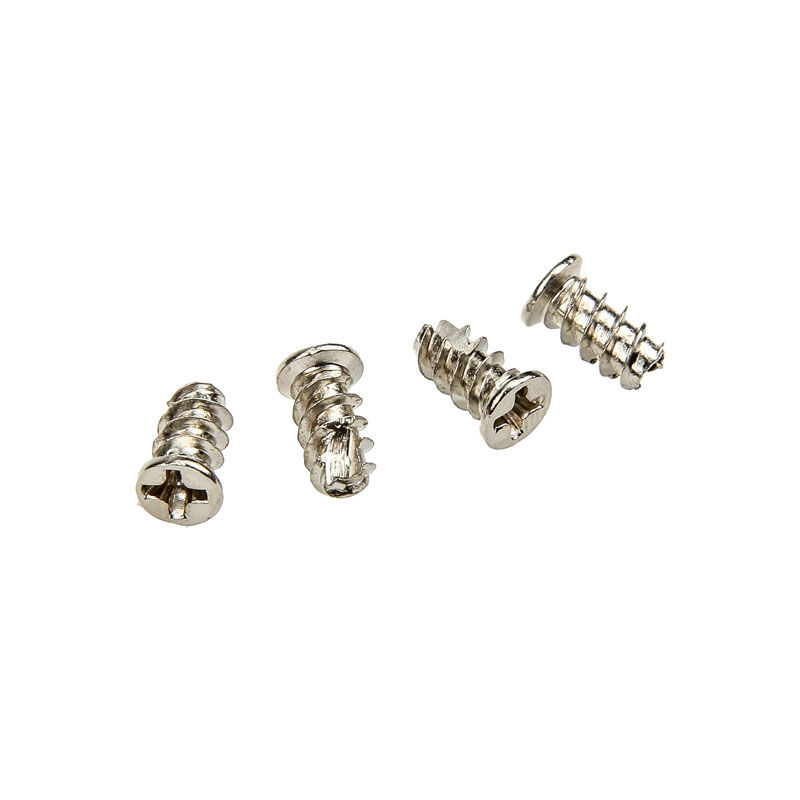

| Included Items | 1 × Fan, 4 × Fan Screws |
| WARRANTY | |
| Manufacturer Warranty | 6 Years |
