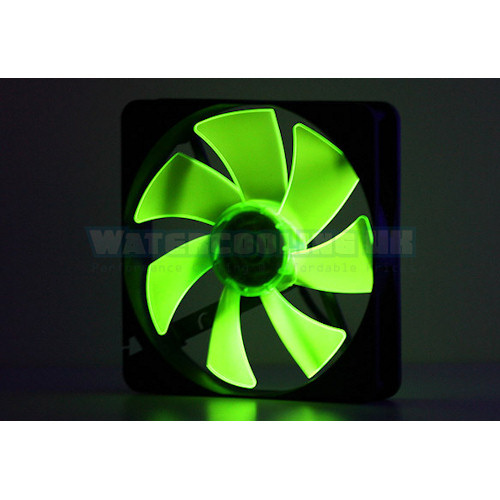

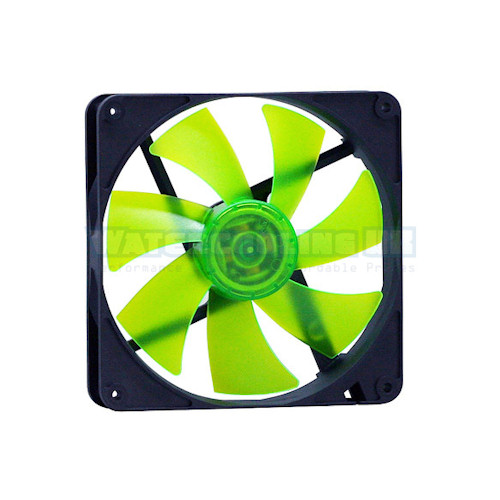

Nanoxia DX Series DX14- 700rpm (140x140x25mm)

The solid fiberglass-reinforced fans of the DX series are specially developed for the silent sector. Further development of the ECO traction technology has dampened the noise of the fan even further. The DX series is equipped with a heavy Fiber-reinforced fan frame hch absorbs much of the already little vibration coming from the fan. This results in a barely audible noise spectrum from the fan.

Of course these fans also have the Nanoxia-specific green fan blades made from  Bayer Makrolon .

To achieve even more affordable pricing  and higher power the DX series is based on the Static Neno Engineering Bearing (NEB) which is also based on Nano-technology and made from a Nano compound. The bearing was fixated to the fan blades which is the main difference to the Nanoxia FX seroes. This bearing allows higher precision when balancing the fan blades. To save cost and reduce the resale price of the fan the DX series is not equipped with the water-protect technology which means that it is not water-proof but much more affordable.

The production under German control makes no compromise which allows us to give 10 years of Nanoxia warranty on these fans.

Features:

    * 10 year warranty
    * 80.000-100.000hrs lifespan
    * Static Nano Engineering bearing
    * ECO traction
    * High-Tech rotor made from Bayer Makrolon
    * Frame made from fiberglass-reinforced Nano composite plastic

Technical specifications:
Dimensions: 140x140x25mm
Black frame. UV-reactive green fan blades
Nominal voltage: 12V
Operating range: 4-13 VDC
Airflow: 27,64CFM (max) / 47,0m³/h
Current draw: 0,026A (max)
Power consumption: 0,36W
Noise emission: 17 dB(A)
Nominal speed: 700rpm
Connector: 3-Pin

Extent of delivery:
1x Fan
4x Vibekiller Bolts
