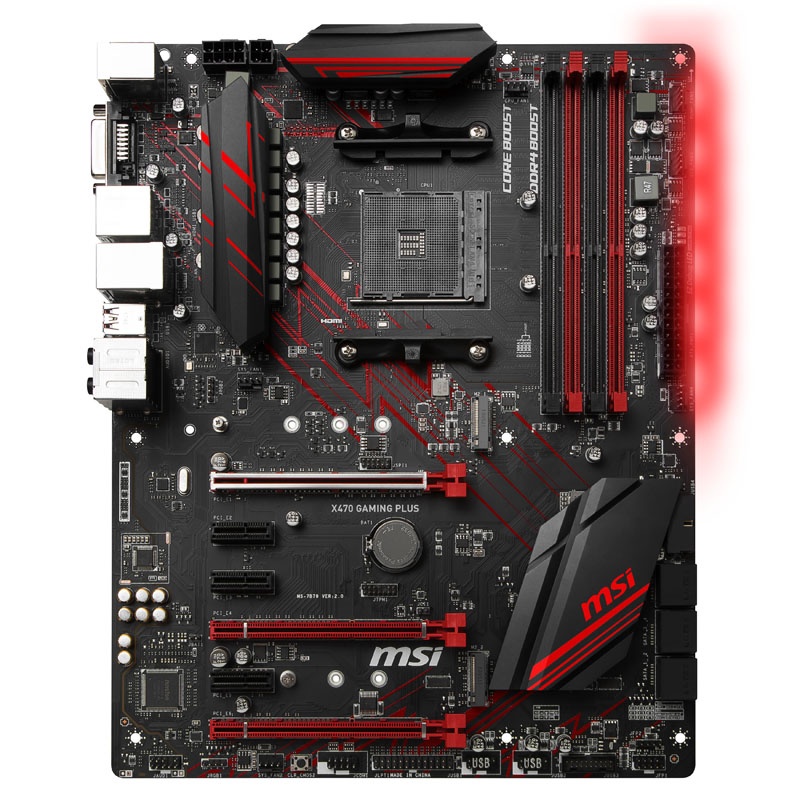

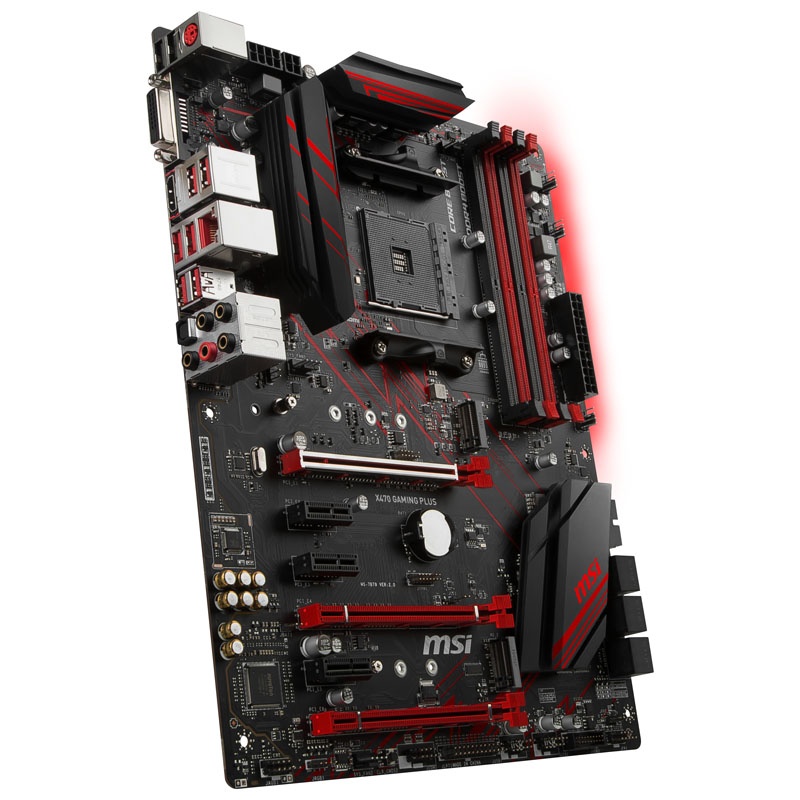

MSI X470 Gaming Plus, AMD X470 Motherboard - Socket AM4

The high-end chipset supports up to 64 GB of RAM with a guaranteed clock rate of now 2,933 megahertz, which in conjunction with OC-RAM kits also significantly higher clock speeds can be achieved. In addition, the X470 chipset is compatible with all of the new features of the second-generation Ryzen processors, and benefits from other enhancements such as the new XFR2 overclocking feature.
The features of the MSI X470 Gaming Plus at a glance:
2x PCIe 3.0 x16 (x16 / x8) for high-end graphics cards
2x USB 3.1 / 8x USB 3.0 / 6x USB 2.0
2x M.2 slot PCIe 3.0 x4 / 6x SATA 6G
DDR4 memory up to 3,466 MHz
The features of the MSI X470 Gaming Plus in detail:
The MSI X470 Gaming Plus is a motherboard in ATX format and has a fast PCI Express 3.0 slot with full x16 connection for graphics cards, one with x8 connection and another PCI Express 2.0 slot with x4 interface. connectivity. The four RAM banks hold up to 64 GB of DDR4 memory with a clock rate of up to 2,933 megahertz and can even handle clock rates of up to 3,466 MHz via the OC.

The Socket AM4 motherboard provides two M.2 slots with PCIe connectivity. M.2 SSDs connected via four PCI Express 3.0 lanes, in conjunction with the NVM Express Advanced Protocol (NVMe), support data transfer rates of up to 32 Gbps, up to eight times faster than SATA-6G HDDs.

The I / O panel of the MSI X470 Gaming Plus has two USB 3.1 connectors with type A female connector. USB 3.1 or USB 3.1 Gen 2 achieves maximum speeds of 10 Gbps per port, and USB ports with this standard support the quick-charge function of smartphones and tablets. In addition, there is a PS / 2 slot, which can accommodate either mouse or keyboard.

Technical details:
Format:
ATX (305 x 244 mm)
chipset:
AMD X470
Base:
AM4 (for Pinnacle Ridge / Summit Ridge / Bristol Ridge / Raven Ridge)
R.A.M:
4x DDR4 (max 2.933 MHz, 3.466 in OC)
Dual-Channel
Max. 64 GB
Slots (with a Ryzen CPU of the 2000 series):
1x PCIe 3.0×16
1x PCIe 3.0 x16 (electric x8)
1x PCIe 2.0 x16 (electric x4)
Multi-GPU configurations: 3-way AMD CrossFire
3x PCIe 2.0 x1
Internal connections:
6x SATA 6G (RAID 0, 1, 10)
1x M.2 (M-Key, PCIe 3.0 x4 with max 32 Gbps, horizontal, sizes 2242 to 22110)
1x M.2 (M-Key, PCIe 2.0 x4 & SATA6G with up to 20 Gbps, horizontal, sizes 2242 to 2280)
2x USB 3.0 header (4 ports)
2x USB 2.0 header (4 ports)
5x 4-pin fan (PWM)
1x pump connection
1x DVI-D
1x HDMI
1x front-panel audio connector
2x 4-pin RGB header (JRGB)
1x TPM connector
External connections:
1x USB 3.1 (Type-C, max 10 Gbit / s)
1x USB 3.1 (Type-A, max 10 Gbps)
4x USB 3.0 (Type-A, max 5 Gbps)
2x USB 2.0
1x Gigabit LAN (Intel I211AT)
1x Clear CMOS button
5x audio (HD audio, 7.1 sound)
1x Optical S / PDIF Out
Power supply:
1x 24 pin ATX12V
1x 8-pin ATX12V
1x 4-pin ATX12V
