MSI MPG B650I Edge WiFi, Socket AM5, AMD B650l, Mini-ITX - DDR5

– 1x PCIe 4.0 x16 (x16)
– Supports up to 64 GB DDR5 RAM up to 6,600 MHz (OC)
– 2x M.2 (2x PCIe 4.0) / 4x SATA 6G
– 1x USB-C 3.2, 3x USB 3.1, and 2x USB 3.0 on the I/O panel
– OC features: 8+2+1 phase VRMs, Flash BIOS, CMOS reset
– A total of 3x 4-pin PWM fans possible
– MSI MPG B650I Edge WiFi: Mini-ITX motherboard with AMD AM5

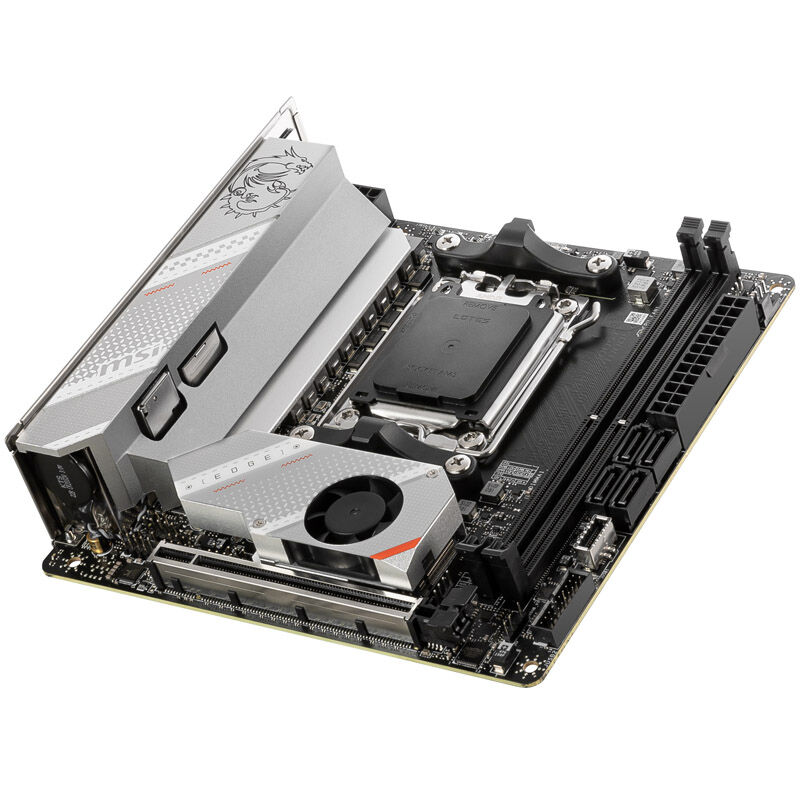

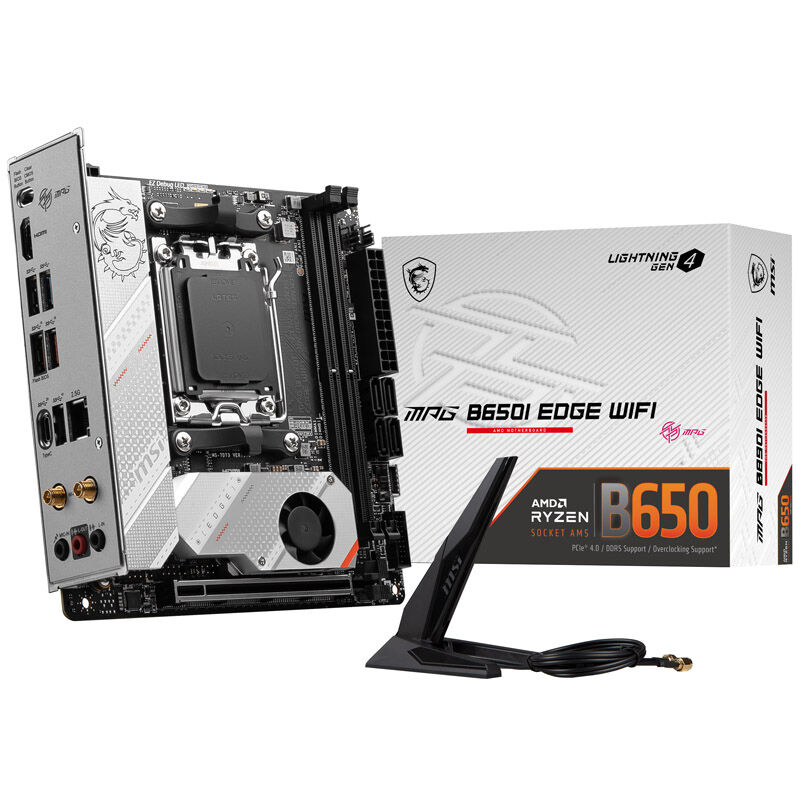

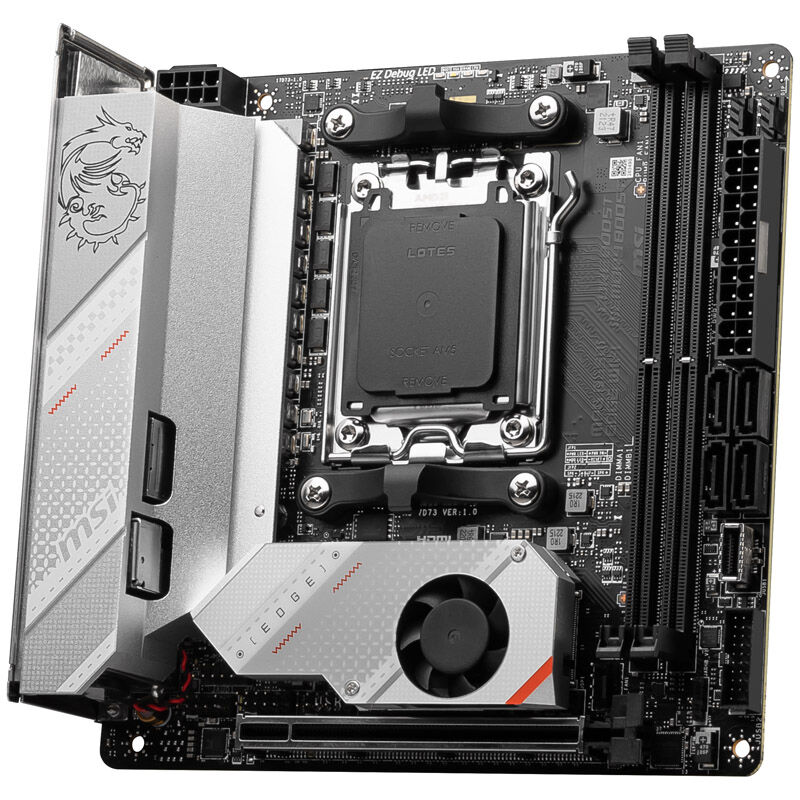

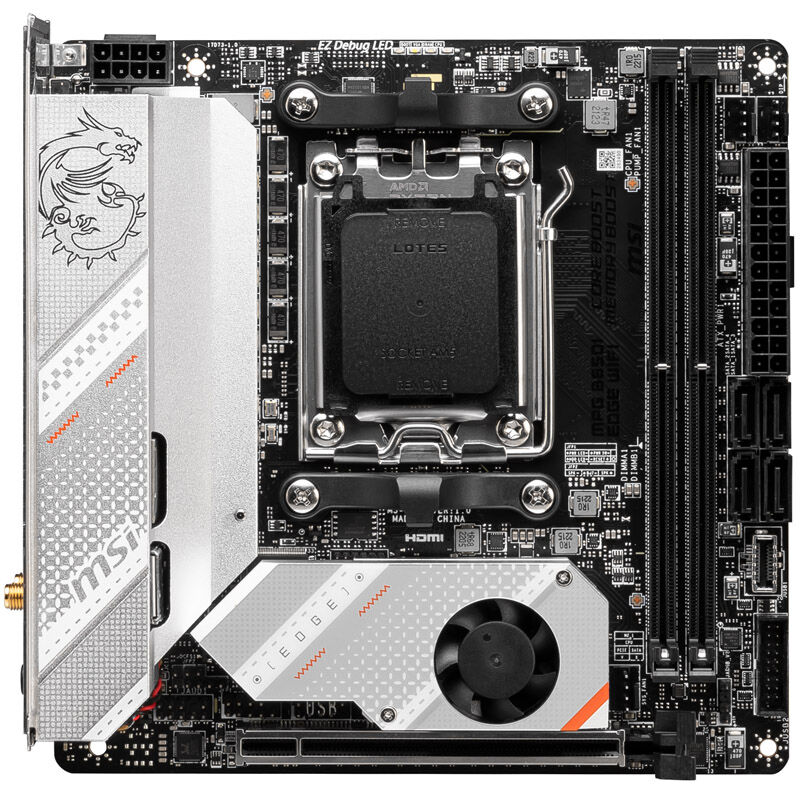

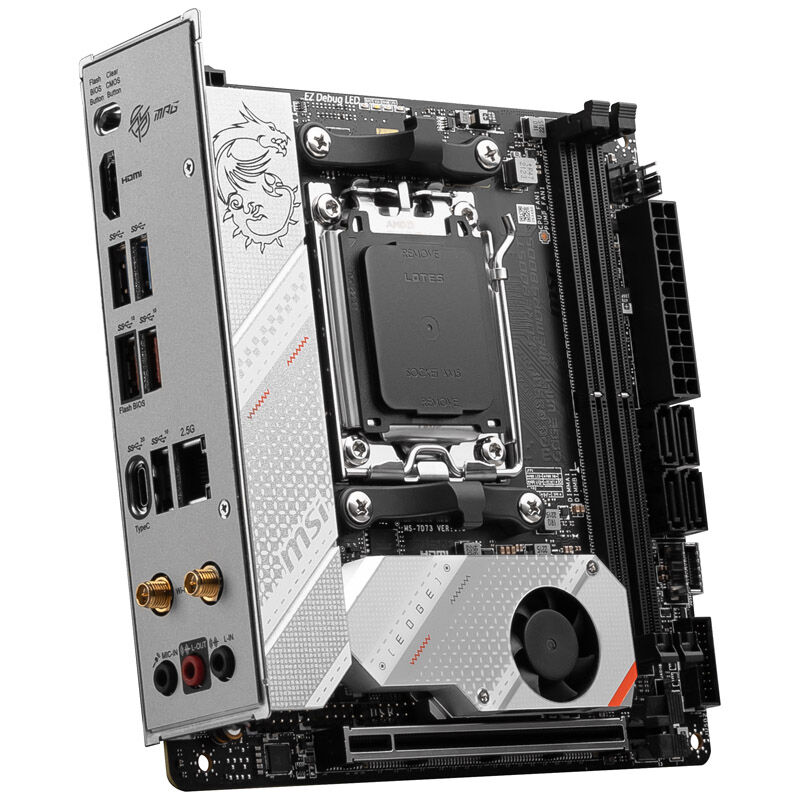

The image shows the MSI MPG B650I Edge WiFi motherboard.
The MSI MPG B650I Edge WiFi is equipped with the B650 chipset for AMDs Ryzen 7000 series processors and offers numerous features for enthusiasts and gamers. Since the Ryzen 7000 series processors require a new socket due to support for PCIe 5.0 and the enhanced power supply, the 600 series motherboards use Socket AM5 (LGA 1718).

Despite the increased pin count, the actual size of the socket remains identical to older sockets, allowing most Socket AM4 CPU coolers to be installed on the motherboard.
The MSI MPG B650I Edge WiFi is designed for high-end gaming, allowing you to enjoy even demanding games without interruption. The high-quality voltage converters with 8+2+1 phases provide a stable power supply to the CPU, ensuring its high clock speeds even over extended periods. There are also features like BIOS Flashback and Clear CMOS so you can use the PC again if something goes wrong. And, as usual, the DDR5 RAM can be pushed to its limits at higher clock speeds.

Only compatible with AMD Ryzen 7000 series CPUs!
BIOS Updates at Caseking
Newer CPUs may require a more recent BIOS version than the one installed when a motherboard is shipped. Updates can also include fixes and optimizations.

Our King Mod Service will be happy to perform a BIOS update to the latest version in advance:

Add BIOS Update Service to your shopping cart now
Please note that this may delay shipping preparation by 1 to 4 business days!

Technical Details:
Format:
– Mini-ITX (170 x 170 mm)
– Chipset:
– AMD B650
– Socket:
– AM5 (LGA 1718)
– RAM:
– 2x DDR5 (4800 MHz, validated up to 6600 MHz with overclocking)
– Dual-Channel
– Max. 64 GB
– Slots (Physical):
– 1x PCIe 4.0 x16 (electrical x16, CPU)
– Internal Connectors:
– 4x SATA 6G
– 1x M.2 (PCIe 4.0 x4; 2260-2280, CPU)
– 1x M.2 (PCIe 4.0 x4; 2260-2280, chipset)
– 1x USB-C (1 header, USB 3.2 Gen 2, max. 10 Gbps)
– 2x USB 3.0 (1 header, USB 3.2 Gen 1, max. 5 Gbit/s)
– 2x USB 2.0 (1 header, max. 480 Mbit/s)
– 2x front panel headers
– 1x chassis intrusion
– 1x front audio
– Fan connections:
– 1x CPU fan header (4-pin)
– 1x fan header (4-pin)
– 1x AiO pump header (4-pin)
– RGB header:
– 1x Addressable V2 RGB LED Connector (3-Pin, 5V)
– Status displays:
– 4x EZ Debug LEDs

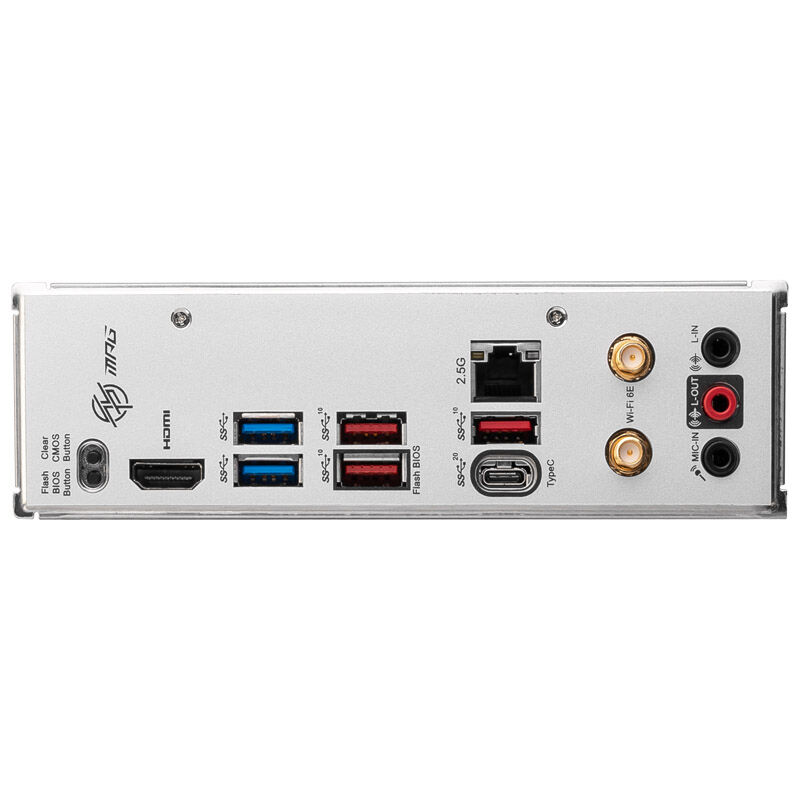

– External connections:
– 1x USB 3.2 (Type C, USB 3.2 Gen 2×2, max. 20 Gbit/s)
– 3x USB 3.1 (Type A, USB 3.2 Gen 2, max. 10 Gbit/s)
– 2x USB 3.0 (Type A, USB 3.2 Gen 1, max. 5 Gbps)
– 1x HDMI 2.1
– 1x 2.5 Gigabit LAN (Realtek RTL8125BG)
– 1x WiFi/Bluetooth module (AMD Wi-Fi 6E)
– 3x 3.5 mm jacks (Realtek ALC4080)
– 1x Clear CMOS button
– 1x BIOS Flashback button
– Power supply:
– 1x 24-pin ATX12V
– 1x 8-pin ATX12V
– Accessories:
– 1x Set of WiFi antennas
– 2x 6 Gb/s SATA cables
– 1x 3-pin ARGB extension cable
