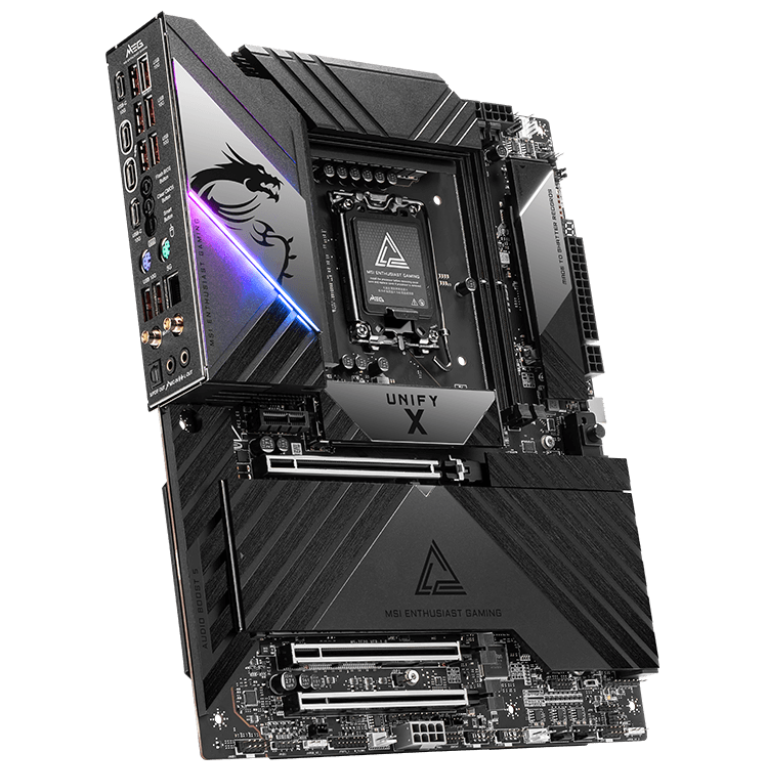

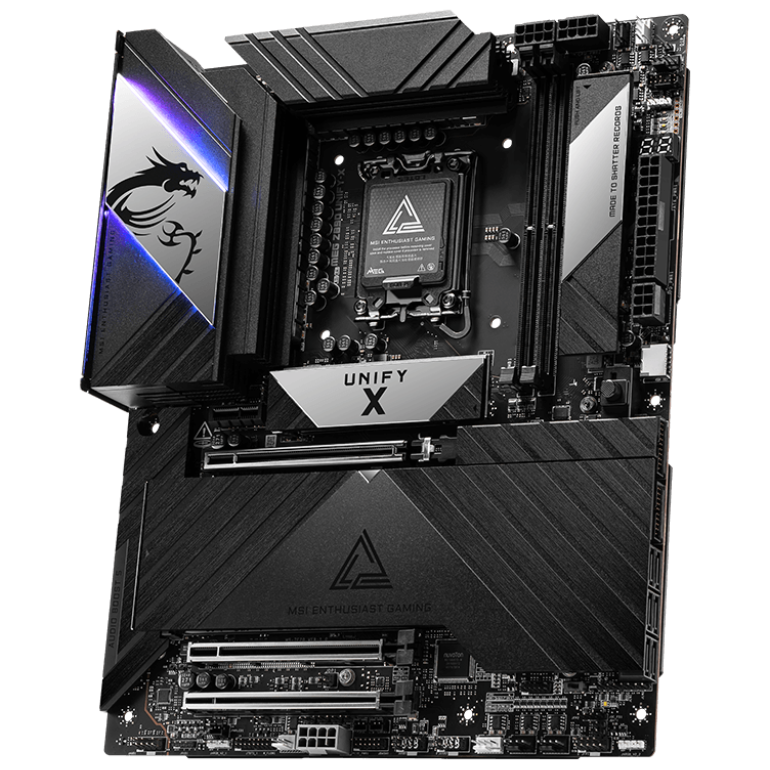

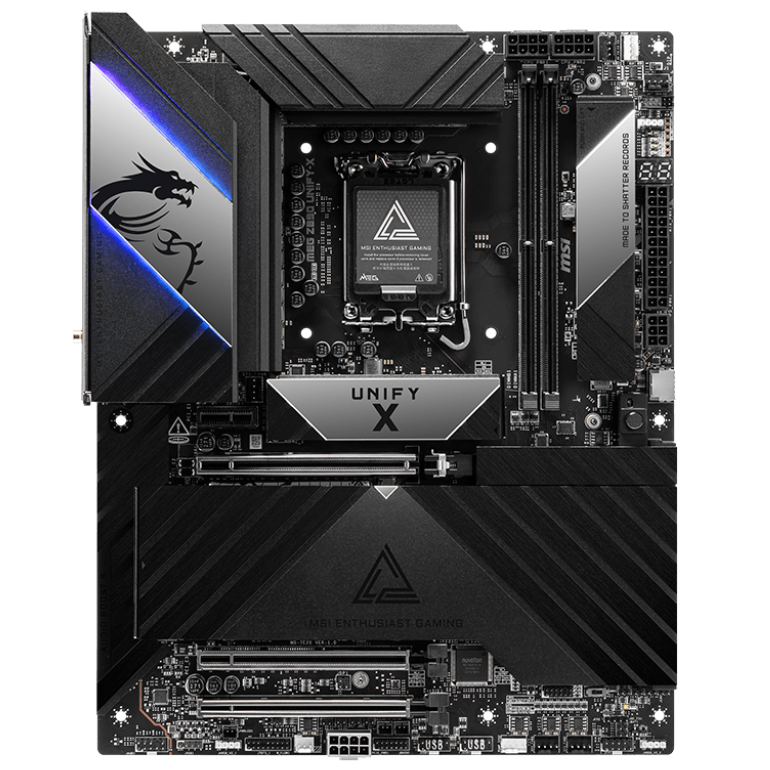

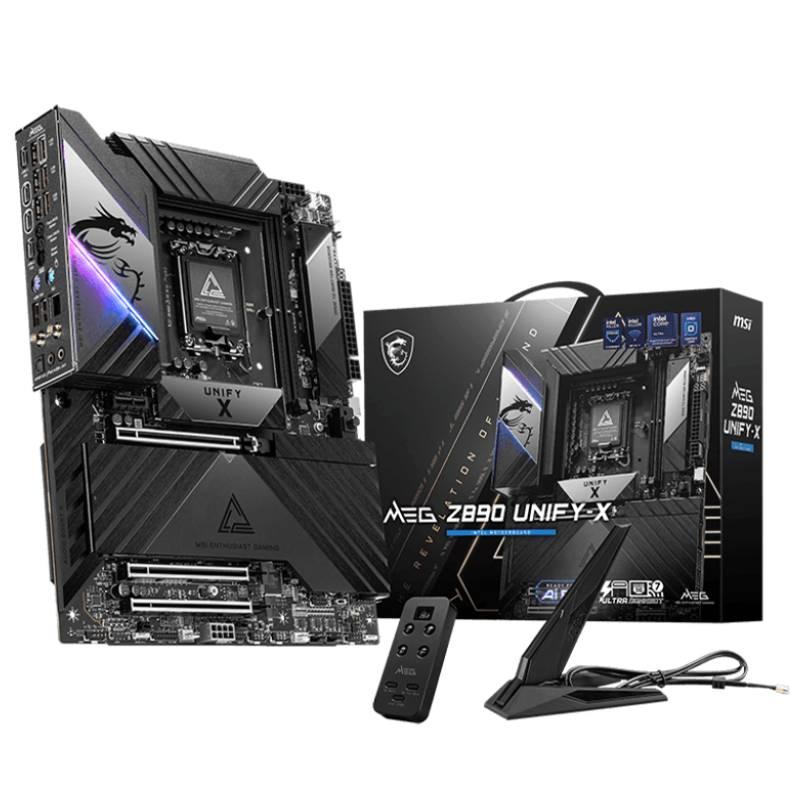

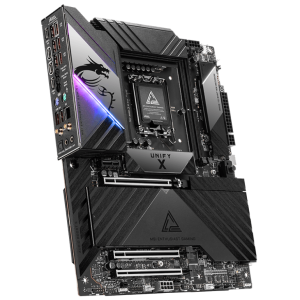

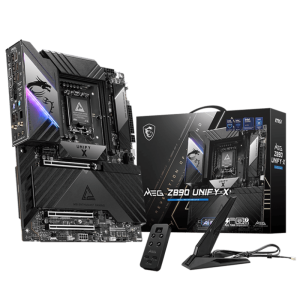

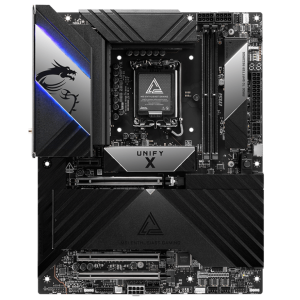

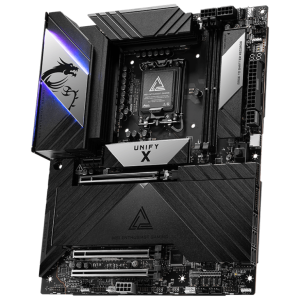

MSI MEG Z890 Unify-X motherboard, socket 1851, Intel Z890, ATX, DDR5

This motherboard is ideal for high-end builds.

– 1x PCIe 5.0 x16 (x16), 1x PCIe 5.0 x16 (x8), 1x PCIe 4.0 x16 (x4), and 1x PCIe 4.0 x1
– 2x DIMM slots for up to 128 GB DDR5 RAM up to 9600 MHz (XMP 3.0 & CUDIMM support)
– 6x M.2 (including 2x PCIe 5.0 and 4x PCIe 4.0) / 6x SATA 6G

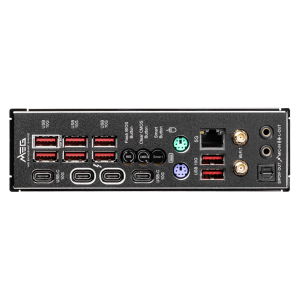

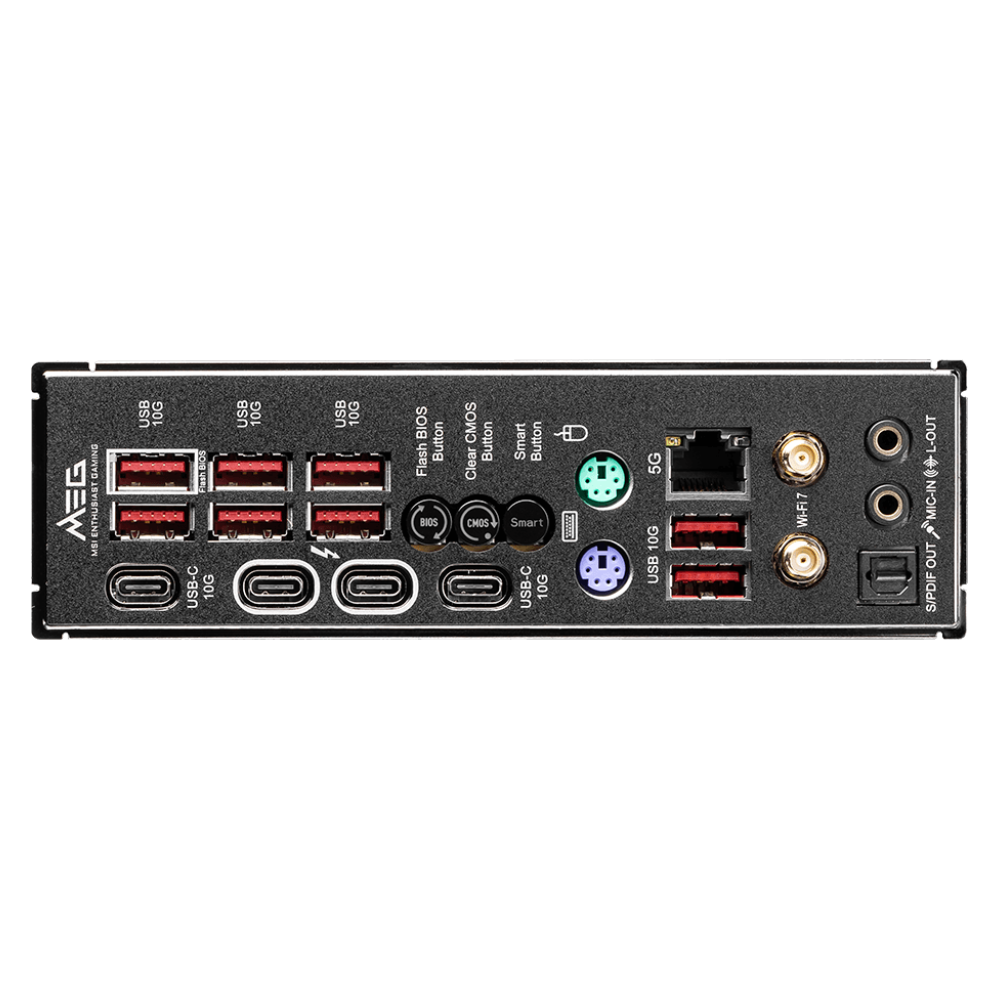

– USB on the I/O panel: 2x Thunderbolt 4, 2x USB 3.1 Type-C, 8x USB 3.1
– A total of 7x 4-pin connectors for fans and pumps
– Supports WiFi 7 and Bluetooth 5.4

MSI MEG Z890 Unify-X: ATX motherboard with Intel LGA 1851 socket and Z890 Chipset
The MSI MEG Z890 Unify-X is an ATX motherboard with the high-end Intel Z890 chipset and the LGA 1851 socket. It supports second-generation Intel Core Ultra processors, codenamed Arrow Lake. The Intel Z890 motherboard natively supports USB 4, which offers data transfer rates of up to 40 Gbps. Furthermore, the MSI MEG Z890 Unify-X boasts full PCIe 5.0 connectivity, giving you twice the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.

Suitable for Overclocking
With its 20+1+1+1 phase VRMs, the MSI MEG Z890 Unify-X offers you the ability to overclock your CPU and thus get the full performance out of your gaming PC. The DDR5 RAM can also be overclocked. To be on the safe side, there is a Clear CMOS button on the I/O panel.

Technical Details
– Color
– Main Color
– Black
– Dimensions
– Length / Depth
– 305 mm
– Width
– 243.84 mm
– Form Factor
– Motherboard Form Factor
– ATX
– CPU
– CPU Manufacturer
– Intel
– CPU Socket
– 1851
– Motherboard
– Motherboard Chipset
– Intel Z890
– Built-in IO Shield
– Yes
– RAM
– Max. RAM
– 128 GB
– Memory Type
– DDR5
– Memory Format
– DIMM
– Memory Subtype
– CUDIMM, UDIMM
– Max. Memory Speed (Standard)
– 6400 MT/s
– Max. Memory Speed (OC)
– – 9600 MT/s
– ECC Support
– Yes
– Memory Slots
– 2x
– Performance Profile
– Intel XMP 3.0
– WLAN & LAN
– LAN
– Yes
– LAN Ports
– 1x 5 Gbit/s
– LAN Chip
– Intel Killer E5000B
– WLAN / Bluetooth
– Yes
– Wi-Fi Standard
– Wi-Fi 7
– Bluetooth Standard
– 5.4
– Cooling
– Backplate
– Yes
– M.2 Cooler
– Yes
– VRM Heatsink
– Yes
– Internal Connectors
– CPU Power
– 2x 8-pin
– USB 3.0 / 3.1 / 3.2 (internal) Type-C Header
– 1
– USB 3.0 / 3.1 / 3.2 (internal) Type-C Possible Connectors
– 1
– USB 3.0 (internal) Header
– 2
– USB 3.0 (internal) Possible Connectors
– 4
– USB 2.0 (internal) Header
– 2
– USB 2.0 (internal) Possible Connectors
– 4
– RGB / LED Connectors
– 1x RGB (4-pin 5050 12VGRB), 3x Digital RGB (3-pin 5VDG)
– Front Panel Audio Header
– Yes
– SPI TPM Header
– Yes
– External Connectors
– USB4 Gen 3×2 (external) Type-C
– 2
– USB 3.1 (external) Type-C
– 2
– USB 3.1 (external) Type-A
– 8
– Display Ports
– HDMI (1x)
– Storage Ports
– M.2 PCIe 4.0 x4
– 4
– M.2 PCIe 5.0 x4
– 2
– SATA 6G (internal)
– 6
– Expansion Slots
– PCIe x16 Slots (total)
– 3
– PCIe x1 Slots (total)
– 1
– Fan Header
– 4-pin Fan Connectors
– 7
