MSI MEG B550 Unify-X, AMD B550 Mainboard - Socket AM4
Note: The following specifications regarding the PCIe lanes, connection of the M.2 slots and connection of the PCIe slots refer to the combination of the B550 chipset with a third or fourth generation Ryzen CPU (Zen 2 Matisse / Zen 3 Vermeer)! A BIOS update may be required to use a Ryzen 5000 processor.
- SKU: MBMC-468
- MPN: 7D13-007R
- EAN: 4719072773601
- Warranty: 12 Months
Note: The following specifications regarding the PCIe lanes, connection of the M.2 slots and connection of the PCIe slots refer to the combination of the B550 chipset with a third or fourth generation Ryzen CPU (Zen 2 Matisse / Zen 3 Vermeer)! A BIOS update may be required to use a Ryzen 5000 processor.
Featured products
No products found
Details
Our King Mod Service will be happy to update the BIOS to the latest version in advance:
– Now add the BIOS update service to the shopping cart
– Offers 2x PCIe x16 slots, 1x PCIe 4.0 and 1x PCIe 3.0
– DDR4 memory up to 3,200 MHz, using RAM-OC up to 5,600 MHz
– 4x M.2 slots, 3x with PCIe 4.0
– USB on the I / O panel: 4x USB 2.0 / 3x USB 3.1 type A and 1x USB 3.1 type C
– A total of 8 connections for fans and pumps
– Offers 1x 4-pin RGB header, 2x 3-pin ARGB header and 1x 3-pin Corsair header for RGB lighting

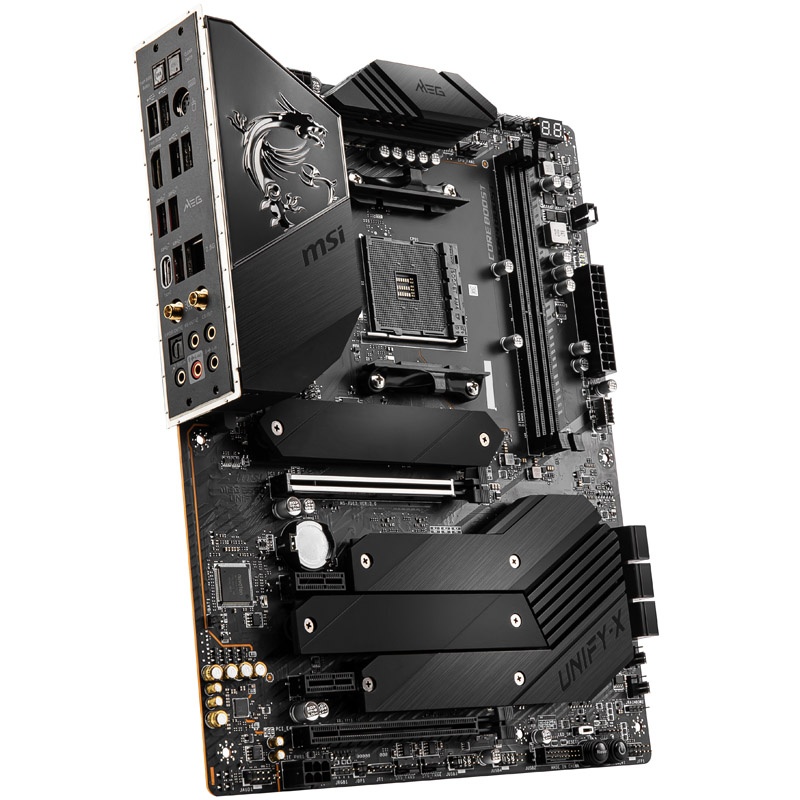

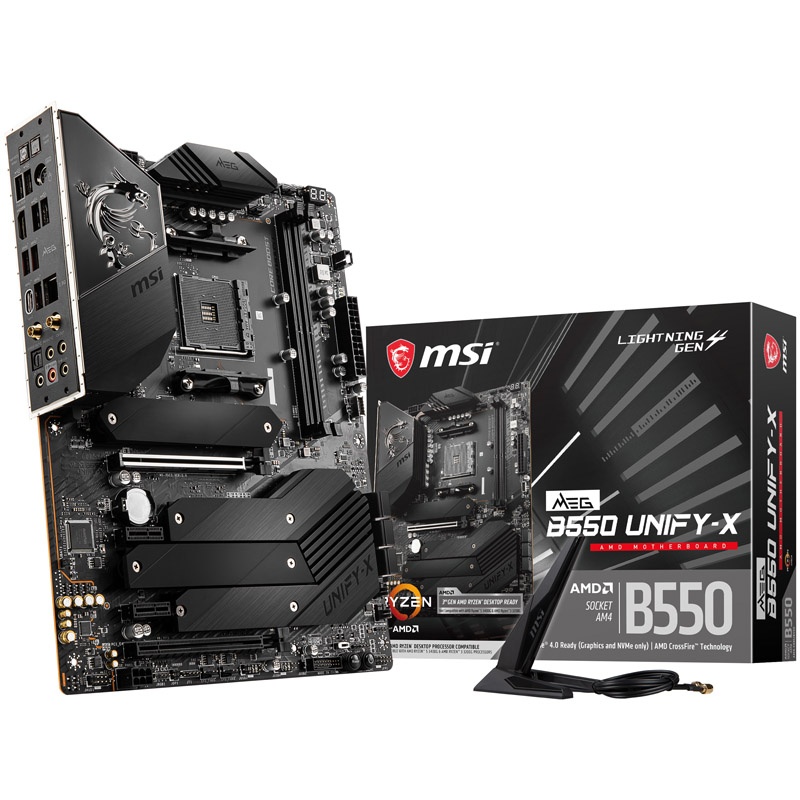

The ATX mainboard MSI MEG B550 Unify-X with AMD-B550 chipset in detail
The MSI MEG B550 Unify-X is an ATX mainboard with the AMD B550 chipset and the AM4 socket. The motherboard is suitable for desktop processors of the AMD Ryzen 5000 and 3000 series as well as 4000 G series and supports PCIe 4.0. It supports DDR4 memory with up to 5,600 MHz. The mainboard is particularly suitable as a motherboard for gaming PCs and fills the trays of most common cases.
Technical details:
format
ATX (304 x 244 mm)
Chipset
AMD B550
Base:
AT 4
R.A.M:
2x DDR4 (max. 3,200 MHz, 5,800 in the OC)
Dual channel
max. 64 GB
Slots:
1x PCIe 4.0 x16
1x PCIe 3.0 x16 (electrical x4)
2x PCIe 3.0 x1
Internal connections:
1x M.2 (M-Key, PCIe 4.0 x4 & SATA; 2280 to 22110)
1x M.2 (M-Key, PCIe 4.0 x4; 2280, PCIe 3.0 x2 via chipset)
1x M.2 (M-Key, PCIe 4.0 x4 & SATA; 2280 to 22110, PCIe 3.0 x2 via chipset)
1x M.2 (PCIe 3.0 x4; 2280)
6x SATA 6G (RAID 0, 1, 10)
1x USB 3.0 Type C (USB 3.2 Gen 2, max. 10 Gbit / s)
2x USB 3.0 (one header, USB 3.2 Gen1, max. 5 Gbit / s)
4x USB 2.0 (two headers, max. 480 Mbit / s)
1x front panel audio header
1x chassis intrusion header
2x system panel connector
1x TPM module connector
1x Clear CMOS jumper
Fan header:
1x CPU (4-pin)
1x AIO / pump (4-pin)
6x case fan (4-pin)
RGB header:
1x 4-pin RGB header (12V)
2x 3-pin RGB header (digital, 5V)
1x 3-pin Corsair header
External connections:
1x USB 3.1 Type-C (USB 3.2 Gen 2, max. 10 Gbit / s)
3x USB 3.1 Type A (USB 3.2 Gen 2, max. 10 Gbit / s)
4x USB 2.0 (max. 480 Mbit / s)
1x HDMI 2.1
1x RJ-45 (Realtek RTL8125B, max.2.5 Gbit / s)
2x antenna connection (Intel AX200, 802.11 ax, Bluetooth 5.1)
5x 3.5 mm jack (Realtek ALC1200P)
1x PS / 2 combo
1x S / PDIF
1x BIOS flash button
1x Clear CMOS button
Power supply:
1x 24-pin ATX 12V
1x 8-pin EPS 12V
1x 6-pin PCIe
Scope of delivery:
1x WiFi antenna
1x DIY stand set
1x case badge
1x driver DVD
1x MEG sticker
1x product catalog
1x registration card
1x manual
1x quick installation guide
1x RGB-Y cable
1x Corsair RGB LED extension cable
1x RGB cable
2x SATA cables
1x SATA cable labels
Manufacturers guarantee: 3 years
