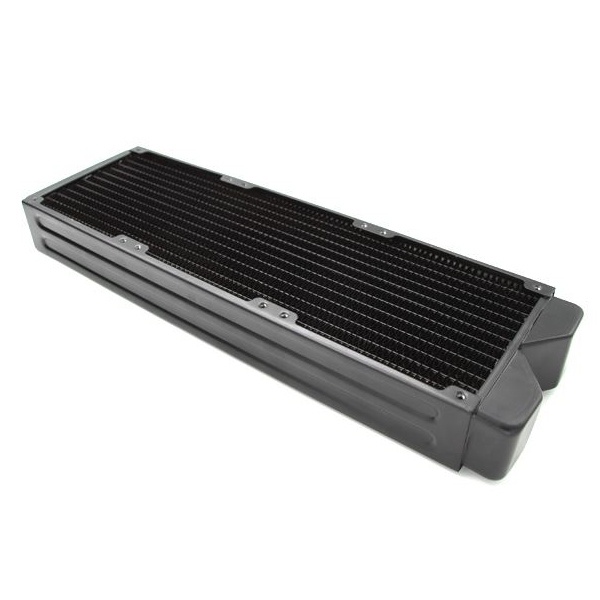

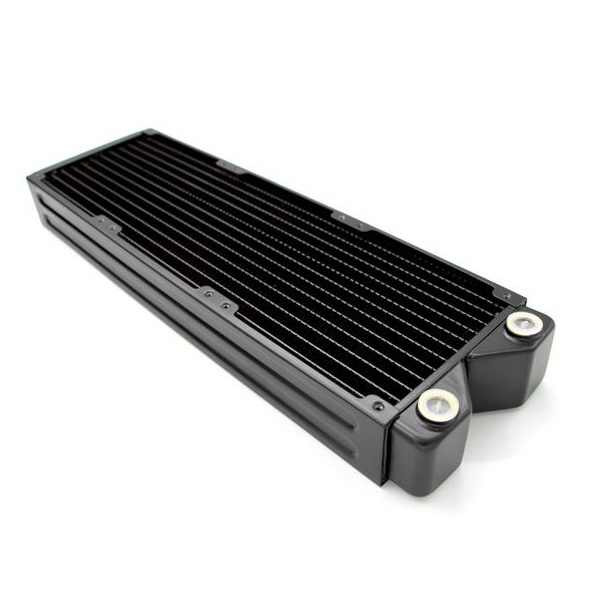

Magicool G2 ULTRA 360mm Performance Radiator

With its dual row design and excellent cooling performance, the Magicool radiators become top choice of water cooling users. The copper fins are specially designed for silent fans, while the parallel coolant channels reduce liquid resistance to a minimum. On both sides of the radiator UNC 6/32 threads are integrated to allow flexible fan mounting, on top chamber both G1/4 threads allow easy installation of all common fittings and barbs.

Features:
– Dual pass radiator designed for computer liquid  cooling
– High liquid and air flow design
– Copper fin spacing optimized for silent fans
– Ultra Performance 45mm Thickness for high heat applications
– Perfect for all overclocking and silent projects

Technical details:
Material     : Copper fins, brass chambers
Fins spacing     : 16 FPI (Fins Per Inch)
Dimensions     : 392 x 120 x 45 (mm)
Tube     : 16 mm x 1,5 mm
Connection threads     : G 1/4
Weight     : 950g
Pressure tested     : 1,5 bar
Mounting / fan
installation     : 12 pcs UNC6-32 threads on both
Side for 3x120mm fan

Extent of delivery:
1x Magicool G2 360 ULTRA radiator
12x UNC 6-32 30mm screws
1x Silicon pad

Warranty: On impermeability and build for 2 years!

Important: The included screws may be too long for some applications. Always be sure to screw them only in so far that the radiator is not damaged.
