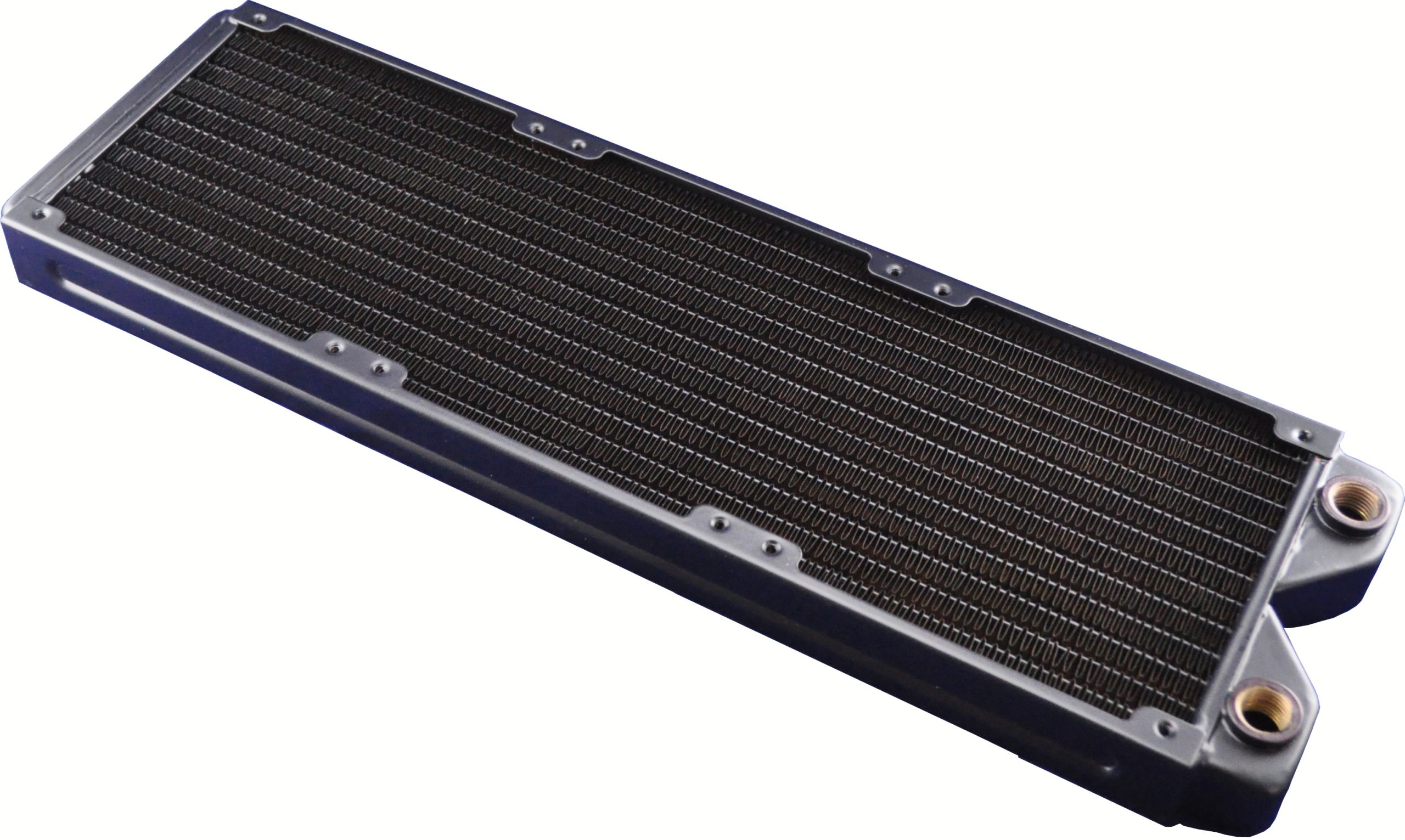

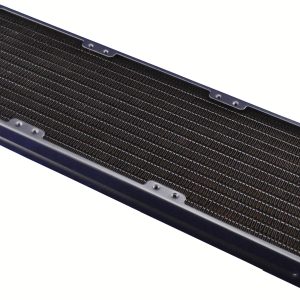

Magicool G2 SLIM 360mm Radiator

With its compact design and excellent cooling performance, the Magicool radiators become top choice of water cooling users. The copper fins are specially designed for silent fans, while the parallel coolant channels reduce liquid resistance to a minimum. On both sides of the radiator M3 threads are integrated to allow flexible fan mounting, on top chamber both G1/4 threads allow easy installation of all common fittings and barbs.

Features:
– Dual pass radiator designed for computer liquid  cooling
– High liquid and air flow design
– Copper fin spacing optimized for silent fans
– Slim height for easy mounting
– Perfect for all overclocking and silent projects

Technical details:
Material     : Copper fins, brass chambers
Fins spacing     : 16 FPI (Fins Per Inch)
Dimensions     : 392 x 120 x 27 (mm)
Tube     : 16 mm x 1,5 mm
Connection threads     : G 1/4
Weight     : 800 g
Pressure tested     : 1,5 bar
Mounting / fan
installation     : 12 pcs UNC6-32 threads on both
Side for 120mm fan

Extent of delivery:
1x Magicool G2 120 Slim radiator
12x UNC 6-32 30mm screws
12x UNC 6-32 5mm screws
1x Retail Colour Box
1x Silicon pad

Warranty: On impermeability and build for 2 years!

Important: The included screws may be too long for some applications. Always be sure to screw them only in so far that the radiator is not damaged.
