The Lian Li EDGE Platinum V2 1000W combines 1,000 watts of output power with a fully modular L-design. The position of the connectors makes cabling easier in dual-chamber cases. With the detachable EDGE Hub V2, you also get internal connections for USB devices and PWM fans.
The Lian Li EDGE Platinum V2 1000W combines 1,000 watts of output power with a fully modular L-design. The position of the connectors makes cabling easier in dual-chamber cases. With the detachable EDGE Hub V2, you also get internal connections for USB devices and PWM fans.
The Lian Li EDGE Platinum V2 1000W combines 1,000 watts of output power with a fully modular L-design. The position of the connectors makes cabling easier in dual-chamber cases. With the detachable EDGE Hub V2, you also get internal connections for USB devices and PWM fans.
The Lian Li EDGE Platinum V2 1000W combines 1,000 watts of output power with a fully modular L-design. The position of the connectors makes cabling easier in dual-chamber cases. With the detachable EDGE Hub V2, you also get internal connections for USB devices and PWM fans.
–Â 1,000 watts power: For gaming PCs and workstations with high power demands
– Platinum ratings: Certified by 80 PLUS, CYBERNETICS, and PPLP.INFO
– Fully modular L-design: Cables can be connected individually and are easier to reach
– EDGE Hub V2 included: Up to eight USB devices and six PWM connections
– Cleaning indicator: LED reminds you to maintain the dust filter
Lian Li EDGE Platinum V2 1000W: Power supply for hardware with high power requirements
Lian Li EDGE Platinum V2 1000W power supply in black

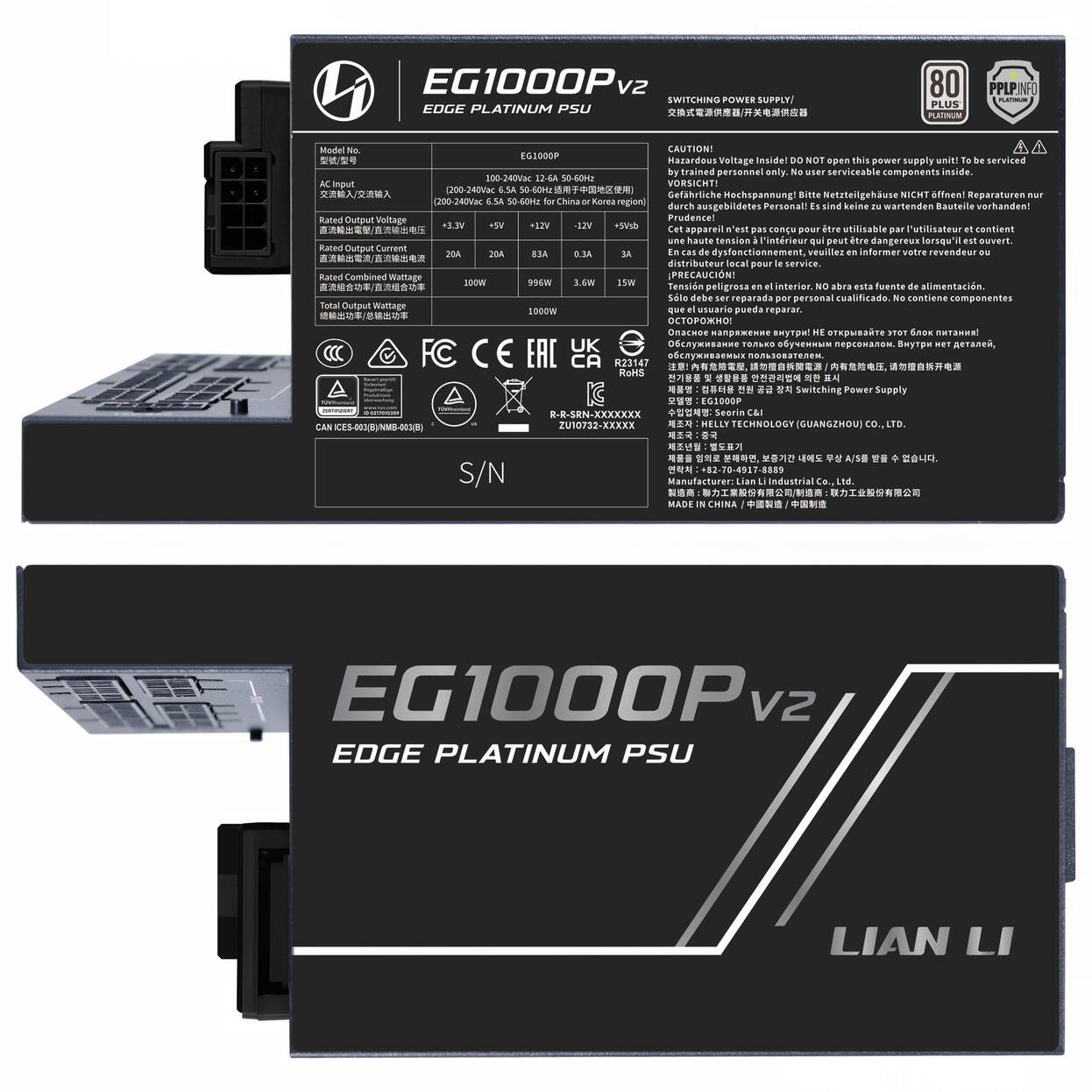

The power supply provides your system with up to 1,000 watts. Lian Li uses Japanese capacitors and has achieved Platinum ratings from 80 PLUS, CYBERNETICS, and PPLP.INFO for this model.

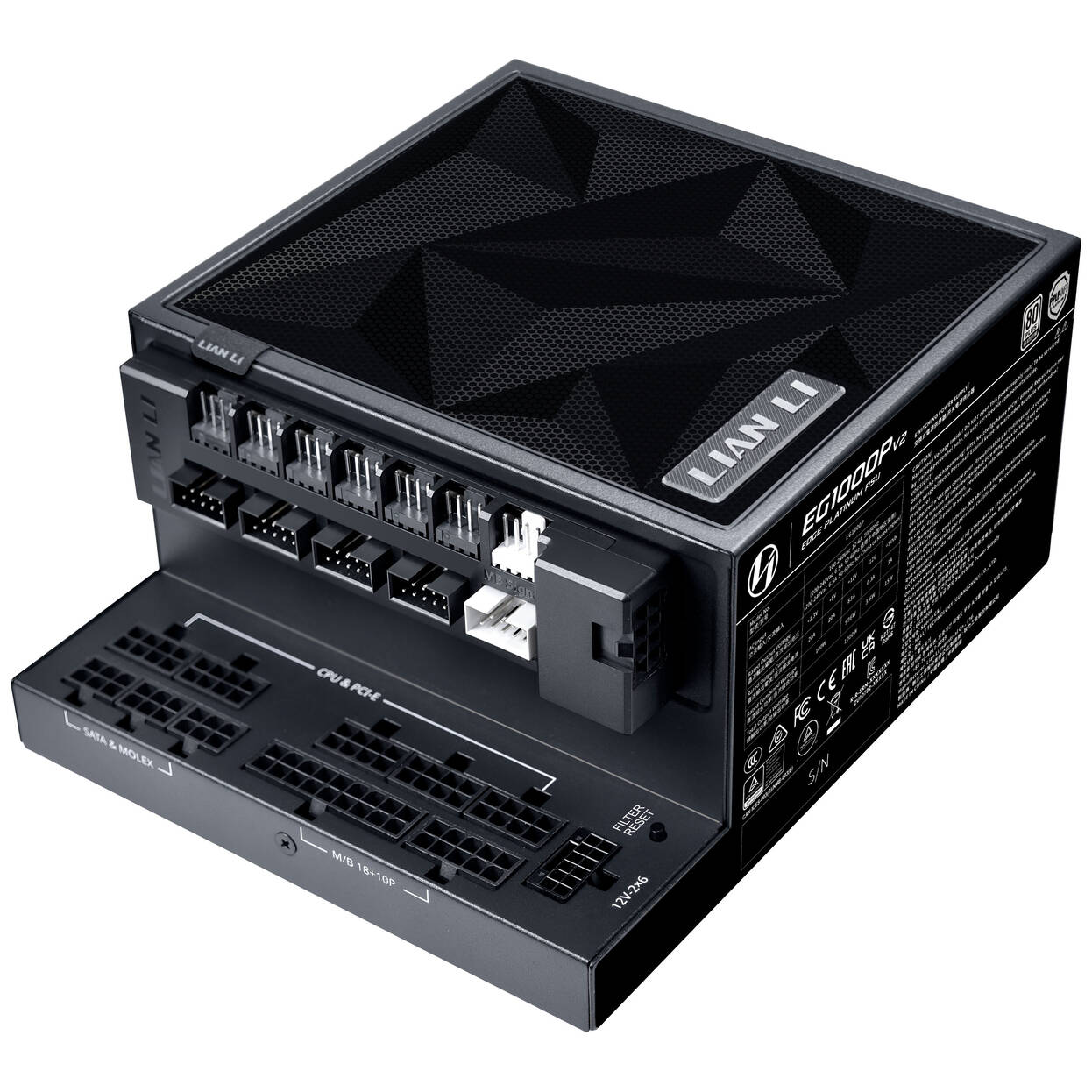

L-shaped housing and fully modular cables

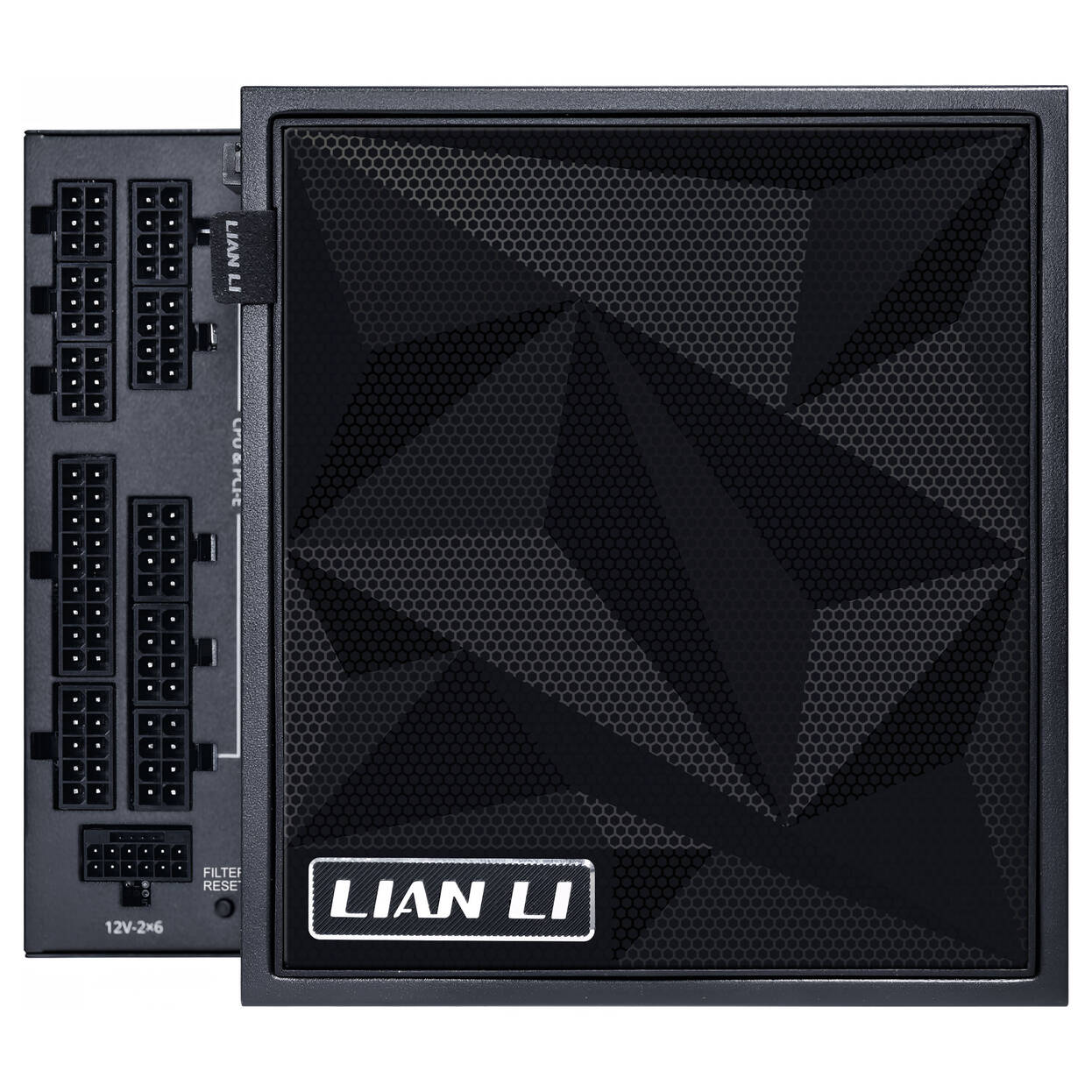

The modular connectors are located in a separate part of the power supply housing and face upwards. This makes them easier to reach even when the power supply is already installed in the case. Since the cable system is fully modular, you only connect the cables your PC requires.
Dust filter with cleaning indicator
The mesh dust filter can be removed from the power supply. After 360 hours of fan operation, the control LED changes from green to red according to the manufacturer. This reminds you to clean the filter.
EDGE Hub V2 for USB devices and PWM fans
Lian Li EDGE Hub V2 on Platinum power supply
The included EDGE Hub V2 supports up to eight internal USB devices via its USB connection. For your fans, six 4-pin PWM connectors are available. Each supplies up to 2 A.
The hub receives its power directly from the designated connector on the power supply. If mounted separately in the case, you power it via an 8-pin PCIe cable. L-Connect 3 also shows the USB usage of the connected devices.
120mm fan with stop function at low load
A 120mm fan handles the cooling of the power supply. At a load of 300 watts, no active cooling is required and the fan remains off.
| Technical Data | |
|---|---|
| Colour | |
| Primary Colour | Black |
| Dimensions | |
| Length / Depth | 182 mm |
| Width | 86 mm |
| Height | 150 mm |
| Fan Specifications | |
| Fan Size | 120 mm |
| Power Supply | |
| PSU Format | ATX |
| ATX Standard | ATX 3.1 |
| 12V Distribution | Single rail |
| Modular Power Supply | Yes |
| Modular Type | Fully modular |
| Protection Circuits | No-Load Protection, OCP (Overcurrent Protection), OPP (Overload Protection), OTP (Overtemperature Protection), OVP (Overvoltage and Undervoltage Protection), SCP (Short-Circuit Protection), SIP (Surge & Inrush Protection), UVP (Undervoltage Protection) |
| Power Specifications | |
| Total Power Output | 1000 W |
| Power Output +3.3V & +5V (combined) | 100 W |
| Power Output +12V rails | 996 W |
| Power Output -12V | 3.6 W |
| Power Output +5Vsb | 15 W |
| Cable Specifications | |
| Max. CPU Power Cable Length | 700 mm |
| Max. 24-Pin Motherboard Power Cable Length | 600 mm |
| Max. 12V-2×6 Cable Length | 650 mm |
| Max. PCIe Power Cable Length | 550 mm |
| Max. SATA Power Cable Length | 700 mm |
| Max. Molex Cable Length | 850 mm |
| Cooling | |
| Semi Passive Power Supply | Yes |
| Internal Ports | |
| CPU Power Connectors 12V ATX/EPS | 3 |
| CPU Power Supply | 1x 8-Pin, 2x 4+4-Pin |
| 12V-2×6 Power Connectors | 1 |
| 6+2 Pin PCIe Power Connectors | 3 |
| SATA Power Connectors | 11 |
| 4 Pin Molex Power Connectors | 1 |
| External Ports | |
| USB Hub | Yes |
| Compatibility | |
| |
| Efficiency Class | |
| 80PLUS Efficiency | 80 PLUS Platinum |
| Cybenetics Efficiency Level ETA (230V) | PLATINUM |
| Materials | |
| Materials | Steel |
| Lighting | |
| Lighting / RGB | No |
| Product Series | |
| Product Series/Family | EDGE V2 |
