Expand your PC’s connectivity with the Lian Li EDGE Hub V2. This hub provides centralized power and connectivity for multiple internal USB devices and fans, eliminating the need to connect each device individually to your motherboard and helping you keep your cabling organized.
– More internal USB connections: Four USB ports support up to eight devices in total
– Six PWM fan headers: Each header delivers up to 2 A
– Easy installation: Strong magnets make placement inside the case simple
– Flexible power options: Powered directly via a compatible Lian Li power supply or an 8-pin PCIe connector
– Software monitoring: Check USB usage via L-Connect 3
– More connections for your hardware

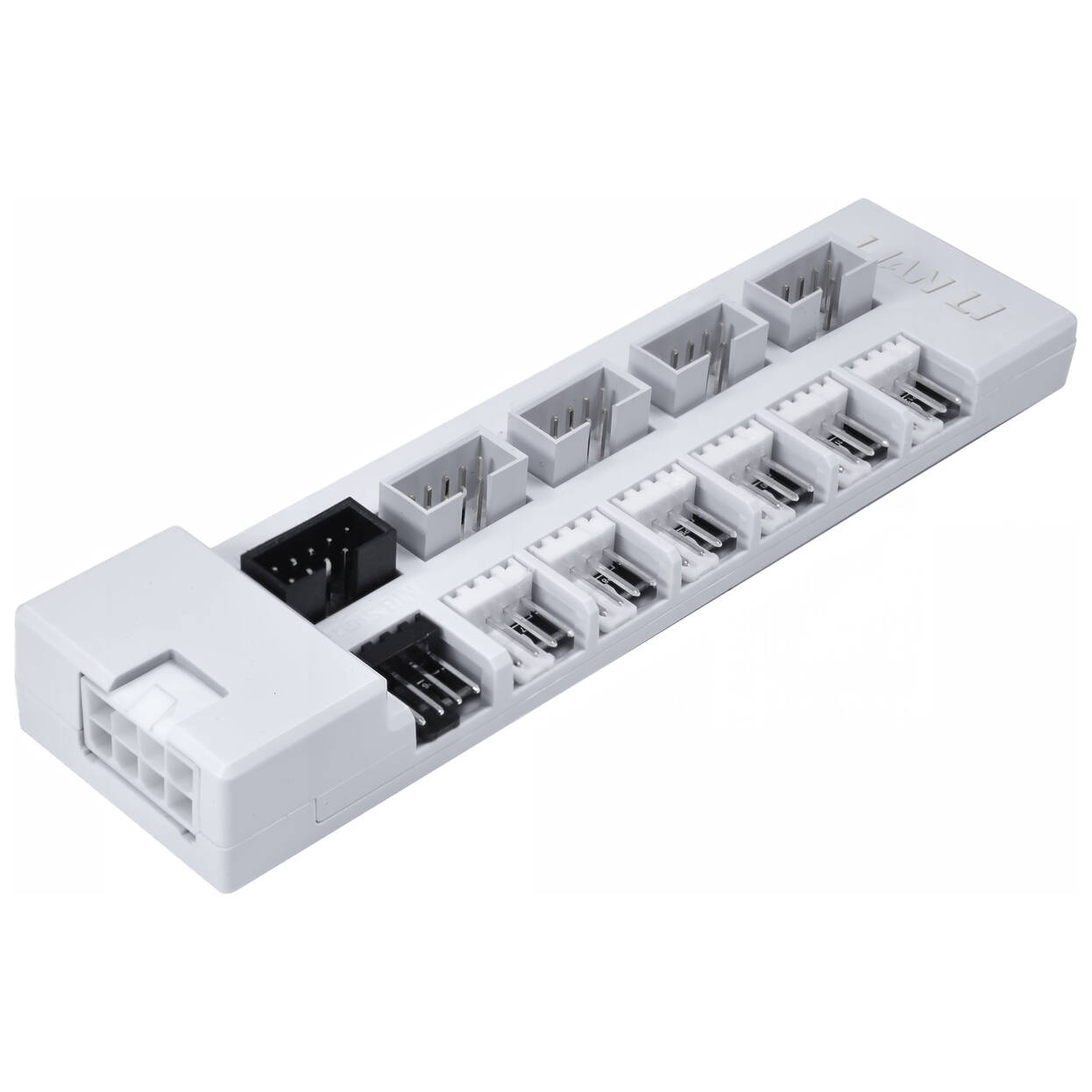

Lian Li EDGE Hub V2 with USB and PWM headers
The EDGE Hub V2 allows you to connect additional internal USB devices and PWM fans at a single, central location. Four USB ports support up to eight devices simultaneously, complemented by six 4-pin PWM headers for your fans.
Centralized fan connection and control
Each of the six PWM headers is rated for up to 2 A. Motherboard synchronization allows you to control the connected fans using your preferred software.
Easy case mounting
– Integrated magnets allow for flexible positioning within your PC case. It can be powered directly via a dedicated connector when used with an EDGE or RS series – power supply, or alternatively via an available 8-pin PCIe connector.
– Monitor USB connections with L-Connect 3
– Lian Li L-Connect 3 lets you monitor total USB usage as well as the load on individual ports. The ports can be renamed for easier identification. The software – alerts you when there is a heavy load, allowing you to quickly see when you should distribute your USB devices across multiple ports.
AVAILABLE IN TOW COLORS
Available in Black and White, Edge Hub V2 blends effortlessly onto different build styles, from clean minimal setups to fully themed systems.
EDGE HUB V2
INNOVATIVE EXTERNAL USB & FAN HUB
EDGE HUB V2 streamlines fan and USB management with dual-hub architecture, six PWM fan ports, and eight USB connections, Flexible installation and seamless L-Connect 3 monitoring bring refined control to any build.
EDGE HUB VS. EDGE HUB V2:
KEY DIFFERENCES
EDGE Hub V2 upgrades both hardware architecture and software management, introducing dual-hub signal distribution, higher USB device hierarchy, expanded installation flexibility, and USB monitoring through L-Connect
DUAL CHIP HUB ARCHITECTURE
EDGE Hub V2 replaces the previous version’s single hub chip with two parallel 1-to-4 hub chips, distributing connected USB devices across two paths for more balanced device management and improved system flexibility. Ideal for LCD products and other USB devices, it delivers more stable connectivity for complex setups.
RELIABLE USB HIERARCHY
EDGE Hub V2 connects directly to the motherboard’s USB 3.0 header while utilizing its USB 2.0 signal path, positioning the hub higher in the USB device tree to reduce hub layers and provide more reliable connectivity for multiple USB-controlled devices.
MAXIMIZED USB EXPANSION
Four physical USB ports can each carry two USB signals through a 1-to-2 splitter cable, offering flexible signal routing and configuration for different internal USB setups.
FLEXIBLE POWER OPTIONS
Connect EDGE Hub V2 directly to an EDGE or RS Series PSU, or power it independently via a PCIe 8-pin cable for use with any PSU.
| Technical Data | |
|---|---|
| Color | White |
| Dimensions | |
| Length / Depth | 35 mm |
| Width | 132 mm |
| Height | 17 mm |
| Cable Specifications | |
| Cable Type | Hub |
| Standard / Specification | |
| Standard / Specification | USB 3.0 |
| Compatibility | |
| |
| Connection Options | |
| Connection 1 (Internal) | Fan (4-Pin) Female 6x, PCIe (8-Pin) Female |
| Connection 2 (Internal) | USB 2.0 (Internal) 4-Pin Male 4x |
| Lighting | |
| Lighting / RGB | No |
| Product Series | |
| Product Series / Family | EDGE V2 |
