The Lian Li EDGE Gold V2 850W delivers up to 850 watts and combines a fully modular cable system with an L-shaped casing. This makes it easier to access the power supply connections once the PSU is installed. The EDGE Hub V2 adds extra internal USB and PWM ports to your hardware.
The Lian Li EDGE Gold V2 850W delivers up to 850 watts and combines a fully modular cable system with an L-shaped casing. This makes it easier to access the power supply connections once the PSU is installed. The EDGE Hub V2 adds extra internal USB and PWM ports to your hardware.
The Lian Li EDGE Gold V2 850W delivers up to 850 watts and combines a fully modular cable system with an L-shaped casing. This makes it easier to access the power supply connections once the PSU is installed. The EDGE Hub V2 adds extra internal USB and PWM ports to your hardware.
The Lian Li EDGE Gold V2 850W delivers up to 850 watts and combines a fully modular cable system with an L-shaped casing. This makes it easier to access the power supply connections once the PSU is installed. The EDGE Hub V2 adds extra internal USB and PWM ports to your hardware.
850 watts output: For gaming PCs with high-performance hardware
Fully modular cable system: Unused cables can simply stay in the box
L-shaped casing: Makes it easier to access the connections
EDGE Hub V2 included: Supports up to eight USB devices and six PWM connections
Removable dust filter: Makes cleaning the power supply easier
Lian Li EDGE Gold V2 850W: Power supply for your gaming PC

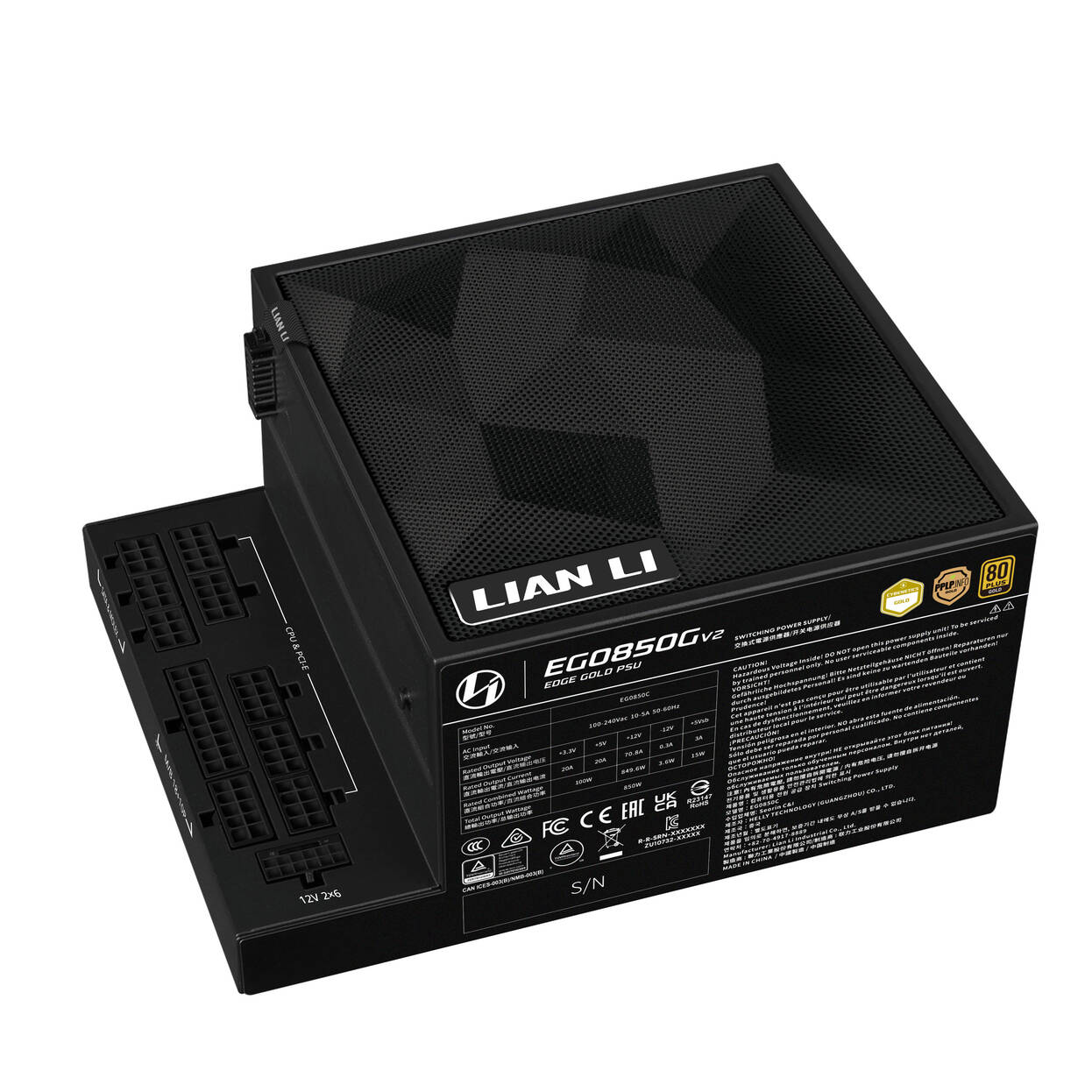

Lian Li EDGE Gold V2 850W power supply in black
With an output of 850 watts, the EDGE Gold V2 powers your components via a fully modular cable system. The PSU’s efficiency is certified with Gold ratings from 80 PLUS, CYBERNETICS and PPLP.INFO. Inside, Lian Li uses Japanese capacitors.

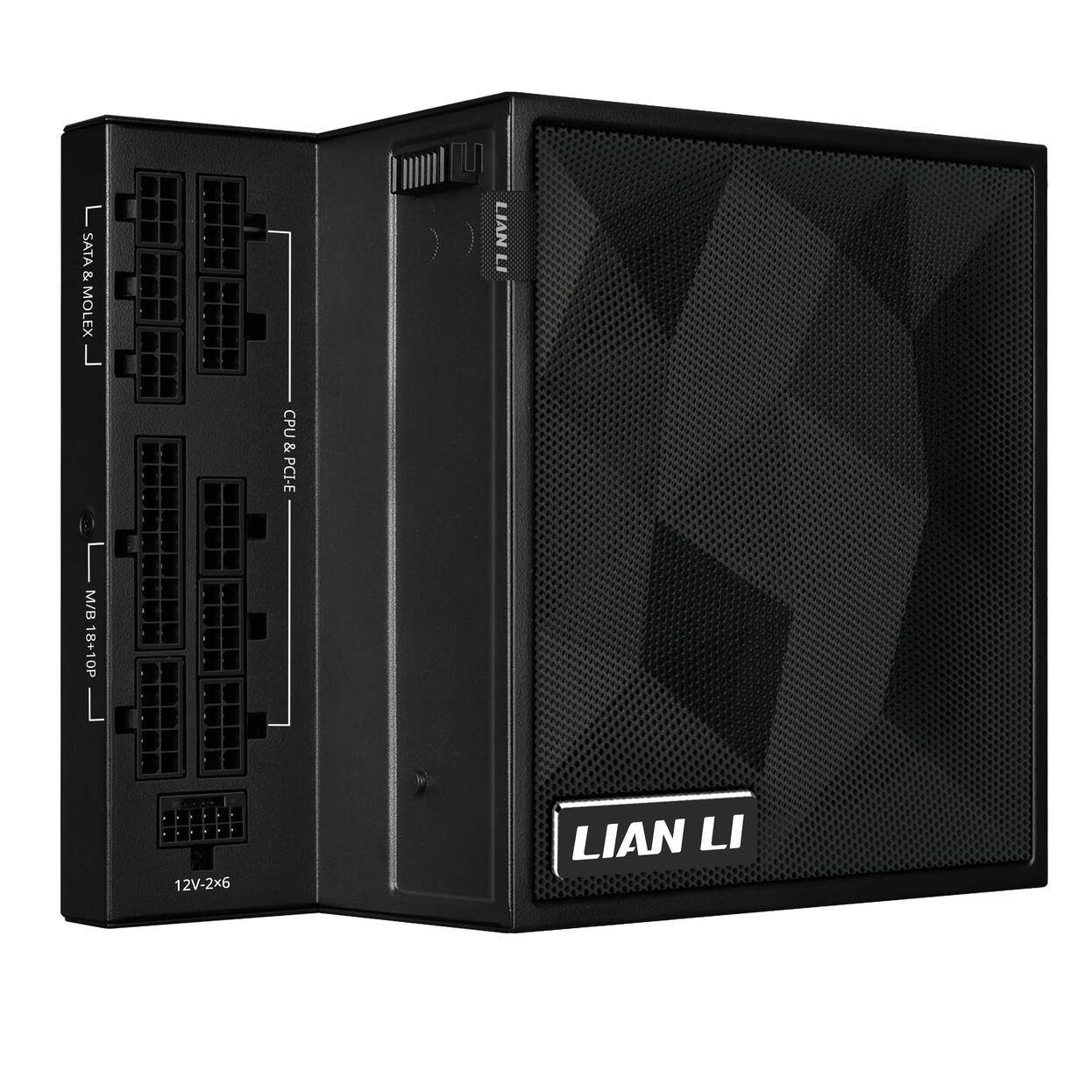

Fully modular L design for easier cabling

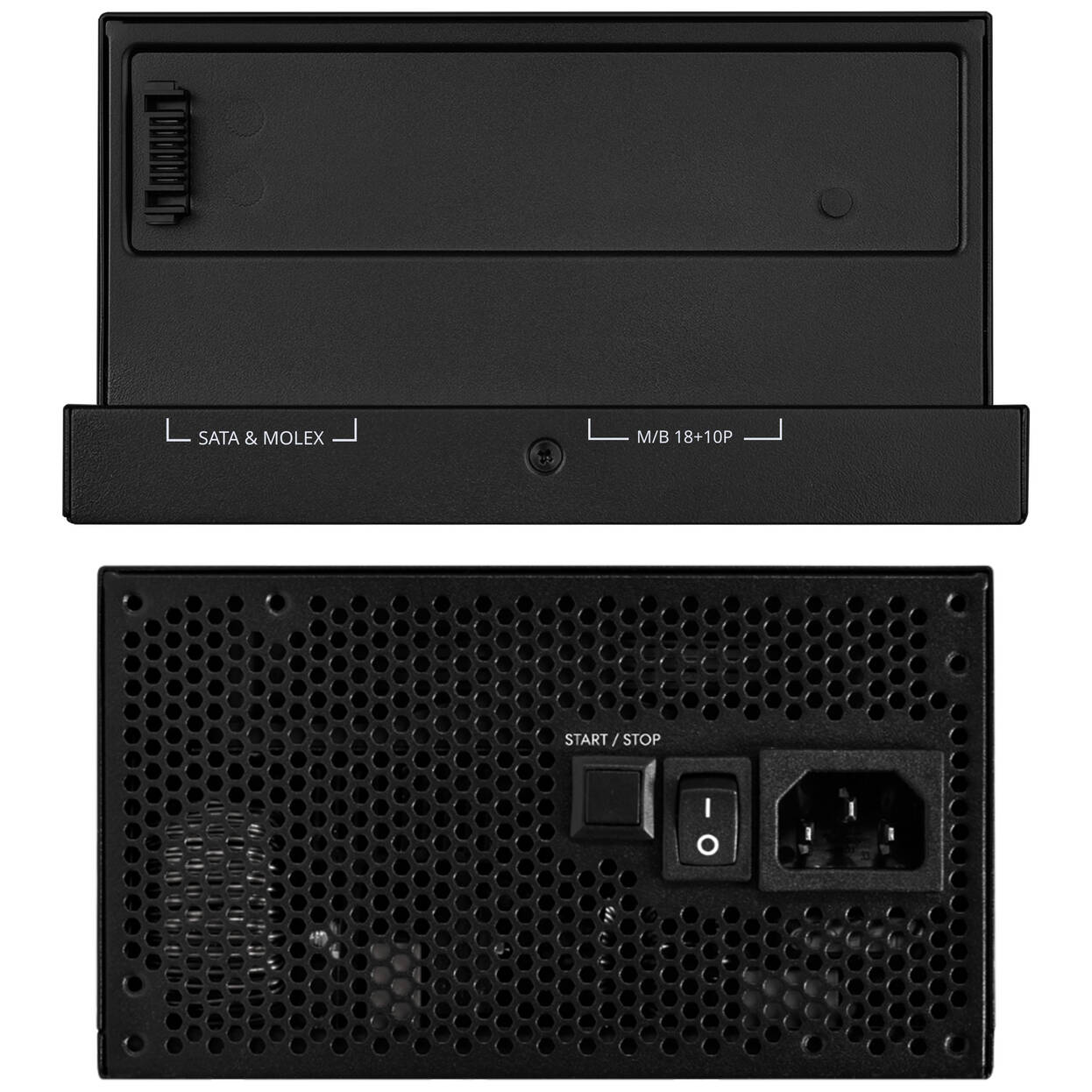

The power connectors on the EDGE Gold V2 are located in a dedicated section of the L-shaped casing. This means they face upwards and remain easier to access even after installation. Each cable can be connected individually, so only the cables your system actually needs end up inside the case.
0RPM mode at low load

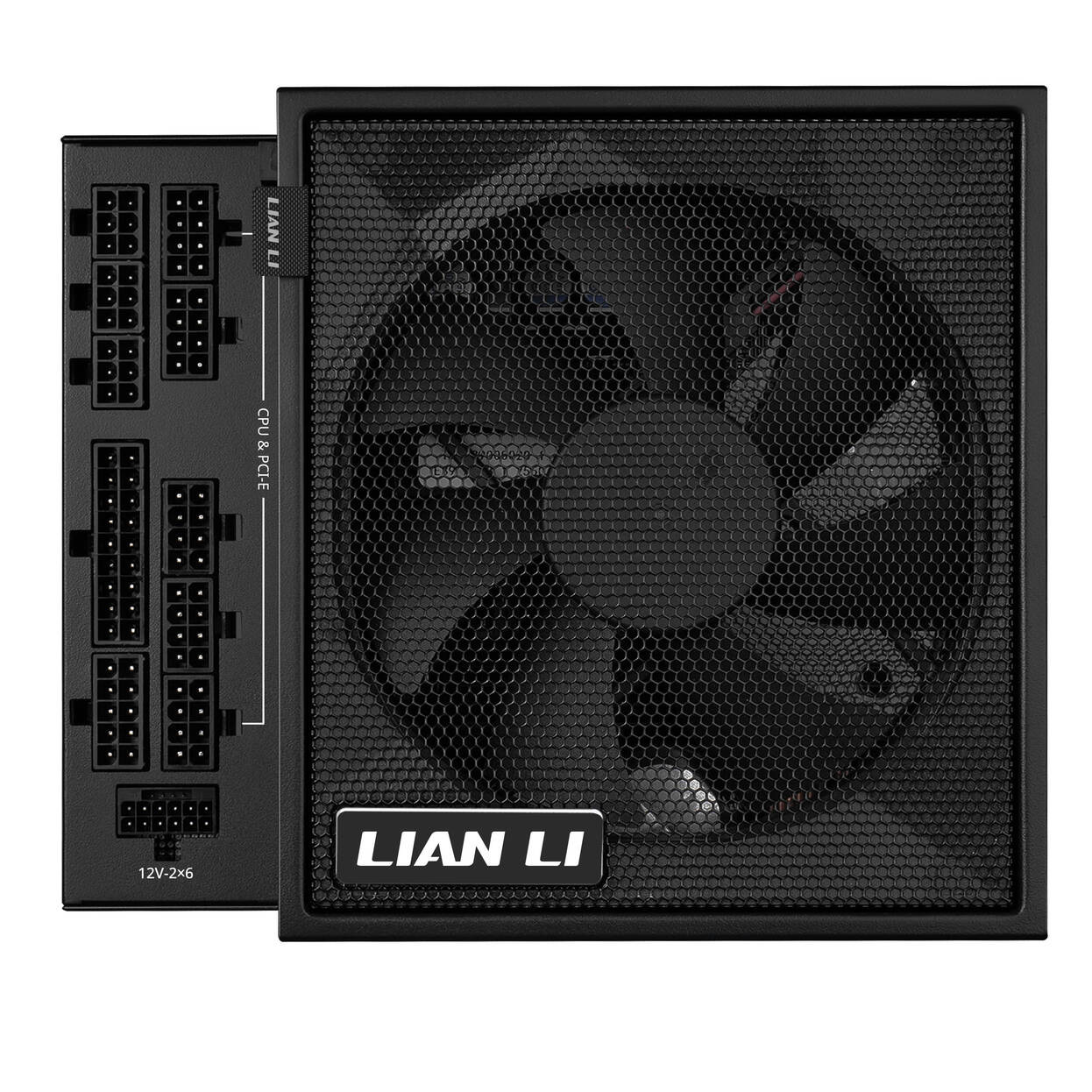

A 120mm fan cools the power supply. According to the manufacturer, the fan can remain off at loads up to 340 watts. This means no fan noise is produced from the PSU in this load range.
EDGE Hub V2 for additional USB and fan connections
Lian Li EDGE Hub V2 with power supply
The EDGE Hub V2 lets you connect up to eight internal USB devices. For fans, there are six 4-pin PWM connectors available. Each PWM port supports a current of up to 2 A.
The hub receives power directly via the designated PSU connector. If you place it elsewhere in the case, use an 8-pin PCIe cable for connection. With L-Connect 3, you can monitor the USB ports’ load.
Removable filters for easier cleaning
The mesh dust filter in front of the fan can be removed. This allows you to clear away accumulated dust without having to remove the PSU from your PC for each cleaning.
| Technical Data | |
|---|---|
| Primary Colour | Black |
| Dimensions | |
| Length / Depth | 182 mm |
| Width | 86 mm |
| Height | 150 mm |
| Fan Specifications | |
| Fan Size | 120 mm |
| Power Supply | |
| PSU Format | ATX |
| ATX Standard | ATX 3.1 |
| 12V Distribution | single rail |
| Modular Power Supply | Yes |
| Modular Type | fully modular |
| Protection Circuits | No-Load Protection, OCP (Overcurrent Protection), OPP (Overload Protection), OTP (Overtemperature Protection), OVP (Overvoltage and Undervoltage Protection), SCP (Short-Circuit Protection), SIP (Surge & Inrush Protection), UVP (Undervoltage Protection) |
| Power Specifications | |
| Total Power Output | 850 W |
| Power Output +3.3V & +5V (combined) | 100 W |
| Power Output +12V rails | 850 W |
| Power Output -12V | 3.6 W |
| Power Output +5Vsb | 15 W |
| Cable Specifications | |
| Max. CPU Power Cable Length | 700 mm |
| Max. 24-Pin Motherboard Power Cable Length | 600 mm |
| Max. 12V-2×6 Cable Length | 600 mm |
| Max. PCIe Power Cable Length | 550 mm |
| Max. SATA Power Cable Length | 700 mm |
| Max. Molex Cable Length | 850 mm |
| Cooling | |
| Semi Passive Power Supply | Yes |
| Internal Ports | |
| CPU Power Connectors 12V ATX/EPS | 2 |
| CPU Power Supply | 1x 4+4-Pin + 1x 8-Pin |
| 12V-2×6 Power Connectors | 1 |
| 6+2 Pin PCIe Power Connectors | 3 |
| SATA Power Connectors | 11 |
| 4 Pin Molex Power Connectors | 1 |
| Compatibility | |
| |
| Efficiency Class | |
| 80PLUS Efficiency | 80 PLUS Gold |
| Cybenetics Efficiency Level ETA (230V) | GOLD |
| Materials | |
| Materials | Steel |
| Lighting | |
| Lighting / RGB | No |
| Product Series | |
| Product Series/Family | EDG |
