Below is the original description for this product, any reference to warranty is to be ignored. Warranty for this item is 90 days as with all B Grade items.
B Grade items may have been used, have damaged packaging, missing accessories or a combination of these (Motherboards may be missing I/O shields).
Some items may have scuff marks or slight scratches but should otherwise be an operable product.
Below is the original description for this product, any reference to warranty is to be ignored. Warranty for this item is 90 days as with all B Grade items.
B Grade items may have been used, have damaged packaging, missing accessories or a combination of these (Motherboards may be missing I/O shields).
Some items may have scuff marks or slight scratches but should otherwise be an operable pr...
Below is the original description for this product, any reference to warranty is to be ignored. Warranty for this item is 90 days as with all B Grade items.
B Grade items may have been used, have damaged packaging, missing accessories or a combination of these (Motherboards may be missing I/O shields).
Some items may have scuff marks or slight scratches but should otherwise be an operable pr...
No products found

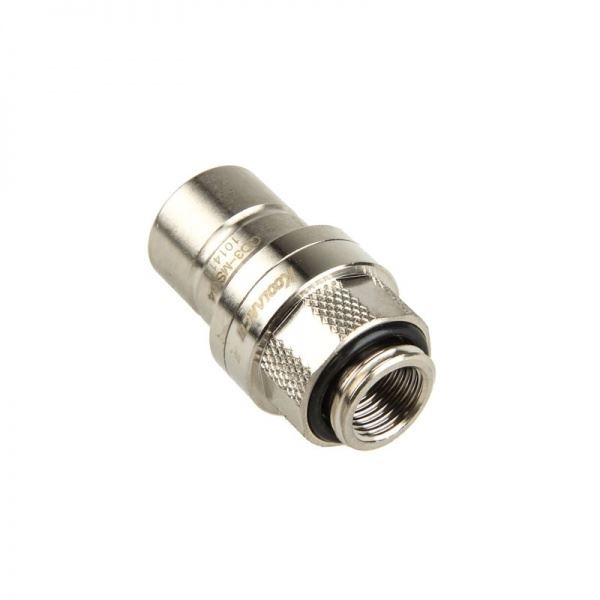

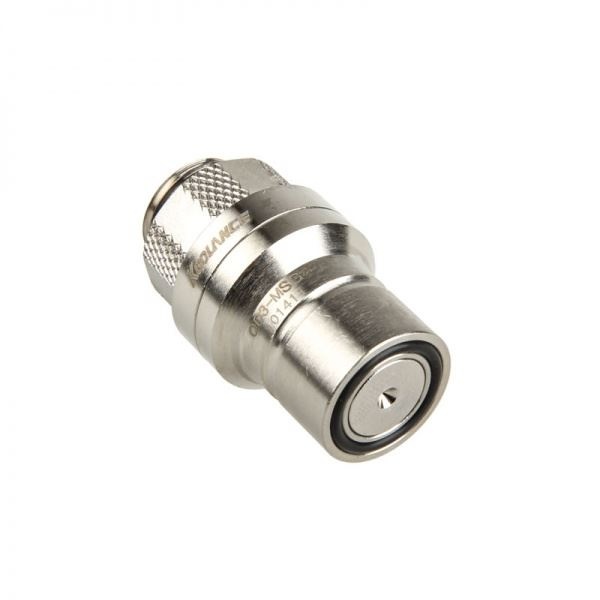

Koolance patented quick disconnect no-spill coupling with automatic shutoff. G 1/4 BSPP (parallel) thread male fitting for screwing directly into a water block or other component. It will only fit a Koolance QD3 female quick disconnect.
After pulling the ring on the female QDC side, the quick-disconnect fittings will separate. Liquid on both sides will be automatically obstructed with approximately 0.2ml freed. Coolant volume lost upon disconnection will rise with internal pressure higher than 0.5kgf/cm2 (7psi).
Technical details :
Weight 0.11 lb (0.05 kg)
Fitting Thread G 1/4 BSPP
Max No-Spill Pressure 0.5kgf/cm2 (7psi)
Max Pressure Tolerance @ 25 degreesC 8kgf/cm2 (113.8psi)
Max Temperature Tolerance 80 degreesC (176 degreesF)
Min Pressure Tolerance @ 25 degreesC -1.0kgf/cm2 (-14psi)
Min Storage Temperature (*No Freezing) -20ºC (-4ºC)
Seal Material EPDM (Water/Glycol Liquids)
Wetted Materials Brass, Nickel Plating, Stainless Steel, EPDM
