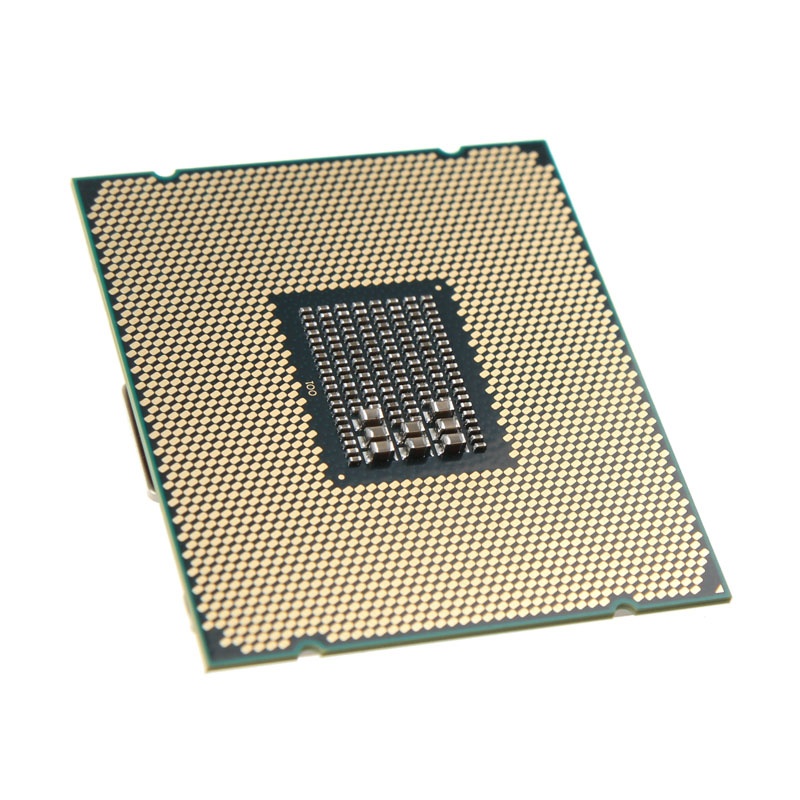

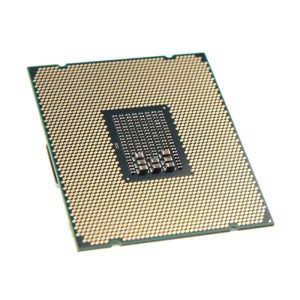

Intel Xeon E5-2698 2.2GHz V4 (Broadwell-EP) LGA 2011-V3 - tray

The Intel Xeon E5-2698 V4 at a glance:
2.2GHz basic clock
3.6GHz turbo clock
20 cores (40 threads)
50MB L3 cache
135W TDP
supports maximum 40 PCI Express lanes
Support for DDR4 memory
Xeon CPUs provide the basis for professional applications

Even in the professional field DDR4 has arrived as the storage standard and equal to 40 PCI Express 3.0 lanes are provided for expansion cards. For the Xeon E5 V4 are special server mainboards ready chipsets of C610er family have *. Many of E5 workstation processors can be used in dual-socket boards even in a two share.

The offered here Intel Xeon E5-2698 V4 is an enormously powerful workhorse in the professional environment and has 20 physical cores that can handle up to 40 threads simultaneously and fall back to 50 MB L3 cache. The E5-2698 V4 is clocked at 2.2 GHz, single cores but heaved up to 3,600 MHz when needed thanks to Intels Turbo Boost 2.0. All this at a TDP of 135 watts.

Intel also has a number implemented in the Xeon E5 models of professional features, ranging from the support for ECC RAM on the instruction set AVX 2.0 through to encryption with AES-NI. Also in the package: vPro, VT-x including EPT, VT-d and Trusted Execution Technology, Execute Disable Bit, and Demand Based Switching.

 This is the tray version of the processor. A CPU cooler and therefore not included!
* Whether a particular CPU model of Xeon E5-series can also be used on a desktop motherboard (X99 chipset) outside the server segment (C610 chipset) or whether a corresponding BIOS is available for download, is to check before buying directly from the motherboard manufacturer.

Technical details:
Type: Intel Xeon E5-2698 V4
Broadwell-EP
Production: 14 nm
Cores: 20/40 (physical / virtual)
Clock: 2.2 GHz
Turbo mode (max.): 3.6 GHz
Level 3 cache: 50 MB
Storage Controller: internal
Memory channels: 4
Memory Standard: DDR4 (1,600 / 1,866 / 2,133 / 2,400 MHz)
Integrated graphics unit: no
TDP: 135 Watt
Socket compatibility: LGA 2011 V3
Particularities:
20 cores + SMT (Hyper-Threading: virtual core doubling)
50 megabytes of L3 cache
Turbo Boost 2.0
Support for DDR4
Support for RAM with ECC error correction
AVX2.0 instruction set
Intel vPro Technology
Intel Virtualization Technology (VT-x) with Extended Page Tables (EPT)
Intel Virtualization Technology for Directed I / O (VT-d)
Intel Transactional Synchronization Extensions New Instructions (Intel TSX-NI)
Advanced Intel SpeedStep Technology
Intel Demand-based switching
Intel AES-NI encryption (Advanced Encryption Standard New Instructions)
Secure Key
OS Guard
Trusted Execution Technology
Execute Disable Bit
