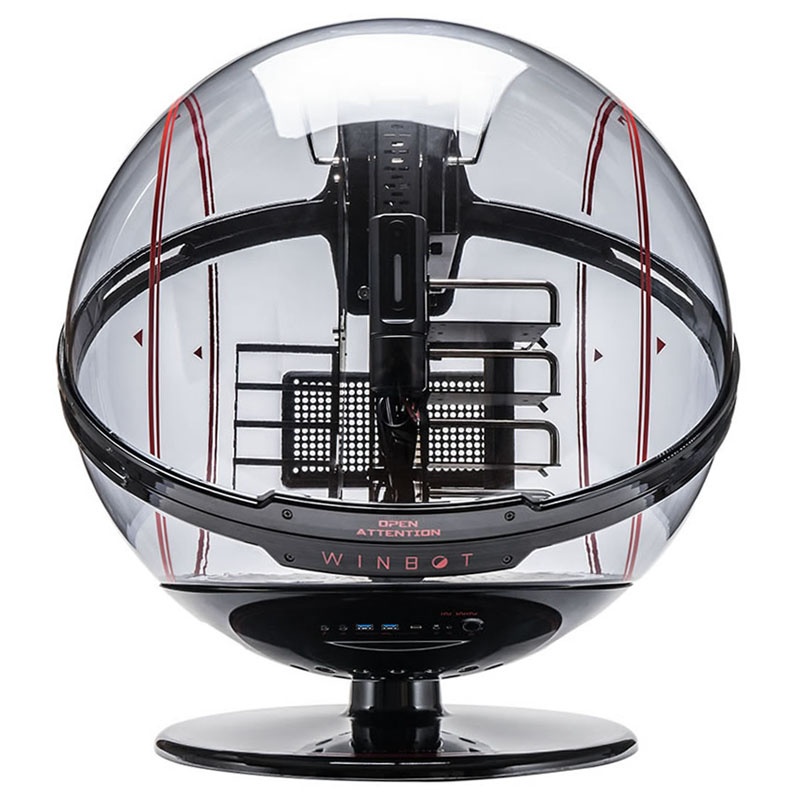

IN WIN Winbot design case - black-red

Available in three color variations, the futuristic-looking case fits a lot of conventional hardware onto an E-ATX motherboard. There is even space for a 360mm radiator for water cooling. The highlight of the strictly limited Winbot: It interacts with its owner via gesture control, opens and turns on command and even takes selfies.

The Winbot from InWin at a glance

    Big tower in futuristic spherical shape
    Transparent Plexiglas allows a 360 degrees view inside
    Space for motherboards up to E-ATX format
    Maximum graphic card length of 340 mm
    Support for radiators up to 360 mm
    Built-in stereo camera with face recognition
    Rotation and housing opening via gesture control
    Limited edition with unique serial number

Big Winbot is watching you

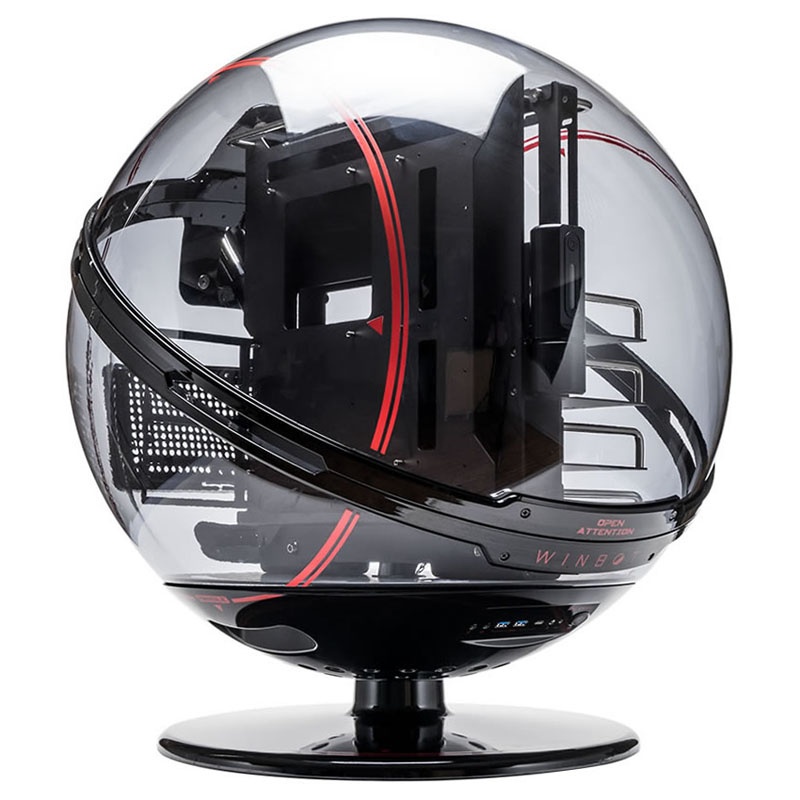

A modder felt reminded of Pacman at first glance, another wants to make a Death Star out of Winbot: The spherical shape of the completely transparent Winbot is truly an eye-catcher that stimulates the imagination. The futuristic-looking plexiglass ball can be opened up, but this does not have to be done manually. Because both the pneumatic hinge of the lid and the foot and turntable are motorized and can be moved by buttons or even by gesture control. There are corresponding switches on the back, and a stereo camera, which emblazoned on the front side of the centrally placed carrier.

For the mechanics and the camera to work at all, you first need to connect a small included power supply. Only then can the 70 cm high, 64.8 cm wide and 68.5 cm deep housing be opened by a switch in order to install almost any hardware in it.

The Winbot holds a lot of hardware

In the middle of the central pillar emblazoned with robust mainboard tray made of aluminum on the motherboards to the form factor E-ATX have space. The mainboard tray can be removed by the carrier for easier assembly. Up to eight PCIe expansion cards can also be accommodated in the enclosure. Graphics cards can be up to 34 cm long, ATX power supplies up to 21 cm long. There are also slots for a total of four 3.5-inch or eight 2.5-inch drives.

Three main 120 mm fans can also be attached to the central support for the mainboard tray. In Win also provides a corresponding bracket ready. Alternatively, you can attach a 360 mm radiator there as well. There is room for two more 120mm fans on the back, but they can be up to 50mm deep. There is no room for a radiator there. There is room for a good 17 cm for CPU fans.

At the bottom of the ball there is an I / O panel on the next to the new USB 3.1 type C connector, with the fumbling turning the USB connector is unnecessary, two more USB 3.0 ports and the mandatory audio jacks. In the bottom left and right each have a LED strip installed. In this version, the bottom, the foot and the last of the two halves of the ball are in black. On the left and right, two stripes in red color adorn the futuristic sphere and the outer edge of the foot.

Technical details:

    Dimensions: 700 x 685 x 648 mm (L x W x H)
    Material: Plexiglas, aluminum
    Weight: 22.46 kg
    Color: Transparent, Black, Red (Stripes)
    Form factor: E-ATX, ATX, Micro-ATX
    Fan:
    3x 120 mm (on the carrier)
    2x 120 mm (back)
    Drives: 4x 3.5 inches or 8x 2.5 inches
    Power adapter: standard ATX
    Expansion Slots: 8
    I / O panel:
    1x USB 3.1 type C
    2x USB 3.0 Type A
    1x each audio in / out
    Maximum graphics card length: 320 mm
    Maximum height CPU fan: 170 mm
    Maximum network part length: 210 mm
    Manufacturers warranty: 2 years
