IN WIN 805 Design Midi-Tower - black

Before the housing specialist IN WIN was founded already in 1985 noticed in Europe, with its noble premium housings for the end customer area, the Taiwanese manufacturer had already attained with discreet and especially functional mini Cases great sympathy. Following the publication of the first open case of D-frame and H-frame series, the dreamlike tou with transparent mirror surface or the extravagant aluminum artworks with large glass windows 904, 901 or S-Frame was clear: IN WIN is * the * Housing innovator par excellence.

Since then the company has been known to create something new and unique regularly. Among the more unconventional PC cases, which again put the Taiwanese groundbreaking impulses for the entire industry, now joins another, fantastic specimen that skillfully presents in WINS creativity once again demonstrated. With the remarkable 805 Design Midi-Tower housing the architect also makes it unmistakably clear that boredom fits nor to its products as standard to Caseking.

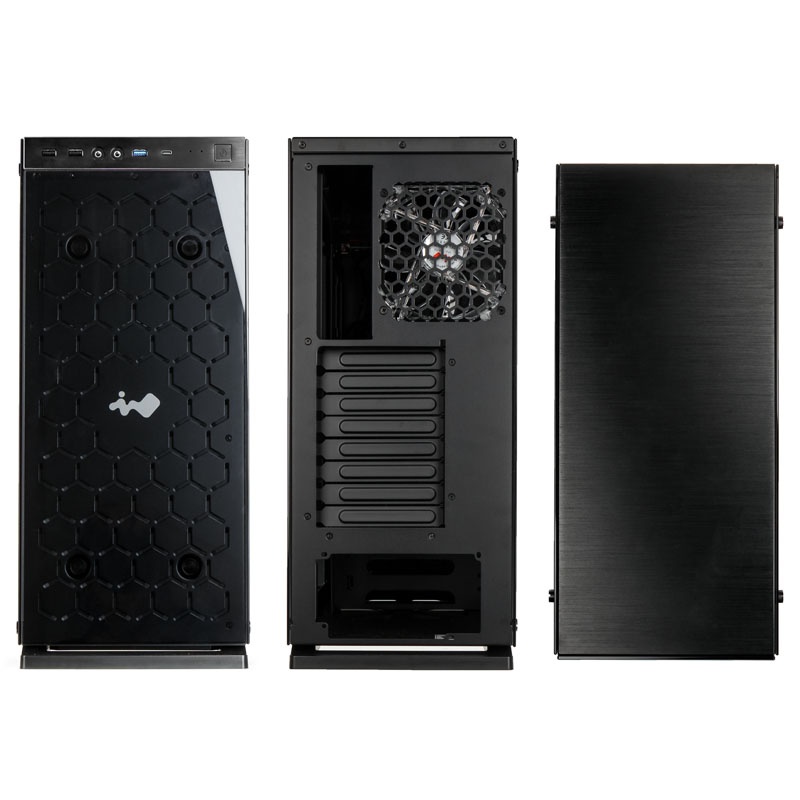

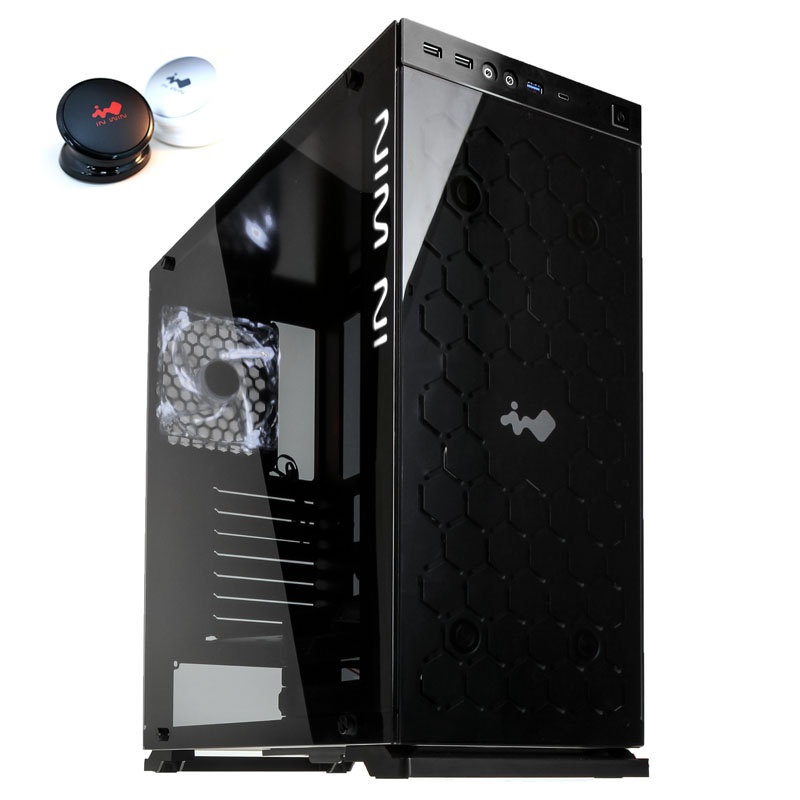

The new housing creation relies namely on a conventional tower design, it presents itself, however, thanks to the transparent toughened glass panel on three sides in a distinctive garb. Likewise, the anodized aluminum with finely brushed texture on the top and on the I / O panel charms just like the stylish hexagonal honeycomb structure on the front of the viewer. Finally, the LED-illuminated logo round (lights in this release White) on the side and a pre-installed at the rear LED fan (lights in this release White) the stunning looks of the designer piece from and provide brilliant lighting effects.

A little highlight of the IN WIN 805 is, moreover, that at the easily accessible platziertem I / O panel in addition to a USB 3.0 and two classic USB 2.0 ports, the power button and the mandatory audio inputs and outputs In addition, a brand new USB 3.1 port with type-C jack is. This new USB port is particularly thin and can finally be connected at both ends. USB 3.1 ports are maximum achievable speeds of 10 Gbit / s twice as fast as conventional USB 3.0 ports. The separate internal connector of the type-C port is identical to that of USB 3.0 ports, the transmission rate of 10 Gbit / s, however, is dependent on the support of the mainboard.

In addition to the lush connectivity the black IN WIN 805 also convinces inside with plenty of room for high-performance hardware. The veritable midi tower for motherboards in ATX, Micro-ATX and Mini-ITX format has a stable backbone which is made entirely of aluminum. For processor cooler in tower construction are between the motherboard tray and Window Panel whole 156 mm of space available. Even with the graphics card is high end Trumpf, because pixels Boliden may extend over 32 cm.

The cover is completely closed when applied WIN IN 805, the Airflow concept provides a very well-aligned air flow from the bottom to the back before. According to these data two front 120 / 140s fan mount, rear, at the eight PCI slots, a waiting with red LEDs lit and preinstalled 120mm fan on the use. Two additional 120-mm spaces are located on the ground (with displacement of the HDD cage to the front) and are protected by a magnetic and thus removable dust filter.

The power supply unit behind it may be up to 220 mm long and is not decoupled from the rest of the 805 air circulation but actively contributes to ventilation by sucking his fresh air from the housing interior and then warmed back to write. But the stylish midi housing also allows the use of water cooling systems. Instead of the two fans on the front panel can also be mounted here a dual radiator with a size of up to 280 mm, while at the rear alternatively a 120-Radiator an AiO watercooling can find space.

Three disks in 2.5-inch format can be installed on the back of the motherboard tray, while two 3.5-inch or three 2.5-inch HDDs or SDDs can be accommodated in a drive cage, which in turn itself can be shifted to the complete exposure of the fan slots at the bottom of the front, but then there one of the fan tray slots are occupied. The many passages tray and the CPU cooler cutout let the hardware installation in the IN WIN 805 Midi-Tower easily go out of hand. Stable rubber feet ensure on any surface for a secure grip.

Technical details:

    Dimensions: 205 x 476 x 455 mm (W x H x D)
    Weight: approx 9.2 kg
    Material: aluminum (chassis), tempered glass (side parts)
    Color: Black
    Form Factor: ATX, Micro-ATX, Mini-ITX
    Fan total possible:
    2x 120/140 mm (front)
    1x 120 mm (rear)
    2x 120 mm (ground without HDD cage)
    Of this pre-installed:
    1x 120 mm (rear; white LEDs)
    Radiator Mounting (without fans):
    1x 120 mm (rear; maximum width: 35 mm)
    1x 280/240/140/120 mm (front; maximum width: 60 mm)
    Filters: ground (magnetic, removable)
    Drive Bays:
    2x 3.5 / 2.5 inch (internal; HDD cage)
    4x 2.5 inch (internal)
    Power Supply: 1x standard ATX (optional)
    Extension slots: 8
    I / O Panel:
    1x USB 3.1 Type-C (internal connection)
    1x USB 3.0 (internal connection)
    2x USB 2.0
    1x per Audio In / Out
    Maximum power supply Length: 220 mm
    Maximum video card length: 320 mm
    Maximum video card height: 164 mm
    Maximum CPU cooler height: 156 mm
