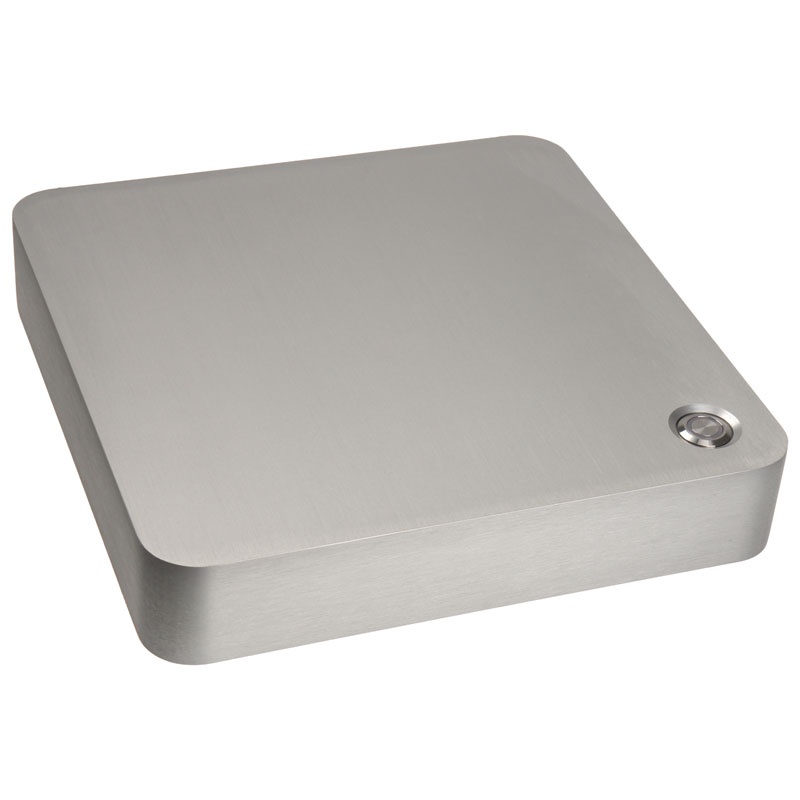

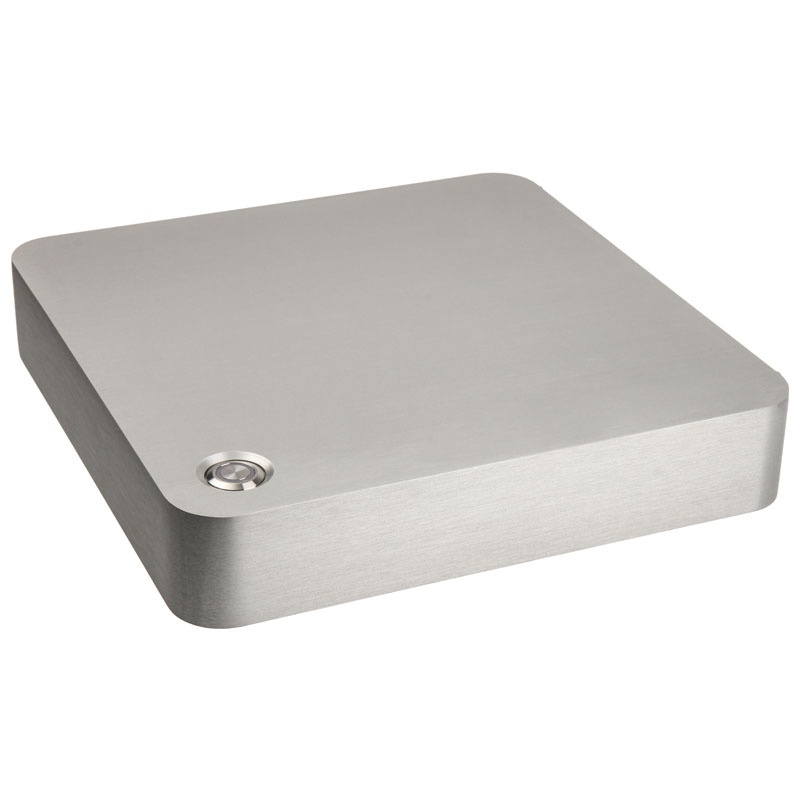

Impactics DMono 1 for Gigabyte GA-H110TN and GA-Q170TN, silver with switch above

The Impactics DMono 1 at a glance:

    Chic, compact housing made of aluminum
    For selected Thin Mini ITX motherboards from Gigabyte
    Suitable for CPUs with a maximum of 35 TDP
    I / O shield with HDMI, DisplayPort, 4x USB, 2x LAN (1x optional), audio
    Integrated heatspreader for CPU and voltage converter including thermal pads

The noble case for a silent PC

The DMono 1 has all the necessary recesses at the rear, which a compatible mainboard of the Thin Mini ITX series from Gigabyte needs: For the Intel CPUs integrated graphics unit, there are slots for HDMI and DisplayPort output, one slot each for audio in and audio out and four slots for USB ports. For a total of two LAN ports, there are also recesses, with only one is completely punched out. Also pre-perforated are two slots for WLAN antennas.

The principle of the Winzling provides to use the mini-board so that CPU and voltage converter rest on the heatsink located in the housing. Thus, the entire housing is used as a heat sink for Intel CPUs up to a TDP of 35 watts, which then run completely silent due to the lack of cooler, but still efficient. In the middle of the front of this version of the DMono 1 in chic black emblazoned the power button with integrated LED. Otherwise, no other switches interfere with the high quality finely brushed aluminum surface.

Note: This enclosure is designed only for Gigabyte motherboards: GA-H110TN-E, GA-H110TN-M, GA-H110TN and GA-Q170TN. In addition, the Intel CPUs used must not exceed 35 watts TDP.

Technical details:

    Dimensions: 216 x 40 x 216 mm (W x H x D)
    Color: Black
    Standard: Thin Mini-ITX (170 x 170 mm)
    Recess for external connections:
    1x HDMI
    1x DisplayPort
    2x LAN (1x pre-punched)
    4x USB
    1x power supply
    2x audio (in / out)
    2x WLAN antennas (pre-punched)
    Power supply: external power supply (optional)
    Compatibility:
    Gigabyte GA-H110TN
    Gigabyte GA-H110TN-E
    Gigabyte GA-H110TN-M
    Gigabyte GA-Q170TN
