With the GeForce 1070 Ti, NVIDIA closes the gap between GeForce 1070 and GeForce 1080, adding to its Pascal portfolio as an interesting alternative for ambitious gamers.
With the GeForce 1070 Ti, NVIDIA closes the gap between GeForce 1070 and GeForce 1080, adding to its Pascal portfolio as an interesting alternative for ambitious gamers.
With the GeForce 1070 Ti, NVIDIA closes the gap between GeForce 1070 and GeForce 1080, adding to its Pascal portfolio as an interesting alternative for ambitious gamers.
Whether demanding 4K content or VR gaming – the GeForce 1070 Ti is up to all the requirements of modern gaming engines and surprisingly efficient.
The features of the Gigabyte GeForce GTX 1070 Ti Gaming 8G at a glance
Semi-passive WindForce 3X cooler
High base clock of the GPU: 1.607 MHz
Enormous boost clock of the GPU: 1,683 MHz
Fast memory clock: 2.002 MHz (effective 8.008 MHz)
RGB Fusion Lighting
Additional power connections: 1x 8-pin

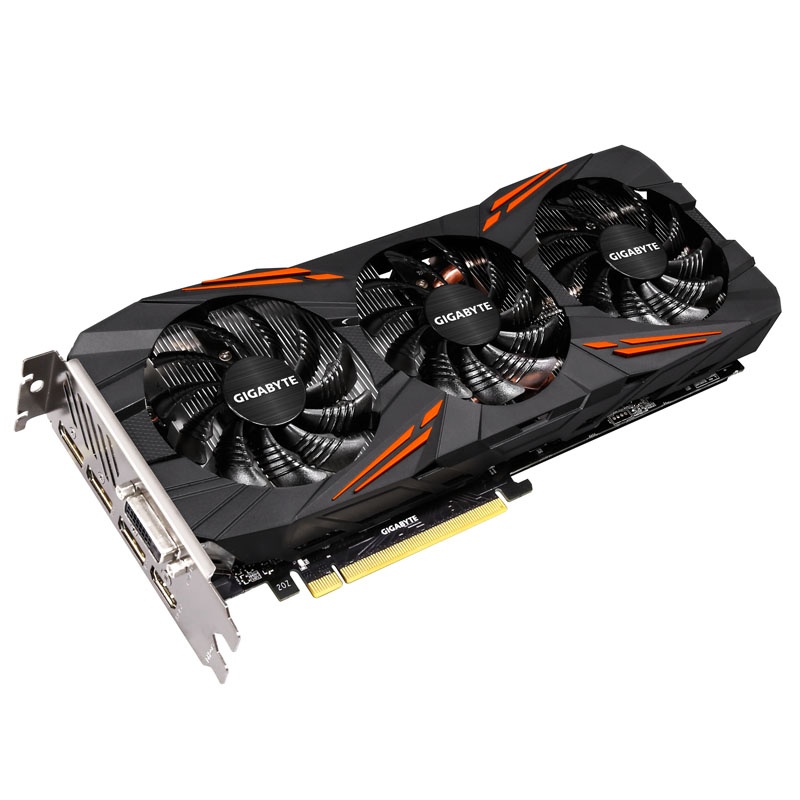

Gigabyte GeForce GTX 1070 Ti Gaming 8G with radial fan for effective cooling
The Gigabyte GeForce GTX 1070 Ti Gaming 8G has a base clock of 1,607 MHz. If necessary, it can be boosted to 1,683 MHz with a boost of GPU boost 3.0. The memory clock of the GDDR5 memory is 2.002 MHz (effectively 8.008 MHz) MHz. For cooling the graphics card, the semi-passive WindForce 3X cooler design is used, which consists of two heatpipes, three large cooling blocks made of aluminum fins and three large fans.
The special fan-edge-design of the fan blades has up to 23 percent better airflow than conventional fans. The Windforce 3X Cooler features RGB LED illuminated lettering and a backplate provides increased PCB stability.
Gigabyte offers a tool on its website with the XTREME software that overclocks, monitors and controls the speed of the GeForce GTX 1070 Ti Gaming 8G. In order to realize the full potential of the card, you should also periodically download and install NVIDIA or Gigabyte drivers.
GeForce GTX 1070 Ti: gaming power for VR and 4K!
The GeForce GTX 1070 Tis 8 GB video memories are connected to the GPU via a 256-bit memory interface and the built-in GP104 graphics chip has 2,432 CUDA cores, 152 texture units and 64 raster operators. The resulting computing power is 7.8 TFLOPS. Thus, the GeForce GTX 1070 Ti opens new perspectives when entering the luxury segment.
The GTX 1070 Ti Series graphics cards support DirectX 12 and current gaming technologies including NVIDIA Gameworks, Warp, Stereo-X, VR-Audio, PhysX, and Simultaneous Multi-Projection (SMP). The latter is supported in version 4.0 and offers great advantages, in particular for VR, curved displays and multi-display setups.
Thus, with SMP 4.0, a total of 16 viewports and two viewports can be rendered in one go. By using multiple viewports, the rendered image also has a lower number of calculated pixels, which dramatically improves VR performance.
The GeForce GTX 1070 Ti features 4K / Ultra HD resolutions at 60 Hertz via three DisplayPort 1.4 and one HDMI 2.0b ports, with the latter featuring HDCP 2.2 for sending and receiving encrypted signals (4K Blu-Ray / 4K streams). Alternatively, the GTX 1070 Ti has a DVI-D (dual-link) output.
Graphics card exchange without waiting at Caseking!
During the warranty period of 2 years from the receipt of the goods, Caseking will legitimately exchange end-user complaint graphics cards – ie those with a defect confirmed by us – of all brands mentioned below for new goods (if in stock). A submission of the defective goods to the manufacturer and associated longer waiting times are thus completely eliminated! If the graphics card to be replaced is no longer in stock or deliverable, we will issue a credit note. Afterwards an alternative graphic card from our assortment can be chosen freely. Any additional charges can simply be paid and any remaining amounts will be refunded by us.
How do I handle a defect in my graphics card? -> Immediate graphic card replacement (click here)
Brands: ASUS, Club 3D, EVGA, Gigabyte, INNO3D, Palit, PNY, Powercolor, Sapphire, VTX3D, XFX, ZOTAC & King Mod
Free games for NVIDIA GeForce GTX gaming graphics cards:
For each game video card purchased at Caseking, we will send the corresponding coupon codes of the current game bundles by e-mail 1-2 days after receipt of the goods. For non-qualified products no coupon code will be sent. Only end customers receive free donations. All promotions are limited and valid only while stocks last or until the offer is closed. The legal process is excluded. Here are all currently active coupon promotions from NVIDIA:
NVIDIA GeForce GTX 1080 & 1080 Ti: Destiny 2. More information.
Technical details:
Dimensions: 280 x 114 mm (W x D)
Height: 2-slot
GPU: NVIDIA GeForce GTX 1070 Ti
Chip: GP104
Production: 16 nm
GPU clock: 1,607 MHz
Boost Clock: 1,683 MHz
Shader units (CUDA cores): 2.432
Memory Size: 8,192 MB
Memory clock: 2,002 (8,008) MHz
Type: GDDR5
Memory connection: 256 bits
Memory bandwidth: 256 GB / s
Slot: PCIe x16 (PCIe / PCIe 2.x / PCIe 3.0)
Connections:
3x DisplayPort 1.4
1x HDMI 2.0b
1x DVI-D (dual-link)
Power supply: 1x 8-pin PCIe
Recommended power supply performance: min. 500 watts
Features: DirectX 12, OpenGL 4.6, VR Ready, SLI Ready, NVIDIA Ansel, G-Sync, Gamestream, GPU Boost 3.0, HDCP 2.2, NVIDIA Surround, 3D Vision, Tessellation, PhysX, CUDA, NVENC, Adaptive Vertical Sync, VXGI, Super Resolution, 4K Ultra HD Support, SMP, NVIDIA ShadowPlay
