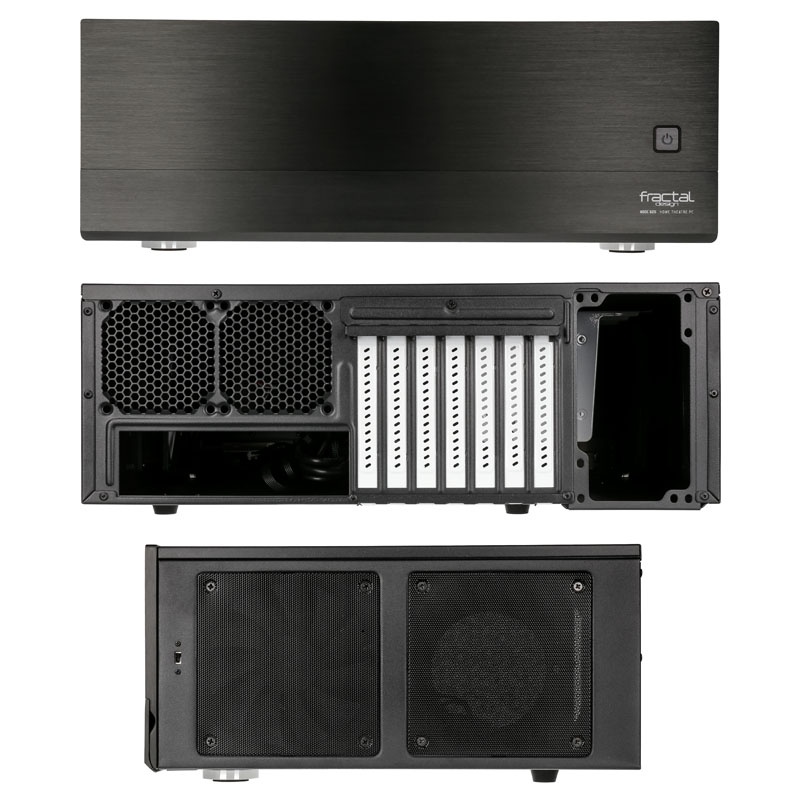

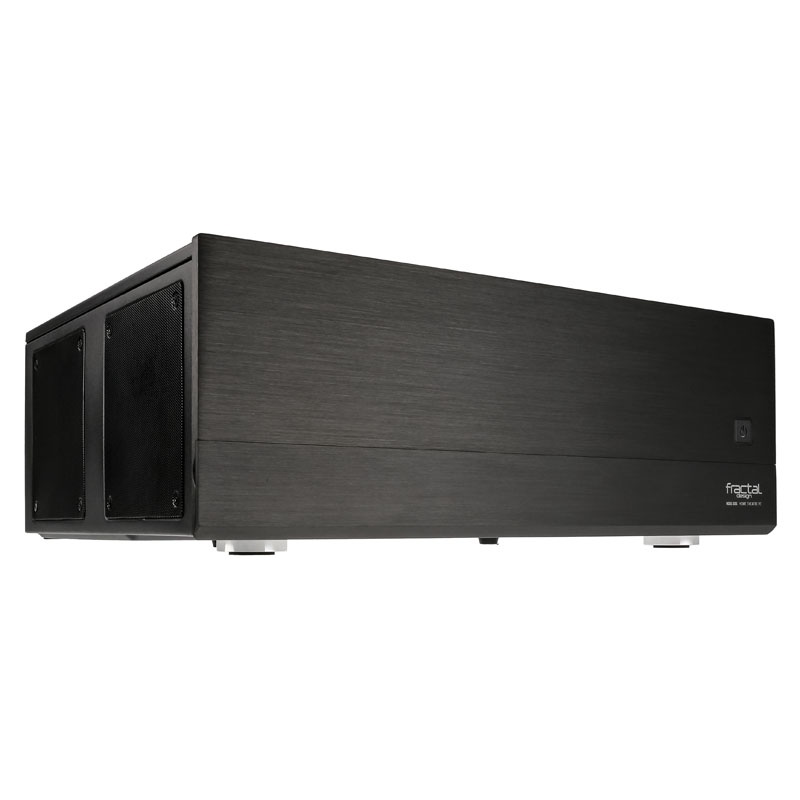

The Node 605 HTPC case comes in the form of a front panel made of brushed aluminum with an elegant design. The front is in this case only by a modest Fractal Design Logo, a broken power button and the gap of the front bezel. The front stands on all four sides slightly.
Behind the front panel in the lower part of the front hiding beside a 5.25-inch slimline drive bay, the I / O panel with two USB 3.0 ports, a microphone input and headphone output. A special feature of the Node 605 has a FireWire port and an integrated card reader for SD, Micro SD and CompactFlash memory cards.
Both the left and the right side of the housing are visually dominated by two large mesh grille. Dust filter at these mesh surfaces reduce the penetration of dust. On the left side is in addition the fan control. The back features seven PCI expansion slot covers, can accommodate two 80 mm fans and a power supply in ATX format.
The interior is designed partly with sound-absorbing material and is powered by two preinstalled 120 mm fans with cool air. An additional 120 mm fan can be installed on the left and are complemented by the aforementioned 80 mm fan in the back. The installed left and right fan of the Silent Series R2 and an additional fan can be controlled by the fan control.
For hard drives, two drive cages available. These can each accommodate a 2.5-inch SSD or a 3.5-inch HDD. For CPU Coolers are about 125 mm with side-mounted fan is available in coolers with fans on top of Fractal Design recommends a minimum of 30 mm clearance for the airflow into account. Power Supplies have incl. All connections up to 180 mm square when both HDD cages are used.
Graphics cards can be installed with a maximum length of 290 mm in the top two PCI slots for ATX motherboards, when both HDD cages are used. 280 mm are available for the top four PCI slots available when a 3.5-inch HDD and a 2.5-inch SSD are installed in a drive cage. 255 mm stay with a HDD Cage and 180 mm used for lower PCI slots with two hard drive cages.
The node 605 may motherboards accommodate up to ATX form factor, but there are also smaller boards supported. To use the 5.25-inch slimline drive bay, the motherboard used must not be larger than Micro-ATX.
Technical details:
Dimensions: 455 x 164 x 349 mm (W x H x D)
Material: Steel (body), aluminum (front) Plastic (front cover)
Weight: 6 kg
Color: Black
Form Factor: ATX
Fan total possible:
2x 120 mm (left side)
1x 120 mm (right side)
2x 80 mm (rear)
1x integrated fan controller for up to 3 fan
Of this pre-installed:
1x 120 mm (left side; Silent Series, max 1,000 U / min.)
1x 120 mm (right side; Silent Series, max 1,000 U / min.)
Filters: left side, right side (PSU)
Drive Bays:
1x 5.25 inch max. (Ext, Slimline, only micro-ATX or smaller)
2x 3.5 inch max. (internal)
2x 2.5 inch max. (internal)
Power Supply: 1x standard ATX (optional)
Extension slots: 7
I / O Panel:
2x USB 3.0 (internal connection)
1x FireWire (internal connection)
1x Card reader (internal connection; SD, MicroSD, CompactFlash)
1x per Audio In / Out
1x Power Button
Maximum video card length: 290 mm
Maximum power supply Length: 190 mm
Maximum CPU cooler height: 125 mm
