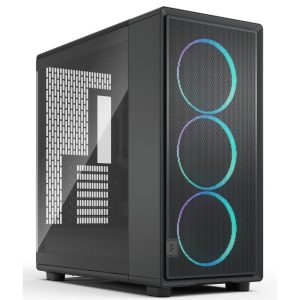

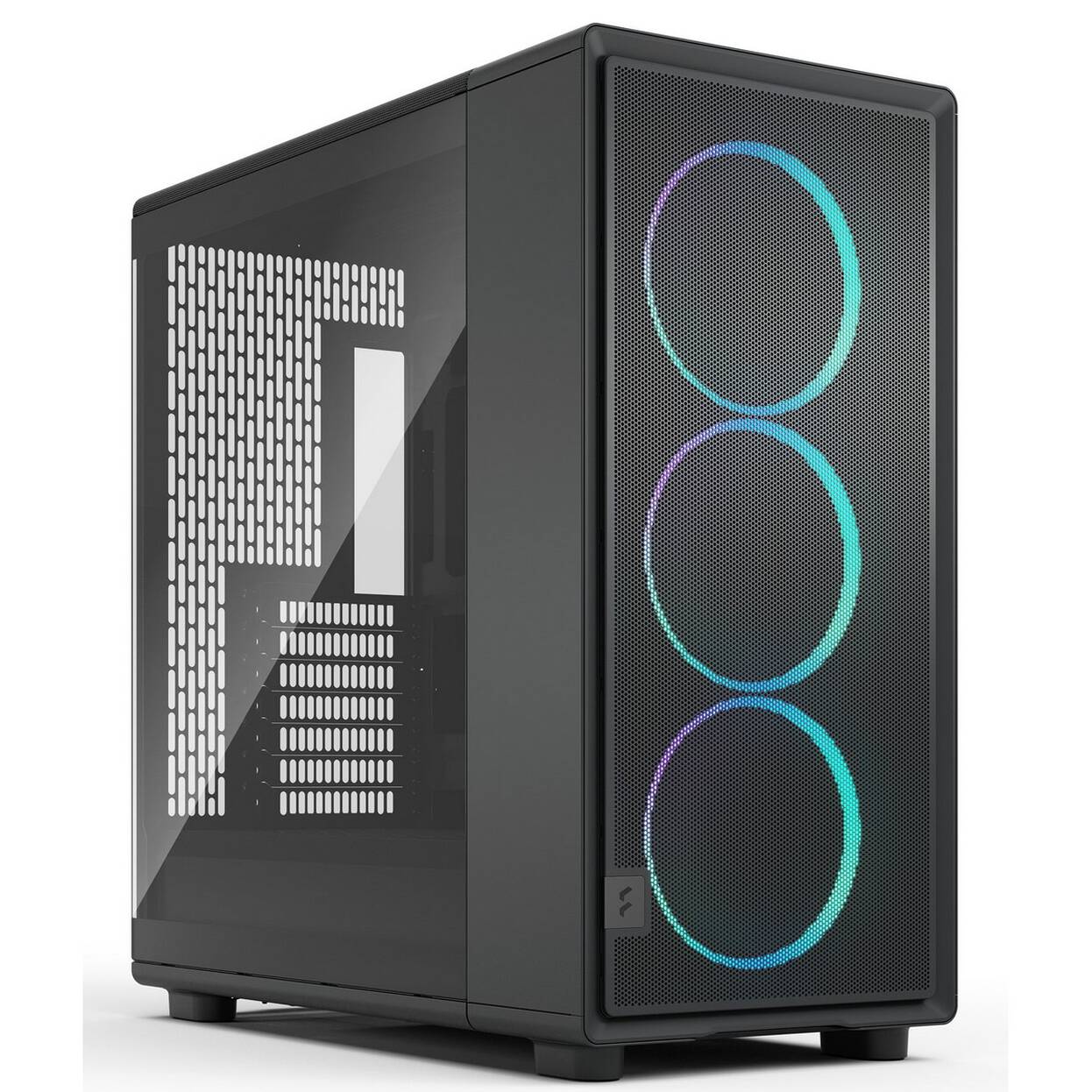

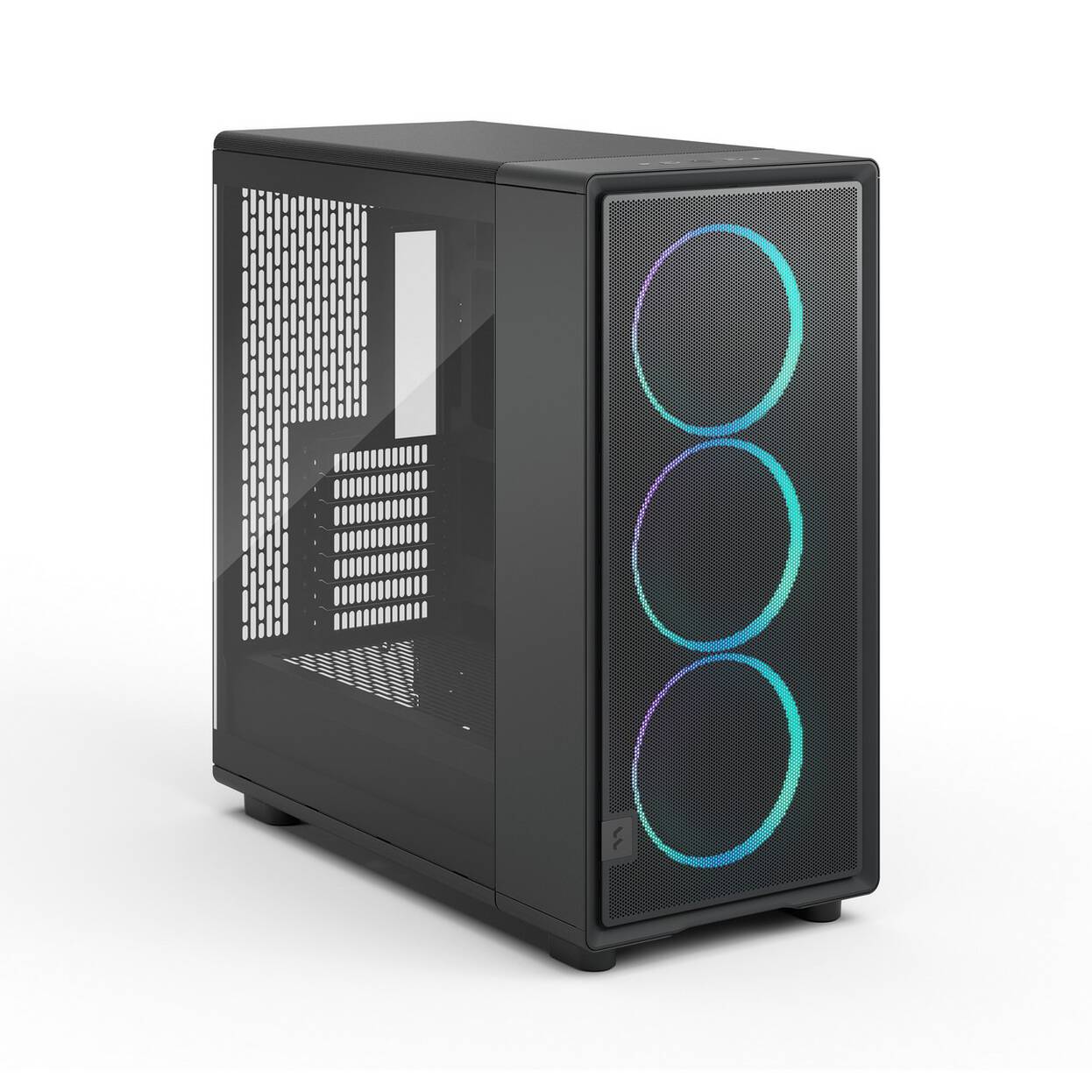

A simple, elegant design combined with a slightly tinted tempered glass side panel and a breathable mesh front. These are the features that define the Epoch series from Fractal Design. With the Epoch XL, you get the familiar design – with even more space for powerful hardware.
A simple, elegant design combined with a slightly tinted tempered glass side panel and a breathable mesh front. These are the features that define the Epoch series from Fractal Design. With the Epoch XL, you get the familiar design – with even more space for powerful hardware.
A simple, elegant design combined with a slightly tinted tempered glass side panel and a breathable mesh front. These are the features that define the Epoch series from Fractal Design. With the Epoch XL, you get the familiar design – with even more space for powerful hardware.
A simple, elegant design combined with a slightly tinted tempered glass side panel and a breathable mesh front. These are the features that define the Epoch series from Fractal Design. With the Epoch XL, you get the familiar design – with even more space for powerful hardware.
– Simple and elegant design seamlessly integrates into your setup

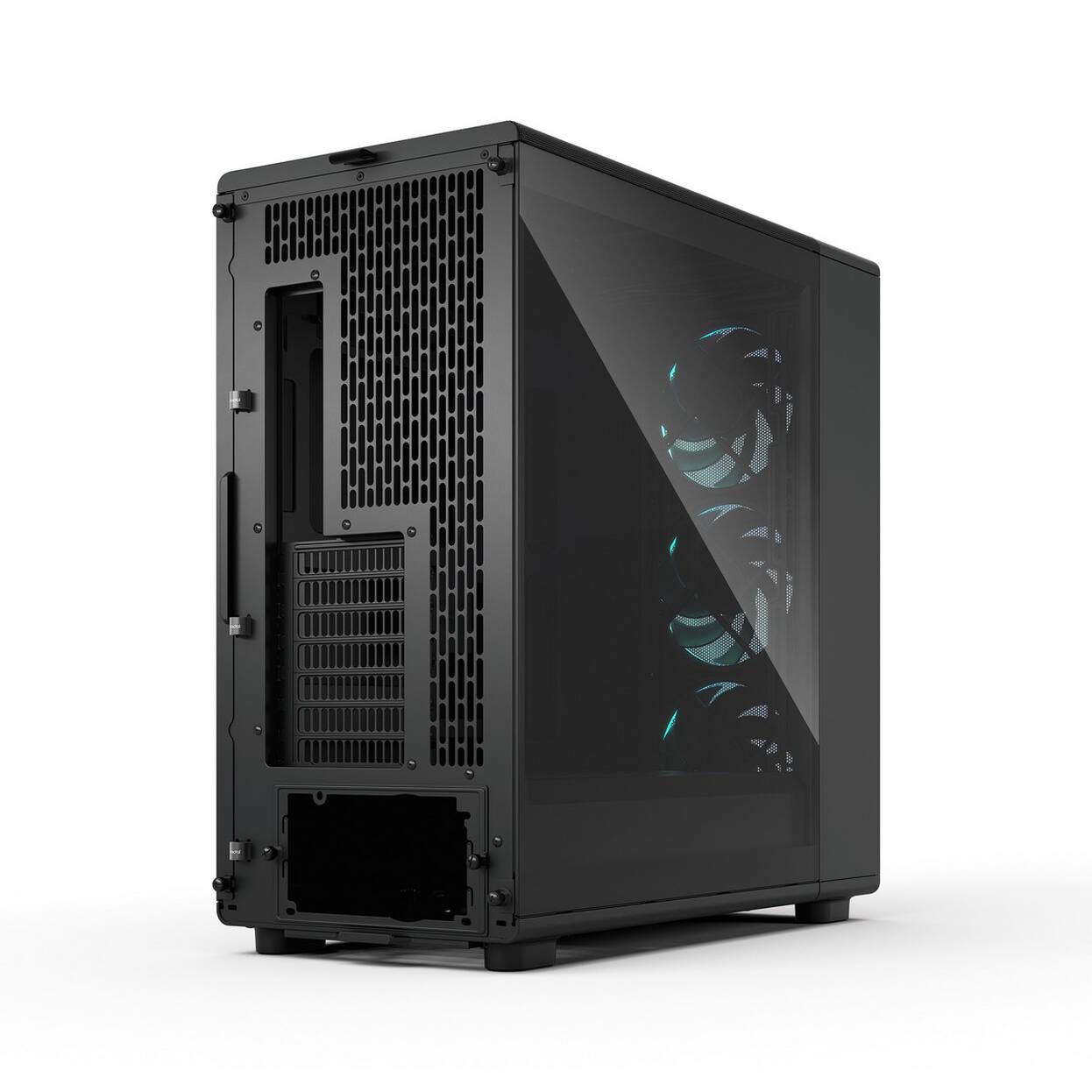

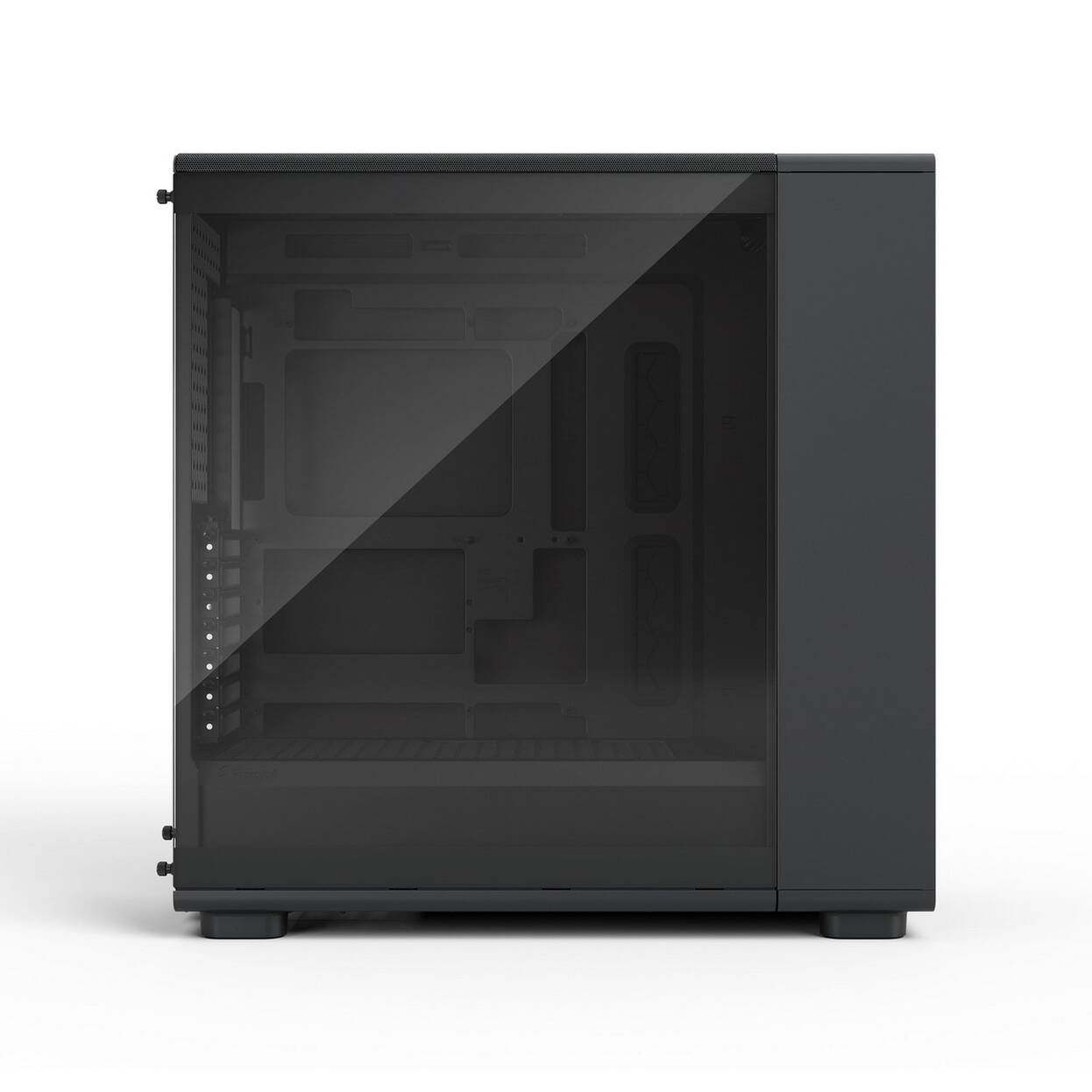

– Tempered glass side panel offers an unobstructed view of your hardware

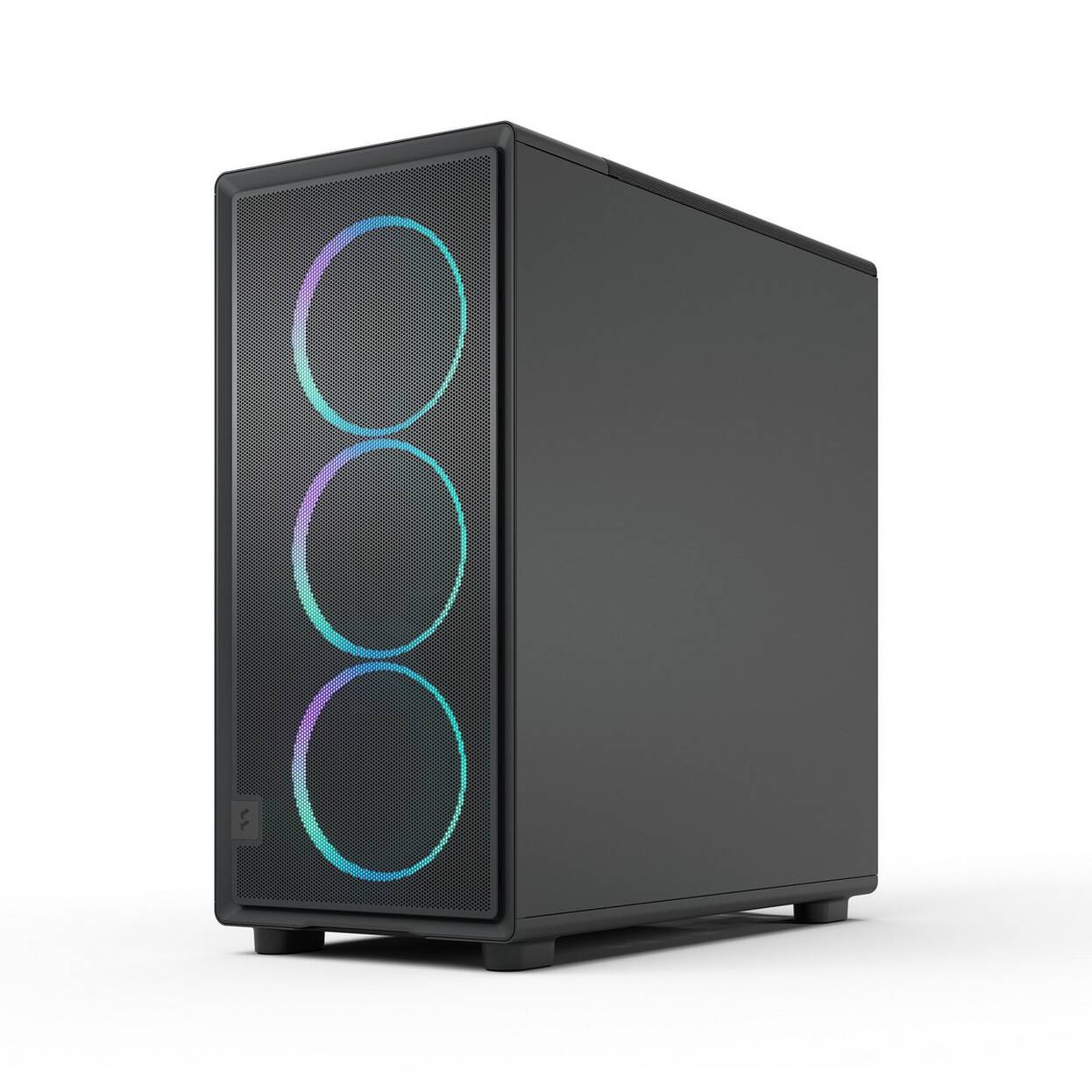

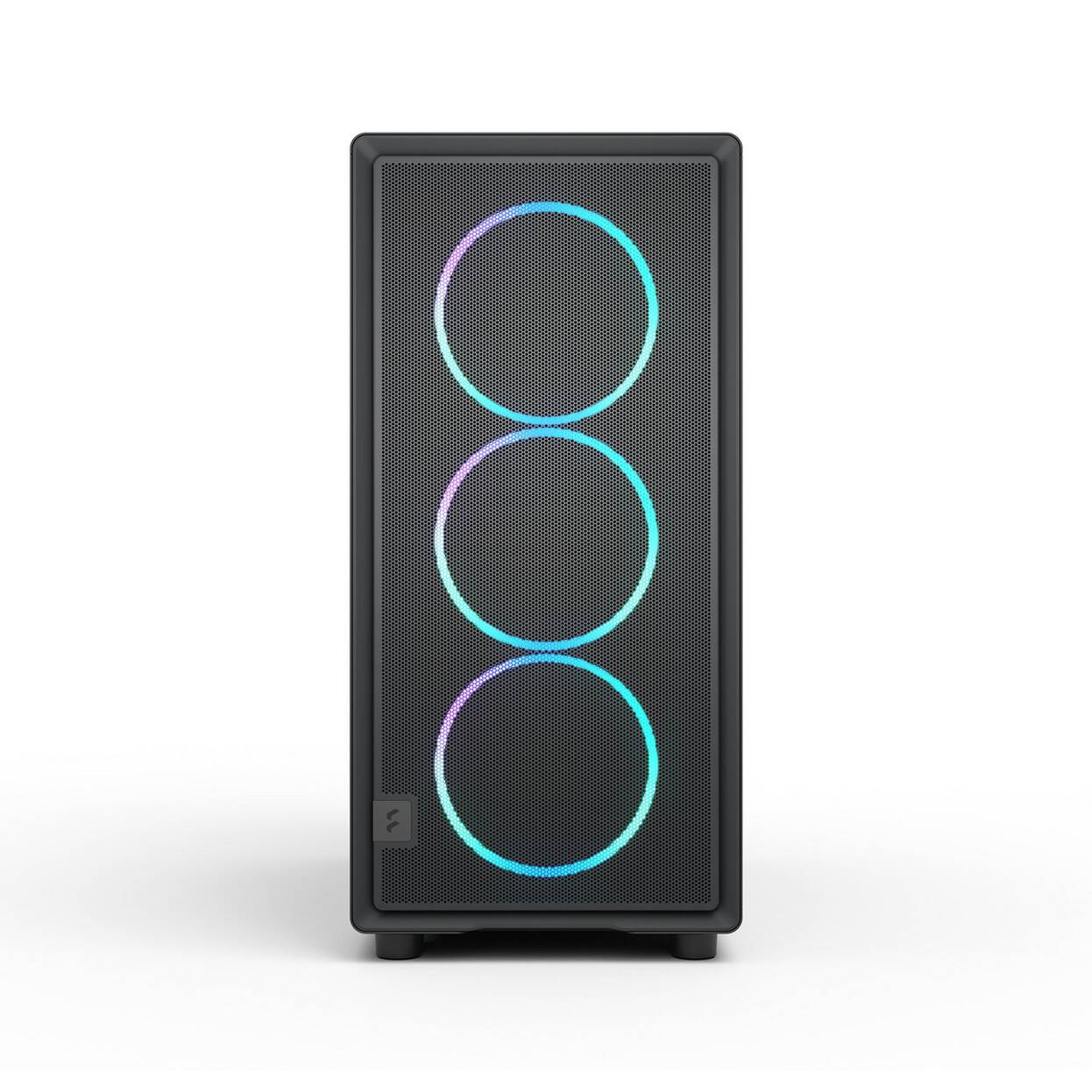

– Mesh front with high airflow permeability for strong cooling
– Ready to go immediately thanks to three pre-installed 140mm ARGB fans at the front
– Large space for powerful hardware and demanding cooling systems
Elegant mid-tower with simple design and ample space
Whether a budget build or enthusiast machine – with the Fractal Design Epoch XL, you are well equipped for any build. Thanks to the spacious interior, even the most powerful hardware fits easily into the understated case. The look is unobtrusive – ideal for a minimalist setup.
Ready to go immediately with pre-installed ARGB fans
Thanks to the three pre-installed 140mm fans, you are not only ready to start immediately but also well prepared to cool your components. The breathable mesh front delivers more than enough fresh air for your hardware. With up to four additional 120mm fans, your hardware stays properly cooled even under load.
AiOs and radiators also find their place easily in the Epoch XL: with up to two 360mm radiators, a custom loop in the Epoch XL is even possible in some cases.
Expansion slots, storage options and front I/O
To ensure even the most powerful graphics card and additional PCIe devices fit without issue, the case is equipped with seven expansion slots. Plenty of room for storage as well: with up to two 3.5-inch HDDs or four 2.5-inch SSDs, there is ample storage capacity.

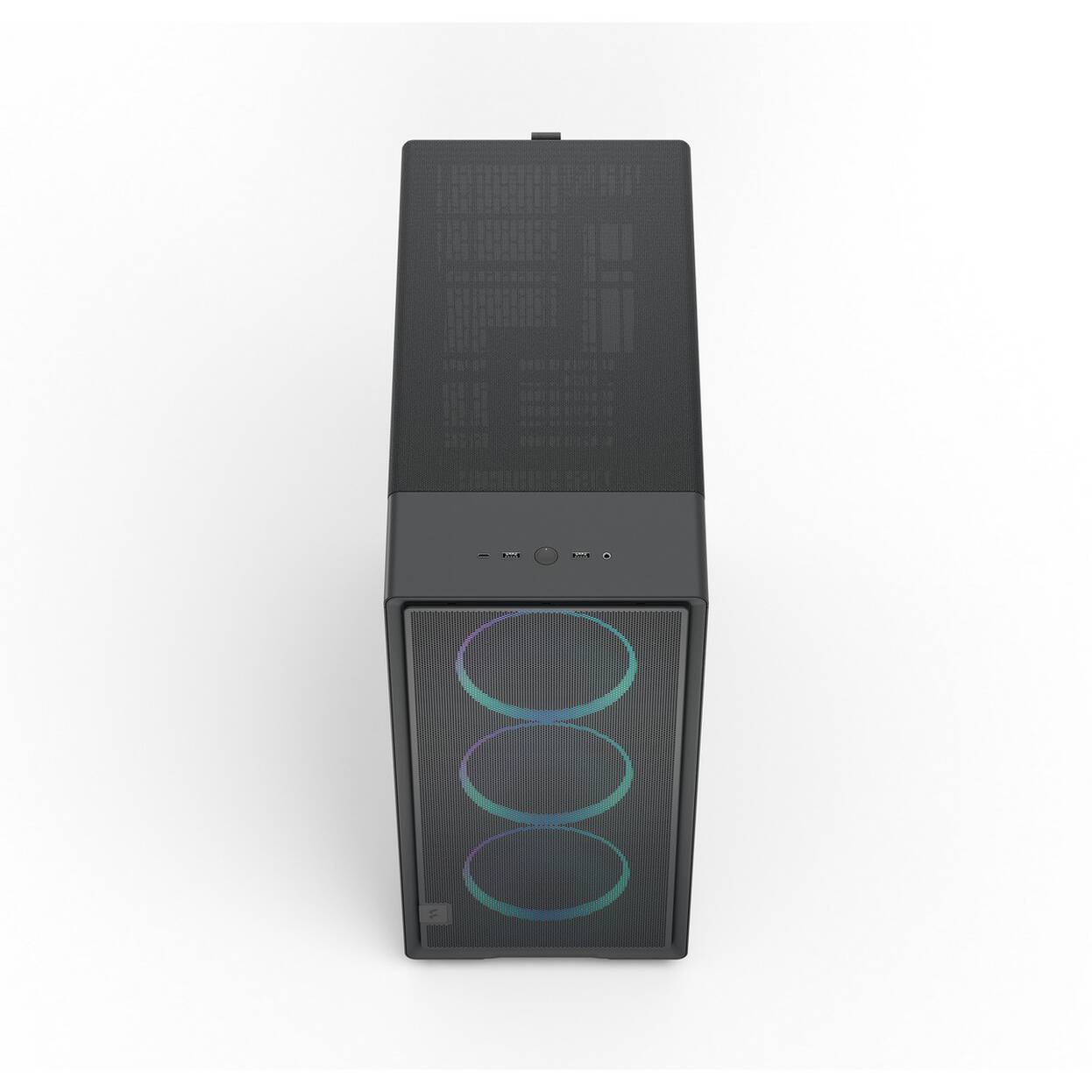

Nothing is saved when it comes to front I/O: with a 20 Gbit/s USB-C port and two USB-A ports with 3.0 standard, you are well covered in every situation. Thanks to the audio jack, headphones, a microphone, or a headset can be connected easily and immediately.
| Colour | |
|---|---|
| Primary Colour | Black |
| Dimensions & Weight | |
| Size (L × W × H) | 503 × 240 × 509 mm |
| Weight | 9.75 kg |
| Case & Compatibility | |
| Case Type | Mid Tower |
| Motherboard Support | ATX, E-ATX, Micro-ATX, Mini-ITX |
| Max. CPU Cooler Height | 176 mm |
| Max. GPU Length | 425 mm |
| Max. PSU Length | 290 mm |
| Power Supply | |
| PSU Included | No |
| PSU Type | ATX (Bottom Mounted) |
| Cooling & Fan Support | |
| Fan Support | Front: 3×120mm / 3×140mm | Rear: 1×120mm | Top: 3×120mm / 2×140mm / 2×180mm |
| Max Fans | 7 (120mm) / 5 (140mm) / 2 (180mm) |
| Included Fans | 3×140mm |
| Radiator Support | |
| Max Radiator | Up to 360mm |
| Placement | Front: 280 / 360mm | Top: 280 / 360mm | Rear: 120mm |
| Storage Options | |
| 2.5″ Bays | 4 |
| 3.5″ Bays | 2 |
| Hot Swap | No |
| Front I/O Ports | |
| USB Ports | 1× USB-C, 2× USB-A (USB 3.0/3.2) |
| Audio | 1× 3.5mm Combo Jack |
| Build Features | |
| Side Panel | Tempered Glass Window |
| I/O Position | Top |

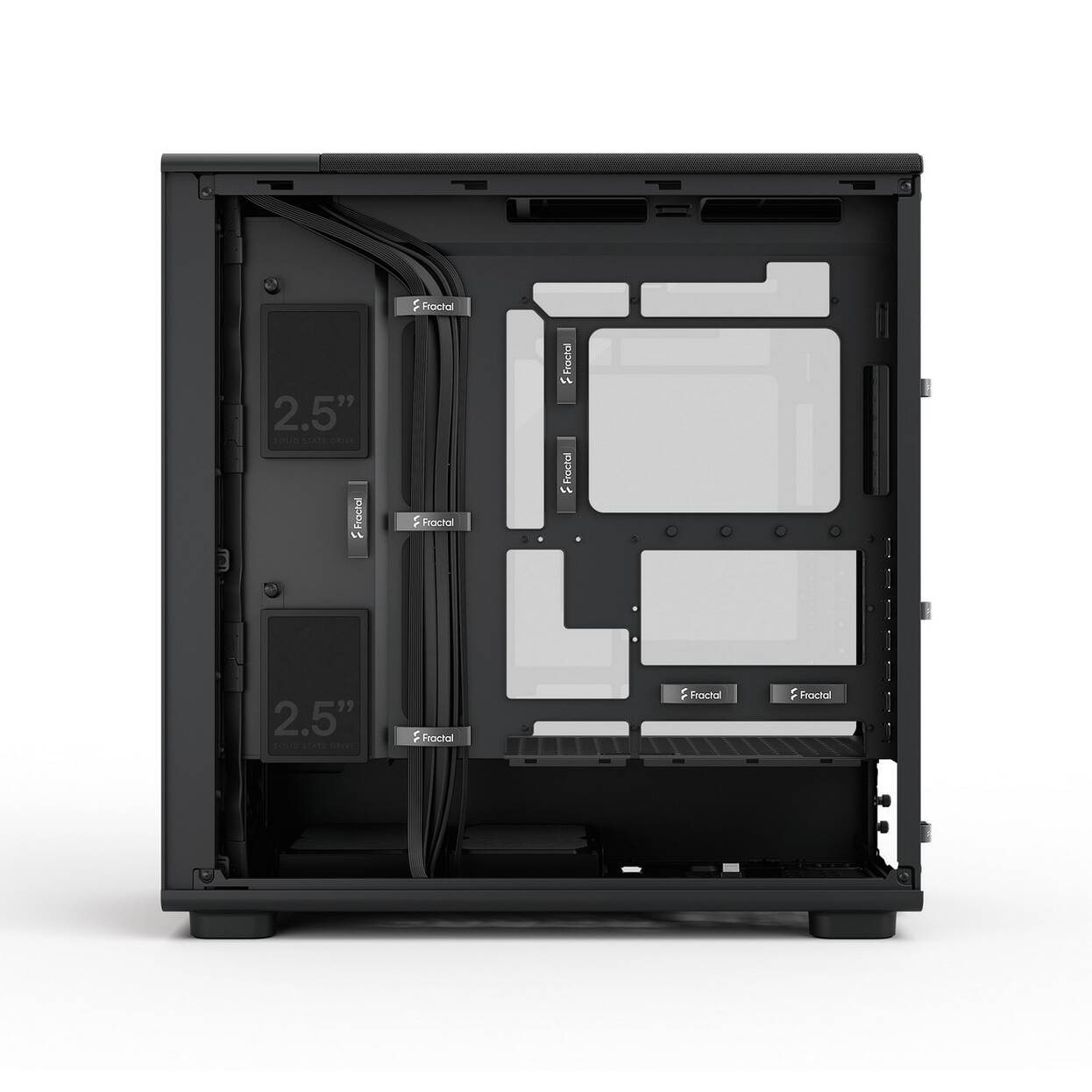

| Cable Management | Yes |
| Dust Filters | Bottom |
| Back Connect Support | Yes |
| Vertical GPU Mount | No |
| Expansion & Connectivity | |
| Expansion Slots | 7 |
| Fan Controller | No |
| Card Reader | No |
| Materials & Lighting | |
| Materials | Steel, Tempered Glass |
| RGB Lighting | Yes (No Controller) |
£144.78£120.65 Inc VatEx Vat
