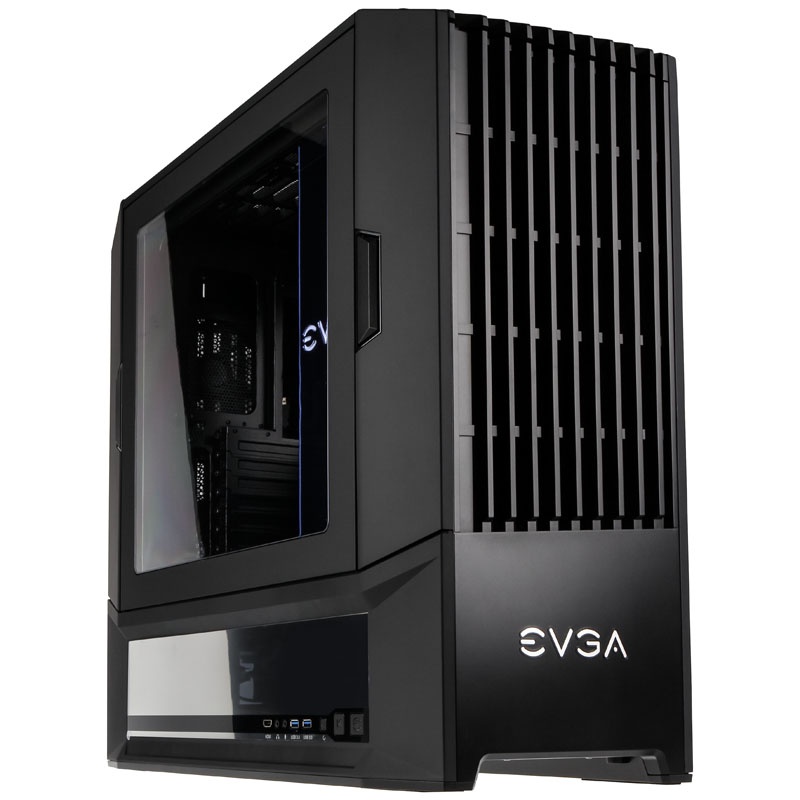

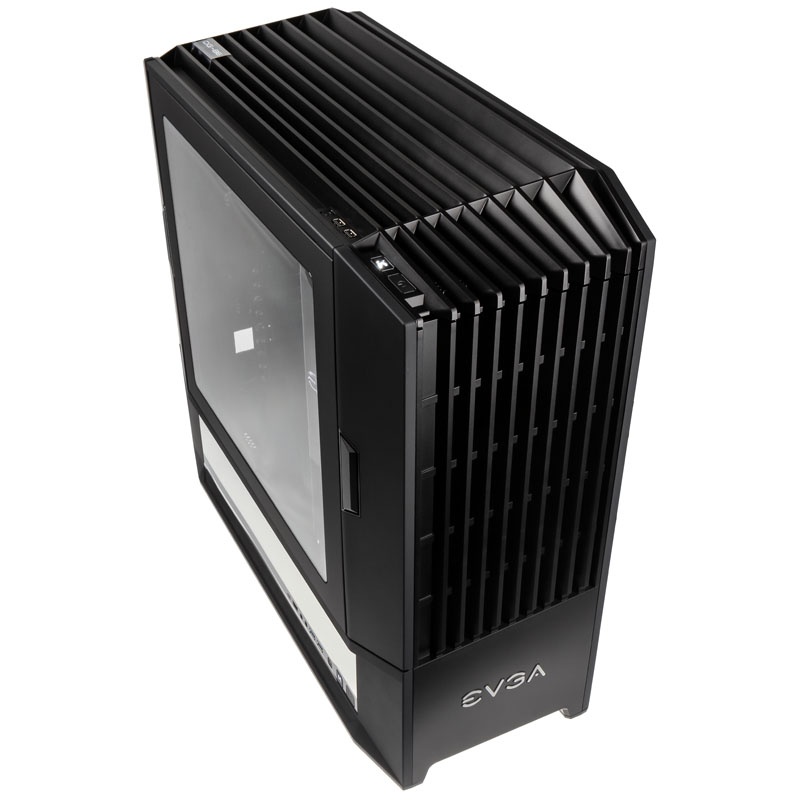

EVGA DG-85 Big-Tower - black Window

The features of the DG-85 Big-Towers at a glance:

    Stylish industrial design
    Optimized airflow
    Space for up to 2x 420 mm radiator
    Front HDMI for connecting VR glasses
    Two I / O Panels in Front & Top
    EVGA K-Boost button
    Software controlled fan controller & temperature sensor

Decent hidden cables & innovative installation possibilities

The asymmetrical design of this Big-Tower already suggests that EVGA is taking new paths in the positioning options of the DG-85 and the directional control used by us refers to these intended setups. The left-hand side with the viewing window from the perspective of the classic tower installation is to be seen as front in this housing and accommodates the control display as well as one of the two I / O panels.

The rear panel is flush against the wall and the mainboard tray is aligned so that the PCI screens are located on the left side of the gaming case. For quick and easy access to the hardware, both sides can be opened. Of course, the DG-85 can also be set up as a conventional tower, for which there is also a second I / O panel at the top right-hand side.

EVGA DG-85: Big-Tower for gamers

The I / O shield of the mainboard is inside the tower and is cleverly hidden by the left side flap (or the rear flap with a classic tower installation). All cables for input devices and screens are guided discreetly outwards by a rubberized cable entry at this side. The window in the front gives an impressive view into the interior of the tower and the shiny plate on the right side of the window can be removed so that this area can also be viewed if required.

Optimized for custom water cooling: EVGAs DG-85 Big-Tower

Potential gaming hardware is best to cool with water. The DG-85 therefore supports the installation of custom water cooling or AiO water cooling. Radiators up to 420 mm in length can be installed in the lid and the right side to control gaming systems with up to four water-cooled graphics cards and the processor.

To the right of the mainboard tray is a removable holder for expansion tanks (GTCs) and pumps. Alternatively, the drive cages can be removed from the floor next to the power supply to create space for GTCs and pumps. Further radiators can be attached to the flap in the left side, but no hardtubes can be used.

EVGA DG-85: Discreet Big Tower with HDMI connector for VR glasses

A great feature of the DG-85 is the fact that the backpanel of the mainboard is in the case and hidden by the flap on the left side. At the rear is a rubberized opening to guide the cables to the outside. An internally routed HDMI cable connects the HDMI connector in the front to the HDMI output of the graphics card. This feature makes the DG-85 particularly attractive for connecting VR glasses.

There are also several rubberized openings for premium cable management on the mainboard tray. Behind the mainboard tray, four 2.5-inch SSDs and two 3.5-inch HDDs can be attached. The two optional hard disk cages, not supplied, would each accommodate three 2.5 or 3.5 inch data carriers.

Big tower with double I / O panel: the DGGA-85 from EVGA

The DG-85 has two I / O panels. The cover has a power, reset and K-boost button as well as two USB 2.0 ports. The front is equipped with a generous assortment of connections, since, in addition to two USB 3.0 ports, there is the aforementioned HDMI connection. In addition, the front has a Power, Reset and K-Boost button as well as two audio ports.

The fan control display shows the fan speeds of the air-sucking fans as well as the blow-out fans, and the fan speed can be adjusted by software. In addition, the internal temperature of the tower can be displayed. The EVGA K-Boost button sets the power management of Windows to maximum to set CPU and GPU to the highest possible performance.

Technical details:

    Dimensions: 686 x 642 x 270 mm (W x H x D)
    Weight: approx. 19.6 kg
    Material: steel (chassis), aluminum (3mm, front, cover, sides)
    Color: Gray (Gunnmetal Gray), Black
    Form Factor: E-ATX, ATX, Micro-ATX, Mini-ITX
    Total fan possible:
    2x 120/140 mm (left side)
    3x 120/140 mm (right side)
    3x 120/140 mm (cover)
    Radiator mountings (partial waiver of HDD and / or fan slots):
    1x max. 420/360 mm (right side)
    2x max. 140/120 mm (left side, no hard-tubing possible)
    1x max. 420/360 mm (cover)
    Filter: Right side, power supply (removable)
    Drive Shafts:
    2x 3.5 inches (internal)
    4x 2.5 inches (internal)
    Power supply: 1x standard ATX (optional)
    Expansion slots: 9
    I / O panel:
    1x Power (Top & Front)
    1x Reset (Top & Front)
    2x USB 3.0 (front)
    2x USB 2.0 (Top)
    1x HDMI (Front)
    1x K-Boost (Top & Front)
    1x each audio in / out (front)
