An RGB upgrade kit for existing EK-FC GeForce GTX FE high-performance full-cover water blocks that fit NVIDIA GeForce GTX and Titan X Pascal based graphics cards. The upgrade kit includes a 4-pin 12V RGB LED strip.
An RGB upgrade kit for existing EK-FC GeForce GTX FE high-performance full-cover water blocks that fit NVIDIA GeForce GTX and Titan X Pascal based graphics cards. The upgrade kit includes a 4-pin 12V RGB LED strip.
An RGB upgrade kit for existing EK-FC GeForce GTX FE high-performance full-cover water blocks that fit NVIDIA GeForce GTX and Titan X Pascal based graphics cards. The upgrade kit includes a 4-pin 12V RGB LED strip.

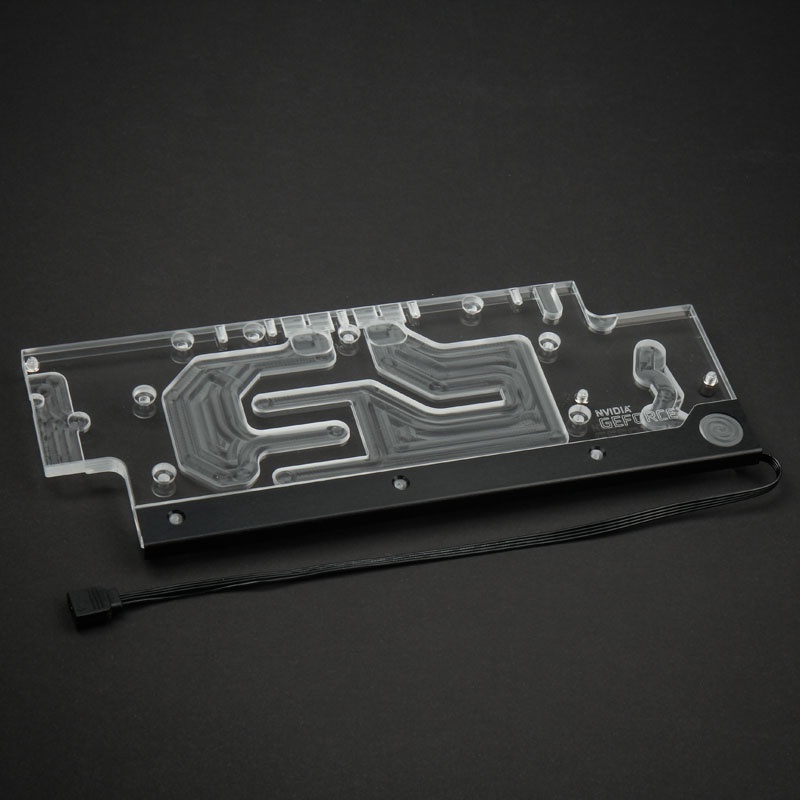

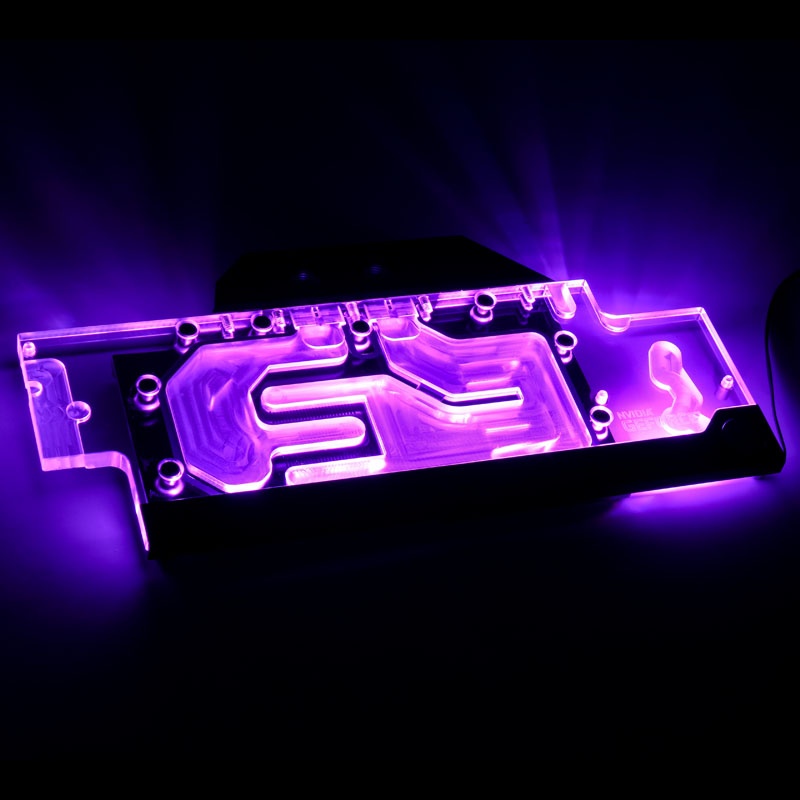

This upgrade kit gives the VGA water block for graphic cards EK-RC GeForce GTX FE from EK Water Blocks its own stylish RGB-LED lighting. It consists of a replacement cover made of acrylic glass, to which an aluminum rail with an RGB LED strip is attached. The static RGB LEDs (4-pin, 12VGRB) are connected to a suitable slot on a mainboard and can be controlled via the software of the respective mainboard manufacturer. The RGB-LED lighting is compatible with ASUS Aura Sync, Gigabytes RGB Fusion, Mystic Light Sync from MSI and ASRocks RGB LED. All components are included in the upgrade kit that are required for a conversion. Also, the required tool provides EK Water Blocks with same. In addition to the replacement cover made of acrylic glass with the RGB LEDs, there are also the corresponding rubber rings for mounting the new cover on the water block, suitable screws and the corresponding Allen key. Since the EK-FC GeForce GTX FE Waterblock has to be dismantled from the graphics card and removed from the cooling circuit for the conversion, EK Water Blocks also includes appropriate thermal pads for reassembly. Of the original product, only the cooling block and terminal are required.

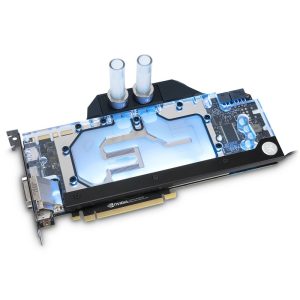

NOTE: This upgrade kit is ONLY suitable for the CPU cooler of the EK-FC GeForce GTX FE series. The water block shown in the photos is for illustrative purposes only and is NOT included.
Attention: Please note that some coolers are delivered with a protective film on the bottom. This must be removed in any case before assembly and commissioning. We assume no liability for damage caused by incorrect or incorrect assembly or improper use!
Technical details:
Material: acrylic glass (cover), aluminum (frame), plastic
Compatibility: EK-FC GeForce GTX FE
Enclosed:
EK-FC GeForce GTX FE acrylic glass cover
Black anodized aluminum rail
4-pin 12V RGB-LED strip
Adapted O-ring for cover and terminal
2x O-ring replacement
EK emblem
screws for assembly
2.5 mm Allen key
2 mm Allen key
1x Thermal pad RAM 0.5 mm
1x thermal pad 0.5 mm
1x thermal pad 1 mm
