EK-D5 Vario X-RES is a High-Performance water cooling pump with integrated reservoir. The core of the unit is the market-proven Laing D5 Vario water pump (incl. tacho signal 3-pin header) and comes pre-assembled with EK-D5 X-RES 100. This unit offers increased hydraulic performance (up to 15 %) compared to original Laing D5 Vario.

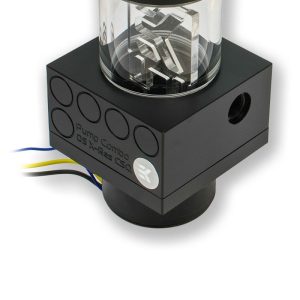

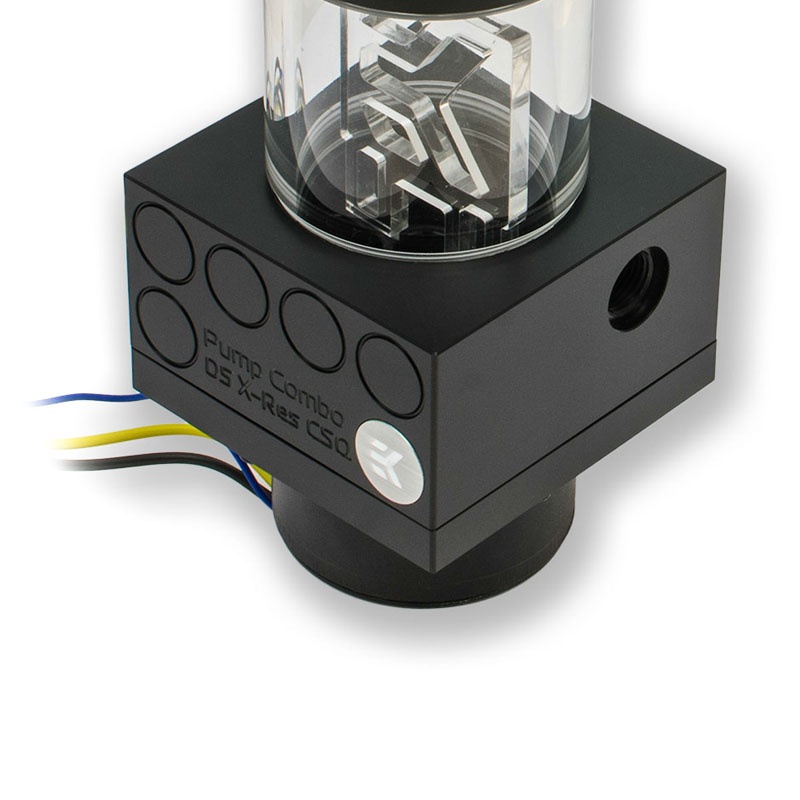

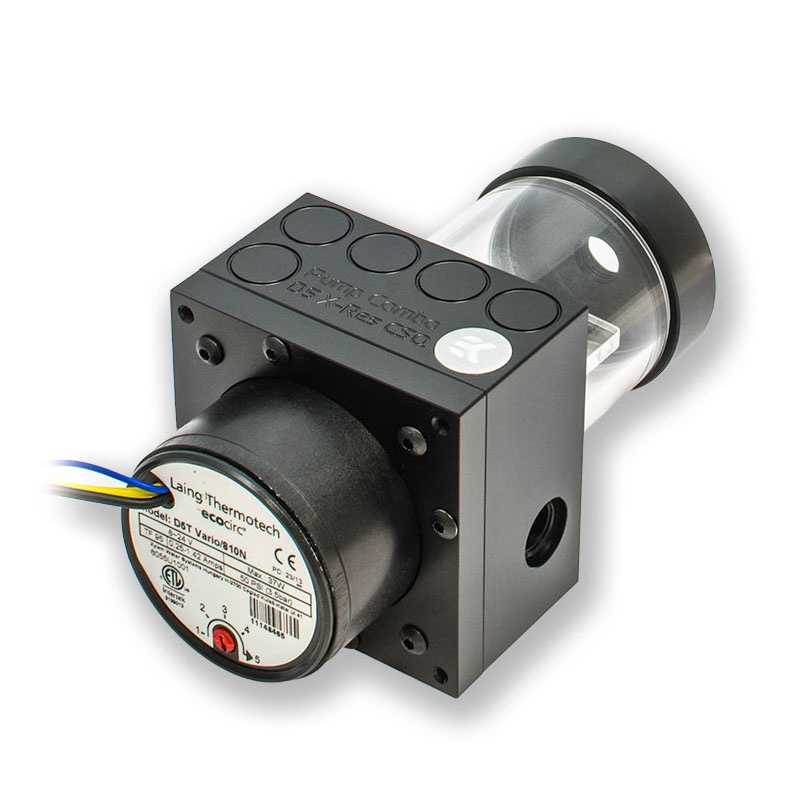

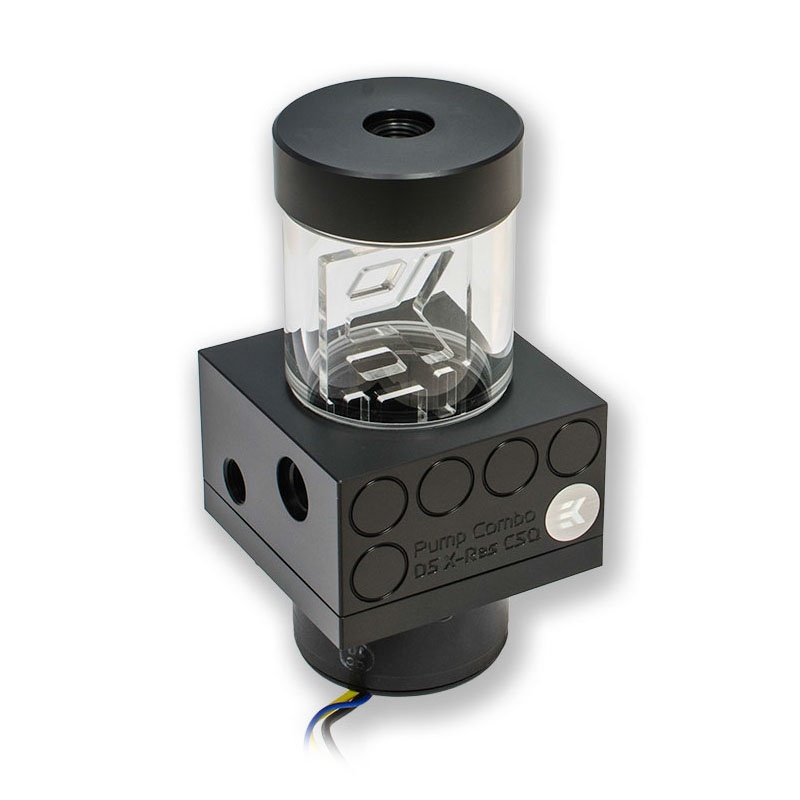

EK Water Blocks EK-D5 X-RES 100 incl. Xylem D5 Vario
EK-D5 Vario X-RES is a High-Performance water cooling pump with integrated reservoir. The core of the unit is the market-proven Laing D5 Vario water pump (incl. tacho signal 3-pin header) and comes pre-assembled with EK-D5 X-RES 100. This unit offers increased hydraulic performance (up to 15 %) compared to original Laing D5 Vario.
EK-D5 Vario X-RES is a High-Performance water cooling pump with integrated reservoir. The core of the unit is the market-proven Laing D5 Vario water pump (incl. tacho signal 3-pin header) and comes pre-assembled with EK-D5 X-RES 100. This unit offers increased hydraulic performance (up to 15 %) compared to original Laing D5 Vario.
Featured products
No products found
This water pump / reservoir combo unit features three G1/4 threaded ports of which one is inlet and two are outlets. Using the enclosed EK-Extender G1/4, installation of virtually any G1/4 thread fitting/barb is possible. EK recommends EK-CSQ series compression fittings/adapters.
EK-D5 Vario X-RES series water pump comes preinstalled with anti-cyclone insert. Additionaly a PU anti-vortex foam is enclosed.
Tube is made of quality acrylic material, while the reservoir bottom/pump top is made of quality POM Acetal material.
This water pump / reservoir combo unit can be mounted directly on computer chassis by using enclosed EK-UNI D5 Holder.
This product can be easily upgraded with longer tubes used by EK-RES X3 series reservoirs. Replacement tubes can be purchased separately via EK Webshop.
Technical data:
– Reservoir diameter 60 mm
– Overal height: 153 mm
Enclosed:
– EK-D5 Vario X-RES 100 (incl. pump)
– EK-UNI D5 Holder
– mounting mechanism
Made in Slovenia – EU!
Pump motor made in Hungary – EU!
