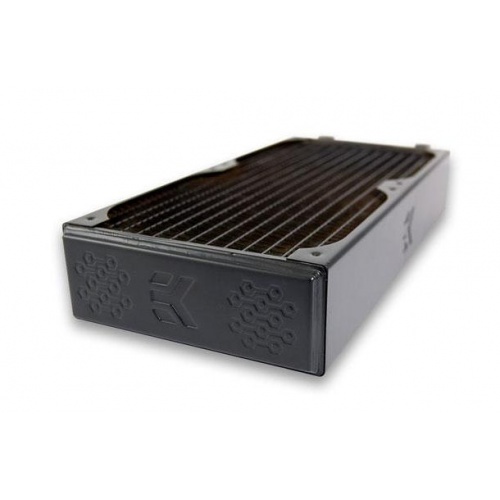

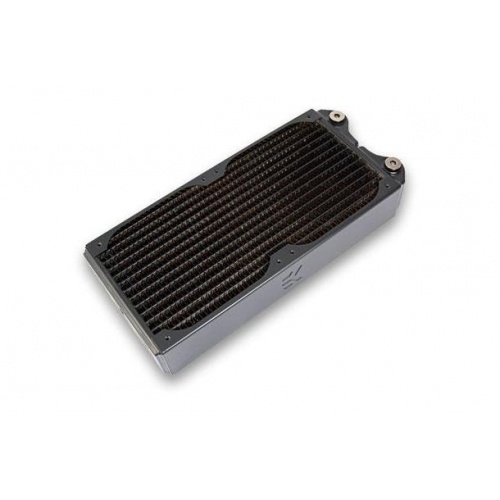

EK Water Blocks EK-Coolstream RAD XTC 280

The copper fins are specially designed for Ultra-silent fans (with low Airflow). The parallel coolant channels reduce flow resistance to a minimum. On both sides of the radiator the M3 threads are integrated to allow fan installation on both sides and radiator mounting.

The radiator has integrated G1/4 threads, allowing installation of virtually all common fittings.

Please note: Over-tightening of the screws may damage the radiator. Always take care that the screws do not damage the radiator. Damages of the product because of improper use are not covered by the warranty!

Technical details:
Material:
– Copper fins
– Brass chambers

Dimensions (LxWxH): 317x145x55mm

Connection threads: G1/4

Fins/inch (FPI): 10
Fins/cm (FPC): 3,85

Weight: Approx. 1215g
Liquid Capacity: Approx. 390 ml (13,19 fl oz)

Fan installation: 4 x M3 threads on both sides each (for 2x140mm fan each)
Pressure tested: 1bar

Enclosed:
1x EK-CoolStream RAD XTC 280 (dual) radiator
8x M3 x 30mm DIN965 screws
8x M3 x 5mm DIN965 screws
2x G1/4 plug with allen key

Important: The included screws may be too long for some applications. Always be sure to screw them in only so far that the radiator is not damaged.

ATTENTION! FAN INSTALLATION TIP
The core of radiator is not in center. EK suggest users to install fans on side where core is closer to center.
