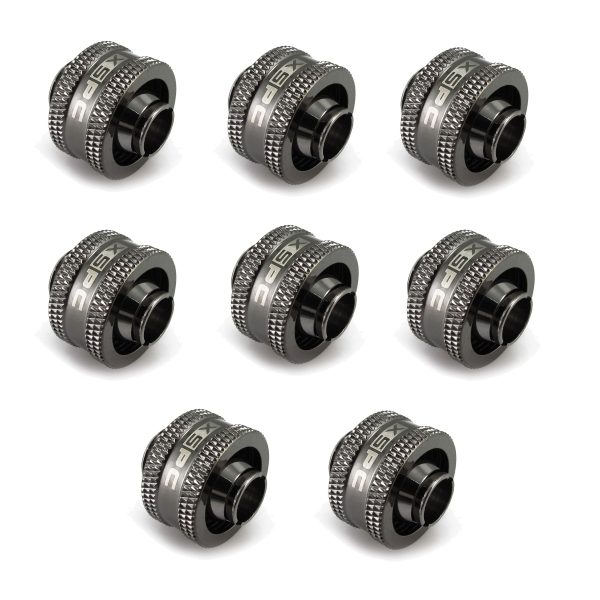

XSPC Coin Fit G1/4 to 3/8 ID 5/8 OD Compression Fitting
- SKU: XS-480-DBF
- MPN: 5060175588678
- EAN: 5060175588678
EK-Quantum Torque STC 10/16 fittings are EKs new minimalistic 10/16mm (ID/OD) soft-tube compression fittings designed for use with various flexible soft tubing types such as PVC, EPDM, Norprene, silicone or any other type of compatible flexible tube.

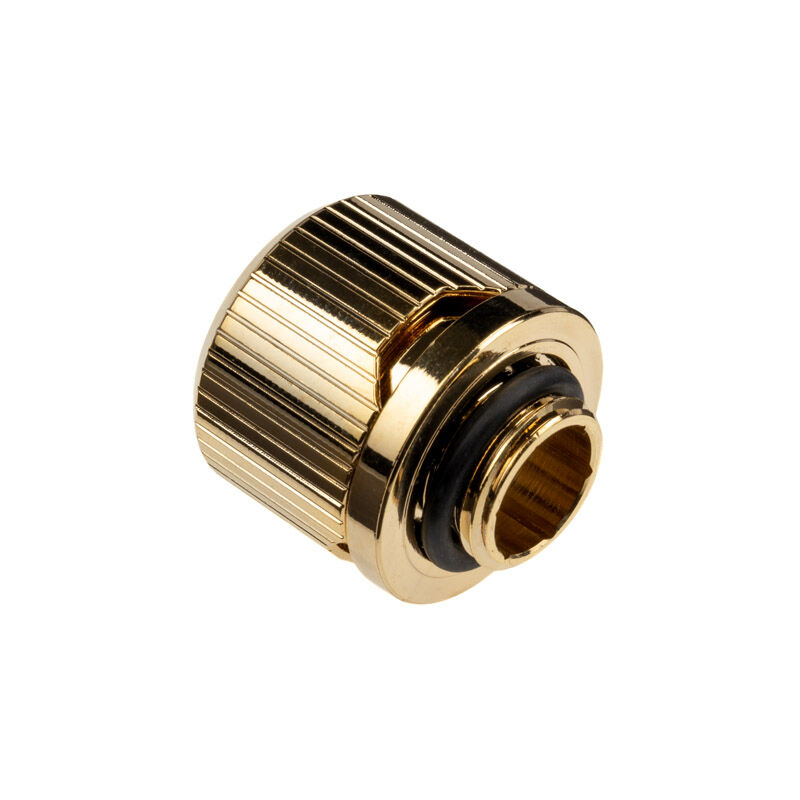

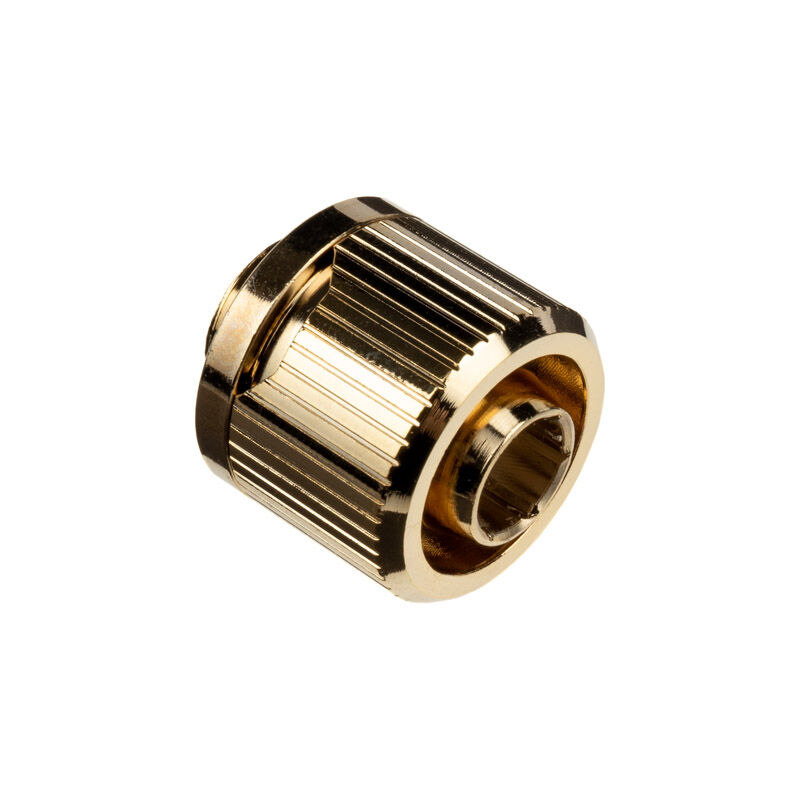

EK-Quantum Torque STC 10/16 - Gold
EK-Quantum Torque STC 10/16 fittings are EKs new minimalistic 10/16mm (ID/OD) soft-tube compression fittings designed for use with various flexible soft tubing types such as PVC, EPDM, Norprene, silicone or any other type of compatible flexible tube.
EK-Quantum Torque STC 10/16 fittings are EKs new minimalistic 10/16mm (ID/OD) soft-tube compression fittings designed for use with various flexible soft tubing types such as PVC, EPDM, Norprene, silicone or any other type of compatible flexible tube.
Earn 9 Points
We price match UK retailers. Try It Now!
- SKU: WAEK-2323
- MPN: 3831109849774
- EAN: 3831109849774
- Warranty: 12 Months
Details
With a non-intrusive, yet striking look, and with NO added branding at all. They can be complemented by interchangeable aesthetic color rings, and are an ideal choice for anyone and a perfect match with EK-Quantum series products.
The locking ring is compressing the tubing wall underneath the ring, and this prevents the flexible tube from being pulled off the barb of the fitting. The grooves on the outside allow for easier hand tightening. The compression ring has cutouts in the EK Quantum signature shape allowing for the colored aesthetic ring to be shown. The colored rings are available in many colors and are screwed onto the fitting before the compression locking ring. The aesthetic rings are sold separately.
EK-Quantum Torque series products received the prestigious iF Design Award. A robust and industrial aesthetic sets the Torque family apart by highlighting the precise manufacturing processes used to create them. In addition, enthusiasts can add a unique color ring to give a personal accent to the fitting line. The Torque family of fittings offers a secure and modular system of connections between liquid cooling components and tubing within a PC. Quantum Torque series products cover angled adapters, rotary and static extenders, splitters, G1/4 plugs, drain valves, fittings, and much more.
The fitting barb and the compression rings are first nickel-plated, followed by the second plating with genuine gold. Both are made of CNC machined brass and the seal is made of quality rubber O-rings.
The base fitting surface is smooth and has no adequate gripping surface, but the inside of the barb is socketed with an 8mm hex Allen key pattern. Its highly recommended to use an Allen Key 8mm (purchased separately) to prevent skin damage to the fingertips while installing the fitting. Please, be advised not to use excessive force when attaching fitting barbs using Allen Key 8mm in order to prevent damage to other liquid cooling products!
These fittings are guaranteed to be compatible with all other EK Water Blocks liquid cooling products.
Specifications
| General | Material: Brass Finish: Gold |
|---|---|
| Thread | Type: G1/4 BSPP Male Thread Length: 4.5mm |
| Tubing Support | Supported Tube: 10/16mm (ID/OD) Compatible Soft Tubing: PVC, EPDM, Norprene, silicone, and most flexible tubes |
| Dimensions | Outer Diameter: 23mm Installed Height: 19mm |
