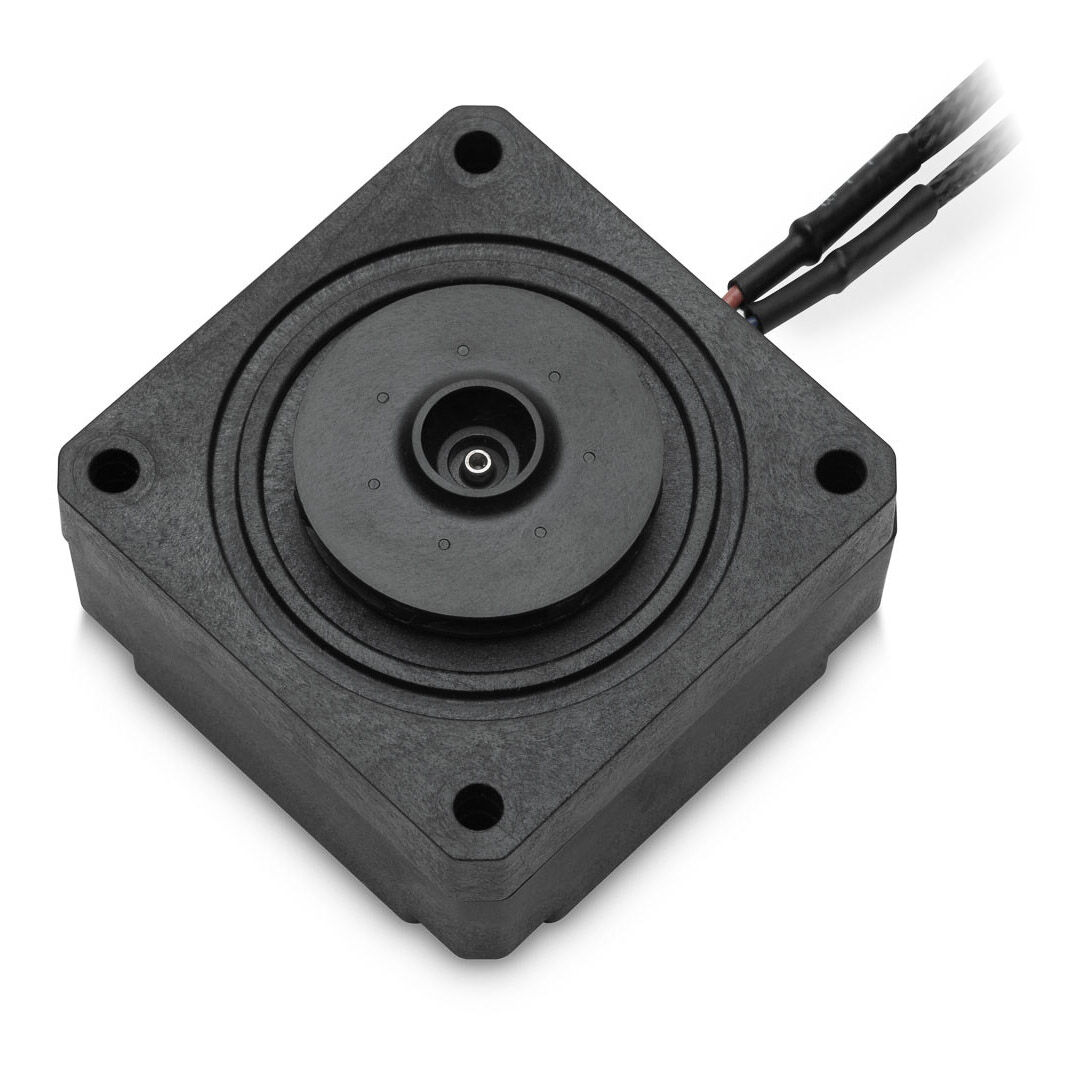

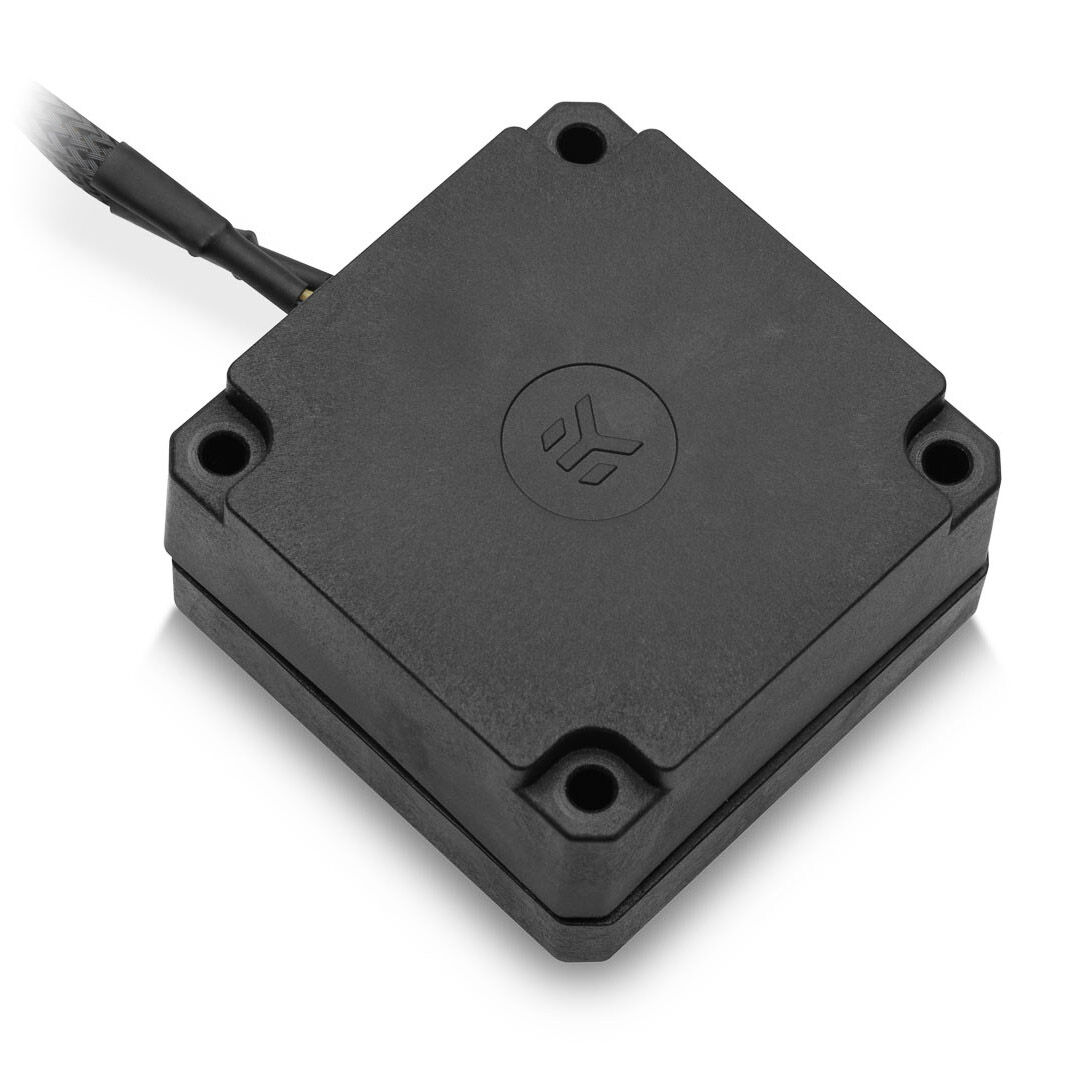

EK-Loop VTX PWM Motor

EK-Loop VTX PWM Motor is a custom loop water pump with power management control (via PWM – pulse width modulation) of rotation speed through motherboard BIOS or a dedicated fan controller.

These VTX pumps, which are already featured in pump-reservoir combos, boast a DDC-compatible mount, remarkable head pressure, and efficient flow rates in a small footprint – making them ideal for smaller cases. The pumps can be used with all reservoirs and distribution plates compatible with DDC pumps, providing an alternative option.

Despite a remarkably small footprint, it has up to 5,3m of head pressure. This is more than adequate for most loops, aside from those featuring 4+ GPUs and lots of QDCs. With the maximum flow rate of 1100L/h, it is sure to provide an ample flow of coolant inside the loop.

The VTX pump is water-lubricated and must not be run dry to prevent permanent bearing damage from occurring. It uses a 4-pin Molex for power and a 4-pin PWM fan header for control and readout.

Pump electrical and mechanical properties:
– Motor: Electronically commuted spherical motor
– Rated voltage: 12V DC
– Power consumption: 18W
– Maximum pressure head: 5.3m
– Maximum flow: 1100L/h
– Maximum system temperature: 60 degreesC

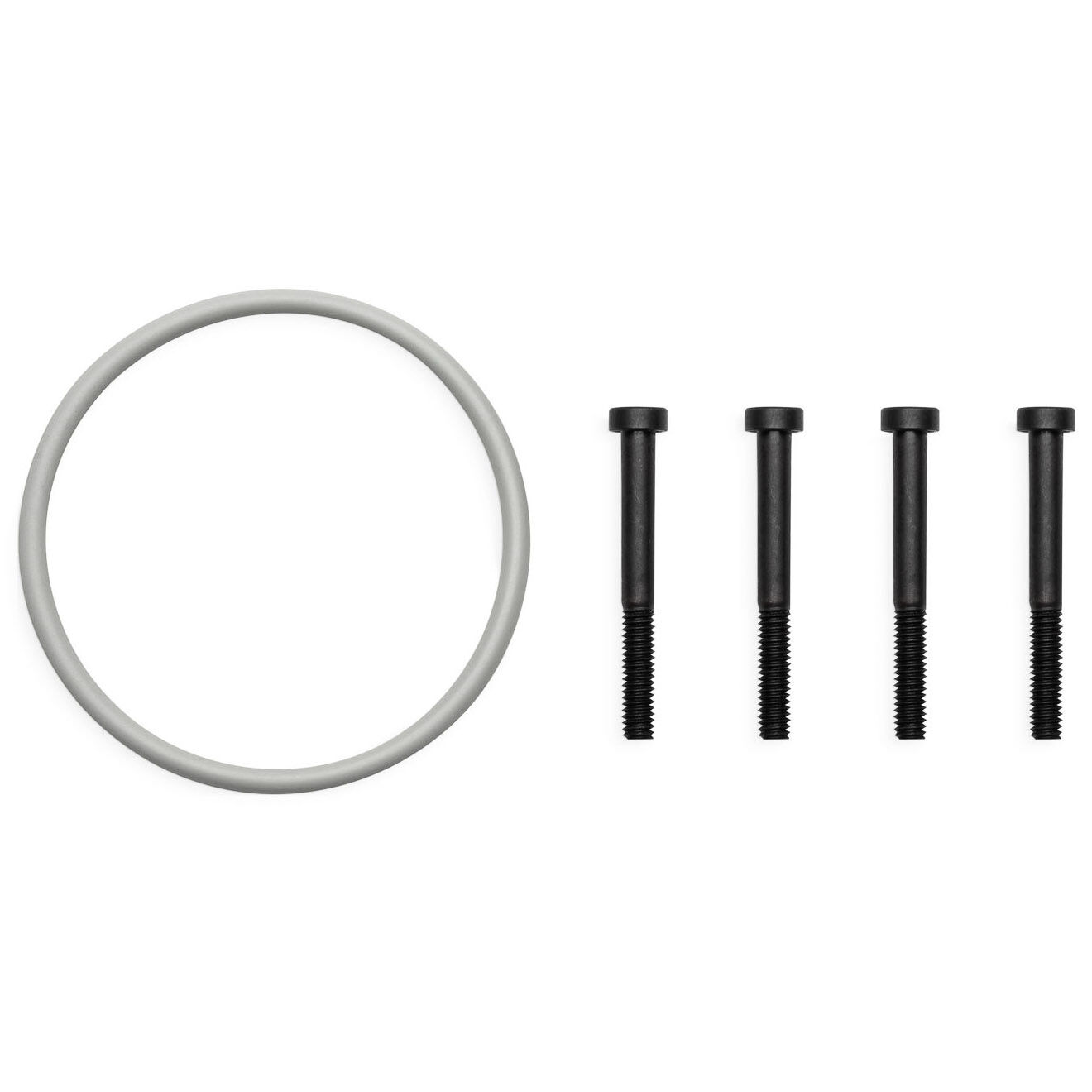

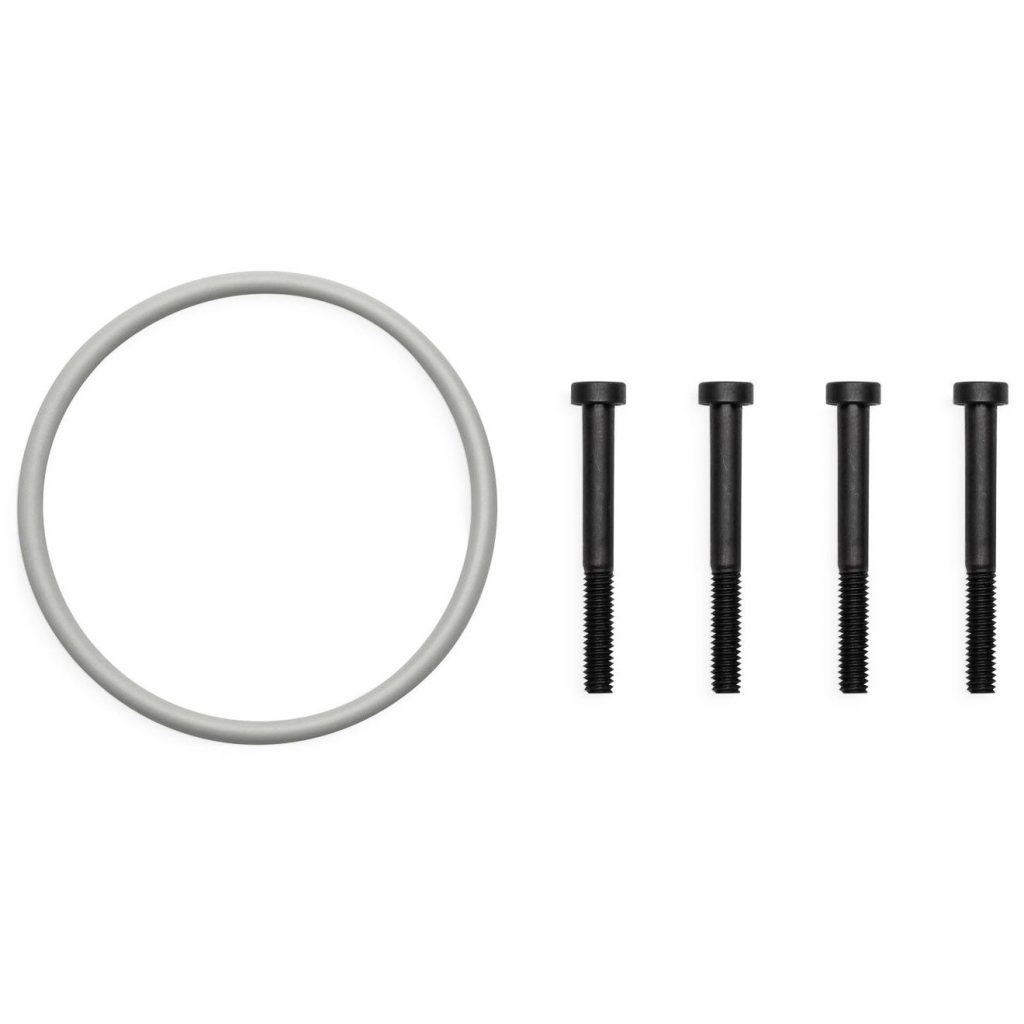

– Materials: NORYL GFN2, EPDM O-rings, Copper Coils, Stainless Steel Shaft, Graphite Bushing

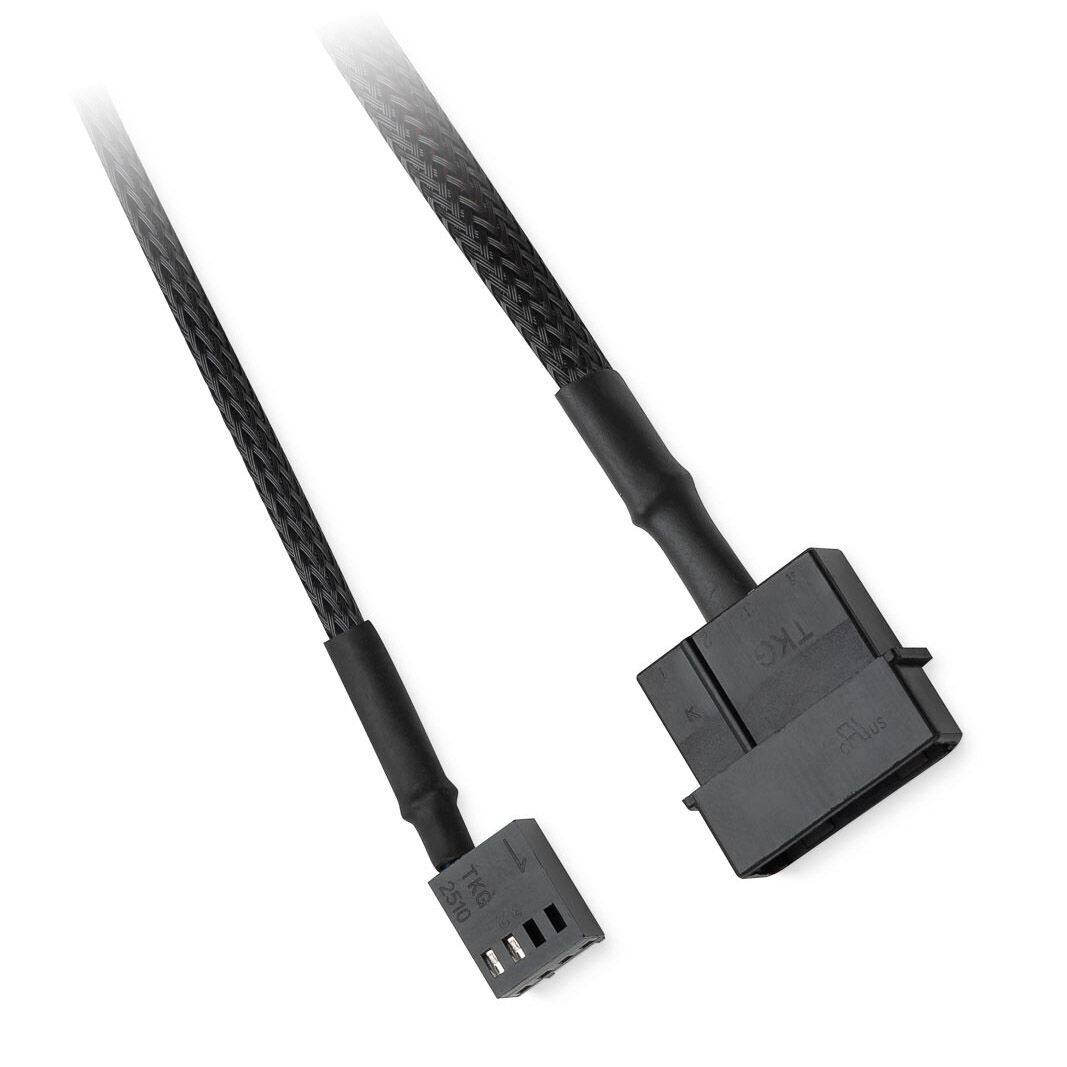

– Power connector:  4-Pin Molex and 4-Pin PWM FAN connector

Operational regime:
– PWM duty cycle: ~ 11-100%
– Default behavior: Runs at 100% duty cycle when no PWM feedback signal is present
