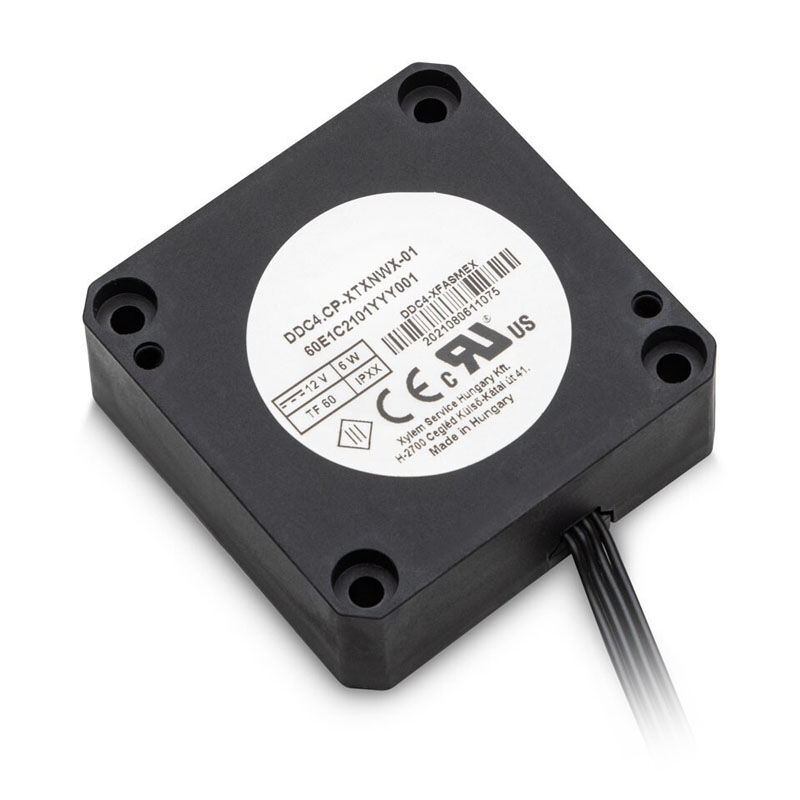

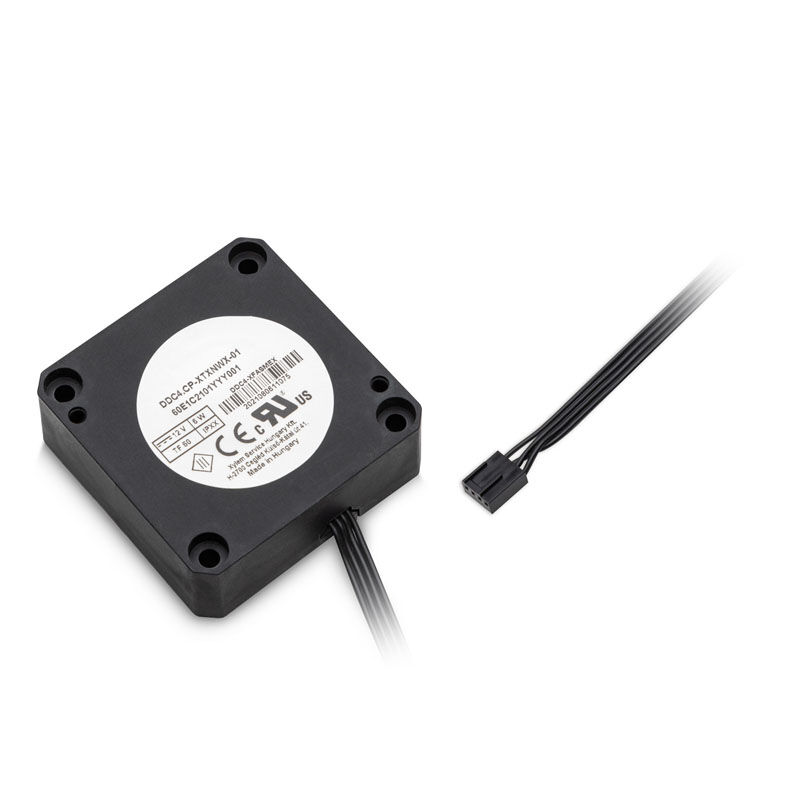

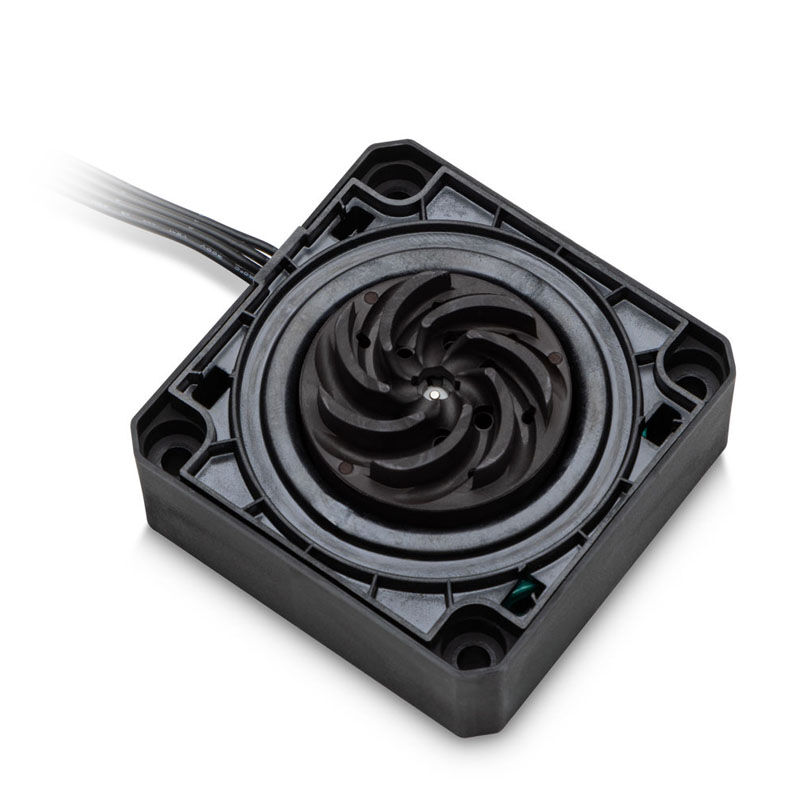

EK-Loop DDC 4.1 PWM Motor is a custom loop water pump with power management control (via PWM - pulse width modulation) of rotation speed through motherboard BIOS or a dedicated fan controller.
EK-Loop DDC 4.1 PWM Motor is a custom loop water pump with power management control (via PWM - pulse width modulation) of rotation speed through motherboard BIOS or a dedicated fan controller.
EK-Loop DDC 4.1 PWM Motor is a custom loop water pump with power management control (via PWM - pulse width modulation) of rotation speed through motherboard BIOS or a dedicated fan controller.
This is a low-power version of the full DDC pump carrying both power and PWM control through the fan 4-pin header. It features the exact same physical characteristics on the outside as the EK-Loop DDC 4.2 PWM Motor, which is the high-power version.
This pump is compatible with any EK-Quantum Kinetic TBE DDC and FLT DDC pump-res combo units. Using an optional Convection heatsink can even further prolong the lifespan of the pump.
Despite a remarkably small footprint of 2.4 square, EK-Loop DDC 4.1 PWM features a respectable 2,6m of head pressure. This is more than adequate for usual loops that feature one or two water blocks and no QDCs or other flow-restricting components. This pump is also a high-reliability, high-pressure industrial pump featuring a 50,000-hour MTBF (5-year lifetime) and using only 6W of power.
Its compact, quiet, energy-efficient, and quite capable while not requiring additional power connectors.
| Technical Specifications | |
|---|---|
| Dimensions (W x D x H) | 90 x 62 x 38mm |
| Motor | Electronically commuted ball bearing motor |
| Rated Voltage | 12V DC |
| Power Consumption | 6W |
| Maximum Head Pressure | Up to 2.6m |
| Maximum Flow Rate | Up to 500L/h |
| Maximum Liquid Temperature | 60°C |
| Materials | Stainless steel, PPS-GF40, EPDM O-rings, Aluminium oxide, hard coal |

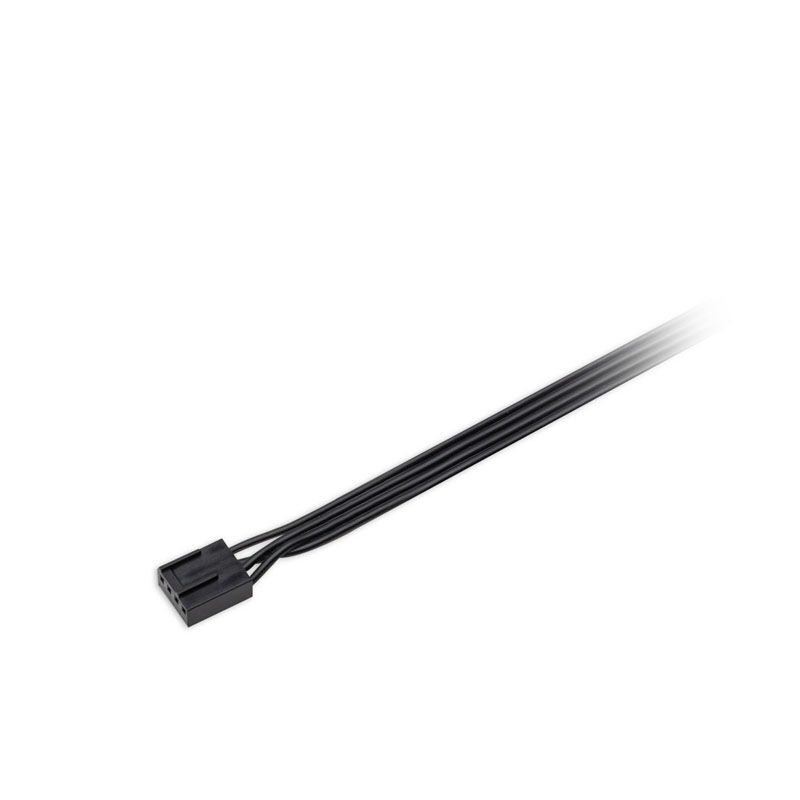

| Power Connector | 4-pin PWM FAN connector (PWM / RPM readout and power) |
£47.65£39.71 Inc VatEx Vat
