EK-Loop OmniLink Pump SATA PWM D-RGB Signal Splitter cable allows users to connect D-RGB LED devices, SATA powered pumps and 4-Pin PWM fans to the OmniLink cable harness using their standard connectors.

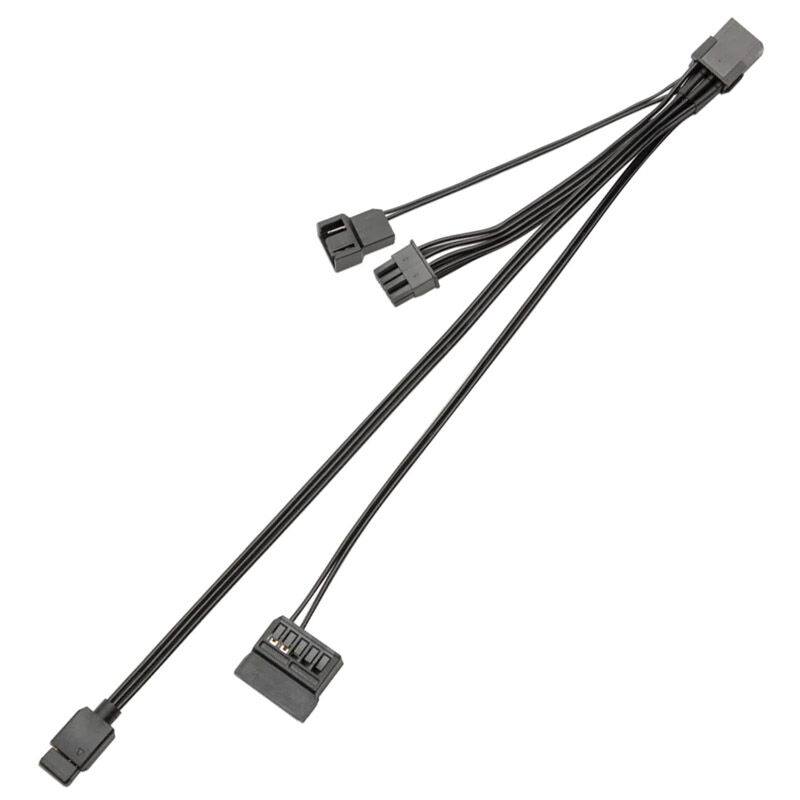

EK-Loop OmniLink Pump SATA PWM D-RGB Signal Splitter
EK-Loop OmniLink Pump SATA PWM D-RGB Signal Splitter cable allows users to connect D-RGB LED devices, SATA powered pumps and 4-Pin PWM fans to the OmniLink cable harness using their standard connectors.
EK-Loop OmniLink Pump SATA PWM D-RGB Signal Splitter cable allows users to connect D-RGB LED devices, SATA powered pumps and 4-Pin PWM fans to the OmniLink cable harness using their standard connectors.
Earn 9 Points
We price match UK retailers. Try It Now!
- SKU: WAEK-2744
- MPN: 3831109897508
- EAN: 3831109897508
- Warranty: 12 Months
Details
The OmniLink cable allows for an easy transmission and distribution of +12V and +5V Power; PWM, TACHO, and D-RGB signals. The cable features a stylish black ribbon cable for easy build integration and cable management.
Content:
– EK-Loop OmniLink Pump SATA PWM D-RGB Signal Splitter cable
EK-Loop OmniLink Pump SATA PWM D-RGB Signal Splitter cable is compatible with all EK OmniLink products, PWM fan/pump speed control technology, and all popular D-RGB sync technologies from major motherboard manufacturers (if the header is supported).
Only the PWM 2 signal is accessible with this OmniLink splitter cable, which is intended to control the pump speed. For the PWM2 signal to work, the the EK-Loop OmniLink 6-Pin Power (dual PWM) cable must also be used. Its primarily used for adding a distro plate/combo into omnilink and consolidating all of the connectors into the harness.
For PWM2 signal to work, EK-Loop OmniLink 6-Pin Power (dual PWM) cable must be also used.
| Technical Specifications | |
|---|---|
| Molex Micro-fit 3.0 8-pin Male connector to | 1x Molex Micro-fit 3.0 8-pin Female Connector 1x SATA Power Female Connector (Ground, +12V) 1x 4-Pin PWM 2 Fan Male Connector (Ground, +12V, TACHO, PWM) 1x 3-Pin D-RGB LED Female Connector (+5V, Data, Blocked, Ground) |
| Cable Length | 250±10mm |
| Color | Black |
| Power Wire Gauge | AWG20 |
| Signal Wire Gauge | AWG22 |
| Molex Micro-fit Connector Current Rating | 8.5A |
| Power Cable Current Rating | 8A |
| Signal Cable Current Rating | 6A |
Customer Product Reviews
Overall rating
Earn
25 point when you review this product
Write a review
Select rating and write review
Related Products
£19.33£16.11 Inc VatEx Vat
Out of stock
EK-Loop OmniLink 6-Pin Power cable is the starting point of the OmniLink cable harness with the necessary 6-Pin power, D-RGB and 4-Pin fan connectors.
- SKU: WAEK-2741
- MPN: 3831109897485
- EAN: 3831109897485
£8.23£6.86 Inc VatEx Vat
Available
Technical Details
- SKU: ZUAD-1684
- MPN: CM-PCSR-16P2-N60KK-5PK-R-SS
- EAN: 0694365695478
£24.20£20.17 Inc VatEx Vat
Available
In addition to top cases, excellent power supplies and other PC accessories, the premium manufacturer Silverstone also offers power supply extension cables.
- SKU: ZUAD-407
- MPN: SST-PP07-IDE6B
- EAN: 4710713969773
£4.97£4.14 Inc VatEx Vat
Out of stock
High-quality cable with triple-layer sleeving, especially flexible paracord, suitable for all power supplies with 12V-2x6 socket, 12V-2x6 plug to two 6+2-pin PCIe plugs for GPUs
- SKU: LUCS-217
- MPN: CP-8920435
- EAN: 0840440403081
£21.71£18.09 Inc VatEx Vat
Available

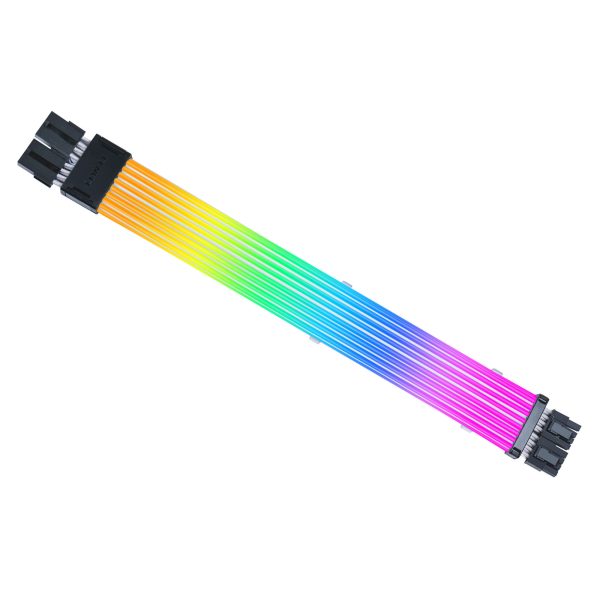

- GPU extension cable with addressable RGB lighting - Extremely bright thanks to 116 LEDs - Power for the lighting directly from the power supply for fewer cables - Choose from ready-made lighting effects or create your own look -...
