EK-Loop OmniLink Molex Power cable is the starting point of the OmniLink cable harness with the necessary Molex power, D-RGB, and 4-Pin fan connectors.

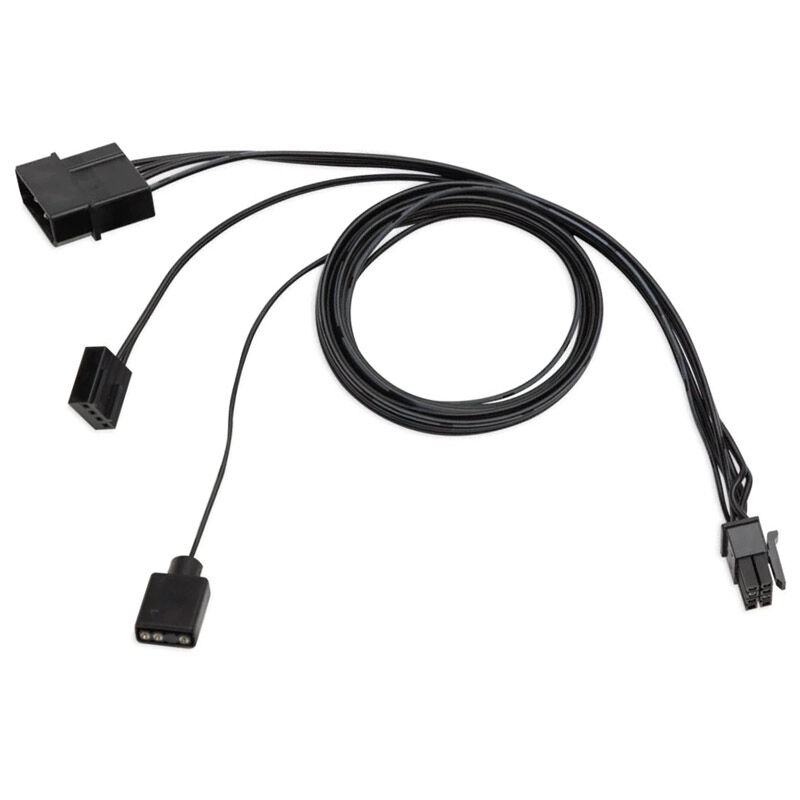

EK-Loop OmniLink Molex Power
EK-Loop OmniLink Molex Power cable is the starting point of the OmniLink cable harness with the necessary Molex power, D-RGB, and 4-Pin fan connectors.
EK-Loop OmniLink Molex Power cable is the starting point of the OmniLink cable harness with the necessary Molex power, D-RGB, and 4-Pin fan connectors.
Earn 7 Points
We price match UK retailers. Try It Now!
- SKU: WAEK-2739
- MPN: 3831109897461
- EAN: 3831109897461
- Warranty: 12 Months
Details
The OmniLink cable allows for easy transmission and distribution of 12V and 5V Power, PWM, TACHO, and D-RGB signals. The cable features a stylish black ribbon cable for easy build integration and cable management.
This cable can be installed without any modifications/re-pinning with any PSU while still providing the maximum 8.5A available on 5V and 12V by utilizing the Molex connector.
Content:
– EK-Loop OmniLink Molex Power cable
EK-Loop OmniLink Molex Power cable is compatible with all EK OmniLink products, standard 4-pin PWM fan/pump motherboard headers, and standard 5V D-RGB (ARGB) connectors used by most major motherboard manufacturers.
Specifications
| Connector Type | Molex Micro-fit 3.0 8-pin Female to: • 1x Molex Connector 4-Pin (Power) • 1x 4-Pin PWM 1-Source Female Fan Connector (TACHO, PWM) • 1x 3-Pin D-RGB LED Source Female Connector (5V, Data, Blocked, Ground) |
|---|---|
| Cable Length | 500 ± 10 mm |
| Color | Black |
| Power Wire Gauge | AWG20 |
| Signal Wire Gauge | AWG22 |
| Molex Micro-fit Connector Current Rating | 8.5 A |
| Power Cable Current Rating | 8 A |
| Signal Cable Current Rating | 6 A |
Customer Product Reviews
Overall rating
Earn
25 point when you review this product
Write a review
Select rating and write review
Related Products
£5.42£4.52 Inc VatEx Vat
Available

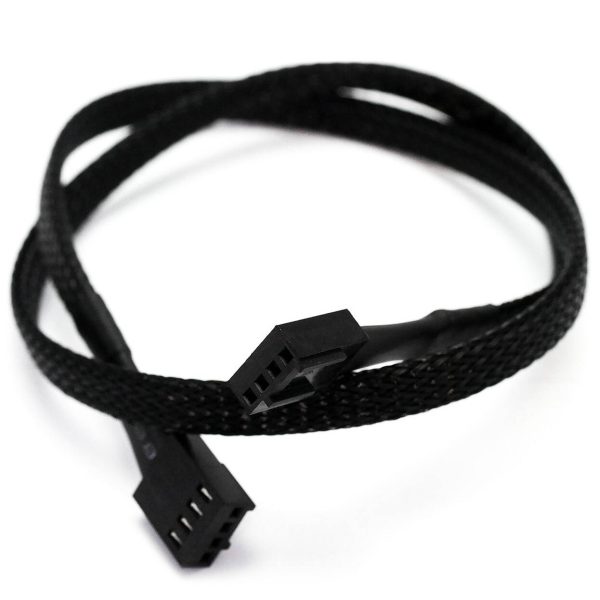

Connection cable from PowerBoard to PWM, 500mm long
- SKU: GESL-082
- MPN: SC-PB-LC-PWM
- EAN: 9351182005538
£6.40£5.33 Inc VatEx Vat
Available
This cable is used to connect the 2/2 way magnet valve from Alphacool.
- SKU: 1012523
- MPN: 18517
- EAN: 4250197185172
£0.66£0.55 Inc VatEx Vat
Available
With this fan extension cable you can easily extend the range of any fan or pump connection within your case.
- SKU: ZUAD-1292
- MPN: 60316
- EAN: 4251312604257
£6.29£5.24 Inc VatEx Vat
Available

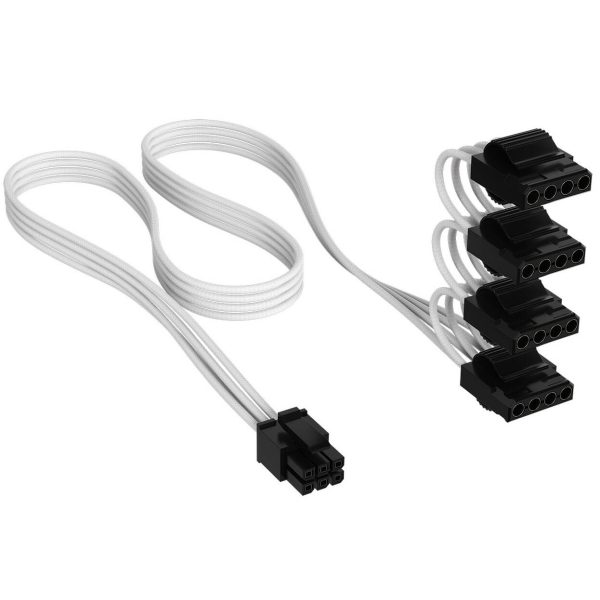

Upgrade your CORSAIR power supply with Type 4 cables to CORSAIR Elite Premium Individually Sleeved Cables, made with flexible triple-layer mesh paracord sleeving for a professional look.
- SKU: LUCS-207
- MPN: CP-8920398
- EAN: 0840440497752
£14.71£12.26 Inc VatEx Vat
Available

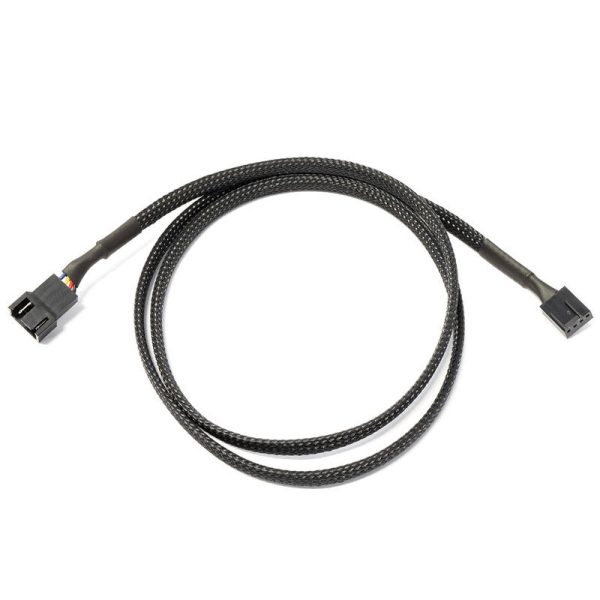

An extension cable for 4-pin PWM fans.
