EK-Loop OmniLink 6-Pin Power cable is the starting point of the OmniLink cable harness with the necessary 6-Pin power, D-RGB and 4-Pin fan connectors.

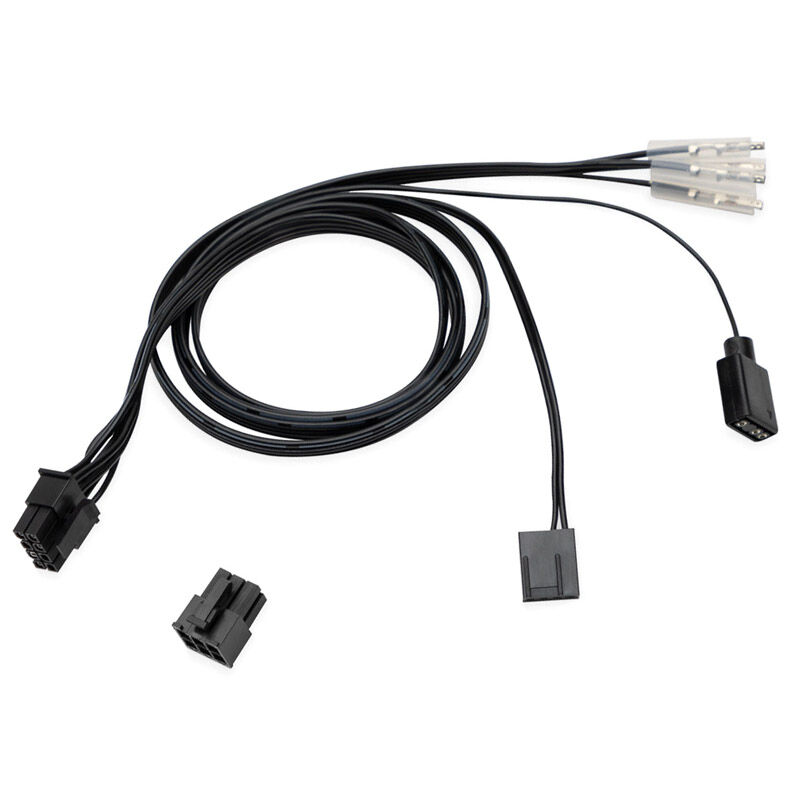

EK-Loop OmniLink 6-Pin Power
EK-Loop OmniLink 6-Pin Power cable is the starting point of the OmniLink cable harness with the necessary 6-Pin power, D-RGB and 4-Pin fan connectors.
EK-Loop OmniLink 6-Pin Power cable is the starting point of the OmniLink cable harness with the necessary 6-Pin power, D-RGB and 4-Pin fan connectors.
Earn 7 Points
We price match UK retailers. Try It Now!
- SKU: WAEK-2741
- MPN: 3831109897485
- EAN: 3831109897485
- Warranty: 12 Months
Details
The OmniLink cable allows for easy transmission and distribution of +12V and +5V Power, PWM, TACHO, and D-RGB signals. The cable features a stylish black ribbon cable for easy build integration and cable management.
This cable will not draw any power from the motherboard/controller headers since +5V and +12V are connected directly to the PSU. Thus raising the maximum current available to 8.5A for D-RGB and 8.5A for fans/pumps.
Content:
– EK-Loop OmniLink 6-Pin Power cable
– 6-Pin Power Connector
EK-Loop OmniLink 6-Pin Power cable is compatible with all EK OmniLink products, standard 4-pin PWM fan/pump motherboard headers, and standard 5V D-RGB (ARGB) connectors used by most major motherboard manufacturers.
The cable 6-pin Power connector must be assembled manually following the desired PSU pinout diagram, as it connects directly to the modular PSU Peripheral/SATA power output.
Specifications
| Connector Type | Molex Micro-fit 3.0 8-pin Female to: • 1x 6-Pin Power Connector (Pinout PSU Dependent) • 1x 4-Pin PWM 1-Source Female Fan Connector (TACHO, PWM) • 1x 3-Pin D-RGB LED Source Female Connector (5V, Data, Blocked, Ground) |
|---|---|
| Cable Length | 500 ± 10 mm |
| Color | Black |
| Power Wire Gauge | AWG20 |
| Signal Wire Gauge | AWG22 |
| Molex Micro-fit Connector Current Rating | 8.5 A |
| Power Cable Current Rating | 8 A |
| Signal Cable Current Rating | 6 A |
