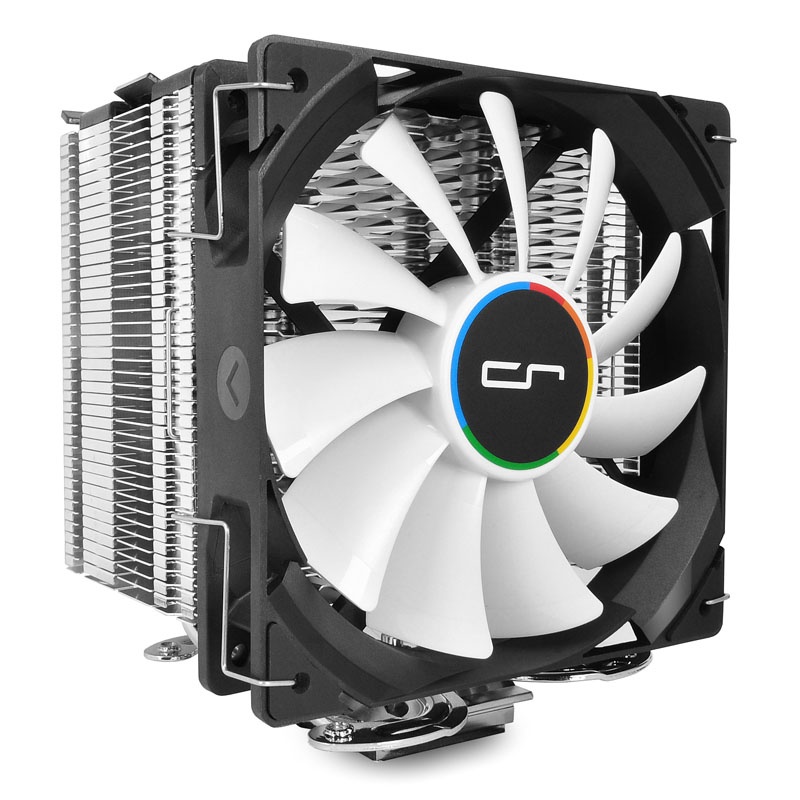

Cryorig H7 CPU Tower Cooler

The team of experienced radiator and OC experts uses high-quality materials and novel combinations of individual components to get the most out of air coolers. At the same time, Cryorig attaches great importance to making the installation of its CPU coolers as easy as possible. The coolers from Cryorig look like this H7 CPU tower cooler also super chic.

Overview of the Cryorig H7 CPU Tower Cooler

    Copper and aluminum CPU tower cooler for best cooling performance
    Suitable for installation with oversized RAM modules
    Specially arranged honeycomb cooling fins ensure optimal removal of the residual heat
    Suitable for processors with up to 140 Watt TDP
    Height: 145 mm
    Uncomplicated installation

Optimized output airflow provides more efficient cooling

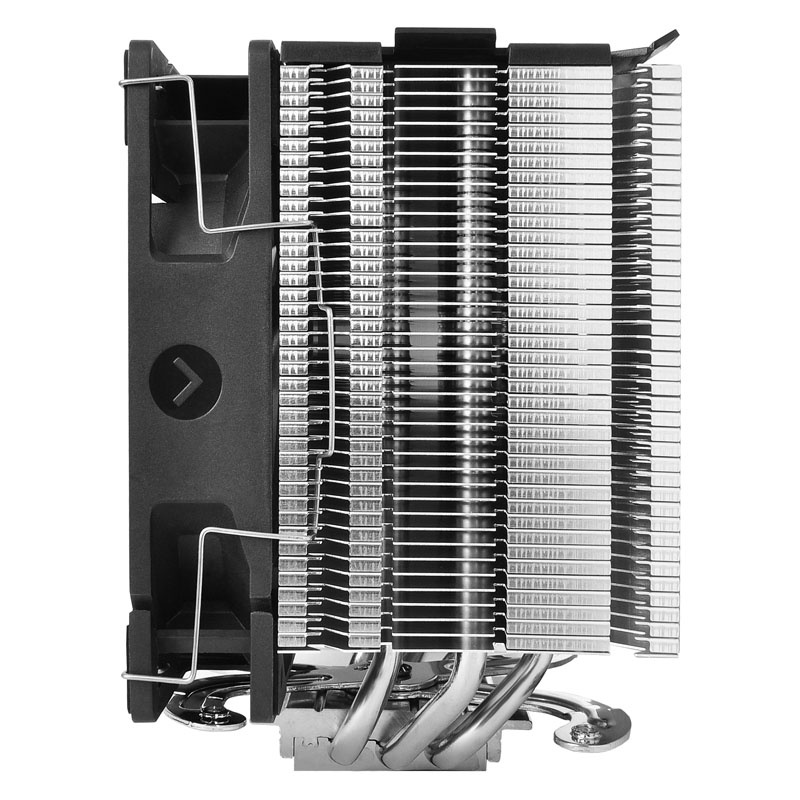

With the H7 CPU cooler, Cryorig relies on three 6 mm thick heat pipes that connect the nickel-plated copper base plate to the heat sink tower. The special feature is the design of the slats. The cooling fins are honeycomb-shaped and narrowed towards the exit. The honeycomb shape prevents turbulence and at the same time ensures that the air flows evenly through the fins. The constriction also ensures an optimized output air flow, which Cryorig calls the Jet Fin Acceleration System. Thus, the heated air can be derived faster from the tower cooler.

With the asymmetric and inclined arrangement of the heat pipes, the heat sink is offset so that it does not protrude above the RAM modules. So memory can be installed with its own large heatsinks. For attachment to the backplate, the Cryorig H5 Universal has an X-bar cross-shaped attachment that is compatible with most sockets from AMD and Intel.

As an effective anti-vibration measure four rubber dampers are embedded in the corners of the 120mm fan. This dampens the vibration transmission of the fans to the slats. The QF120 fan has an exceptionally quiet bearing, so that the noise level of the entire cooler is as low as 25 dB (A). In addition, the QF120 has four additional air vents on the case, which further increase the performance of the fan. Thanks to its outstanding performance and efficiency, the Cryorig H7 CPU tower cooler is suitable for processors with up to 140 watts TDP (Thermal Design Power).

If you register your product with Cryorig, you can extend the manufacturers warranty from three to six years.

Technical details:

    Dimensions: 123 x 145 x 98 (W x H x D)
    Mass:
    Without fan: 577 g
    With fan: 711 g
    Material: nickel plated copper (bottom plate, heatpipes), aluminum (lamellas)
    Color: silver, black
    Heatpipes: 3x 6 mm
    TDP: 140W
    Fan: 1x 120 mm QF120
    Color: Black (Housing), White (Fan)
    Connection: 4-pin PWM
    Speed: 330 to 1,600 rpm
    Volume: max. 25 dB (A)
    Delivery volume: max. 98 m³ / h (XF140)
    Static pressure: max. 1.65 mm H2O (XF140)
    Compatibility:
    Intel Socket 1150, 1151, 1155, 1156
    AMD socket FM1, FM2, FM2 +, AM2, AM2 +, AM3, AM3 +, AM4 (with extension kit)
    Maximum RAM height: unlimited
    Manufacturers warranty: up to 6 years
